OIL FILTER

0001 1 0002 1 0003 1

04152ELEMENT KIT, OIL FILTER

main04152-0V010i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)201501-201912

(L),*347

main04152-31090i2AR#..AGH30,AYH30201501-202001

(J),*347

main04152-31090i2GRFKS..GGH30..Q201801-201907

main04152-31090i2AR#..AGH30,AYH30201812-202001

*524

15620CAP ASSY, OIL FILTER

main15620-31060i2GRFKS..GGH30202108

ALUMINUM

main15620-31060i2GRFE..GGH30201501-202001

main15620-36020i2AR#..AGH30,AYH30202001

PLASTIC

main15620-36020i2GRFKS..GGH30..Q201801-201907

main15620-36020i2GRFKS..GGH30..ALPHD201501-202001

*347

main15620-36020i2AR#..AGH30,AYH30201812-202001

*524

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i2AR#..AGH30,AYH30201801-201907

main90301-79006i2AR#..AGH30,AYH30201501-202001

*347

main90301-79006i2AR#..AGH30,AYH30201812-202001

*524

main96723-35028i2GRFE..GGH30201501-202001

15643PLUG, OIL FILTER DRAIN

main15643-31050i2GR#..GGH30..L,R,V201501-202001

*347

main15643-31050i2AR#..AGH30,AYH30201812-202001

*524

main15643-31050i2AR#..AGH30,AYH30201801-201907

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main90301-79006i2GRFE..GGH30201501-202001

main96723-35028i2AR#..AGH30,AYH30202001

main96723-35028i2AR#..AGH30,AYH30201812-202001

*524

main96723-35028i2AR#..AGH30,AYH30201501-202001

*347

15679CLIP, OIL FILTER BRACKET

main15679-31050i2GRFKS..GGH30201801-202001

main15679-37011i2AR#..AGH30,AYH30..RHD..(G,L,Q,S)201501-202001

*347

main15679-37011i2AR#..AGH30,AYH30202001

main15679-37011i2AR#..AGH30,AYH30201812-202001

*524

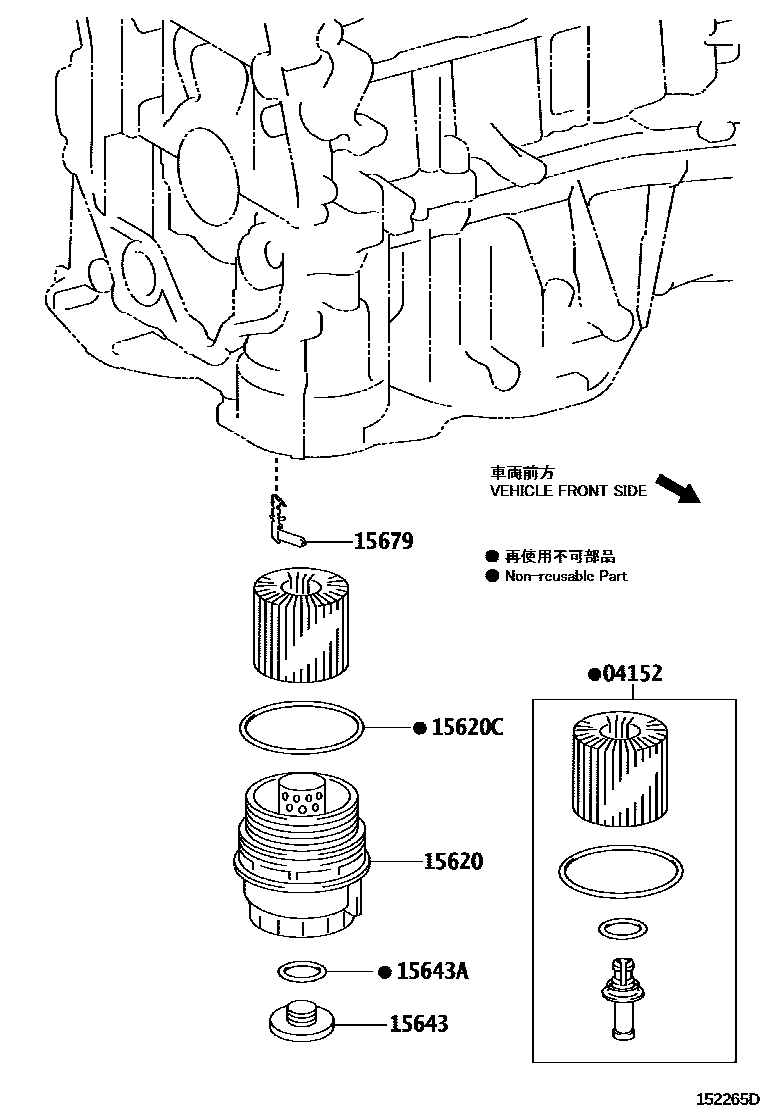

6 parts on this diagram · 3 diagrams in section
