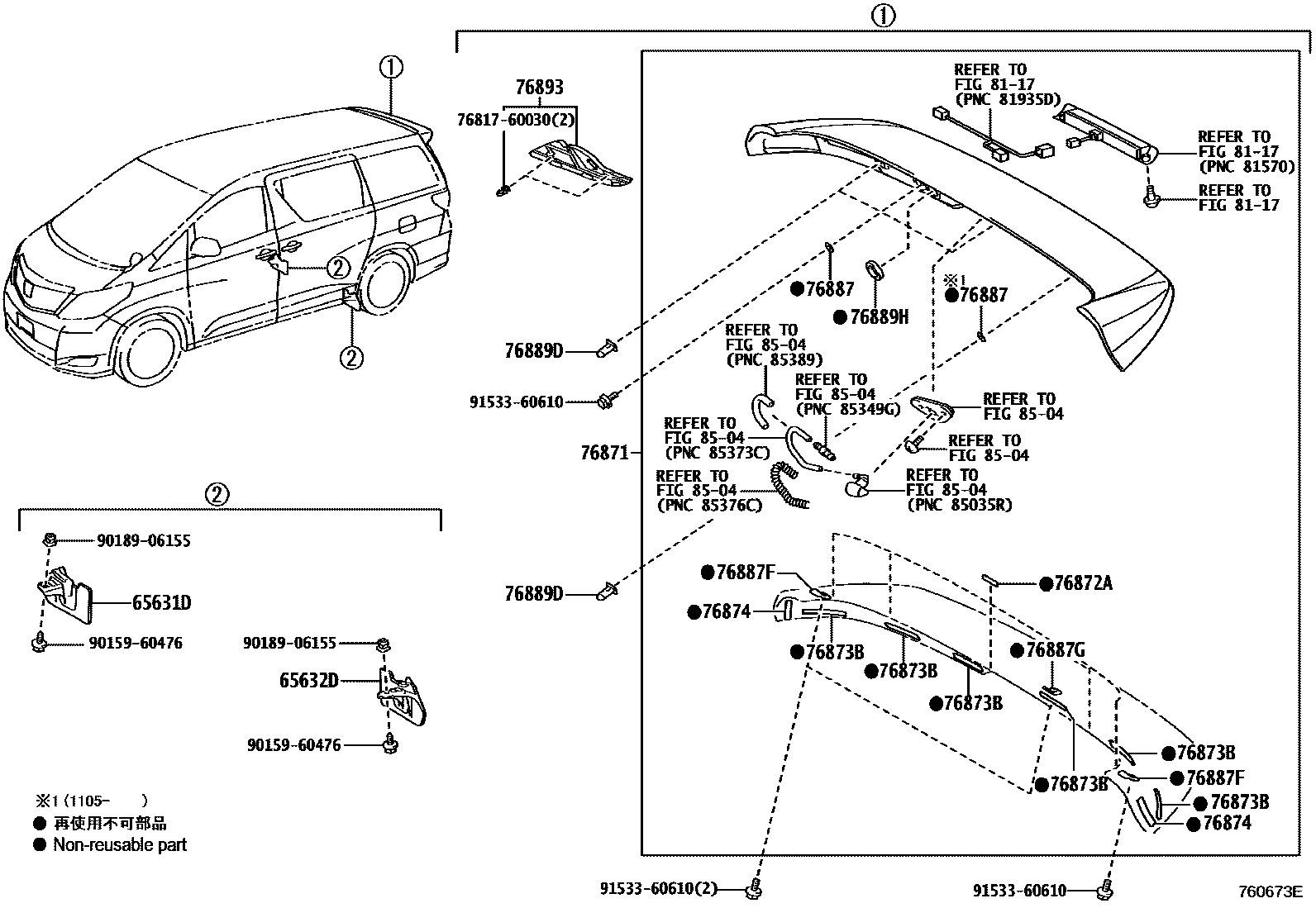

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0003 1 0004 1

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-58010iANH20,GGH20..RHD;ANH20,GGH20..GCC¥2,010200804-201501

main65631-58010iANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD¥2,010201110-201501

TAIWAN SPEC&WITHOUT(COLD AREA SPEC)

main65631-58010iANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD¥2,010201110-201501

PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-58010iANH20,GGH20..RHD;ANH20,GGH20..GCC¥2,010200804-201501

main65632-58010iANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD¥2,010201110-201501

TAIWAN SPEC&WITHOUT(COLD AREA SPEC)

main65632-58010iANH20,GGH20..GCC;ANH20,ATH20,GGH20..RHD¥2,010201110-201501

PHILIPPINES SPEC&WITHOUT(COLD AREA SPEC)

76871SPOILER, REAR

main76085-58030-A0iANH20,GGH20200804-201110

WHITE PEARL CS.,070

sub76085-58901¥67,200

main76085-58030-B0iANH20,GGH20..350S200804-201110

SILVER ME.,1E4

sub76085-58901¥67,200

main76085-58030-B1iANH20,GGH20..350G,350X200804-201110

SILVER ME.,1F7

sub76085-58901¥67,200

main76085-58030-C0iANH20,GGH20200804-201110

BLACK,202

sub76085-58901¥67,200

main76085-58030-D0iGGH20..VFIRE;GGH20..RHD..350G200804-201110

DEEP RED M.M.,3R9

sub76085-58901¥67,200

main76085-58030-E0iANH20..07S;GGH20..350G200804-201110

BEIGE ME.,4T8

sub76085-58901¥67,200

main76085-58030-E1iANH20..07S;GGH20..(350G,350S)..ALPHD200804-201110

GOLD PEARL CS.,4U1

sub76085-58901¥67,200

main76085-58030-J0iANH20..07S;GGH20..(350G,350S)..ALPHD200804-201110

DK.BLUE MC.,8S6

sub76085-58901¥67,200

main76085-58901-A0iANH20,ATH20,GGH20201110-201501

070

sub76085-58904¥40,400

main76085-58901-B0iANH20,ATH20,GGH20..07S..ALPHD201110-201501

1F7

sub76085-58904¥40,400

main76085-58901-B2iANH20..350S201110-201501

1E4

sub76085-58904¥40,400

main76085-58901-C0iANH20,ATH20,GGH20201110-201501

202

sub76085-58904¥40,400

main76085-58901-D0iGGH20..VFIRE201110-201501

3R9

sub76085-58904¥40,400

main76085-58901-E1iANH20..07S;GGH20..350G201110-201501

4U1

sub76085-58904¥40,400

main76085-58901-J2iANH20,GGH20..LHD..(6FC,CVFC)..GEN201110-201501

8P8

sub76085-58904¥40,400

main76085-58901-J3iATH20201112-201501

8Q6

sub76085-58904¥40,400

76872APROTECTOR, REAR SPOILER, NO.1

main76872-58020iANH20,GGH20¥680200804-201501

76873BPROTECTOR, REAR SPOILER, NO.2

main76873-58020iANH20,GGH20¥680200804-201501

76874PROTECTOR, REAR SPOILER, NO.3

main76874-58020iANH20,GGH20¥680200804-201501

76887SEAL, REAR SPOILER

main76887-58010iANH20,GGH20¥680200804-201501

76887FSEAL, REAR SPOILER, NO.2

main76887-58020iANH20,GGH20¥170200804-201501

76887GSEAL, REAR SPOILER, NO.3

main76887-58030iANH20,GGH20¥170200804-201501

76889DCLIP, REAR SPOILER, NO.2

main76889-44020iANH20,GGH20¥160200804-201501

76889HSEAL, REAR SPOILER, NO.1

main76889-28020iANH20,ATH20,GGH20¥120201202-201501

main76889-58030iANH20,GGH20¥160200804-201201

sub76889-28020¥120

76893COVER, REAR SPOILER, NO.1

main76893-58020iANH20,GGH20¥1,060200804-201501

8117

8504

7681760030CLIP, BACK DOOR OUTSIDE GARNISH

main76817-60030¥80

9015960476

main90159-60476¥100

9018906155

main90189-06155¥80

9153360610

main91533-60610¥110

18 parts on this diagram · 4 diagrams in section
