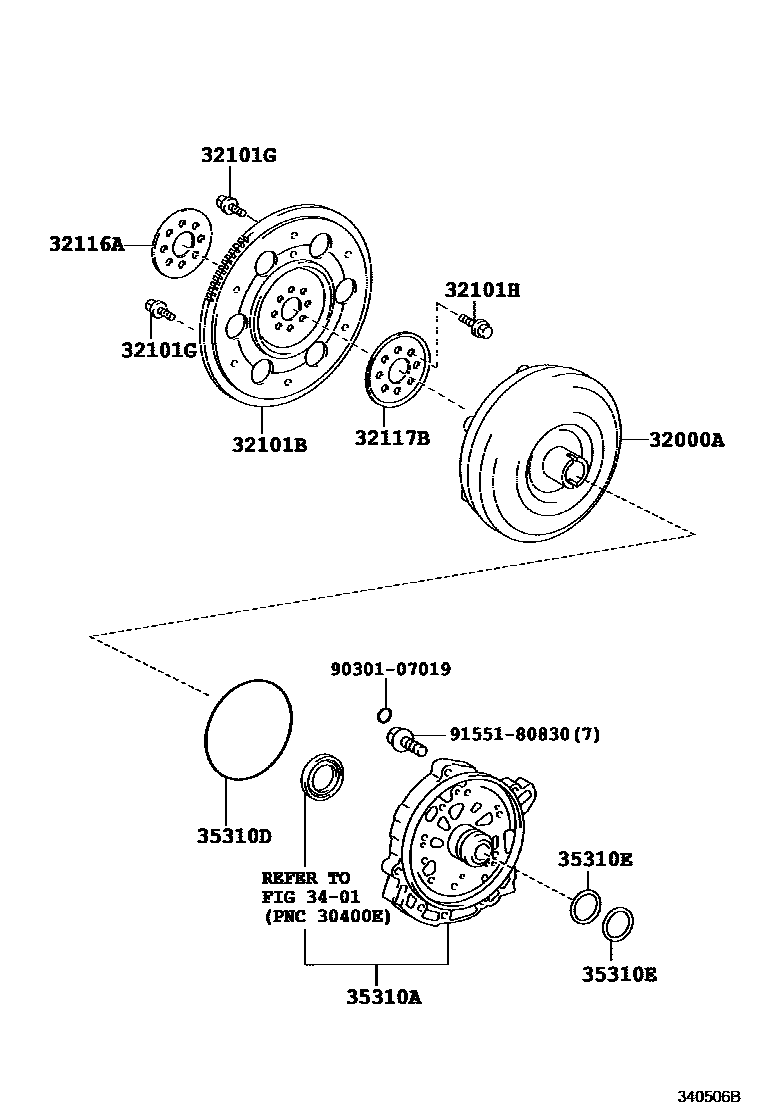

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-42050iANH20..CVFC200906-201110

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-06040iANH20..CVFC201110-201501

(L)

main32101-28040iANH20..CVFC201110-201501

(J)

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iANH20..CVFC200906-201110

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iANH20..CVFC200906-201110

*9-1.25PX12.4-8.4,SILVER WHITE

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-12184×8iANH20..CVFC201110

sub90105-12384

main90105-A0060×8iANH20200906-201005

(L)

32116ASPACER, DRIVE PLATE, FRONT

main32116-20050iANH20..CVFC201110

32117BSPACER, DRIVE PLATE, REAR

main32117-06010iANH20..CVFC201112

(L)

main32117-20060iANH20..CVFC201112

(J)

3401

35310APUMP ASSY, FRONT OIL

main35310-28030iANH20..CVFC201110-201303

main35310-28031iANH20..07S..CVFC201303-201501

35310DRING, O (FOR FRONT OIL PUMP)

main90301-99090iANH20..07S..CVFC201110-201501

35310ESEAL, TYPE T OIL (FOR FRONT OIL PUMP)

main35617-28020×2iANH20..07S..CVFC201211-201501

main35617-44010×2iANH20..CVFC201110-201211

9030107019

main90301-07019

9155180830

main91551-80830

12 parts on this diagram · 1 diagram in section
