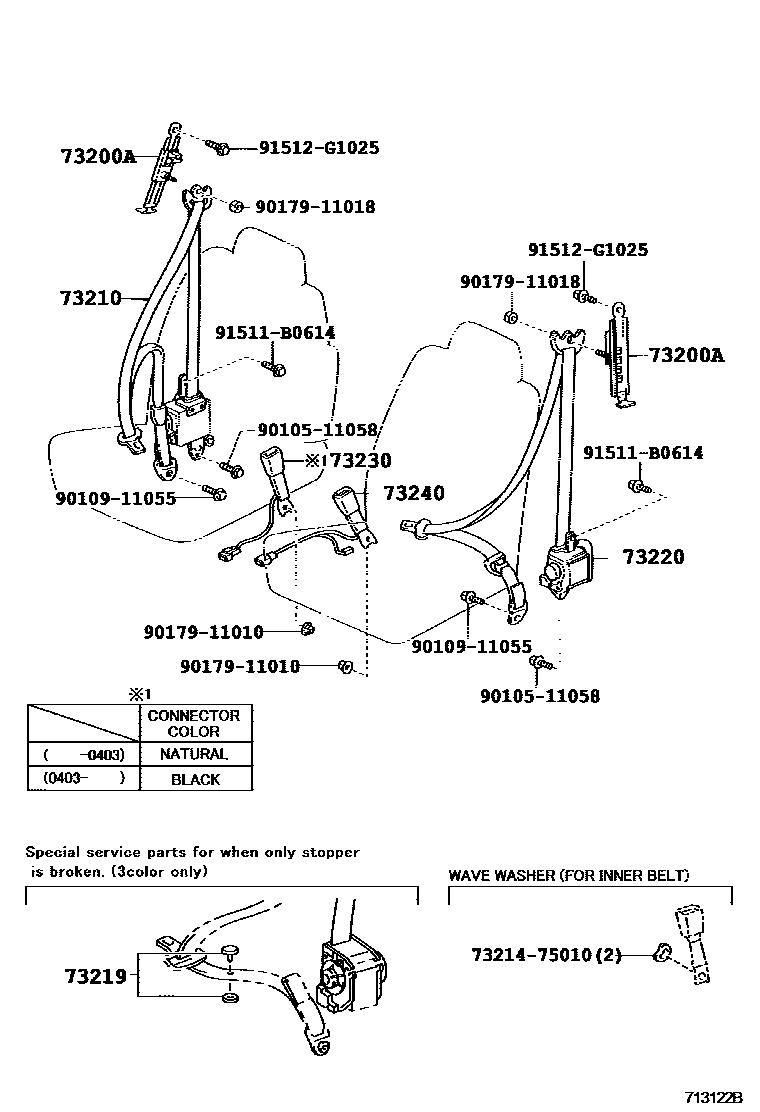

SEAT BELT

0001 1FRONT 0002 1REAR NO.1 0003 1REAR NO.2

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-30080×2iMNH10200504

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-58010-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

main73210-58010-C0iMNH10..MS200312-200504

BLACK,TRIM1#

73219STOPPER, TONGUE PLATE

main73219-33010iMNH10200504

BLACK

main73219-33020iMNH10200312-200504

GRAY

main73219-33030iMNH10200504

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-58010-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main73220-58010-C0iMNH10..MS200312-200504

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-58020-A0iMNH10..MZ200312-200402

IVORY,TRIM0#

main73230-58020-B0iMNH10..MS200312-200402

DK.GRAY,TRIM1#

main73230-58040iMNH10200402-200403

main73230-58040-A0iMNH10..MZ200504-200804

IVORY,TRIM0#

main73230-58040-B0iMNH10..MS200403-200504

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-58010-A0iMNH10..MZ200312-200504

IVORY,TRIM0#

main73240-58010-B0iMNH10..MS200312-200504

DK.GRAY,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010511058

main90105-11058

9010911055

main90109-11055

9017911010

main90179-11010

9017911018

main90179-11018

91511B0614

main91511-B0614

91512G1025

main91512-G1025

13 parts on this diagram · 3 diagrams in section
