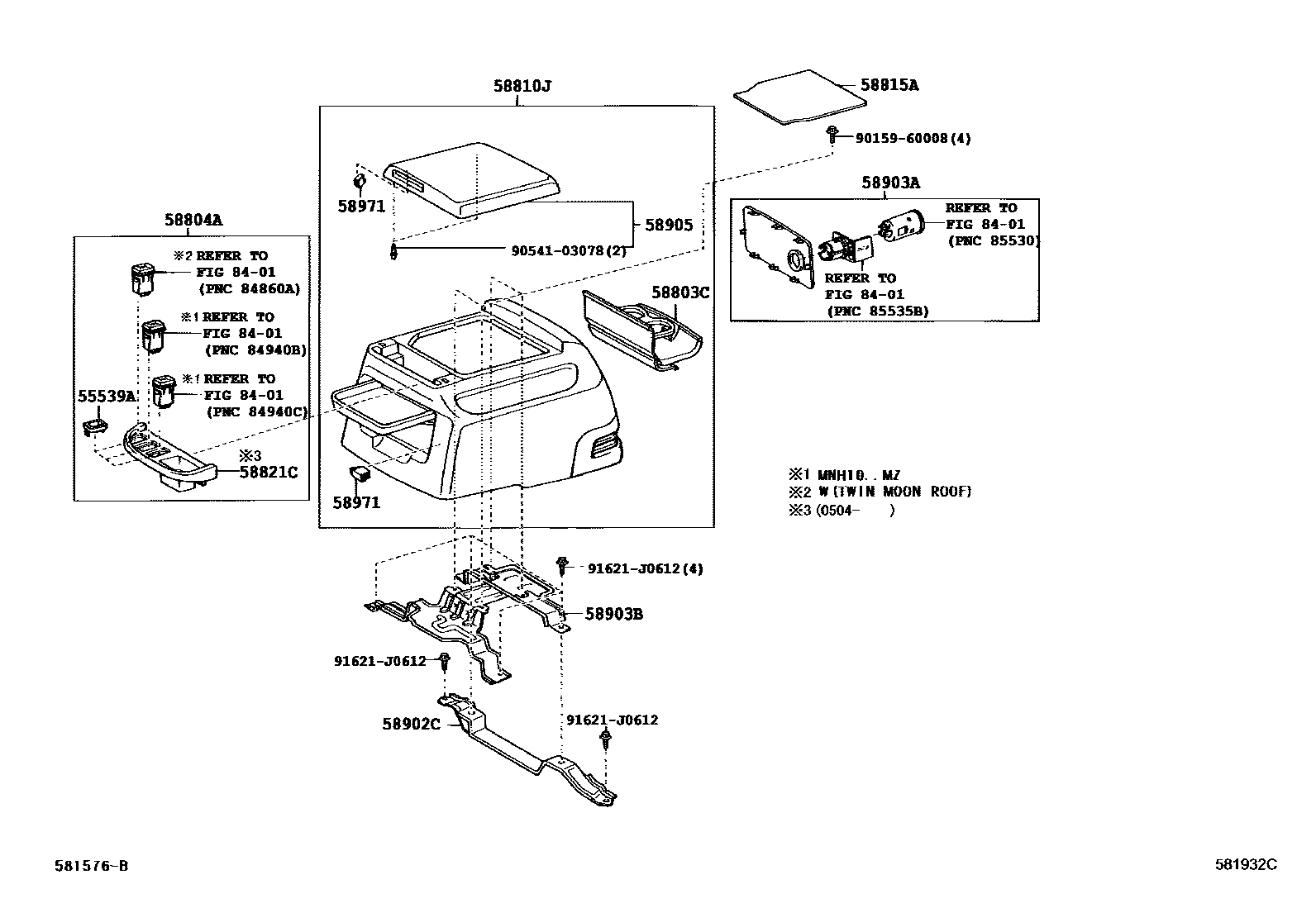

CONSOLE BOX & BRACKET
55539ACOVER, SPARE SWITCH HOLE
58803CBOX SUB-ASSY, CONSOLE CUP HOLDER
IVORY,TRIM0#
IVORY,TRIM0#
STONE,TRIM1#
STONE,TRIM1#
58804APANEL SUB-ASSY, CONSOLE, UPPER
STONE,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
58810JBOX ASSY, CONSOLE
STONE,TRIM1#
STONE,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
58821CPANEL, CONSOLE, UPPER
58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING
58903APANEL SUB-ASSY, CONSOLE REAR END
IVORY,TRIM0#
IVORY,TRIM0#
STONE,TRIM1#
STONE,TRIM1#
58903BBRACKET SUB-ASSY, CONSOLE BOX HINGE, NO.2
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
STONE,TRIM1#
STONE,TRIM1#
IVORY,TRIM0#
IVORY,TRIM0#
58971LOCK, CONSOLE COMPARTMENT DOOR
8401
9015960008
9054103078
91621J0612
15 parts on this diagram · 1 diagram in section
