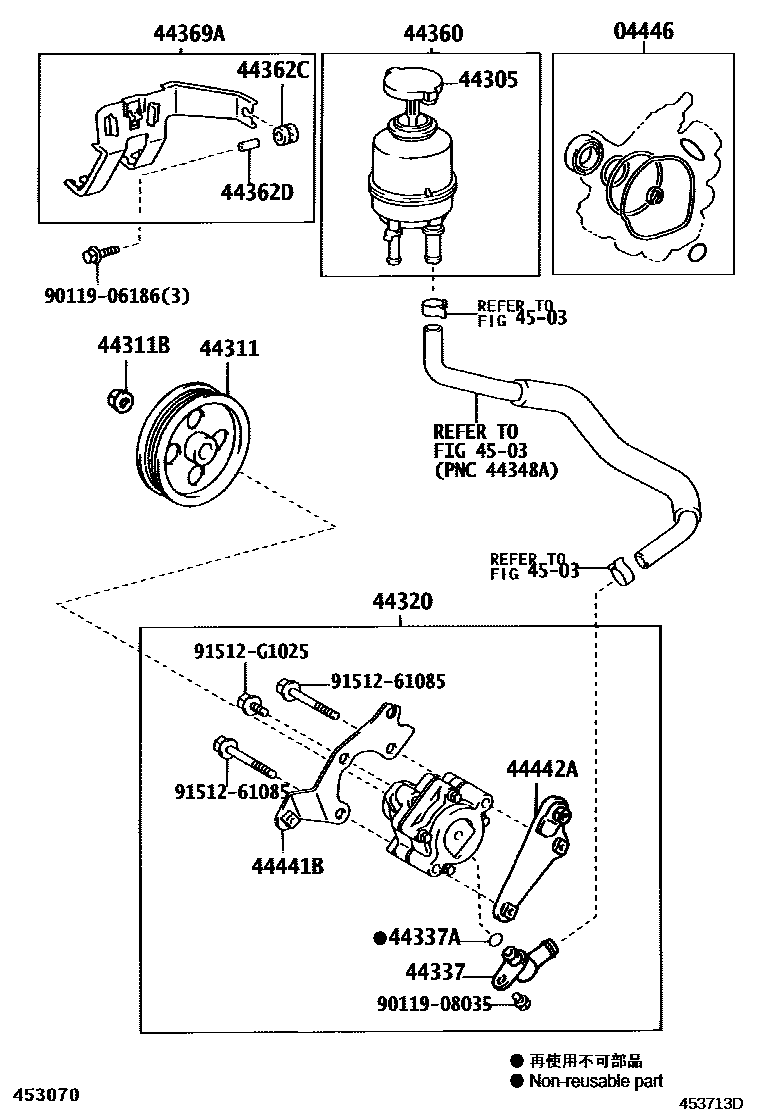

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iMNH10200504-200804

main04446-53030iMNH10200312-200504

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-28030iMNH10200312-200504

main44305-28060iMNH10200802

sub44305-28061

44311PULLEY, VANE PUMP

main44311-28110iMNH10200312-200504

44311BNUT(FOR VANE PUMP PULLEY)

main90178-12003iMNH10200312-200504

44320PUMP ASSY, VANE

main44310-58020iMNH10200504-200804

main44320-58010iMNH10200312-200504

44337UNION, POWER STEERING SUCTION PORT

main44337-28110iMNH10200312-200504

main44337-58010iMNH10200504

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11016iMNH10200312-200504

main90301-11020iMNH10200504

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-28150iMNH10200312-200504

44362CCUSHION(FOR VANE PUMP OIL RESERVOIR)

main90540-09004×3iMNH10200312-200504

44362DSPACER(FOR VANE PUMP OIL RESERVOIR)

main90560-06014×3iMNH10200312-200504

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-28030iMNH10200312-200504

44441BBRACKET, PUMP, FRONT

main44441-28020iMNH10200312-200504

44442ABRACKET, VANE PUMP, REAR

main44442-33021iMNH10200312-200504

4503

9011906186

main90119-06186

9011908035

main90119-08035

9151261085

main91512-61085

91512G1025

main91512-G1025

18 parts on this diagram · 2 diagrams in section
