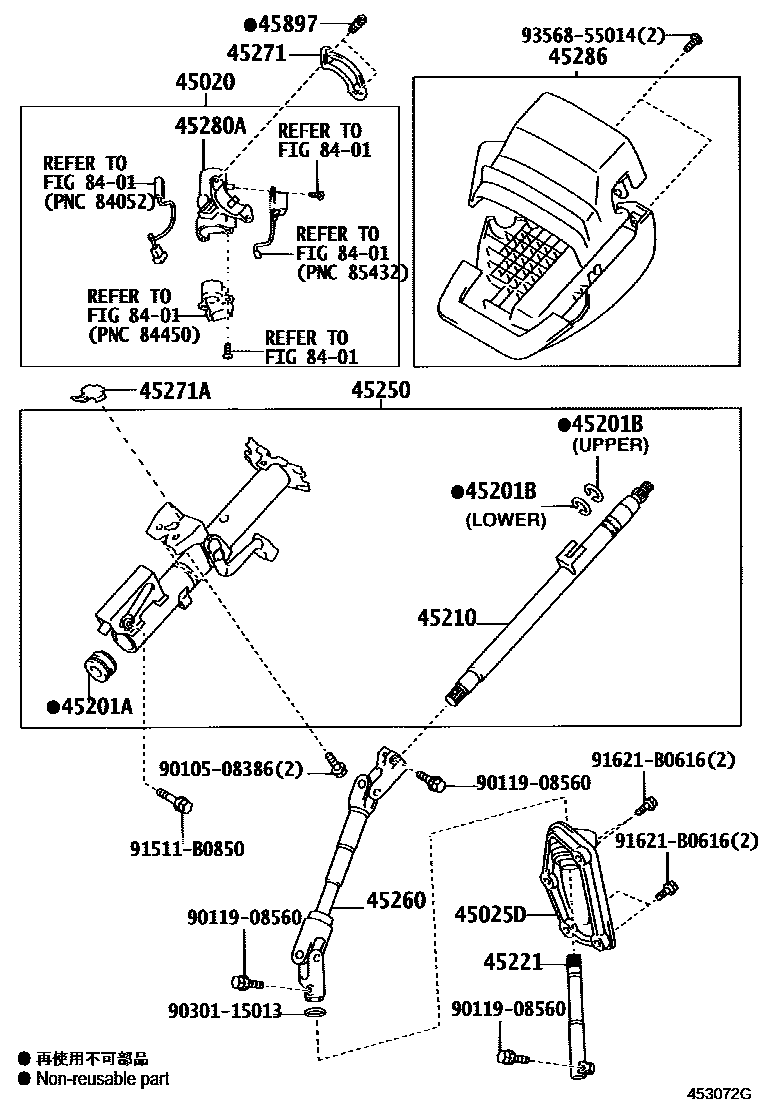

STEERING COLUMN & SHAFT

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-58010iMNH10200504-200804

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-58010iMNH10200312-200504

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-28010iMNH10200312-200504

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iMNH10200312-200504

T=1.20,LOWER

main90520-17269iMNH10200312-200504

T=1.20,UPPER

45210SHAFT ASSY, STEERING MAIN

main45210-28130iMNH10200312-200504

45221SHAFT, STEERING INTERMEDIATE

main45221-58010iMNH10200312-200504

45250COLUMN ASSY, STEERING

main45250-58010iMNH10200312-200504

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-58010iMNH10200312-200504

sub45260-58030

main45260-58030iMNH10200504

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iMNH10200312-200504

45271ACLAMP, STEERING COLUMN, UPPER NO.2

main45271-52010iMNH10200312-200504

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-58010iMNH10200312-200804

45286COVER, STEERING COLUMN

main45286-33921-B0iMNH10..MS200312-200504

DK. GRAY,TRIM1#

sub45286-39901

main45286-33921-E1iMNH10..MZ200312-200504

ORCHID BROWN,TRIM0#

sub45286-39901

45897BOLT, STEERING LOCK SET

main45897-12020iMNH10200312-200504

8401

9010508386

main90105-08386

9011908560

main90119-08560

9030115013

main90301-15013

91511B0850

main91511-B0850

91621B0616

main91621-B0616

9356855014

main93568-55014

20 parts on this diagram · 1 diagram in section
