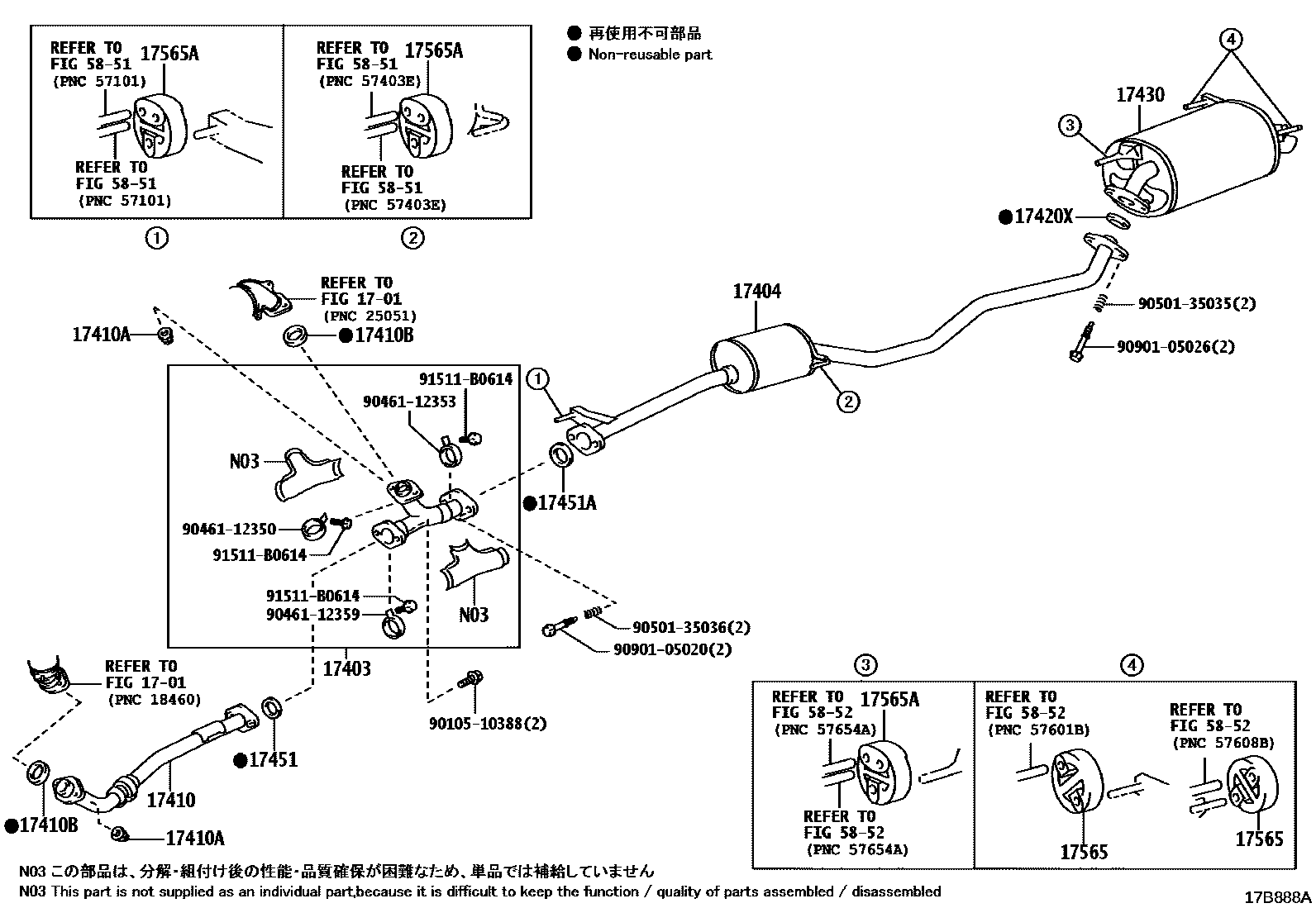

EXHAUST PIPE

1701

17403PIPE SUB-ASSY, EXHAUST, FRONT NO.3

main17403-20140i1MZFE..MNH10200312-200706

main17403-20141i1MZFE..MNH10200706

17404PIPE SUB-ASSY, EXHAUST FORKED

main17404-20070i1MZFE..MNH10200312-200706

main17404-20071i1MZFE..MNH10200706

17410PIPE ASSY, EXHAUST, FRONT

main17401-20100i1MZFE..MNH10200312-200706

main17401-20101i1MZFE..MNH10200706

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i1MZFE..MNH10200312-200504

17410BGASKET, EXHAUST PIPE

main90917-06089i1MZFE..MNH10200312-200504

17420XGASKET, EXHAUST PIPE, CENTER

main17451-21010i1MZFE..MNH10200609

main17451-54010i1MZFE..MNH10200312-200608

17430PIPE ASSY, EXHAUST, TAIL

main17405-20030i1MZFE..MNH10..MZ200312-200706

sub17405-20031

main17405-20031i1MZFE..MNH10..MZ200706

main17405-20040i1MZFE..MNH10..MS200312-200505

main17405-20041i1MZFE..MNH10..MS200505

17451GASKET, EXHAUST PIPE

main90917-06045i1MZFE..MNH10200504

main90917-06047i1MZFE..MNH10200312-200504

sub90917-06045

17451AGASKET, EXHAUST PIPE, NO.2

main17451-20020i1MZFE..MNH10200312-200804

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-15140i1MZFE..MNH10200312-200504

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-74320i1MZFE..MNH10200312-200504

5851

5852

9010510388

main90105-10388

9046112350

main90461-12350

9046112353

main90461-12353

9046112359

main90461-12359

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

91511B0614

main91511-B0614

23 parts on this diagram · 1 diagram in section
