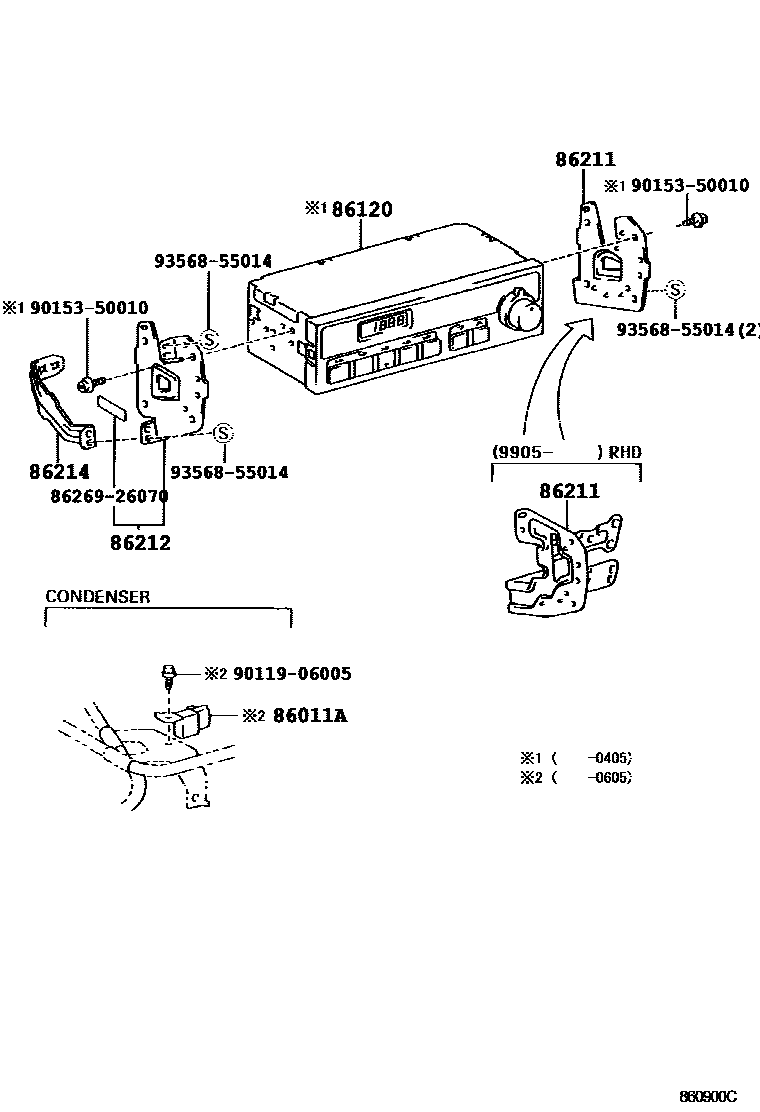

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER,BRACKET & CONDENSER 0002 1KNOB,RADIO RECEIVER

86011ACONDENSER, RADIO SETTING

main90980-04077iRCH1#,2#..03S,05S,06S,09S199508-200605

86120RECEIVER ASSY, RADIO

main86120-10460iRCH12,22199907-200311

MATSUSHITA, ID=52202,TYPE E:REFER TO ILLUSTRATION

main86120-1A020iRCH12..ARL199508-199907

FUJITSU TEN,ID=12201,TYPE C:REFER TO ILLUSTRATION

main86120-32111iLXH12,RCH12..EUR199508-199608

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

main86120-35080iRCH12,22199508-200311

MATSUSHITA,ID=52100,TYPE A:REFER TO ILLUSTRATION

sub86120-60N00

main86120-60220iRCH13..MTM;KLH1#,2#,RCH19,23,29199608-200405

FUJITSU TEN,ID=13302,TYPE D:REFER TO ILLUSTRATION

86211BRACKET, RADIO, NO.1

main86211-26030iLXH1#,2#,RCH1#,2#199508-200908

main86211-26070iLXH12,22,RCH12,13..RHD..03S199905-200908

86212BRACKET, RADIO, NO.2

main86212-26030iLXH1#,2#,RCH1#,2#199508-200908

86214BRACKET, RADIO, NO.4

main86214-26010iLXH1#,2#,RCH1#,2#199508-200908

8626926070PAD, SPEAKER

main86269-26070

9011906005

main90119-06005

9015350010

main90153-50010

9356855014

main93568-55014

9 parts on this diagram · 2 diagrams in section
