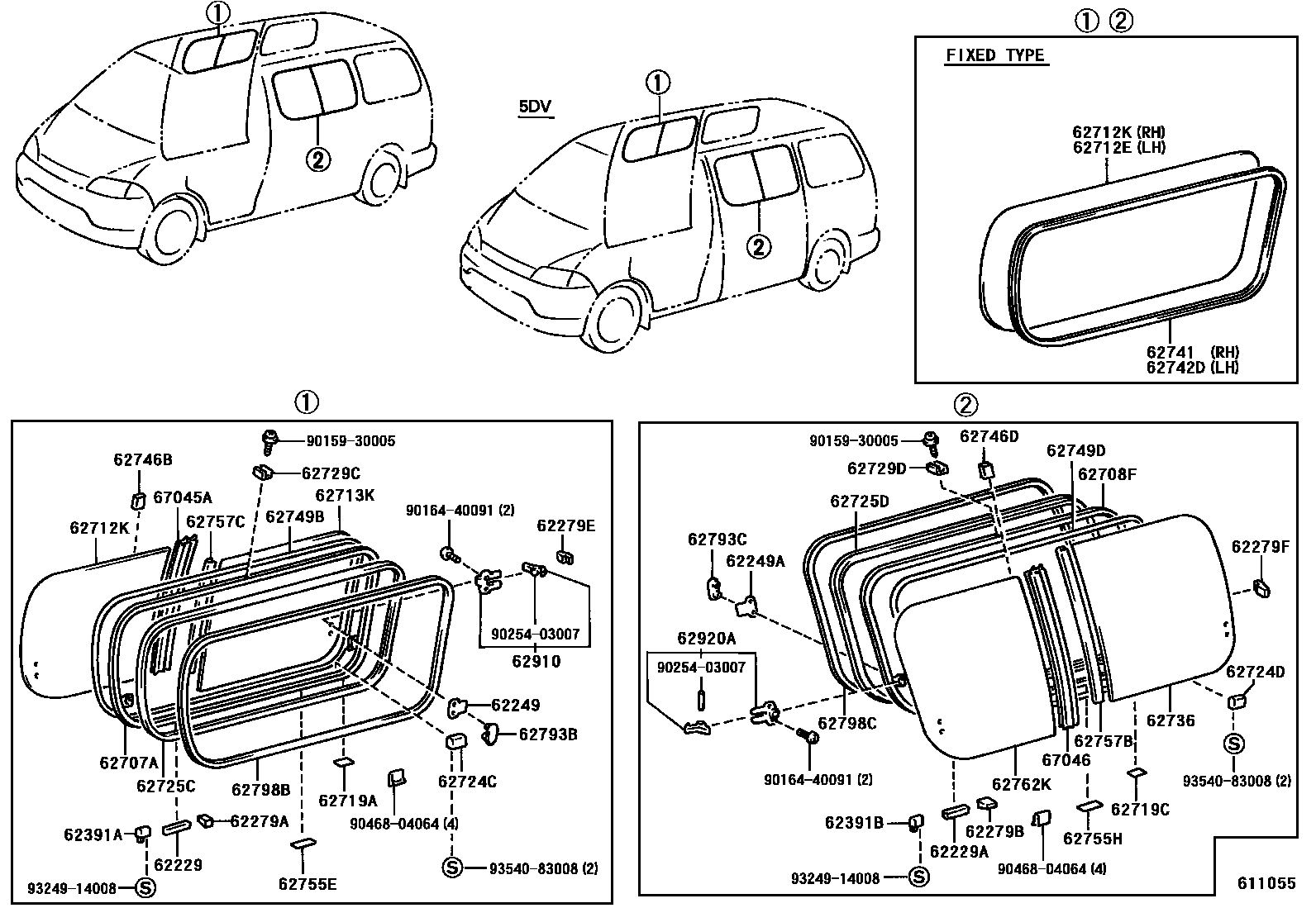

SIDE WINDOW
62229PACKING, SIDE WINDOW
62229APACKING, SIDE WINDOW, NO.2
62249PLATE, SIDE WINDOW, RH
62249APLATE, SIDE WINDOW, LH
62279ASPACER, SIDE WINDOW FRAME
62279BSPACER, SIDE WINDOW FRAME, LH
main62279-26040iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-201010
PORTUGAL SPEC
62279ESPACER, SIDE WINDOW FRAME
main62279-26030iLXH12..SG;RCH19..STD;LXH12..5DV..03S;LXH22..RHD..5DV;LXH12..LHD..4DV..SP;LXH18,2#,RCH12,13,18,2#..LHD199508-200608
62279FSPACER, SIDE WINDOW FRAME
main62279-26030iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-200608
62391ASTOPPER, SIDE WINDOW, NO.1 FRONT RH
62391BSTOPPER, SIDE WINDOW, NO.1 FRONT LH
main62391-28010iRCH13..ATM;LXH12..RHD;LXH22..5DV;LXH22..RHD..4DV;LXH1#,28..LHD..5DV;LXH12,22..LHD..4DV..SG199508-200608
62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH
62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH
62712EGLASS, SIDE FRONT WINDOW, LH
*TEM,T=3.5,GREEN
62712KGLASS, SIDE WINDOW, FRONT RH
*TEM,T=3.5,CLEAR
sub62732-26120
*TEM,T=3.5,CLEAR,W(SLIDE GLASS)
sub62732-26120
*TEM,T=3.5,CLEAR,W(SLIDE GLASS)
sub62732-26130
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN,W(SLIDE GLASS)
*TEM,T=3.5,GREEN,W(SLIDE GLASS)
*TEM,T=3.5,GREEN,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION;W(SLIDE GLASS)
*TEM,T=3.5,GREEN,GERMANY SPEC
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
*UVCT,T=3.5,GREEN,GERMANY SPEC
*UVCT,T=3.5,GREEN
62713KGLASS, SIDE WINDOW, REAR RH
*TEM,T=3.5,GREEN
*UVCT,T=3.5,GREEN
*TEM,T=3.5,CLEAR,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
sub62735-26130
main62735-26120iLXH12..5DV;LXH12..05S;LXH22..RHD..5DV;LXH12..LHD..4DV..STD;LXH18,2#,RCH1#,2#..LHD..(03S,05S,06S)199608-200808
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN,GERMANY SPEC
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN,GERMANY SPEC
62719APACKING, SIDE FRONT WINDOW, UPPER
62719CPACKING, SIDE FRONT WINDOW
main62719-26010iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-201010
PORTUGAL SPEC
62724CSTOP, SIDE FRONT WINDOW GLASS, RH
62724DSTOP, SIDE FRONT WINDOW GLASS, LH
main62724-26010iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-200608
62729CPAD, REAR WINDOW CENTER SASH, RH
main62729-90K01iLXH12..5DV;LXH12..05S;LXH12..RHD..DX;LXH22..RHD..5DV;LXH12..LHD..4DV..STD;LXH18,2#,RCH1#,2#..LHD..(03S,05S,06S)199508-200608
62729DPAD, REAR WINDOW CENTER SASH, LH
main62729-90K01iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-200608
62736GLASS, SLIDE DOOR WINDOW, REAR LH
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN
*TEM,T=3.5,CLEAR,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
sub62736-26110
main62736-26100iLXH22..5DV;LXH12..RHD..STD;LXH22..RHD..4DV;RCH13..ATM..STD;LXH1#,28..LHD..5DV199608-200808
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN,GERMANY SPEC
*TEM,T=3.5,GREEN,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
*TEM,T=3.5,GREEN
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN,GERMANY SPEC
62741WEATHERSTRIP, QUARTER WINDOW, RH
62742DWEATHERSTRIP, SIDE FRONT WINDOW, LH
62746BPACKING, QUARTER WINDOW, RH
62746DPACKING, QUARTER WINDOW, LH
main62746-26020iLXH12,22,RCH12,13..RHD..EUR;LXH18,28,RCH18,19,28,29..DX,STD;LXH12,22,RCH12,13,22,23..LHD..5DV;LXH12,22,RCH12,13,22,23..LHD..4DV..SG..(DX,STD)199508-200608
62755EPACKING, SIDE FRONT WINDOW, LOWER
62755HPACKING, SIDE FRONT WINDOW, LOWER
main62755-95702iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-200608
62757BPROTECTOR, SIDE WINDOW GLASS, NO.2
THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
62757CPROTECTOR, SIDE WINDOW GLASS, RH
THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
62762KGLASS, SIDE DOOR WINDOW, FRONT LH
*TEM,T=3.5,CLEAR
sub62712-26120
*TEM,T=3.5,CLEAR,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
sub62712-26130
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN,*FRG
*TEM,T=3.5,GREEN
*TEM,T=3.5,GREEN,THE FEDERAL REPUBLIC OF GERMANY SPECIFICATION
*TEM,T=3.5,GREEN,GERMANY SPEC
*UVCT,T=3.5,GREEN
*UVCT,T=3.5,GREEN,GERMANY SPEC
62793BRETAINER, SIDE WINDOW LOCK, RH
62793CRETAINER, SIDE WINDOW LOCK, LH
main62793-95J01iRCH13..ATM;LXH12..RHD;LXH22..5DV;LXH22..RHD..4DV;LXH1#,28..LHD..5DV;LXH12,22..LHD..4DV..SG199508-200608
62910LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62920LOCK ASSY, QUARTER WINDOW, LH
62920ALOCK ASSY, SIDE FRONT WINDOW, LH
main62910-95703iLXH18,28,RCH18,28;LXH12,22,RCH12,22..5DV;LXH12,22,RCH12..RHD..EUR;LXH12,22,RCH12,22..4DV..SG199508-200808
67045AFRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER RH
main67045-26010iLXH12..SG;LXH12..5DV..03S;LXH22..RHD..5DV;LXH12..LHD..4DV..SP;LXH18,2#,RCH1#,2#..LHD199508-200608
67046FRAME SUB-ASSY, SIDE FRONT WINDOW, CENTER LH
main67046-26010iLXH12,22,RCH12,13..RHD..EUR;LXH18,28,RCH18,19,28,29..DX,STD;LXH12,22,RCH12,13,22,23..LHD..5DV;LXH12,22,RCH12,13,22,23..LHD..4DV..SG..(DX,STD)199508-200608
9015930005
main90159-30005
9016440091
main90164-40091
9025403007
main90254-03007
9046804064
main90468-04064
9324914008
main93249-14008
9354083008
main93540-83008
50 parts on this diagram · 2 diagrams in section
