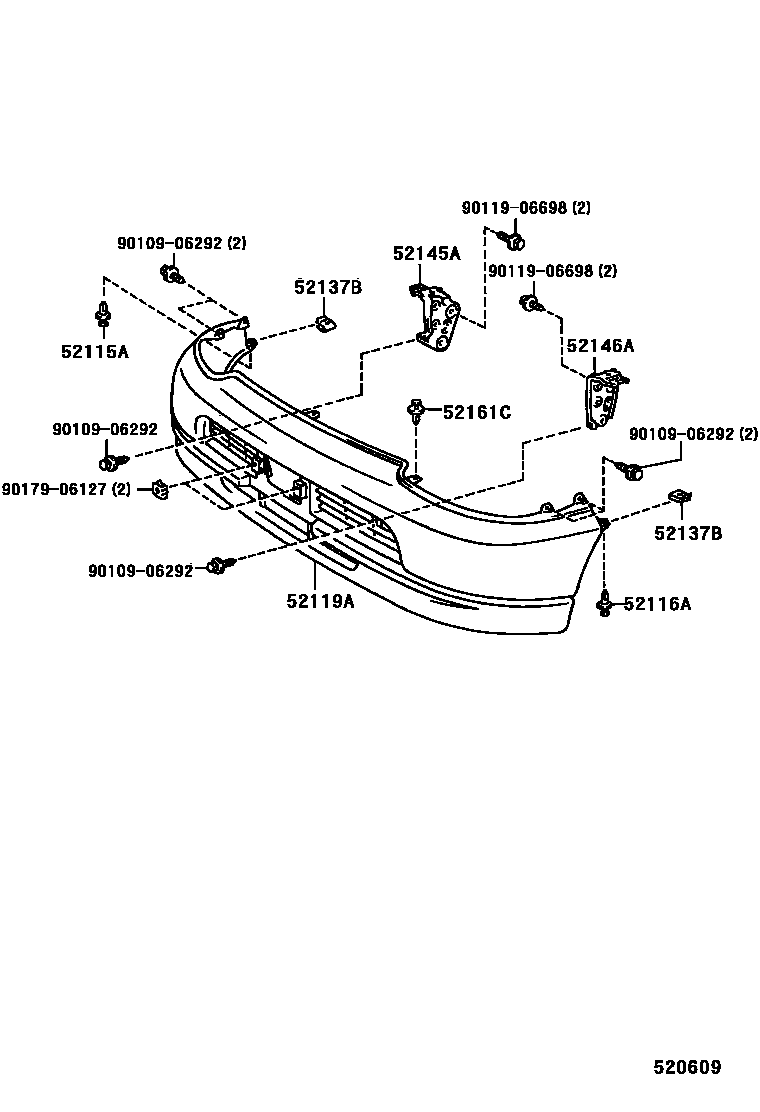

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26040iKLH1#,2#,LXH1#,2#,RCH1#,2#199508-200611

main90467-09227iKLH1#,2#200612

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52115-26040iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

52119ACOVER, FRONT BUMPER

main52119-26150iRCH12,22199508-200608

main52119-26160iKLH1#,2#..LHD199508-200608

UNPAINTED & W(HEADLAMP CLEANER)

main52119-26590iKLH1#,2#200608-201111

main52119-26600iKLH12,2#..LHD;KLH18..03S,08S200608-201111

W(HEADLAMP CLEANER)

main52119-26902iLXH12,RCH12,13..05S199508-200608

W(PAINTED BUMPER & HEADLAMP CLEANER)

52137BPLATE, FRONT BUMPER BRACKET, NO.1

main52116-26080iKLH1#,2#200608

main52137-26020iKLH1#,2#,LXH1#,2#,RCH1#,2#199508-200608

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-26020iLXH1#,2#;RCH13..ATM199508-200608

main52145-26050iKLH1#,2#200608

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-26020iLXH1#,2#;RCH13..ATM199508-200608

main52146-26050iKLH1#,2#200608

52161CPIECE, FRONT BUMPER

main52161-16010iRCH13,19,23,29..MTM200003-200608

main52161-44010-C0iLXH12,RCH13,19..GL200002-200003

BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5

main52161-44010-C0iLXH12,RCH13,19..GL200002-200003

BLACK,058 ,199 ,3L5 ,6P2 ,705 ,8E5 ,8K8

9010906292

main90109-06292

9011906698

main90119-06698

9017906127

main90179-06127

10 parts on this diagram · 2 diagrams in section
