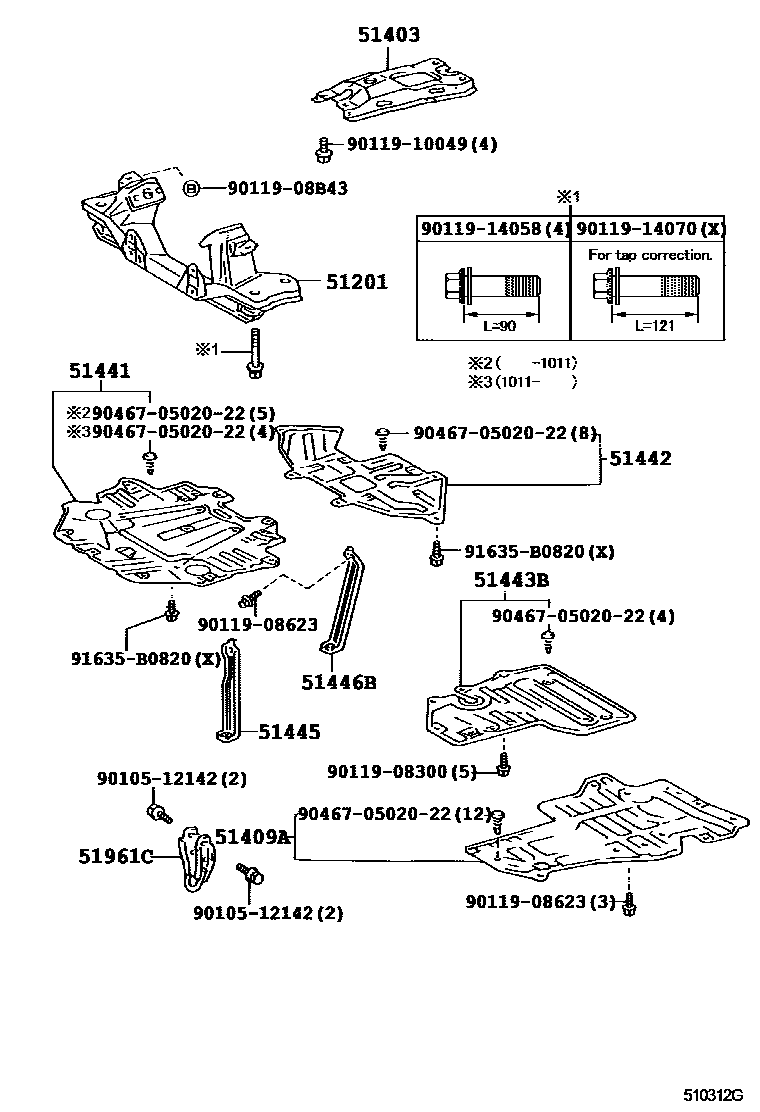

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-26100iKLH12,22..LHD199508-200608

main51201-26110iRCH12,13,22,23..LHD199508-200605

main51201-26120iKLH12,22..RHD199508-200608

main51201-26130iRCH12,22199508-200605

main51210-26010iRCH19,29199608-200605

main51210-26020iKLH18,28199608-200808

sub51210-26021

main51210-26021iKLH18,28200808

51403BRACKET SUB-ASSY, ENGINE REAR MOUNTING

main51403-26060iLXH12..ATM;LXH12,RCH12..DSL,EFI199508-200605

main51403-26070iLXH12,22..MTM..TD199508-200108

main51403-26080iRCH18199608-199804

main51403-26090iLXH18,28199608-200605

main51403-26100iLXH22..ATM;LXH22,RCH22..DSL,EFI199703-199705

sub51403-26060

main51403-26110iLXH22..MTM..TD199703-199705

sub51403-26070

main51403-26120iRCH28199703-199705

sub51403-26080

main51403-26180iLXH28199703-199705

main51403-26200iKLH12,22..HDCR200108-200608

main51403-26210iKLH18,28200108-200608

main51403-26220iKLH12,22..DCR200108-200608

51409ACOVER SUB-ASSY, ENGINE UNDER, NO.4

main51409-26060iLXH12,RCH12..(03S,09S)..DX..(DSL,EFI)199508-199703

sub51409-26061

sub51446-26041

main51409-26061iRCH13,23..MTM..(DX,GL)199703-201010

main51409-26080iRCH18..DX199608-199703

sub51409-26081

sub51446-26041

main51409-26081iRCH18..DX199703-199804

main51409-26082iRCH19..GL199804-201010

51441COVER, ENGINE UNDER, NO.1

main51405-26050iLXH12,22,RCH13,23..(03S,09S)..MTM..DX199508-200608

main51405-26060iLXH12..05S;LXH12,22,RCH22..MTM..STD;RCH12..(03S,05S,06S)..MTM..EUR199508-199910

sub51405-26050

main51405-26070iRCH19,29199608-200608

main51441-26100iLXH18,28,RCH19,29..STD199804-199907

sub51405-26070

51442COVER, ENGINE UNDER, NO.2

main51406-26050iLXH12,22..MTM..(DX,GL)199508-201010

main51406-26060iRCH18..DX199608-199804

main51406-26061iRCH19,29199804-201010

51443BCOVER, ENGINE UNDER, NO.3

main51407-26020iRCH12..09S199508-199804

main51407-26021iRCH19..DX199804-200605

main51408-26060iKLH18..GL200808-201010

51445BRACKET, ENGINE UNDER COVER

main51445-26040iRCH12..09S199508-199804

main51445-26041iRCH19..DX199804-200605

main51445-26080iKLH18..GL200808-201010

51446BBRACKET, ENGINE UNDER COVER, NO.2

main51446-26040iLXH12,RCH12..(03S,09S)..DX..(DSL,EFI)199508-199703

main51446-26041iLXH12,22,RCH1#,22,23..09S..MTM..(EFI,TD)199703-201010

51961CHOOK, FRONT

main51961-26130iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S199508-200608

9010512142

main90105-12142

9011908300

main90119-08300

9011908623

main90119-08623

9011908B43

main90119-08B43

9011910049

main90119-10049

9011914058

main90119-14058

9011914070

main90119-14070

904670502022

main90467-0502022

91635B0820

main91635-B0820

18 parts on this diagram · 2 diagrams in section
