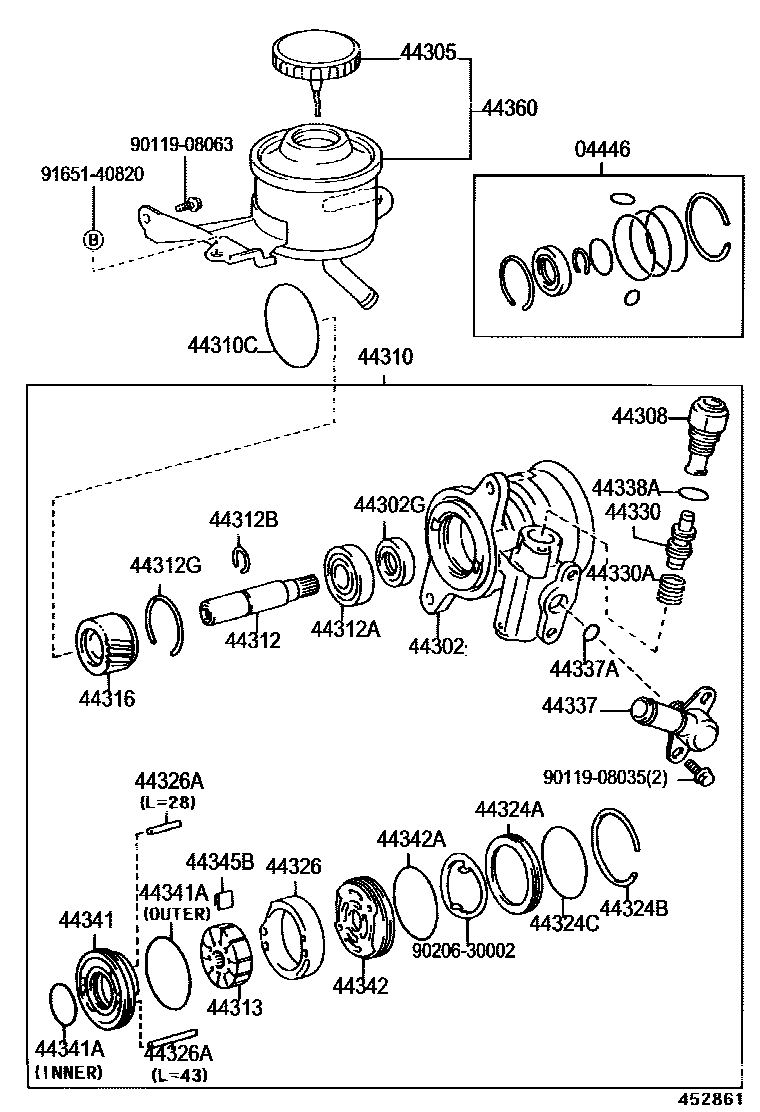

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26050iKLH1#,2#¥1,810200108-200401

main04446-30120iRCH12,22¥2,530199508-200501

main04446-35070iKLH1#,2#¥1,280200405-201111

main04446-60210iRCH1#,2#¥2,490200501-200605

44302HOUSING SUB-ASSY, VANE PUMP, FRONT

main44302-26012iLXH1#,2#¥19,900199508-200311

main44302-26020iKLH1#,2#¥16,900200108-200405

main44302-34010iRCH13..ATM¥19,900199804-200605

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-17007iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥190199508-200412

main90311-17011iRCH1#,2#¥310200501-200605

main90316-17004iKLH1#,2#¥500200108-200608

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iRCH13,19,23,29..MTM¥1,940199508-200801

sub44305-22060¥1,940

main44305-22060iKLH1#,2#¥1,940200802-201111

sub44305-22061¥1,240

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26041iRCH13..RHD¥1,690199508-200108

main44308-26080iKLH1#,2#¥1,430200108-200405

main44308-26100iRCH13..ATM¥1,690199907-200605

main44308-26120iKLH1#,2#¥1,300200405-201111

44310PUMP ASSY, VANE

main44310-26200iKLH1#,2#¥94,600200108-200405

main44310-26390iKLH1#,2#¥81,600200405-201111

44310CRING, O(FOR VANE PUMP)

main90301-60002iKLH1#,2#¥530200108-201111

44312SHAFT, VANE PUMP

main44312-26020iLXH1#,2#;RCH13..ATM¥1,720199508-200605

main44312-60020iKLH1#,2#¥770200108-200405

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17008iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥1,240199508-199910

sub90363-17013¥1,240

main90363-17013iRCH13,19,23,29..MTM¥1,240199907-200605

main90363-17016iKLH1#,2#¥1,240200108-200608

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-15001iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥240199508-199910

sub90520-15005¥80

main90520-15005iLXH1#,2#;RCH13..ATM¥80199907-200608

44312GRING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)

main90520-38016iKLH1#,2#¥50200108-200608

main90521-44002iRCH12,22¥580199508-200605

44313ROTOR, VANE PUMP

main44313-26060iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥7,700199508-200605

NO MARK

main44313-26070iRCH13,19,23,29..MTM¥7,700199508-200605

MARK 1

main44313-26080iRCH12,22¥7,700199508-200605

MARK 2

main44313-26090iKLH1#,2#¥7,700199508-200605

MARK 3

main44313-26100iRCH13,19,23,29..MTM¥7,700199508-200605

MARK 4

main44313-32060iKLH1#,2#¥5,900200405-200608

NO MARK

main44313-32070iKLH1#,2#¥5,900200405-200608

MARK 1

main44313-32080iKLH1#,2#¥5,900200405-200608

MARK 2

main44313-32090iKLH1#,2#¥5,900200405-200608

MARK 3

main44313-32100iKLH1#,2#¥5,900200405-200608

MARK 4

44316GEAR, VANE PUMP

main44316-60030iKLH1#,2#¥670200108-201111

44324AHOUSING, PUMP, REAR

main44324-26031iRCH12,22¥4,180199508-200311

main44324-28030iLXH1#,2#¥2,510199508-200108

main44324-34010iRCH13..ATM¥4,090199804-200605

main44324-60040iKLH1#,2#¥4,370200108-200405

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iKLH1#,2#¥220200108-200405

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-53007iKLH1#,2#¥240200108-200405

44326RING, CAM(FOR VANE PUMP)

main44325-12270iKLH1#,2#¥4,350200108-200111

NO MARK

main44325-12280iKLH1#,2#¥4,350200108-200111

MARK 1

main44325-12290iKLH1#,2#¥4,350200108-200111

MARK 2

main44325-12300iKLH1#,2#¥4,350200108-200111

MARK 3

main44325-12310iKLH1#,2#¥4,350200108-200111

MARK 4

main44325-32270iLXH1#,2#;RCH13..ATM¥6,700199508-200605

NO MARK

main44325-32280iRCH12,22¥6,700199508-200605

MARK 1

main44325-32290iRCH12,22¥6,700199508-200605

MARK 2

main44325-32300iRCH13,19,23,29..MTM¥6,700199508-200605

MARK 3

main44325-32310iLXH1#,2#;RCH13..ATM¥6,700199508-200605

MARK 4

main44325-32340iKLH1#,2#¥5,700200405-200608

NO MARK

main44325-32350iKLH1#,2#¥5,700200405-200608

MARK 1

main44325-32360iKLH1#,2#¥5,700200405-200608

MARK 2

main44325-32370iKLH1#,2#¥5,700200405-200608

MARK 3

main44325-32380iKLH1#,2#¥5,700200405-200608

MARK 4

main44325-35060iKLH1#,2#¥4,540200111-200405

NO MARK

main44325-35070iKLH1#,2#¥4,540200111-200405

MARK 1

main44325-35080iKLH1#,2#¥4,540200111-200405

MARK 2

main44325-35090iKLH1#,2#¥4,540200111-200405

MARK 3

main44325-35100iKLH1#,2#¥4,540200111-200405

MARK 4

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iKLH1#,2#¥150200108-200405

L=28,OD=4.0

main90250-04049iKLH1#,2#¥190200108-200405

L=43,OD=4.0

main90250-04071iLXH1#,2#;RCH13..ATM¥110199508-200605

L=23.3,OD=4.0

44330VALVE ASSY, FLOW CONTROL

main44330-25010iKLH1#,2#¥8,800200405-200608

MARK A

main44330-25020iKLH1#,2#¥8,800200405-200608

MARK B

main44330-25030iKLH1#,2#¥8,800200405-200608

MARK C

main44330-26011iRCH12,22¥8,700199508-200605

MARK A

main44330-26021iLXH1#,22,RCH1#,2#..03S,05S,06S,09S¥8,700199508-200605

MARK B

main44330-26031iRCH12,22¥8,700199508-200605

MARK C

main44330-26041iLXH1#,22;RCH13..ATM¥8,700199508-200605

MARK D

main44330-26051iLXH1#,22;RCH13..ATM¥8,700199508-200605

MARK E

main44330-26061iLXH1#,22,RCH1#,2#..03S,05S,06S,09S¥8,700199508-200605

MARK F

main44330-26071iLXH28¥8,500199703-200108

MARK A

main44330-26081iLXH28¥8,500199703-200108

MARK B

main44330-26091iLXH28¥8,500199703-200108

MARK C

main44330-26101iLXH28¥8,500199703-200108

MARK D

main44330-26111iLXH28¥8,500199703-200108

MARK E

main44330-26121iLXH28¥8,500199703-200108

MARK F

main44330-26190iKLH1#,2#¥5,900200108-200405

MARK A

main44330-26200iKLH1#,2#¥5,900200108-200405

MARK B

main44330-26210iKLH1#,2#¥5,900200108-200405

MARK C

main44330-26220iKLH1#,2#¥5,900200108-200405

MARK D

main44330-26230iKLH1#,2#¥5,900200108-200405

MARK E

main44330-26240iKLH1#,2#¥5,900200108-200405

MARK F

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iKLH1#,2#¥160200108-200405

main90501-13034iLXH1#,2#;RCH13..ATM¥160199508-200605

main90501-13069iKLH1#,2#¥130200405-200608

44337UNION, POWER STEERING SUCTION PORT

main44337-12130iKLH1#,2#¥1,670200405-200608

main44337-26060iKLH1#,2#¥1,870200108-200405

main44337-26070iLXH1#,2#¥1,880199508-200108

main44337-30050iRCH12,18,22,28¥1,680199508-200311

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11010iLXH1#,RCH1#¥270199508-199609

sub90301-11016¥140

main90301-11016iLXH1#,2#¥140199609-200405

main90301-11020iKLH1#,2#¥140200405-200608

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iKLH1#,2#¥140200405-200608

OD=22,ID=18.6

main90301-19003iLXH1#,RCH1#¥300199508-199609

ID=19.5,OD=22.5

sub90301-19013¥260

main90301-19013iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥260199609-199910

ID=19.2,OD=22.3

sub90301-19018¥240

main90301-19018iKLH1#,2#¥240199907-200605

ID=19.2,OD=22.3

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32031iKLH1#,2#¥1,020200405-200608

main44341-60010iKLH1#,2#¥5,200200108-200405

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-16012iKLH1#,2#¥140200405-200608

INNER

main90301-28005iKLH1#,2#¥180200108-200405

INNER

main90301-45003iKLH1#,2#¥170200405-200608

OUTER

main90301-53007iKLH1#,2#¥240200108-200405

OUTER

44342PLATE, VANE PUMP SIDE, REAR

main44342-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥1,530199508-200605

main44342-60020iKLH1#,2#¥2,570200108-200405

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-18007iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥110199508-200605

INNER

main90301-47001iRCH12,22¥170199508-200605

OUTER

main90301-53007iKLH1#,2#¥240200108-200405

44345BPLATE, VANE PUMP

main44345-26010iRCH13,19,23,29..MTM¥700199508-200605

L=15.000

main44345-26020iLXH1#,2#,RCH1#,2#..03S,05S,06S,09S¥700199508-200605

L=14.998

main44345-26030iRCH12,22¥700199508-200605

L=14.996

main44345-26040iRCH13,19,23,29..MTM¥700199508-200605

L=14.994

main44345-26050iLXH1#,2#;RCH13..ATM¥700199508-200605

L=14.992

main44345-32100iKLH1#,2#¥370200405-200608

ROTOR NO MARK

main44345-32110iKLH1#,2#¥370200405-200608

ROTOR MARK 1

main44345-32120iKLH1#,2#¥370200405-200608

ROTOR MARK 2

main44345-32130iKLH1#,2#¥370200405-200608

ROTOR MARK 3

main44345-32140iKLH1#,2#¥370200405-200608

ROTOR MARK 4

main44345-60010iKLH1#,2#¥350200108-200405

L=15.000

main44345-60020iKLH1#,2#¥510200108-200405

L=14.998

main44345-60030iKLH1#,2#¥510200108-200405

L=14.996

main44345-60040iKLH1#,2#¥510200108-200405

L=14.994

main44345-60050iKLH1#,2#¥510200108-200405

L=14.992

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-26100iLXH1#,RCH1#¥10,200199508-199610

main44360-26101iLXH1#,2#,RCH12,18,22,28¥10,200199610-200311

main44360-26130iKLH1#,2#¥10,200200108-201111

9011908035

main90119-08035¥110

9011908063

main90119-08063¥120

9020630002

main90206-30002¥300

9165140820

main91651-40820¥90
