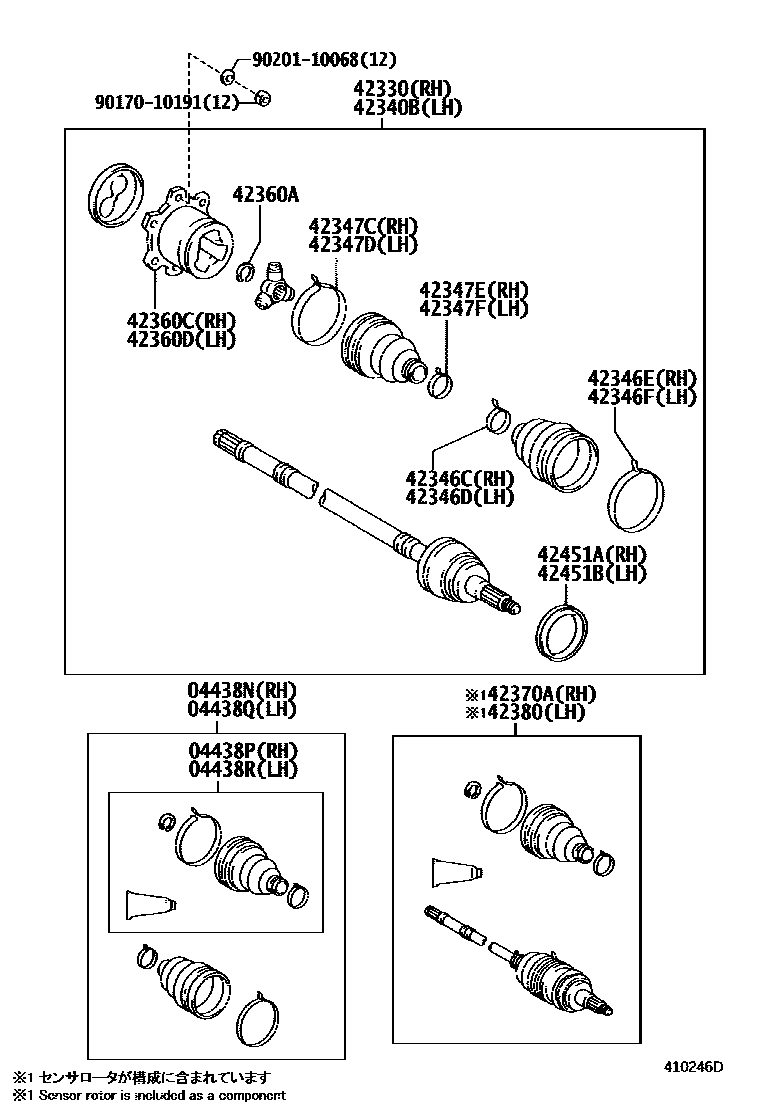

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438NBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, RH

main04429-26010iKLH12,22,RCH13,23200401-200508

sub04429-26040

main04429-26020iKLH18,28,RCH19,29200401-200508

sub04429-26050

main04429-26040iKLH12,22200508-200608

sub04429-26041

main04429-26050iKLH18,28200508-200608

sub04429-26051

main04437-22150iKLH18,28,RCH19,29200008-200401

sub04429-22010

main04437-26020iLXH12..RHD..5DV199708-199907

W(LSD)

sub04429-26010

main04437-26020iRCH13..MTM;KLH12,22,RCH23199508-200401

W(LSD),*AXC=B01D

sub04429-26010

main04437-28030iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-199906

W/O(LSD)

sub04437-28011

main04437-28031iLXH18,28;LXH12,22,RCH19,29..DSL,EFI199906-200008

sub04437-28011

04438PBOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, RH

main04437-26010iLXH12,22;RCH13..ATM199508-200401

W(LSD),*AXC=B01D

sub04439-26010

main04437-26010iLXH12..RHD..5DV199708-199907

W(LSD)

sub04439-26010

main04437-28020iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-199906

W/O(LSD)

sub04437-28021

main04437-28021iLXH18,28;LXH12,22..DSL199906-200401

sub04439-26020

main04439-26010iKLH12,22200401-200608

sub04439-26011

main04439-26020iKLH18,28200401-200608

sub04439-26021

04438QBOOT KIT, REAR DRIVE SHAFT, IN & OUTBOARD JOINT, LH

main04429-26010iKLH12,22,RCH13,23200401-200508

sub04429-26040

main04429-26020iKLH18,28,RCH19,29200401-200508

sub04429-26050

main04429-26040iKLH12,22200508-200608

sub04429-26041

main04429-26050iKLH18,28200508-200608

sub04429-26051

main04437-22150iKLH18,28,RCH19,29200008-200401

sub04429-22010

main04437-26020iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..03S,05S,06S,09S199508-200401

W(LSD),*AXC=B01D

sub04429-26010

main04437-26020iLXH12..RHD..5DV199708-199907

W(LSD)

sub04429-26010

main04437-28030iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-199906

W/O(LSD)

sub04437-28011

main04437-28031iLXH18,28;LXH12,22,RCH19,29..DSL,EFI199906-200008

sub04437-28011

04438RBOOT KIT, REAR DRIVE SHAFT, INBOARD JOINT, LH

main04437-26010iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..03S,05S,06S,09S199508-200401

W(LSD),*AXC=B01D

sub04439-26010

main04437-26010iLXH12..RHD..5DV199708-199907

W(LSD)

sub04439-26010

main04437-28020iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-199906

W/O(LSD)

sub04437-28021

main04437-28021iLXH18,28;LXH12,22..DSL199906-200401

sub04439-26020

main04439-26010iKLH12,22200401-200608

sub04439-26011

main04439-26020iKLH18,28200401-200608

sub04439-26021

42330SHAFT ASSY, REAR DRIVE, RH

main42340-26010iLXH12,22,RCH12,22..(EFI,TD)..EUR199508-199710

W(ABS)

sub42340-26011

main42340-26010iLXH12,22,RCH12,22..(EFI,TD)..EUR199508-199710

W(ABS),*AXC=B01D

sub42340-26011

main42340-26011iLXH12,22199710-200608

W(ABS)

main42340-26011iLXH22..06S;LXH22..RHD..5DV;LXH12..4DV..DSL;LXH12..LHD..5DV..DSL199710-200108

W(ABS),*AXC=B01D

main42340-26020iLXH12..4DV..DSL;LXH12..LHD..5DV..DSL199508-199710

AXLE CODE=B01D

sub42340-26021

main42340-26021iRCH13..ATM199710-200108

AXLE CODE=B01D

main42340-26021iRCH13,23..MTM199907-200608

main42340-26030iLXH18,28,RCH18,19,28,29199608-200311

W(ABS)

main42340-26040iLXH18,28199608-200311

sub42340-26030

main42340-26050iLXH12,22..DSL199508-199710

W(ABS)

sub42340-26051

main42340-26051iLXH12,22..DSL199710-200108

W(ABS)

main42340-26060iLXH12,22..DSL199508-199710

sub42340-26061

main42340-26061iLXH12,22..DSL199710-200108

sub42340-26051

main42340-26070iLXH18199608-200605

W(ABS),*AXC=B03D

main42340-26070iLXH18199608-199907

W(ABS),*AXC=B01D

main42340-26070iKLH18,28200608

W(ABS)

main42340-26070iKLH18,28199907-200608

W(ABS),*AXC=B04D

main42340-26080iKLH18,28200608

main42340-26080iRCH18199608-199907

AXLE CODE=B01D

main42340-26080iRCH18199608-200605

*AXC=B03D

main42340-26080iKLH18,28199907-200608

AXLE CODE=B04D

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-26010iLXH22..DSL;LXH12..RHD..5DV199508-199710

W(ABS),*AXC=B01D

sub42340-26011

main42340-26010iLXH12..4DV..DSL;LXH12..LHD..5DV..DSL199508-199710

W(ABS)

sub42340-26011

main42340-26011iRCH13,23..MTM199710-200608

W(ABS)

main42340-26011iRCH13..ATM199710-200108

W(ABS),*AXC=B01D

main42340-26020iLXH12,22,RCH12,22..EFI,TD199508-199710

AXLE CODE=B01D

sub42340-26021

main42340-26021iKLH12,22199907-200608

main42340-26021iLXH12,22199710-200108

AXLE CODE=B01D

main42340-26030iLXH18,28199608-200311

W(ABS)

main42340-26040iKLH18,28,RCH19,29199608-200311

sub42340-26030

main42340-26050iLXH12,22..DSL199508-199710

W(ABS)

sub42340-26051

main42340-26051iLXH12,22..DSL199710-200108

W(ABS)

main42340-26060iLXH12,22..DSL199508-199710

sub42340-26061

main42340-26061iLXH12,22..DSL199710-200108

sub42340-26051

main42340-26070iLXH28199608-200605

W(ABS),*AXC=B03D

main42340-26070iLXH18199608-199907

W(ABS),*AXC=B01D

main42340-26070iKLH18,28199907-200608

W(ABS),*AXC=B04D

main42340-26070iKLH18,28200608

W(ABS)

main42340-26080iLXH28199608-200605

*AXC=B03D

main42340-26080iLXH28199608-199907

AXLE CODE=B01D

main42340-26080iKLH18,28200608

main42340-26080iKLH18,28199907-200608

AXLE CODE=B04D

42346CCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-14010iKLH18,28199508-200608

ID=35.75

main90949-01221iRCH12,22199508-200608

ID=38.94,W(LSD),*AXC=B01D

main90949-01221iLXH12..RHD..DX;LXH12..RHD..5DV;LXH12..(DX,STD)..TD;LXH22,RCH12,13,22,23..03S,05S,06S,09S199508-199910

ID=38.94

42346DCLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)

main42345-14010iKLH18,28199508-200608

ID=35.75

main90949-01221iKLH12,22199508-199910

ID=38.94

main90949-01221iLXH12..LHD..DX..DSL;LXH12..LHD..5DV..DSL;LXH12..4DV..STD..DSL199508-200608

ID=38.94,W(LSD),*AXC=B01D

42346ECLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT RH)

main42345-16060iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-199907

W(ABS)

main90949-01290iKLH12,22199508-200608

W(LSD),*AXC=B01D

main90949-01290iLXH12..RHD..5DV199708-199907

W(LSD)

main90949-01290iKLH12,22200608

main90949-01473iLXH18,28;LXH12,22..DSL199907-200608

42346FCLAMP, NO.2 (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT LH)

main42345-16060iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-199907

W(ABS)

main90949-01290iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..03S,05S,06S,09S199508-200608

W(LSD),*AXC=B01D

main90949-01290iKLH12,22200608

main90949-01290iLXH12..RHD..5DV199708-199907

W(LSD)

main90949-01473iRCH19,29199907-200608

42347CCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-16090iLXH22..4DV..DSL;LXH22..LHD..5DV..DSL199703-199907

ID=99.6,W(ABS)

main42345-16090iLXH18,28;LXH22..RHD..5DV;LXH12,RCH18,19,28,29..DSL,EFI199508-199907

ID=99.6

main42345-30010iRCH19,29199907-200608

ID=99.9

main90949-01222iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-200608

ID=108.6,W(LSD)

main90949-01222iKLH12,22200608

ID=108.6

42347DCLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH)

main42345-16090iLXH18,28;LXH22..RHD..5DV;LXH12,RCH18,19,28,29..DSL,EFI199508-199907

ID=99.6

main42345-16090iLXH22..4DV..DSL;LXH22..LHD..5DV..DSL199703-199907

ID=99.6,W(ABS)

main42345-30010iRCH19,29199907-200608

ID=99.9

main90949-01222iRCH12,22199508-200608

ID=108.6,W(LSD)

main90949-01222iKLH12,22200608

ID=108.6

42347ECLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT RH)

main42345-14010iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199508-200608

main90949-01221iRCH13,23..MTM199508-200608

W(LSD),*AXC=B01D

main90949-01221iKLH12,22200608

42347FCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT LH

main42345-14010iLXH18,28;LXH12,22..DSL199508-200608

main90949-01221iKLH12,22199508-200608

W(LSD),*AXC=B01D

main90949-01221iKLH12,22200608

42360ARING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT)

main90520-26028iLXH18,28;LXH22..RHD..5DV;LXH12,RCH18,19,28,29..DSL,EFI199508-200608

main90520-26028iLXH22..4DV..DSL;LXH22..LHD..5DV..DSL199703-200108

W(ABS)

main90520-29028iLXH22;RCH13..ATM;LXH12..LHD..5DV;LXH12..4DV..(DX,STD)199708-200108

W(LSD)

main90520-29028iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..03S,05S,06S,09S199508-200605

W(LSD),*AXC=B01D

main90520-29028iRCH12,22199907-200608

42360CJOINT ASSY, REAR DRIVE SHAFT INBOARD, RH

main42360-26010iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-200608

W(LSD),*AXC=B01D

main42360-26010iKLH12,22200608

main42360-30012iLXH18,28,RCH18,19,28,29199608-199906

sub42360-30040

main42360-30040iLXH18,28199906-200608

main43403-28020iLXH12,22..DSL199508-199906

sub43403-28030

main43403-28030iLXH12,22..DSL199906-200108

42360DJOINT ASSY, REAR DRIVE SHAFT INBOARD, LH

main42360-26010iKLH12,22199508-200608

W(LSD),*AXC=B01D

main42360-26010iKLH12,22200608

main42360-30012iLXH18,28,RCH18,19,28,29199608-199906

sub42360-30040

main42360-30040iLXH18,28,RCH19,29199906-200608

main43403-28020iLXH12,22..DSL199508-199906

sub43403-28030

main43403-28030iLXH12,22..DSL199906-200108

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-29245iLXH12,22,RCH12,22..(EFI,TD)..EUR199508-199710

W(ABS & LSD),*AXC=B01D

sub42370-29246

main42370-29245iLXH12..4DV..DSL;LXH12..LHD..5DV..DSL199508-199710

W(ABS)

sub42370-29246

main42370-29245iLXH22..DSL;LXH12..RHD..5DV199703-199710

W(LSD & ABS)

sub42370-29246

main42370-29246iRCH12199809-199907

sub42370-29565

main42370-29246iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..(DX,STD)..EUR199710-200401

W(ABS & LSD),*AXC=B01D

sub42370-29565

main42370-29255iLXH12..4DV..DSL;LXH12..LHD..5DV..DSL199508-199710

W(LSD),*AXC=B01D

sub42370-29256

main42370-29255iLXH22..DSL;LXH12..RHD..5DV199703-199710

W(LSD)

sub42370-29256

main42370-29256iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..03S,05S,06S,09S199710-200401

W(LSD),*AXC=B01D

sub42370-29555

main42370-29265iLXH18,28;LXH12,22,RCH18,28..DSL,EFI199508-199710

W(ABS)

sub42370-29266

main42370-29266iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199710-199906

W(ABS)

sub42370-29267

main42370-29267iLXH18,28;LXH12,22..DSL199906-200401

W(ABS)

sub42370-29268

main42370-29275iLXH18,28;LXH12,22,RCH18,28..DSL,EFI199508-199710

sub42370-29276

main42370-29276iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199710-199906

sub42370-29277

main42370-29277iLXH18,28;LXH12,22..DSL199906-200401

sub42370-29267

main42370-29335iRCH18199608-199804

W(ABS & LSD),*AXC=B01D

sub42370-29336

main42370-29335iLXH28,RCH19,28,29199703-199906

W(LSD & ABS)

sub42370-29336

main42370-29335iLXH18199608-199906

W(ABS),*AXC=B03D

sub42370-29336

main42370-29336iLXH18,28199906-200401

W(LSD & ABS)

sub42370-29585

main42370-29345iLXH18199608-199906

*AXC=B03D

sub42370-29346

main42370-29345iLXH28,RCH19,28,29199703-199906

W(LSD)

sub42370-29346

main42370-29345iRCH18199608-199804

W(LSD),*AXC=B01D

sub42370-29346

main42370-29346iLXH18,28199906-200401

W(LSD)

sub42370-29575

main42370-29555iRCH13,23200401-200608

sub42370-29556

main42370-29565iRCH13,23200401-200608

W(ABS)

sub42370-29566

main42370-29575iKLH18,28200401-200608

sub42370-29576

main42370-29585iKLH18,28200401-200608

W(ABS)

sub42370-29586

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42370-29245iLXH12,22,RCH12,22..(EFI,TD)..EUR199508-199710

W(ABS)

sub42370-29246

main42370-29245iLXH12,22,RCH12,22..(EFI,TD)..EUR199508-199710

W(ABS & LSD),*AXC=B01D

sub42370-29246

main42370-29245iLXH22..DSL;LXH12..RHD..5DV199703-199710

W(LSD & ABS)

sub42370-29246

main42370-29246iRCH12199809-199907

sub42370-29565

main42370-29246iLXH12..LHD..5DV;LXH12..4DV..(DX,STD);LXH22,RCH12,13,22,23..(DX,STD)..EUR199710-200401

W(ABS & LSD),*AXC=B01D

sub42370-29565

main42370-29255iLXH12,22,RCH12,22..EFI,TD199508-199710

W(LSD),*AXC=B01D

sub42370-29256

main42370-29255iLXH22..DSL;LXH12..RHD..5DV199703-199710

W(LSD)

sub42370-29256

main42370-29256iRCH13..MTM;KLH12,22,RCH23199710-200401

W(LSD),*AXC=B01D

sub42370-29555

main42370-29265iLXH18,28;LXH12,22,RCH18,28..DSL,EFI199508-199710

W(ABS)

sub42370-29266

main42370-29266iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199710-199906

W(ABS)

sub42370-29267

main42370-29267iLXH18,28;LXH12,22..DSL199906-200401

W(ABS)

sub42370-29268

main42370-29275iLXH18,28;LXH12,22,RCH18,28..DSL,EFI199508-199710

sub42370-29276

main42370-29276iLXH18,28;LXH12,22,RCH18,19,28,29..DSL,EFI199710-199906

sub42370-29277

main42370-29277iLXH18,28;LXH12,22,RCH19,29..DSL,EFI199906-200401

sub42370-29267

main42370-29335iRCH18199608-199804

W(ABS & LSD),*AXC=B01D

sub42370-29336

main42370-29335iLXH18199608-199906

W(ABS),*AXC=B03D

sub42370-29336

main42370-29335iLXH28,RCH19,28,29199703-199906

W(LSD & ABS)

sub42370-29336

main42370-29336iLXH18,28,RCH19,29199906-200401

W(LSD & ABS)

sub42370-29585

main42370-29345iRCH18199608-199804

W(LSD),*AXC=B01D

sub42370-29346

main42370-29345iLXH18199608-199906

*AXC=B03D

sub42370-29346

main42370-29345iLXH28,RCH19,28,29199703-199906

W(LSD)

sub42370-29346

main42370-29346iLXH18,28,RCH19,29199906-200401

W(LSD)

sub42370-29575

main42370-29555iRCH13,23200401-200608

sub42370-29556

main42370-29565iKLH12,22200401-200608

W(ABS)

sub42370-29566

main42370-29575iKLH18,28200401-200608

sub42370-29576

main42370-29585iRCH19,29200401-200608

W(ABS)

sub42370-29586

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42452-26020iRCH12,22199508-200605

W(LSD)

main42452-26020iKLH12,22200108-201111

main42452-26030iLXH22..06S;LXH12,22,RCH13,23..DSL,EFI199508-200605

W(LSD & ABS)

main42452-26030iLXH22..(03S,09S)..TD;LXH12,RCH12,22..(EFI,TD)..EUR199508-201111

W(ABS)

main42452-26040iLXH12..DSL199508-201111

main42452-28010iKLH18,28199508-201111

W(ABS)

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42452-26020iKLH12,22200108-201111

main42452-26020iLXH12,22,RCH12,13,22,23..03S,05S,06S,09S199508-200605

W(LSD)

main42452-26030iLXH12,22..(03S,09S)..TD199508-201111

W(ABS)

main42452-26030iRCH13,23..MTM199508-200605

W(LSD & ABS)

main42452-26040iKLH18,28199508-201111

main42452-28010iLXH18,28;LXH12,22..DSL199508-201111

W(ABS)

9017010191

main90170-10191

9020110068

main90201-10068

23 parts on this diagram · 3 diagrams in section
