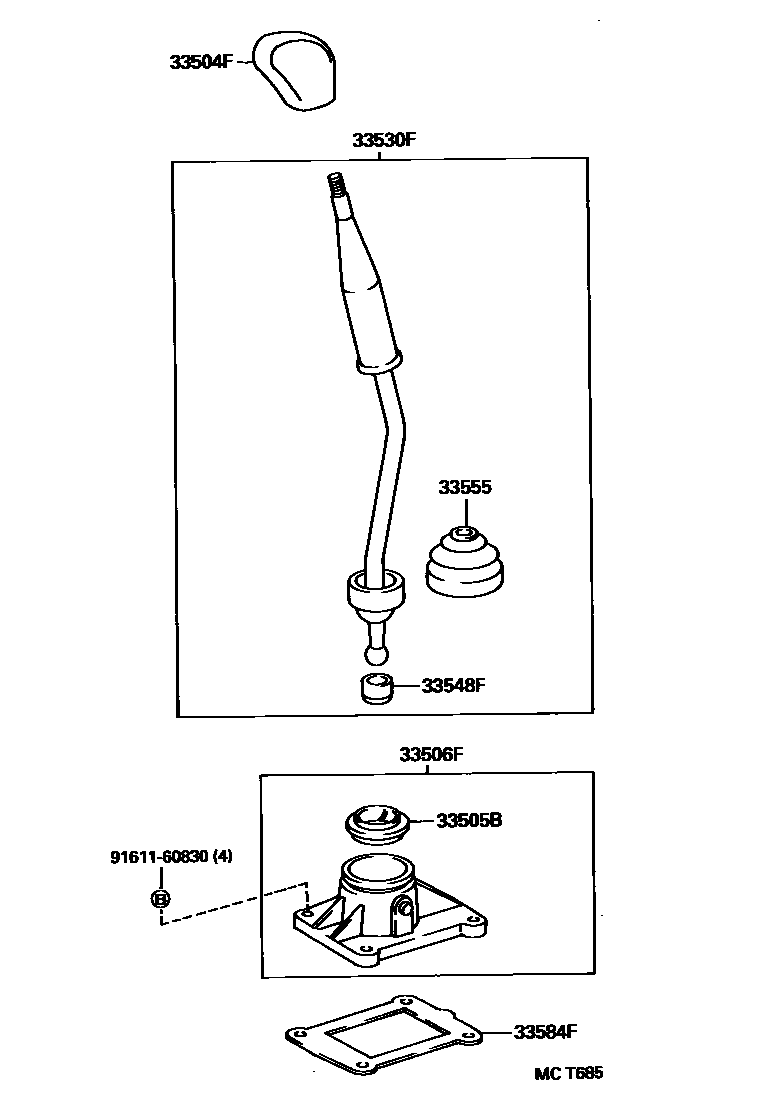

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-17061-B0iLXH1#,2#,RCH1#,2#..MTM199508-199910

BLUISH GRAY,TRIM1#

sub33504-17061

main33504-26010-B0iKLH1#,2#199907-201010

SHADOW GRAY,TRIM1#

sub33504-26010

main33504-26010-B2iKLH1#,2#201010-201111

DK.GRAY,TRIM1#

sub33504-26010

33505BSEAT SUB-ASSY, SHIFT LEVER

main33505-35020iRCH13,19,23,29..MTM199508-201111

main33505-35030iKLH12,22199508-201111

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-26070iRCH12,22199508-200608

main33506-26080iKLH18,28199608-201111

main33570-26030iLXH12,22..MTM..TD199508-201111

main33570-26040iRCH13,23..MTM199804-200605

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-26070iLXH12,22,RCH13,23..LHD..MTM199508-200108

sub33530-26190

main33530-26100iLXH12,22,RCH12,13..RHD..03S199508-200108

sub33530-26200

main33530-26110iLXH18,28,RCH19,29199608-200108

main33530-26120iRCH18,28199608-199804

main33530-26160iKLH12,22..RHD..HDCR200108-201111

main33530-26170iKLH12,22..LHD200108-201111

main33530-26180iRCH19,29200108-201111

main33530-26190iKLH12,22..LHD..DCR200108-200608

main33530-26200iRCH13..RHD200108-200608

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iLXH1#,2#,RCH1#,2#..(03S,05S,06S,09S)..MTM199508-201111

33555BOOT, SHIFT LEVER

main33555-35040iKLH1#,2#199508-201111

33584FGASKET, CONTROL SHIFT LEVER RETAINER (FOR FLOOR SHIFT)

main33182-35020iKLH12,22199508-201101

sub33584-71010

main33584-26010iLXH18,RCH18199608-199609

sub33584-26020

main33584-26020iLXH18,28199609-201111

main33584-60010iRCH12,22199508-200608

main33584-71010iKLH12,22201101-201111

9161160830

main91611-60830

8 parts on this diagram · 4 diagrams in section
