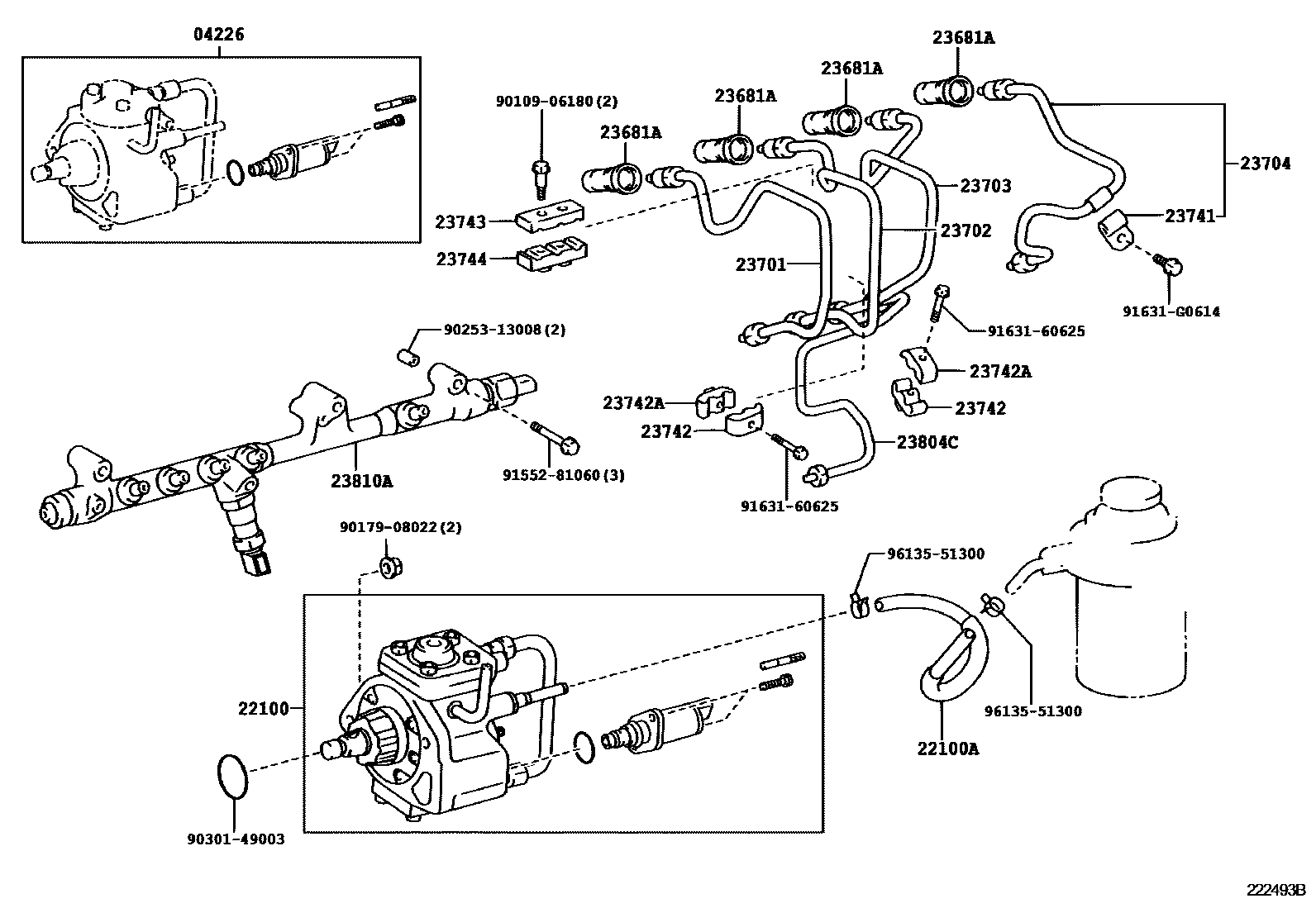

INJECTION PUMP ASSEMBLY

0001 1 0002 1 0003 1 0004 1

04226VALVE KIT, SUCTION CONTROL

main04226-30010i2KDFTV..KLH1#,2#200608-200706

main04226-30020i2KDFTV..KLH1#,2#200108-200608

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-30020i2KDFTV..KLH1#,2#200108-200202

sub22100-30021

main22100-30021i2KDFTV..KLH1#,2#200202-200608

main22100-30040i2KDFTV..KLH1#,2#200608-200706

sub22100-30090

main22100-30090i2KDFTV..KLH1#,2#200706

main22100-5B320i2L..LXH12199508-199804

sub22100-5B360

main22100-5B360i2L..LXH12,22..LHD199508-199804

W(TACHO METER)

main22100-5B460i2LT..LXH1#,2#..MTM199508-199804

main22100-5B470i2LT..LXH12..ATM199508-199608

main22100-5B540i2L..LXH12,22199608-199804

W(IMMOBILIZER)

sub22100-5B550

main22100-5B550i2L..LXH22..LHD;2L..LXH12..SG..(03S,06S)199608-199804

W(IMMOBILIZER & TACHO METER)

main22100-5B550i2L..LXH12..09S;2L..LXH12..LHD..SP199608-199804

W(IMMOBILIZER & TACHO METER)& GERMANY SPEC

main22100-5B560i2LT..LXH1#,2#..MTM199608-199804

W(IMMOBILIZER)

main22100-5B570i2LT..LXH12,22..ATM199608-199804

W(IMMOBILIZER)

main22100-5B820i2L..LXH12,22..LHD..STD199804-200108

main22100-5B830i2L..LXH12..STD;2L..LXH22..LHD;2L..LXH12..LHD..DX;2L..LXH22..RHD..4DV199804-200108

W(IMMOBILIZER)

main22100-5B850i2LT..LXH1#,2#..(03S,05S,06S)..MTM199804-200108

main22100-5B860i2LT..LXH1#,2#..MTM199804-200108

W(IMMOBILIZER)

main22100-5B870i2LT..LXH12,22..ATM199804-200108

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-30070i2KDFTV..KLH1#,2#200108-200508

*H,L=310

sub23271-30071

main23271-30071i2KDFTV..KLH1#,2#200509-200608

*H,L=310

main23271-30170i2KDFTV..KLH1#,2#200608

main23271-54060i2L#..LXH1#,2#199508-200108

L=400

23681ASEAL, NOZZLE HOLDER

main23681-30010i2KDFTV..KLH1#,2#200108-200608

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-30010i2KDFTV..KLH1#,2#200108-200608

main23701-30060i2KDFTV..KLH1#,2#200608

main23701-54140i2L#..LXH1#,2#199508-200108

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-30010i2KDFTV..KLH1#,2#200108-200608

main23702-30060i2KDFTV..KLH1#,2#200608

main23702-54140i2L#..LXH1#,2#199508-200108

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-30010i2KDFTV..KLH1#,2#200108-200608

main23703-30060i2KDFTV..KLH1#,2#200608

main23703-54100i2L#..LXH1#,2#199508-200108

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-39015i2KDFTV..KLH1#,2#200108-200608

main23704-39055i2KDFTV..KLH1#,2#200608

main23704-54100i2L#..LXH1#,2#199508-200108

23741CLAMP, INJECTION PIPE, NO.1

main23741-30010i2KDFTV..KLH1#,2#200108-200608

main23741-54010i2L#..LXH12199508-199607

main23741-54030i2L#..LXH1#,2#199607-200108

23742CLAMP, INJECTION PIPE, NO.2

main23742-27010i2KDFTV..KLH1#,2#200108-200608

main23742-54010i2L#..LXH12199508-199607

23742ACLAMP, INJECTION PIPE, NO.3

main23742-58020i2KDFTV..KLH1#,2#200108-200608

23743CLAMP, INJECTION PIPE, NO.3

main23743-30010i2KDFTV..KLH1#,2#200108-200205

sub23743-30011

main23743-30011i2KDFTV..KLH1#,2#200205-200608

23744CLAMP, INJECTION PIPE, NO.4

main23743-30020i2KDFTV..KLH1#,2#200108-200205

sub23743-30021

main23743-30021i2KDFTV..KLH1#,2#200205-200608

23804CPIPE SUB-ASSY, FUEL INLET

main23804-30020i2KDFTV..KLH1#,2#200108-200608

main23804-30060i2KDFTV..KLH1#,2#200608

23810ARAIL ASSY, COMMON

main23810-0L010i2KDFTV..KLH1#,2#200608-200701

sub23810-0L020

main23810-0L011i2KDFTV..KLH1#,2#200909

main23810-0L020i2KDFTV..KLH1#,2#200701-200909

sub23810-0L011

main23810-30070i2KDFTV..KLH1#,2#200108-200111

sub23810-30071

main23810-30071i2KDFTV..KLH1#,2#200111-200608

9010906180

main90109-06180

9017908022

main90179-08022

9025313008

main90253-13008

9030149003

main90301-49003

9155281060

main91552-81060

9163160625

main91631-60625

91631G0614

main91631-G0614

9613551300

main96135-51300
