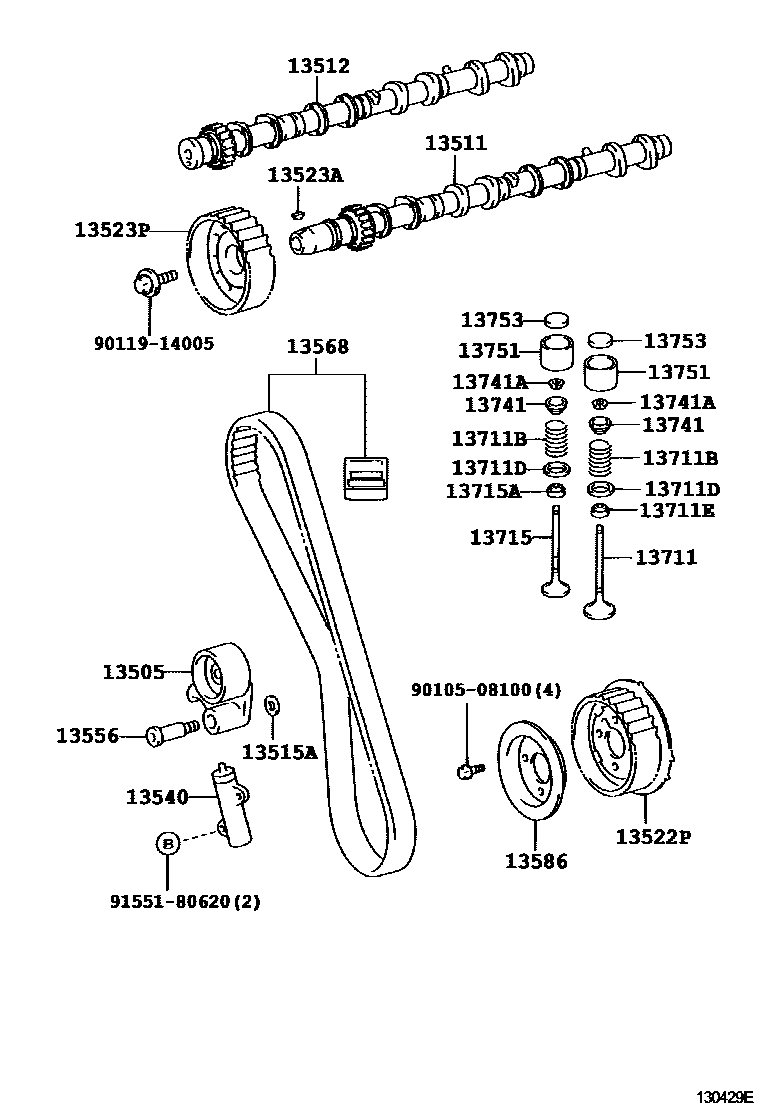

CAMSHAFT & VALVE
13505IDLER SUB-ASSY, TIMING BELT, NO.1
(L)
main13505-54021i2LT..LXH1#,2#;2L..LXH12,22..RHD;2L..LXH12,22..LHD..5DV;2L..LXH12..LHD..SG..03S199905-199907
(J)
sub13505-67042
13515GEAR, DISTRIBUTOR DRIVE
13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)
13522PPULLEY, PUMP DRIVE SHAFT
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523PPULLEY, CAMSHAFT TIMING
(L)
(J)
13540TENSIONER ASSY, CHAIN, NO.1
13556SHAFT, TIMING BELT IDLER
13568BELT, TIMING
13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2
13711VALVE, INTAKE
PORTUGAL SPEC
13711BSPRING, COMPRESSION(FOR INNER)
PORTUGAL SPEC
13711DWASHER, PLATE(FOR VALVE SPRING SEAT)
PORTUGAL SPEC
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
PORTUGAL SPEC
W(LPG)
13715ASEAL, EXHAUST VALVE STEM OIL
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
T=5.06
T=5.08
T=5.10
T=5.12
T=5.14
T=5.16
T=5.18
T=5.20
T=5.22
T=5.24
T=5.26
T=5.28
T=5.30
T=5.32
T=5.34
T=5.36
T=5.38
T=5.40
T=5.42
T=5.44
T=5.46
T=5.48
T=5.50
T=5.52
T=5.54
T=5.56
T=5.58
T=5.60
T=5.62
T=5.64
T=5.66
T=5.68
T=5.70
T=5.72
T=5.74
13753SHIM, VALVE ADJUSTING
T=2.525
T=2.550
T=2.575
T=2.600
T=2.625
T=2.650
T=2.675
T=2.700
T=2.725
T=2.750
T=2.775
T=2.800
T=2.825
T=2.850
T=2.875
T=2.900
T=2.925
T=2.950
T=2.975
T=3.000
T=3.025
T=3.050
T=3.075
T=3.100
T=3.125
T=3.150
T=3.175
T=3.200
T=3.225
T=3.250
T=3.275
T=3.300
T=2.50,MARK=T01
T=2.60,MARK=T06
T=2.70,MARK=T11
T=2.80,MARK=T16
T=2.90,MARK=T21
T=3.00,MARK=T26
T=3.10,MARK=T31
T=3.20,MARK=T36
T=3.30,MARK=T41
T=2.55,MARK=T42
T=2.65,MARK=T43
T=2.75,MARK=T44
T=2.85,MARK=T45
T=2.95,MARK=T46
T=3.05,MARK=T47
T=3.15,MARK=T48
T=3.25,MARK=T49
T=2.25
T=2.30
T=2.35
T=2.40
T=2.45
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
T=3.35
T=3.40
T=2.50
T=2.55
T=2.60
T=2.65
T=2.70
T=2.75
T=2.80
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=3.20
T=3.25
T=3.30
9010508100
main90105-08100
9011914005
main90119-14005
9155180620
main91551-80620
26 parts on this diagram · 4 diagrams in section
