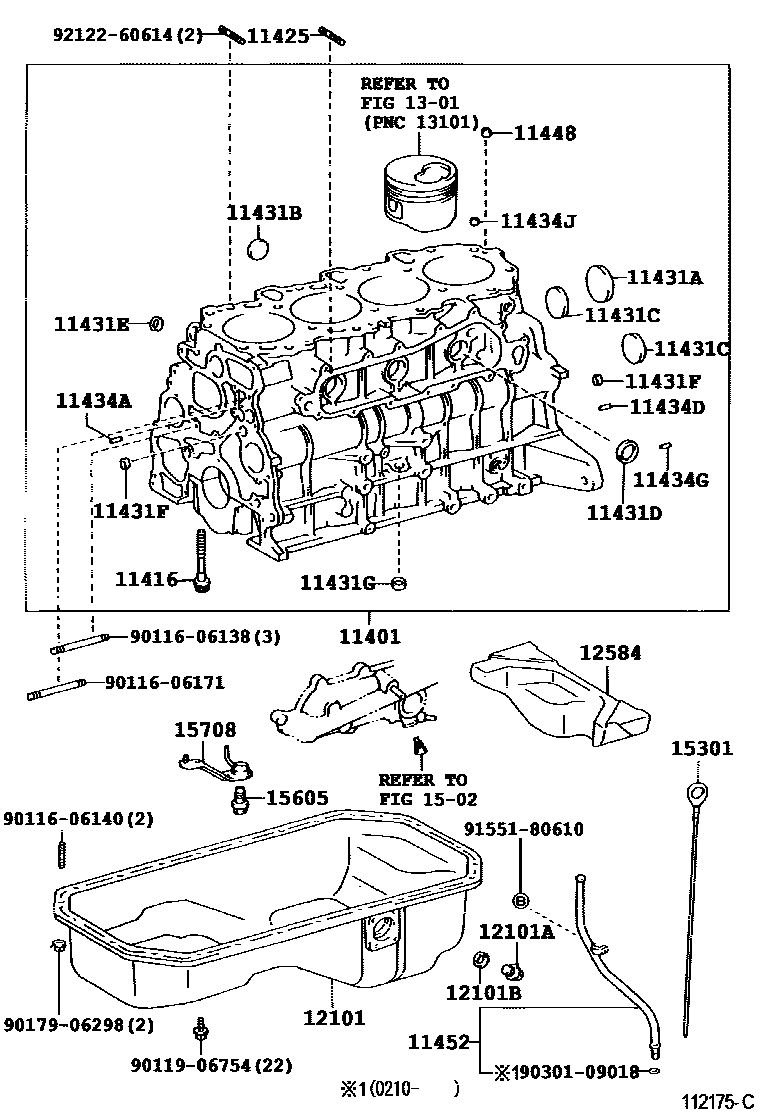

CYLINDER BLOCK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-39535i2KDFTV..KLH1#,2#200108-200401

sub11401-39675

main11401-39675i2KDFTV..KLH1#,2#200401-200408

sub11401-39745

main11401-39745i2KDFTV..KLH1#,2#200408-200608

sub11401-39746

main11401-39855i2KDFTV..KLH1#,2#200608

main11401-59347i2L..LXH12,22199508-199804

main11401-59357i2LT..LXH1#,2#199508-199804

main11401-59695i2L..LXH12,22199804-200108

main11401-59705i2LT..LXH1#,2#199804-200108

main11401-79685i3RZFE..RCH13,19,2#199804-199904

sub11401-79686

main11401-79686i3RZFE..RCH13,19,23,29..DX,STD199904-200401

sub11401-79687

main11401-79687i3RZFE..RCH1#,2#200401

main11401-79725i2RZE..RCH12,18,22,28199508-199904

sub11401-79726

main11401-79726i2RZE..RCH12199904-200311

sub11401-79727

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061i2L#..LXH1#,2#199508-200108

main90910-02092i2RZE,3RZFE..RCH1#,2#199508-200605

sub90910-02179

main90910-02113i2KDFTV..KLH1#,2#200108-200608

11425BOLT, STUD(FOR OIL FILTER)

main90116-06171i2KDFTV..KLH1#,2#200108-200608

main90116-08157i2L#..LXH12199508-199511

main92112-60825i2L#..LXH1#,2#199511-199705

main92112-80825i2L#..LXH1#,2#199705-200108

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-42500i2L#..LXH1#,2#199508-200108

main96411-63000i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200605

main96411-64500i2KDFTV..KLH1#,2#200108-200608

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main96411-43500i2L#..LXH1#,2#199508-200108

main96411-63500i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200608

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i2L#..LXH1#,2#199508-200108

main96411-64000i3RZFE..RCH13,19,23,29199508-200608

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main90331-35004i2KDFTV..KLH1#,2#200108-200608

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main96411-62000i2KDFTV..KLH1#,2#200108-200608

11431FPLUG, TIGHT, NO.6(FOR CYLINDER BLOCK)

main96411-61800i2KDFTV..KLH1#,2#200108-200608

11431GPLUG, TIGHT

main90331-14006i2KDFTV..KLH1#,2#200108-200608

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i2KDFTV..KLH1#,2#200108-200608

L=18,OD=8

main90253-11021i2L#..LXH1#,2#199508-200108

L=8,OD=11

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i2RZE,3RZFE..RCH1#,2#199508-200605

L=14,OD=6

main90250-06068i2KDFTV..KLH1#,2#200108-200608

L=11,OD=6

main90253-11021i2L#..LXH1#,2#199508-200108

L=8,OD=11

11434GPIN, STRAIGHT(FOR END PLATE)

main90250-10113i2LT..LXH22..06S;2L..LXH12..RHD..DX;2L..LXH12,22..RHD..5DV199508-200108

main90250-10192i2KDFTV..KLH1#,2#200108-200608

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-15001i3RZFE..RCH1#,2#200402-200605

main90253-15016i2KDFTV..KLH1#,2#199508-200608

11448ORIFICE, CYLINDER BLOCK OIL

main11448-54020i2LT..LXH22..06S;2L..LXH12..RHD..DX;2L..LXH12,22..RHD..5DV199508-199907

main11448-54020i2L#..LXH1#,2#199907-200108

ENGINE NO.=0XXXXXX

main11448-54030i2L..LXH12..09S;2L..LXH12..LHD..4DV..SP199804-200108

ENGINE NO.=9XXXXXX

main11448-67010i2KDFTV..KLH1#,2#200108-200608

main90977-02011i3RZFE..RCH13,19,23,29199804-200605

11452GUIDE, OIL LEVEL GAGE

main11409-30020i2KDFTV..KLH1#,2#200108-200210

sub11409-30021

main11409-30021i2KDFTV..KLH1#,2#200210-200308

sub11409-30022

main11409-30022i2KDFTV..KLH1#,2#200308-200608

main11409-75020i3RZFE..RCH1#,2#199508-200311

main11452-30080i2KDFTV..KLH1#,2#200608

main11452-54130i2L#..LXH12,22199508-200108

main11452-54140i2LT..LXH18,28199608-200108

12101PAN SUB-ASSY, OIL

main12101-30120i2KDFTV..KLH12,22201008

main12101-54193i2L#..LXH12,22199508-199704

sub12101-54194

main12101-54194i2L#..LXH12,22199704-199705

sub12101-54195

main12101-54195i2L#..LXH12,22199705-200009

sub12101-54196

main12101-54196i2L#..LXH12,22200009-200108

sub12101-54197

main12101-54270i2LT..LXH18,28199608-199704

sub12101-54271

main12101-54271i2LT..LXH18,28199704-200108

main12101-67091i2KDFTV..KLH12,22200108-200312

sub12101-67092

main12101-67092i2KDFTV..KLH12,22200312-201008

sub12101-30120

main12101-67101i2KDFTV..KLH18,28200108-200608

main12101-75060i3RZFE..RCH13,23199508-200311

main12101-75080i3RZFE..RCH19,29199608-200205

sub12101-75120

main12101-75120i3RZFE..RCH19,29200205

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i2L#..LXH1#,2#199508-200608

main90341-12026i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-199910

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90080-43030i2L..LXH12..09S;2L..LXH12..LHD..4DV..SP199804-200108

ENGINE NO.=9XXXXXX

main90430-12031i2L#..LXH1#,2#199508-200108

ENGINE NO.=0XXXXXX

main90430-12031i2RZE,3RZFE..RCH1#,2#..03S,05S,06S,09S199508-200608

12584INSULATOR, CYLINDER BROCK, NO.4

main12584-67030i2KDFTV..KLH1#,2#200108-200608

1301

1502

15301GAGE SUB-ASSY, OIL LEVEL

main15301-30050i2KDFTV..KLH1#,2#200108-200608

main15301-54110i2L#..LXH12199508-199604

sub15301-54111

main15301-54111i2L#..LXH12,22199604-200108

main15301-54130i2LT..LXH18,28199608-200108

main15301-67031i2KDFTV..KLH1#,2#200608

main15301-75010i2RZE..RCH18,28199608-199705

sub15301-75011

main15301-75011i2RZE,3RZFE..RCH18,19,28,29199705-199907

main15301-75020i2RZE,3RZFE..RCH12,13,22,23..03S,05S,06S,09S199508-200311

15605VALVE SUB-ASSY, OIL CHECK

main15605-17030i2KDFTV..KLH1#,2#200108-200608

main15605-54010i2L#..LXH1#,2#199508-200108

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-30010i2KDFTV..KLH1#,2#200108-200307

sub15708-30011

main15708-30011i2KDFTV..KLH1#,2#200307-200608

main15708-54060i2L#..LXH1#,2#199508-200108

9011606138

main90116-06138

9011606140

main90116-06140

9011606171

main90116-06171

9011906754

main90119-06754

9017906298

main90179-06298

9030109018

main90301-09018

9155180610

main91551-80610

9212260614

main92122-60614

33 parts on this diagram · 8 diagrams in section
