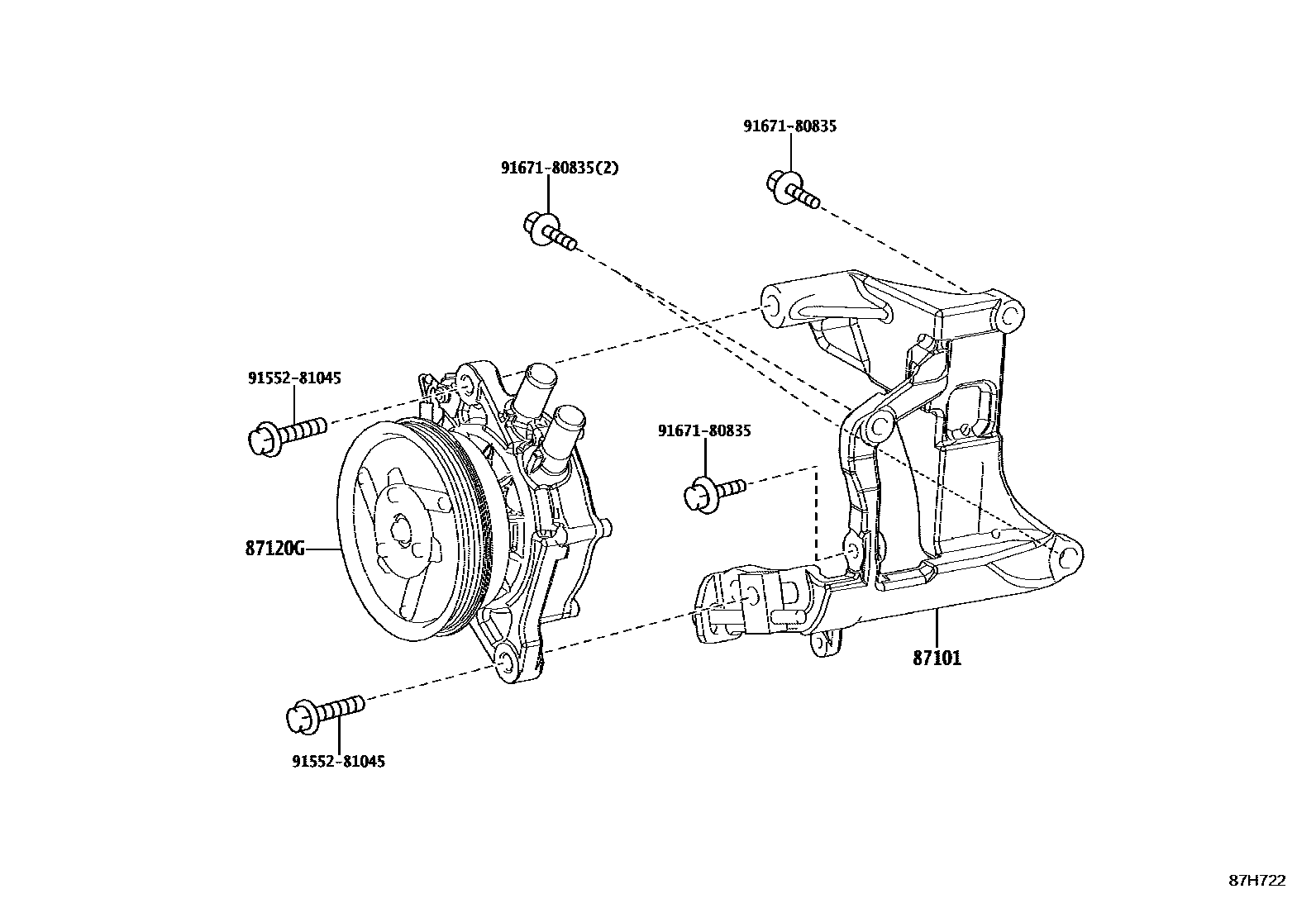

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1VISCOUS HEATER 0002 1REAR HEATER 0003 1REAR HEATER

87101BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-26030iGDH306..LHD..J;GDH322..LHD..6F..P..GEN201903

87120HEATER ASSY, REAR

main87110-26422iGDH301,321,322..ARL,NZ202208-202401

sub87110-V3010

main87110-26432iGDH322..6FC..P..GEN201903-202401

REAR HEATER-WITHOUT

sub87110-V3020

main87110-26432iGDH321..N201903-202402

sub87110-V3020

main87110-V3010iGDH322..RHD..6FC..N;GDH322..RHD..GSOB..6F;GDH322..RHD..SG..D..GEN;GDH301..RHD..SG..6F..D..GEN202402

REAR HEATER-WITH(FLOOR SET)

main87110-V3020iGDH322..AGT;GRH322..6F..Q;GDH322..P..GEN;GRH322..LHD..6FC..GEN202402

CONFORT TORRER

87120GHEATER ASSY, VISCOUS W/MAGNET CLUTCH

main87120-60050iGDH306..LHD..J;GDH322..LHD..6F..P..GEN201903

9155281045

main91552-81045

9167180835

main91671-80835

5 parts on this diagram · 3 diagrams in section
