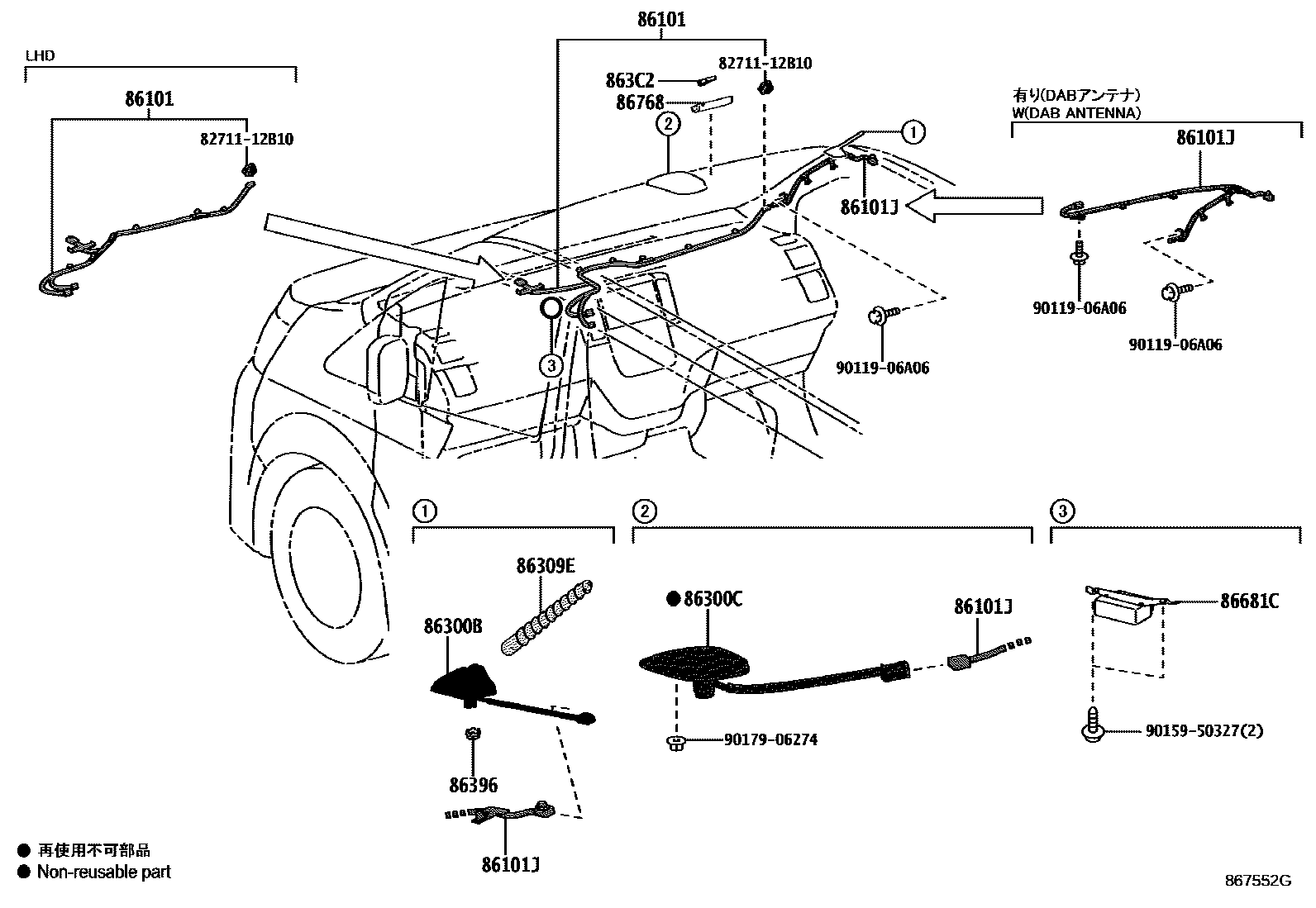

ANTENNA
86101CORD SUB-ASSY, ANTENNA
sub86101-26400
main86101-26360iGDH300..GSOB;GDH320..6F..ARL;GDH301,321,322..NZ;GDH300..4D..6F..ARL;GRH300,303,320,321..ARL201902-202310
SOUTH AFRICA SPEC&AUDIO-*DA(DVD & CD & *BT)
AUDIO-*DA & CD & *BT
FIJI SPEC&AUDIO-*DA & CD & *BT
BANGLADESH SPEC&AUDIO-*DA(DVD & CD & *BT)
PAPUA NEW GUINEA SPEC&AUDIO-*DA & CD & *BT
AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
GUATEMALA SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
PERU SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
ARGENTINA SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
CHILE SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
COSTA RICA SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
EGYPT SPEC&AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT & 17CY PLUS)
AUDIO-*DA(DVD & CD & *BT & 17CY PLUS)
AUDIO-AVN(DVD & CD & *BT & 17CY PLUS)
main86101-26400iGDH301..LHD..D;GDH322..P..GCC;GRH320..LHD..5D;GDH301..LHD..6F..N;GDH322..6FC..P..GEN;GDH301..GSOB..6FC..N;GDH322..LHD..(D,N,Q)..(GCC,GEN);GDH300,303,320,328,GRH300,201902-202310
TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)
ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)
RUSSIA SPEC&AUDIO-AVN(CD&*BT)
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)
UKRAINE SPEC&AUDIO-AVN(CD&*BT)
RUSSIA SPEC&AUDIO-AVN(CD&*BT)
ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)
TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)
UKRAINE SPEC&AUDIO-AVN(CD&*BT)
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)
main86101-V3090iGDH301..RHD..6FC..N;GDH322..RHD..GSOB..N;GDH301..RHD..SG..D..(GEN,TH);GDH300..5D..(HPSOB,PSOB,SP)..GEN;GDH300,322..RHD..4D..(GSOB,PSOB,SP)..6F;GDH300,301..RHD..(GSO202310
FIJI SPEC&AUDIO-*DA(*BT & 21CY)
AUDIO-*DA(*BT & 21CY)
AUDIO-EDA(*BT)
AUDIO-AVN(*BT & 21CY)
PAPUA NEW GUINEA SPEC&AUDIO-*DA(*BT & 21CY)
SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)
NEW ZEALAND SPEC
SOUTH AFRICA SPEC&AUDIO-EDA(*BT)
MEXICO SPEC&AUDIO-*DA(*BT & 21CY)
AUDIO-EDA(*BT)
AUDIO-*DA(*BT & 21CY)
AUDIO-AVN(*BT & 21CY)
TAIWAN SPEC&AUDIO-*DA(*BT & 21CY)
EGYPT SPEC&AUDIO-*DA(*BT & 21CY)
OMAN SPEC&AUDIO-EDA(*BT)
NEW CALEDONIA SPEC&AUDIO-*DA(*BT & 21CY)
TAHITI SPEC&AUDIO-*DA(*BT & 21CY)
TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)
UKRAINE SPEC&AUDIO-AVN(CD&*BT)
ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)
RUSSIA SPEC&AUDIO-AVN(CD&*BT)
86101JCORD SUB-ASSY, ANTENNA, NO.2
SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)
SOUTH AFRICA SPEC&AUDIO-EDA(*BT)
SOUTH AFRICA SPEC&AUDIO-*DA(DVD & CD & *BT)
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)
RUSSIA SPEC&AUDIO-AVN(CD&*BT)
SOUTH AFRICA SPEC&AUDIO-*DA(DVD & CD & *BT)
GEORGIA SPEC
86300BANTENNA ASSY, AMPLIFIER, NO.1
main86300-26210iGDH300..5D;GDH306..RHD;GDH300..4D..PSOB;GDH301..GSOB..6FC;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J201902-202505
86300CANTENNA ASSY, AMPLIFIER, NO.2
WHITE PEARL CS.,070 ,2QD
RUSSIA SPEC&AUDIO-AVN(CD&*BT),WHITE PEARL CS.,070 ,2QD
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),WHITE PEARL CS.,070 ,2QD
WHITE,058
SILVER ME.,1F7
RUSSIA SPEC&AUDIO-AVN(CD&*BT),SILVER ME.,1F7
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),SILVER ME.,1F7
GRAY ME.,1G3
RUSSIA SPEC&AUDIO-AVN(CD&*BT),GRAY ME.,1G3
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),GRAY ME.,1G3
SILVER M.M.,1E7
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT),BLACK,202
RUSSIA SPEC&AUDIO-AVN(CD&*BT),BLACK,202
BLACK,202
WHITE,058
SILVER M.M.,1E7
BEIGE ME.,4R4
86309EPOLE SUB-ASSY, ROOF ANTENNA
main86309-26020iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300,301..4D201902-202505
86396NUT, ANTENNA
main86396-47010iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S201902-202505
863C2BASE, DIGITAL AUDIO BROADCASTING ANTENNA
SOUTH AFRICA SPEC&AUDIO-EDA(*BT)
SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)
86681CDIVIDER, ANTENNA
RUSSIA SPEC&AUDIO-AVN(CD&*BT)
ARGENTINA SPEC&AUDIO-AVN(DVD & CD & *BT)
UKRAINE SPEC&AUDIO-AVN(CD&*BT)
KAZAKHSTAN SPEC&AUDIO-AVN(CD&*BT)
TAIWAN SPEC&AUDIO-AVN(DVD & CD & *BT)
86768COVER, ROOF ANTENNA
SOUTH AFRICA SPEC&AUDIO-AVN(*BT & 21CY)
SOUTH AFRICA SPEC&AUDIO-EDA(*BT)
8271112B10WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B10
9011906A06
main90119-06A06
9015950327
main90159-50327
9017906274
main90179-06274
13 parts on this diagram · 3 diagrams in section
