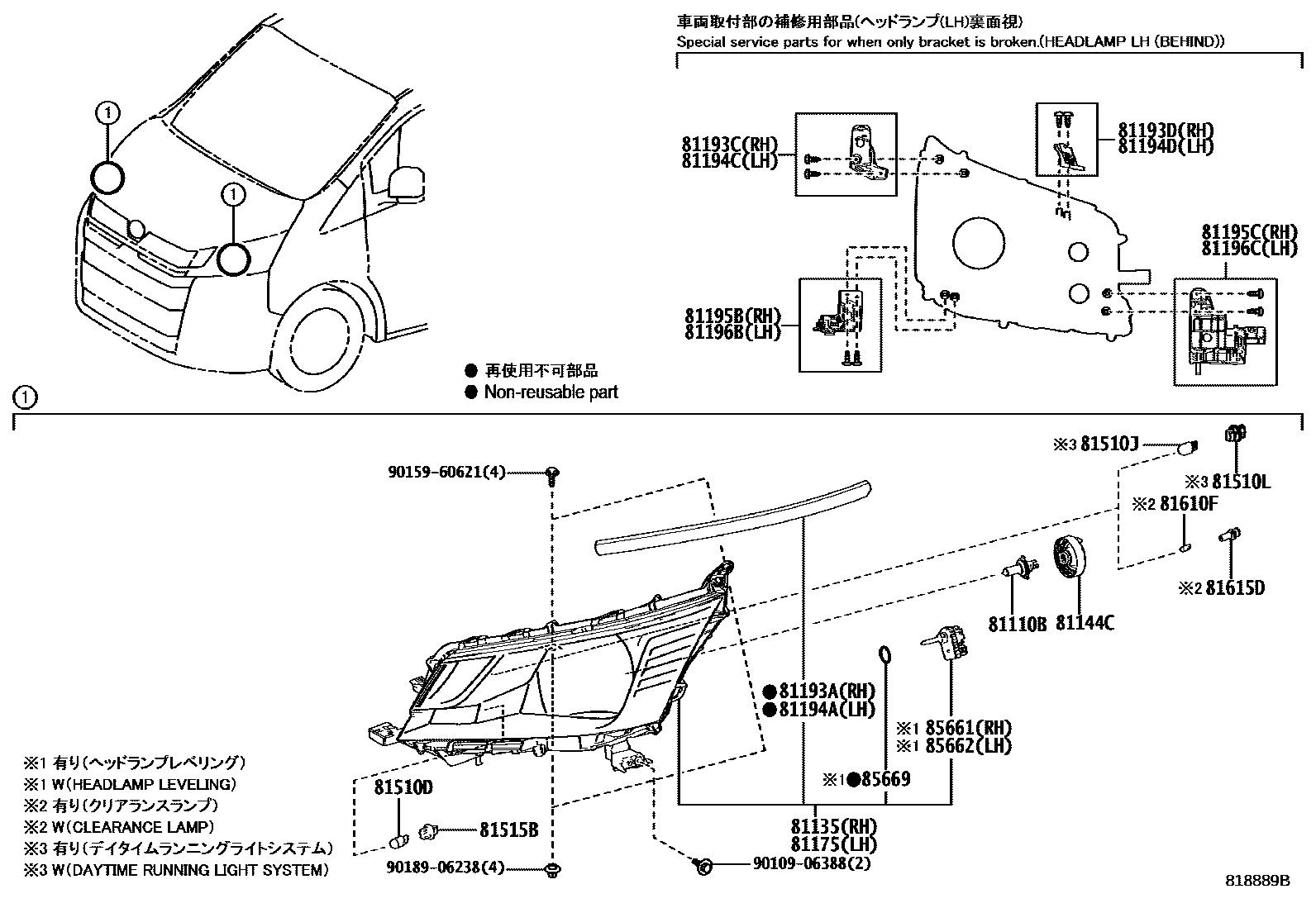

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V 60/55W,HALOGEN
81135UNIT ASSY, HEADLAMP, RH
MEXICO SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
PAPUA NEW GUINEA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
81144CCOVER, HEADLAMP SOCKET
81175UNIT ASSY, HEADLAMP, LH
main81170-26B00iGRH322..GSOB;GDH322,GRH322..P..GCC;GDH320,GRH320..LHD..5D..(GCC,GEN);GDH320,GRH301,322..LHD..SG..6FC..D;GDH300,301,322,GRH300..LHD..D..(GCC,GEN)201902-202405
MEXICO SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
PAKISTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
TAIWAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED,WAGON
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
FIJI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
GUATEMALA SPEC
81193APROTECTOR, HEADLAMP, RH
main81117-26C40iGDH301..GSOB..6FC..N;GDH322..LHD..SG..6F..(N,Q);GDH306,322..LHD..6FC..(J,N,Q);GDH306,321,322..RHD..(G,J,N,Q);GDH301,303,304,328,GRH301,303,304,321,322..SG..(G,H,J,N201902-202505
81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193DRETAINER, RH HEADLAMP PROTECTOR, UPPER LH
main81193-26030iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH201902-202505
81194APROTECTOR, HEADLAMP, LH
81194CRETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194DRETAINER, LH HEADLAMP PROTECTOR, UPPER LH
main81194-26030iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH322..P..(ARL,GCC,NZ);GDH322..LHD..SG..P..GEN;GDH201902-202505
81195BRETAINER, RH HEADLAMP PROTECTOR, LOWER RH
81195CRETAINER, RH HEADLAMP PROTECTOR, LOWER LH
81196BRETAINER, LH HEADLAMP PROTECTOR, LOWER RH
81196CRETAINER, LH HEADLAMP PROTECTOR, LOWER LH
81510DBULB (FOR FRONT TURN SIGNAL LAMP)
12V 21W,AMBER
81510JBULB(FOR DAYTIME RUNNING LAMP)
12V 21/5W
12V 21/5W,BHUTAN SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITH(OFF SWITCH),BULB
12V 21/5W,NEW CALEDONIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
81510LSOCKET, DAYTIME RUNNING LAMP
BRUNEI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
TAHITI SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
NEW CALEDONIA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
81615DSOCKET, CLEARANCE LAMP
85661MOTOR, HEADLAMP LEVELING, RH
SOUTH AFRICA SPEC
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
SAUDI ARABIA SPEC
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
85662MOTOR, HEADLAMP LEVELING, LH
SOUTH AFRICA SPEC
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
SAUDI ARABIA SPEC
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
85669PACKING, HEADLAMP LEVELING MOTOR BASE
SOUTH AFRICA SPEC
GUATEMALA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
SAUDI ARABIA SPEC
EGYPT SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),LED
SOUTH AFRICA SPEC&DAYTIME RUNNING LIGHT SYSTEM-WITHOUT(OFF SWITCH),BULB
9010906388
main90109-06388
9015960621
main90159-60621
9018906238
main90189-06238
27 parts on this diagram · 3 diagrams in section
