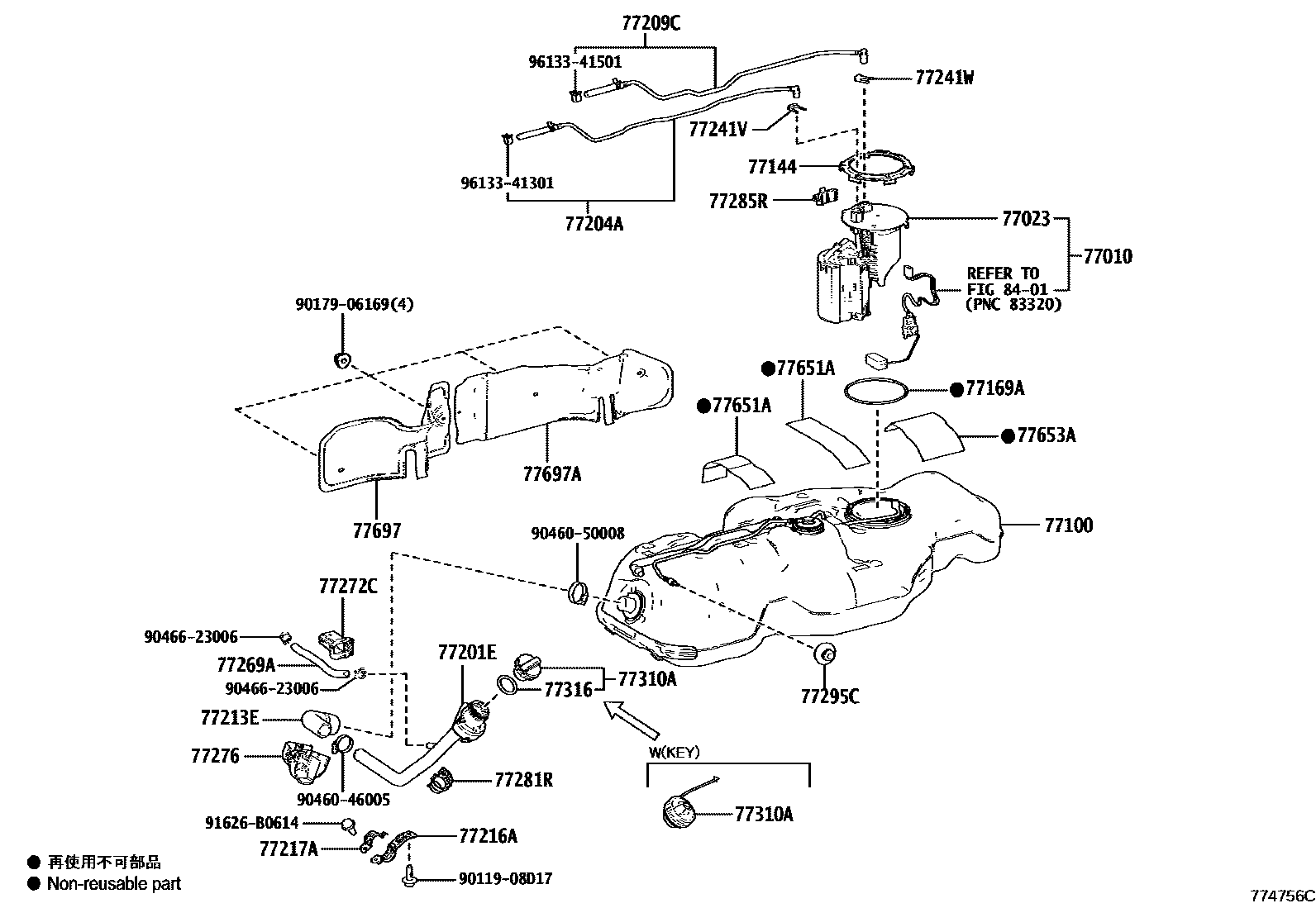

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL TANK BAND 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID OPENER 0008 1FUEL LID OPENER

77010TUBE ASSY, FUEL TANK VENT

main77010-26060iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

77023FILTER SUB-ASSY, FUEL SUCTION TUBE

main77023-26030iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH303,304,320,328;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH300..4D..S201902

77100TANK ASSY, FUEL

main77001-26740iGDH321..GEN201902-202310

main77001-26750iGRH30#,32#201902

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iGDH322..RHD..P..GEN202107

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47040iGDH321..GEN201902-202310

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-26310iGDH306..LHD..G201903-202505

main77201-26320iGDH321..GEN201902-202310

NEW ZEALAND SPEC

main77201-26330iGDH303,322..ARL;GDH320..6F..ARL;GDH320..5D..6FC..ARL;GDH300..(PSOB,SHP,SP)..ARL201902

main77201-26340iGRH30#,32#201902

77204ATUBE, FUEL TANK RETURN

main77204-26080iGDH322..RHD..P..GEN202006-202106

77209CTUBE SUB-ASSY, FUEL TANK MAIN

main77209-26180iGDH322..RHD..P..GEN202107

main77209-26190iGRH30#,32#201902

77213EHOSE, FUEL TANK TO FILLER PIPE

main77213-26150iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-26060iGDH306..LHD..J;GDH322..LHD..6F..P..GEN201903

main77216-26070supersedes 77216-26060iGDH321..GEN201902-202310

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-26080iGDH306..LHD..J;GDH322..LHD..6F..P..GEN201903

main77217-26090supersedes 77217-26080iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..ARL,GCC,NZ;GDH322..GSOB..6F..D;GDH300..LHD..SP..GEN;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..6FC..(P201902

77241VCLIP, TUBE JOINT

main77241-33011iGDH322..RHD..P..GEN202006-202106

main77241-60550iGDH306..G;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN202109-202505

77241WCLIP, TUBE JOINT

main77241-35450iGDH322..RHD..(P,Q)..GEN201902-202005

main77241-60560iGDH321..GEN202109-202310

77269AHOSE, FUEL TANK BREATHER

main77269-26020iGDH322..Q..GEN202006

77272CSUPPORT, BREATHER TUBE, NO.3

main77272-26060iGDH321..GEN201902-202310

77276PROTECTOR, FUEL HOSE

main77276-26100iGDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN201902-202505

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77281-47060iGDH321..GEN201902-202310

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iGDH322..RHD..P..GEN202006-202106

77295CGROMMET, FUEL TUBE

main77295-27010iGDH322..RHD..P..GEN202006-202106

77310ACAP ASSY, FUEL TANK

main77300-0K020iGDH322..TH202306

main77300-12020iGRH30#,32#201902

main77300-12030iGDH322..RHD..(P,Q)..GEN201902-202005

main77310-26050iGDH328..VN;GDH322..LHD..(P,Q)..GEN201903

77316GASKET, FUEL TANK CAP

main77316-0K020iGDH322..TH202306

main77316-52040iGDH322..RHD..(P,Q)..GEN201902-202005

77651ACUSHION, FUEL TANK, NO.1

main77651-26070×2iGDH322..RHD..(P,Q)..GEN201902-202005

77653ACUSHION, FUEL TANK, NO.3

main77653-42010iGDH322..RHD..(P,Q)..GEN201902-202005

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-26010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

77697AINSULATOR, FUEL TANK HEAT, NO.2

main77698-26020iGDH322..RHD..(P,Q)..GEN201902-202005

8401

9011908D17

main90119-08D17

9017906169

main90179-06169

9046046005

main90460-46005

9046050008

main90460-50008

9046623006

main90466-23006

91626B0614

main91626-B0614

9613341301

main96133-41301

9613341501

main96133-41501

34 parts on this diagram · 8 diagrams in section
