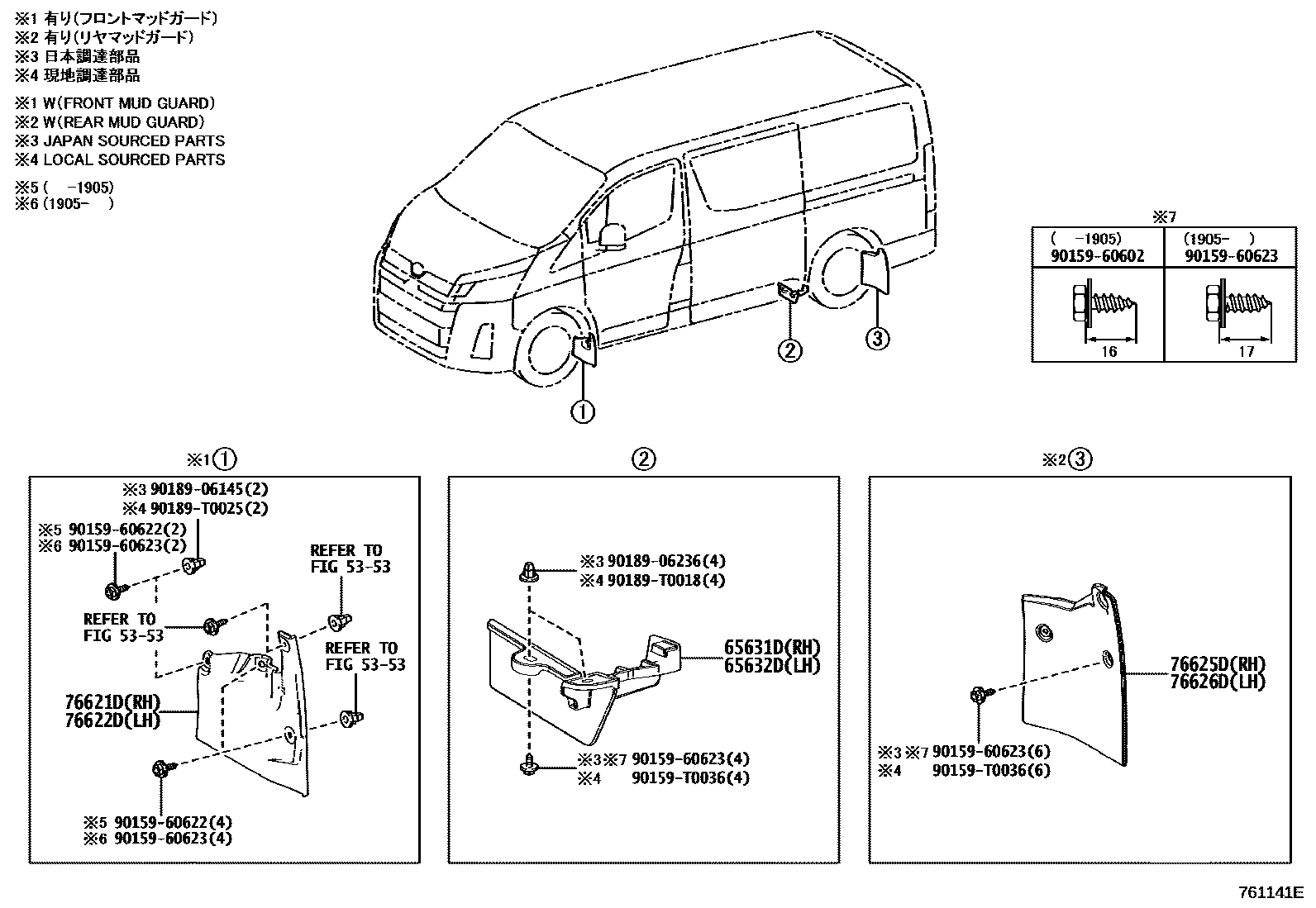

SPOILER & SIDE MUDGUARD

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1RUSSIA SPEC

5353

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-26010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202505

main65631-26020iGRH303..LHD..J..GEN201907-202208

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-26010iGDH322..RHD..(P,Q)..GEN201902-202505

main65632-26020iGRH303..LHD..J..GEN201907-202208

76621DMUDGUARD, FRONT FENDER, RH

main76621-0L020iGDH322..TH;GDH328..VN201906

main76621-26040iGDH322..RHD..SG..6F..(D,N)..GEN202107

PANAMA,HONDURAS,NICARAGUA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76621-26040iGDH322..RHD..(P,Q)..GEN201902-202106

main76621-26040iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

ARGENTINA SPEC

main76621-26040iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

TAIWAN SPEC

main76621-26040iGRH322..RHD..N;GDH322,GRH320..RHD..(SG,SP)..6F..(D,N)..GEN;GDH300,301,320..RHD..4D..(SG,SP)..6F..D..GEN202107

AFRICA(GENERAL)SPEC&MUD GUARD-WITH(FRONT & REAR)

main76621-26040iGDH301..RHD..6F..N;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F202405

SOUTH AFRICA SPEC

main76621-26040iGDH322..RHD..P..GEN202107

ZIMBABWE SPEC&MUD GUARD-WITH(FRONT & REAR)

main76621-26040iGDH322..RHD..P..GEN202107

SOUTH AFRICA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76621-26040iGDH322..RHD..P..GEN202107

BRUNEI SPEC&MUD GUARD-WITH(FRONT & REAR)

main76621-26060iGDH304;GDH306..RHD;GDH306..LHD..J201907-202505

76622DMUDGUARD, FRONT FENDER, LH

main76622-0L020iGDH322..TH;GDH328..VN201906

main76622-26050iGDH322..RHD..SG..6F..(D,N)..GEN202107

BRUNEI SPEC&MUD GUARD-WITH(FRONT & REAR)

main76622-26050iGDH322..RHD..P..GEN201902-202106

main76622-26050iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

TAIWAN SPEC

main76622-26050iGDH320..LHD..SP..6FC..GEN;GDH300..LHD..PSOB..6FC..GEN201902

ARGENTINA SPEC

main76622-26050iGDH301..RHD..6F..N;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F202405

SOUTH AFRICA SPEC

main76622-26050iGDH322..RHD..P..GEN202107

PANAMA,HONDURAS,NICARAGUA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76622-26050iGDH322..RHD..P..GEN202107

ZIMBABWE SPEC&MUD GUARD-WITH(FRONT & REAR)

main76622-26050iGDH322..RHD..P..GEN202107

SOUTH AFRICA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76622-26050iGDH322..RHD..P..GEN202107

AFRICA(GENERAL)SPEC&MUD GUARD-WITH(FRONT & REAR)

main76622-26070iGDH304;GDH306..RHD;GDH306..LHD..J201907-202505

76625DMUDGUARD, QUARTER PANEL, REAR RH

main76625-0L020iGDH322..TH;GDH328..VN201906

main76625-26060iGDH300..SHP..6F..GEN201902-202106

main76625-26060iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

ARGENTINA SPEC

main76625-26060iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

TAIWAN SPEC

main76625-26060iGDH322..RHD..P..GEN202107

PANAMA,HONDURAS,NICARAGUA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76625-26060iGDH322..RHD..P..GEN202107

ZIMBABWE SPEC&MUD GUARD-WITH(FRONT & REAR)

main76625-26060iGDH322..RHD..P..GEN202107

SOUTH AFRICA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76625-26060iGDH322..RHD..P..GEN202107

BRUNEI SPEC&MUD GUARD-WITH(FRONT & REAR)

main76625-26060iGDH322..RHD..P..GEN202107

AFRICA(GENERAL)SPEC&MUD GUARD-WITH(FRONT & REAR)

main76625-26060iGDH301..RHD..6F..N;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F202405

SOUTH AFRICA SPEC

main76625-26070iGDH306..LHD..G201907-202505

76626DMUDGUARD, QUARTER PANEL, REAR LH

main76626-0L020iGDH322..TH;GDH328..VN201906

main76626-26060iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

ARGENTINA SPEC

main76626-26060iGDH322..AGT;GDH322..LHD..(P,Q)..GEN;GDH300,301,320,328..AGT,BZ,TH;GDH300,321..RHD..(HPSOB,SG)..(GEN,IDN)201902

TAIWAN SPEC

main76626-26060iGRH322..RHD..N;GDH322,GRH320..RHD..(SG,SP)..6F..(D,N)..GEN;GDH300,301,320..RHD..4D..(SG,SP)..6F..D..GEN202107

AFRICA(GENERAL)SPEC&MUD GUARD-WITH(FRONT & REAR)

main76626-26060iGDH322..RHD..(P,Q)..GEN201902-202106

main76626-26060iGRH322..RHD..N;GDH322,GRH320..RHD..(SG,SP)..6F..(D,N)..GEN;GDH300,301,320..RHD..4D..(SG,SP)..6F..D..GEN202107

ZIMBABWE SPEC&MUD GUARD-WITH(FRONT & REAR)

main76626-26060iGRH322..RHD..N;GDH322,GRH320..RHD..(SG,SP)..6F..(D,N)..GEN;GDH300,301,320..RHD..4D..(SG,SP)..6F..D..GEN202107

SOUTH AFRICA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76626-26060iGRH322..RHD..N;GDH322,GRH320..RHD..(SG,SP)..6F..(D,N)..GEN;GDH300,301,320..RHD..4D..(SG,SP)..6F..D..GEN202107

BRUNEI SPEC&MUD GUARD-WITH(FRONT & REAR)

main76626-26060iGDH301..RHD..6F..N;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F202405

SOUTH AFRICA SPEC

main76626-26060iGDH322..RHD..P..GEN202107

PANAMA,HONDURAS,NICARAGUA SPEC&MUD GUARD-WITH(FRONT & REAR)

main76626-26070iGDH304;GDH306..RHD;GDH306..LHD..J201907-202505

9015960602

main90159-60602

9015960622

main90159-60622

9015960623

main90159-60623

90159T0036

main90159-T0036

9018906145

main90189-06145

9018906236

main90189-06236

90189T0018

main90189-T0018

90189T0025

main90189-T0025

15 parts on this diagram · 7 diagrams in section
