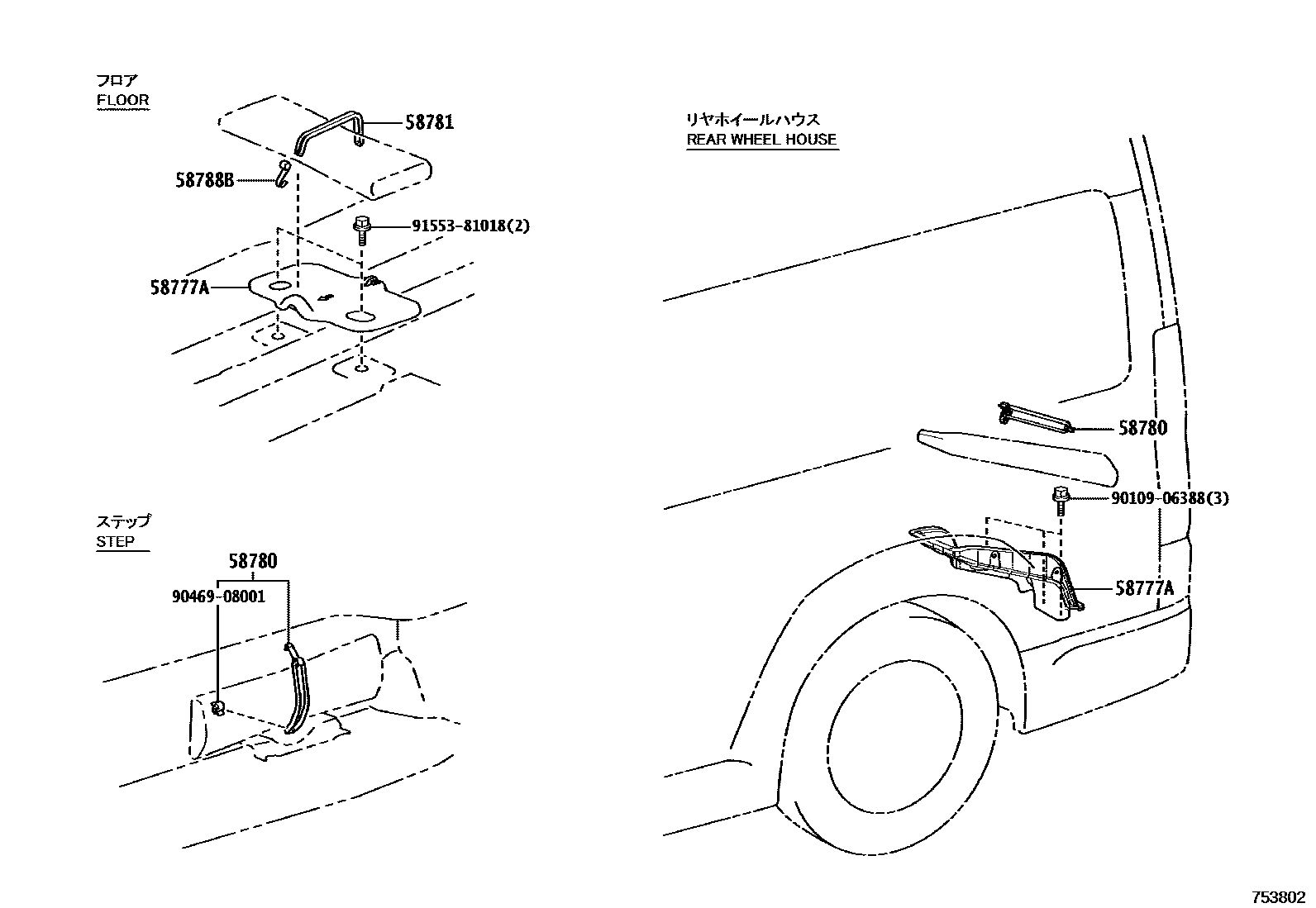

TOOL BOX & LICENSE PLATE BRACKET

0001 1TOOL 0002 1TOOL 0003 1HAMMER 0004 1HAMMER 0005 1HAMMER

58777AHOLDER, TOOL BAG

main58777-26010iGDH300,GRH300..HPSOB,SHP201902

main58777-26040-C0iGDH322..6F..Q..GEN201902-202005

BLACK,TRIM1#

58780BAND ASSY, TOOL BOX

main58780-58010iGDH300..4D..PSOB;GDH300..LHD..SP..GEN;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300..5D..(GSOB,PSOB,SG,SP);GDH320,GRH300,320..GSOB,PSOB,SG,SP201902

main58780-58040iGDH322..RHD..(P,Q)..GEN201902-202005

58781BAND, TOOL BAG

main58781-58010iGDH300,GRH300..HPSOB,SHP201902

58788BHOOK, TOOL BOX BAND, NO.1

main58788-95J01iGDH300,GRH300..HPSOB,SHP201902

9010906388

main90109-06388

9046908001

main90469-08001

9155381018

main91553-81018

7 parts on this diagram · 5 diagrams in section
