SEAT RAIL

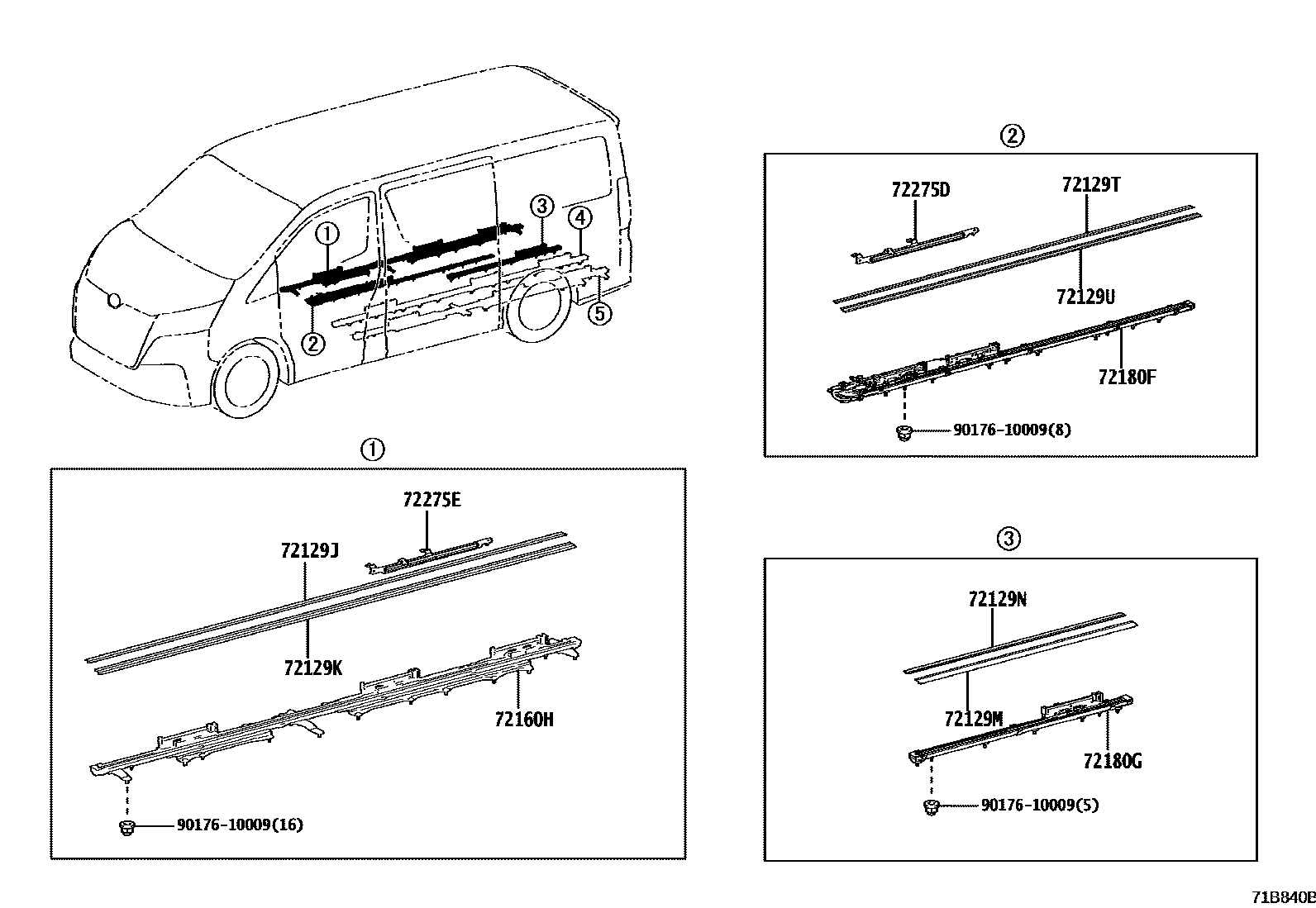

Parts diagram
72129JPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
main72129-26190i201907
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26190i201907
PREMIUM PACKAGE
main72129-26190i201907
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26190i201907
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26190i201907
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
main72129-26190i201907-202505
main72129-26300i201907
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
72129KPROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.2
main72129-26190i202107
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
main72129-26190i202107
PREMIUM PACKAGE
main72129-26190i202107-202505
main72129-26190i202107
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26190i202107
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26190i202107
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26200i201907-202107
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
sub72129-26190
main72129-26200i201907-202107
GUATEMALA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
sub72129-26190
main72129-26200i201907-202107
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
sub72129-26190
main72129-26200i201907-202107
LAOS SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
sub72129-26190
main72129-26200i201907-202107
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
sub72129-26190
main72129-26200i201907-202107
MYANMAR SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
sub72129-26190
main72129-26200i201907-202107
PREMIUM PACKAGE
sub72129-26190
main72129-26200i201907-202107
PREMIUM PACKAGE&REAR SEAT-2-ROW(REAR NO.1 & NO.2 POWER SEAT)&SEAT HEATER-WITH(REARNO.1 SEAT & REAR NO.2 SEAT)
sub72129-26190
main72129-26200i201907-202107
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
sub72129-26190
main72129-26300i202107
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
main72129-26310i201907-202107
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
sub72129-26300
72129MPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.1
main72129-26210i201907
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26210i201907
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26210i201907
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26210i201907-202505
72129NPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER REAR NO.2
main72129-26210i202107
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26210i202107
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26210i202107
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72129-26210i202107-202505
main72129-26220i201907-202107
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
sub72129-26210
main72129-26220i201907-202107
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
sub72129-26210
main72129-26220i201907-202107
GUATEMALA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
sub72129-26210
main72129-26220i201907-202107
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
sub72129-26210
main72129-26220i201907-202107
LAOS SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
sub72129-26210
main72129-26220i201907-202107
MYANMAR SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
sub72129-26210
72129TPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
main72129-26290i201907-202106
PREMIUM PACKAGE&REAR SEAT-2-ROW(REAR NO.1 & NO.2 POWER SEAT)&SEAT HEATER-WITH(REARNO.1 SEAT & REAR NO.2 SEAT)
sub72129-V3040
main72129-26290i201907-202106
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
sub72129-V3040
main72129-26290i201907-202106
PREMIUM PACKAGE
sub72129-V3040
main72129-26330i201907-202106
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
sub72129-V3020
main72129-V3020i202107-202505
main72129-V3020i202107
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
main72129-V3040i202107
PREMIUM PACKAGE
main72129-V3040i202107
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
72129UPROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.2
main72129-26290i201907-202106
PREMIUM PACKAGE
sub72129-V3040
main72129-26290i201907-202106
PREMIUM PACKAGE&REAR SEAT-2-ROW(REAR NO.1 & NO.2 POWER SEAT)&SEAT HEATER-WITH(REARNO.1 SEAT & REAR NO.2 SEAT)
sub72129-V3040
main72129-26290i201907-202106
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
sub72129-V3040
main72129-26330i201907-202106
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
sub72129-V3020
main72129-V3020i202107-202505
main72129-V3020i202107
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
main72129-V3040i202107
PREMIUM PACKAGE
main72129-V3040i202107
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
72160HTRACK ASSY, REAR SEAT, OUTER RH
main72160-26200i201907
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72160-26200i201907-202505
main72160-26200i201907
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72160-26200i201907
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72160-26210i201907-202310
main72160-26290i201907
PREMIUM PACKAGE
main72160-26290i201907
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
main72160-26300i201907
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
main72160-V3010i202310
72180FTRACK ASSY, REAR SEAT, INNER RH
main72180-26060i202208-202505
main72180-26080i202208-202505
REAR SEAT-3-ROW(FOR 5 PERSONS, REAR NO.1SEAT:*PSE)
main72180-26100i201907-202505
REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)
main72180-26100i201907-202505
PREMIUM PACKAGE
main72180-26250i201907-202208
GUATEMALA SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
main72180-26250i201907-202208
LAOS SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
main72180-26250i201907-202208
MYANMAR SPEC&REAR SEAT-3-ROW(FOR 7 PERSONS)
main72180-26260i201907-202505
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
main72180-26260i201907-202208
main72180-26280i201907-202505
main72180-V3020i202310
72180GTRACK ASSY, REAR SEAT, INNER RH REAR
main72180-26070i201907
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72180-26070i201907
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72180-26070i201907
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72180-26090i201907-202505
72275DSTOPPER, REAR SEAT TRACK SLIDE, RH NO.1
main72275-26050i201907
PREMIUM PACKAGE
main72275-26050i201907-202505
main72275-26050i201907
PREMIUM PACKAGE&REAR SEAT-2-ROW(MANUAL CAPTAIN SEAT)&SEAT HEATER-WITH(REAR NO.1 SEAT & REAR NO.2 SEAT)
72275ESTOPPER, REAR SEAT TRACK SLIDE, RH NO.2
main72275-26050i201907
GUATEMALA SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72275-26050i201907-202505
main72275-26050i201907
LAOS SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72275-26050i201907
MYANMAR SPEC&PREMIUM PACKAGE&REAR SEAT-3-ROW(FOR 7 PERSONS, NO.3 SEAT:*45)
main72275-26060i201907
9017610009
main90176-10009

12 parts on this diagram · 10 diagrams in section
