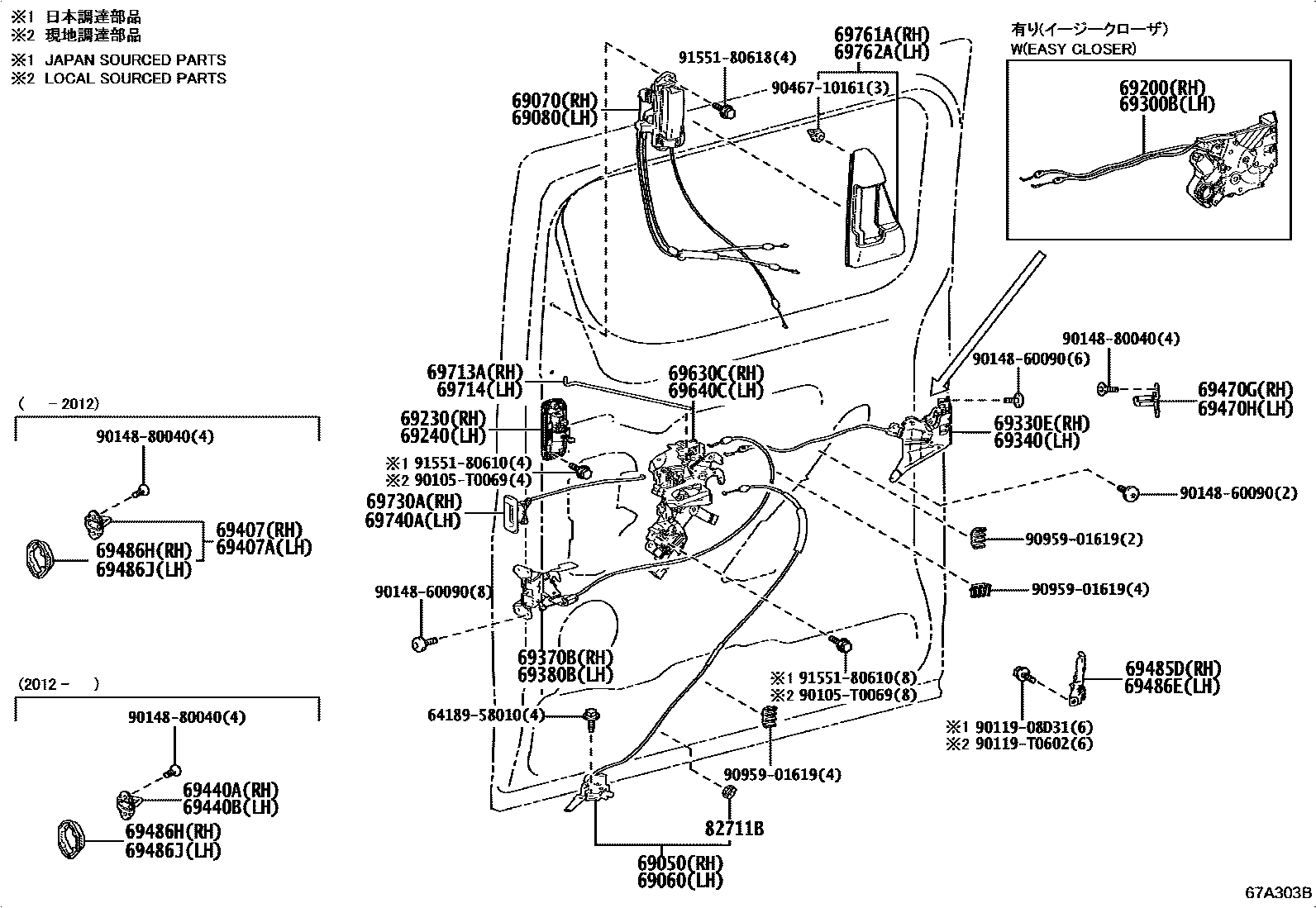

REAR DOOR LOCK & HANDLE

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69305-26010iGDH321..GEN201902-202310

69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH

main69306-26010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-26050-C0iGDH321..D..GEN201902-202310

BLACK,TRIM1#

main69070-26060-C0iGDH306..LHD..G201907-202505

BLACK,TRIM2#

main69070-26070-A0iGDH301,322,328,GRH301,321,322..LHD..(N,Q)201902

FROMAGE,TRIM0#

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-26050-C0iGDH322..RHD..P..GEN201902-202005

BLACK,TRIM1#

main69080-26060-C0iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304201907

BLACK,TRIM2#

main69080-26070-A0iGDH322..6F..Q..GEN201902-202005

FROMAGE,TRIM0#

69200LOCK ASSY, POWER SLIDE DOOR, RH

main69200-26030supersedes 69200-26070iGDH304..GEN;GDH303..RHD..H202208-202307

*ECS(*SD) & *POSD

main69200-26070iGDH303..LHD..H;GDH304,GRH304..RHD;GDH303,306,GRH303..G,J201907-202307

main69200-V3040supersedes 69200-V3050iGDH304,GRH304..RHD202310-202406

main69200-V3041supersedes 69200-V3051iGDH300,GRH300..SHP202407

*ECS(*SD) & *POSD

main69200-V3050iGDH303..LHD..H;GDH303,306,GRH303..G,J202308-202407

sub69200-V3051

main69200-26060iGDH322..P..GCC;GDH321,322..LHD..(N,Q);GDH328,GRH321,322..LHD..(GCC,GEN,PH)201903-202307

*ECS(*SD) & *POSD

main69200-V3060iGDH322..P..GCC;GDH322..LHD..(N,Q);GDH328,GRH321,322..LHD202308-202406

*ECS(*SD) & *POSD

main69200-V3061iGDH322..P..GCC;GDH322..LHD..(N,Q);GDH328,GRH321,322..LHD..(GCC,GEN,PH)202407

*ECS(*SD) & *POSD

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-26120iGDH321..D..GEN201902-202310

NO PAINT REQ.

main69230-26130-A0iGDH322..P..GCC;GRH322..LHD..(D,P);GDH322..6FC..P..GEN;GDH322..LHD..D..GEN;GDH320..GSOB,PSOB,SP;GDH300,GRH300,320..5D;GDH300,320,328,GRH300,320..LHD..4D..(PSOB,SG,SP201902

WHITE,058

main69230-26130-A1iGDH301,322,328,GRH301..LHD..SG..N..(GEN,PH)201902-202506

WHITE PEARL CS.,2QD

main69230-26130-B0iGDH322..P..GCC;GRH322..LHD..(D,P);GDH322..6FC..P..GEN;GDH322..LHD..D..GEN;GDH300,GRH300,320..5D;GDH320..(GSOB,PSOB,SP)..(ARL,GCC,GEN);GDH300,320,GRH300,320..LHD..4D201902

SILVER M.M.,1E7

main69230-26130-C1iGDH300..5D..(SHP,SP)..6F..GEN;GDH300..(HPSOB,SHP)..6FC..GEN201902

GL PACKAGE,BLACK MC.,209

main69230-26130-E0iGDH328..PH201903

BEIGE ME.,4R4

main69230-26130-J0iGDH301,321,322,328,GRH301,321,322..LHD..(N,Q)201902-202107

LT.BLUE ME.,8Q6

main69230-26140iGDH306..RHD;GDH303,304,GRH303,304201907

PLATED

main69230-26160iGDH306..LHD201907-202505

PLATED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-26120iGDH322..RHD..P..GEN201902-202005

LESS COLOR

main69240-26130-A0iGDH322..6F..Q..GEN201902-202005

WHITE,058

main69240-26130-B0iGDH322,GRH321..(D,Q)..(ARL,TH);GDH301,321,322,GRH301,322..RHD..N201902

SILVER M.M.,1E7

main69240-26130-C1iGDH301,GRH301..RHD..N201902

GL PACKAGE,BLACK MC.,209

main69240-26130-E0iGDH322..6F..Q..GEN201903-202005

BEIGE ME.,4R4

main69240-26130-J0iGDH322..Q..GEN202006-202107

LT.BLUE ME.,8Q6

main69240-26140iGDH306..RHD;GDH303,304,GRH303,304201907

*CR

main69240-26150iGDH306..LHD201907-202505

NO PAINT REQ.

69300BLOCK ASSY, POWER SLIDE DOOR, LH

main69300-26150supersedes 69300-26170iGDH304..GEN;GDH303..RHD..H202208-202307

*ECS(*SD) & *POSD

main69300-26170iGDH303..LHD..H;GDH304,GRH304..RHD;GDH303,306,GRH303..G,J201907-202307

main69300-V3040supersedes 69300-V3050iGDH304,GRH304..RHD202310-202406

main69300-V3041supersedes 69300-V3051iGDH300,GRH300..SHP202407

*ECS(*SD) & *POSD

main69300-V3050iGDH303..LHD..H;GDH303,306,GRH303..G,J202308-202407

sub69300-V3051

main69300-V3060iGDH322..Q..ARL202310-202406

main69300-V3061iGDH322..Q..ARL202407

*ECS(*SD) & *POSD

main69300-26160iGDH322..RHD..(P,Q)..GEN201903-202005

*ECS(*SD) & *POSD

69330ELOCK ASSY, SLIDE DOOR, RH

main69330-26060iGDH300,GRH300..5D;GDH300,301,GRH300,301..LHD..4D201902-202307

main69330-26070iGDH320..LHD..SG;GDH320,GRH320..GSOB,PSOB,SP;GDH321,322,328,GRH32#..LHD..4D201903-202307

main69330-V3010iGDH300..5D;GDH300..LHD..GEN;GDH301,GRH300,301..LHD202308-202406

main69330-V3011iGDH300..5D;GDH300..LHD..GEN;GDH301,GRH300,301..LHD202407

main69330-V3020iGDH321..GEN202308-202310

main69330-V3021iGDH320..LHD..SG;GDH320..GSOB,PSOB,SP;GDH322,328,GRH32#..LHD..(AGT,BZ,GCC,GEN,PH)202407

69340LOCK ASSY, REAR DOOR, LH

main69340-26060iGDH300..GCC;GRH300..ARL,GCC;GRH300..5D..GEN;GRH300..6FC..GEN;GDH300,301,GRH301..RHD201902-202307

main69340-26070iGDH322..Q..GEN202006-202307

main69340-V3010iGDH301..RHD..GSOB..6F202308-202404

main69340-V3011iGDH300..RHD..4D..SP..6FC..GEN202407-202505

main69340-V3020iGDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH320,GRH320..LHD..5D;GDH320,321,322,GRH322..RHD..(PSOB,SG,SP)..(D,N,P)202308-202406

main69340-V3021iGDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH320,GRH320..LHD..5D;GDH320,321,322,GRH322..RHD..(PSOB,SG,SP)..(D,N,P)202407

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-26020iGDH306..RHD;GDH320..GSOB,PSOB,SP;GDH306,320..LHD..SG..(D,J);GDH322..LHD..(AGT,GCC,GEN);GDH300,303,304,GRH300,303,304,320..5D;GDH300,301,328,GRH300,301,32#..LHD..4D201902

69380BLOCK ASSY, SLIDE DOOR, FRONT LH

main69380-26020iGDH322..RHD..(P,Q)..GEN201902-202005

69407STRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT RH

main69407-15010iGDH300,301,32#,GRH300,301,32#..LHD..4D;GDH300,303,304,306,320,GRH300,303,304,320..5D201902-201911

main69407-26010iGDH300,301,32#,GRH300,301,32#..LHD..4D;GDH300,303,304,306,320,GRH300,303,304,320..5D201912-202101

69407ASTRIKER SUB-ASSY, REAR DOOR OPEN LOCK, FRONT LH

main69407-15010iGDH300..RHD..4D;GDH300,303,306,GRH303..5D;GDH320,GRH300,320..LHD..5D;GDH301,304,320,322,GRH300,301,304,32#..RHD201902-201911

main69407-26010iGDH322..ARL,NZ;GDH320,GRH300,320..LHD..5D;GDH300,322..RHD..4D..(D,N);GDH300,303,304,306,GRH303..5D;GDH301,320,321,GRH300,301,304,32#..RHD201912-202101

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-08050iGDH306..LHD..G202101-202505

69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-08050iGDH306..LHD..G;GDH300..RHD..4D..SP..6FC..GEN202101-202505

69470GPLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, RH

main69470-58010iGDH306..RHD;GDH320..GSOB,PSOB,SP;GDH306,320..LHD..SG..(D,J);GDH322..LHD..(AGT,GCC,GEN);GDH300,303,304,GRH300,303,304,320..5D;GDH300,301,328,GRH300,301,32#..LHD..4D201902

69470HPLATE ASSY, SLIDE DOOR REAR LOCK STRIKER, LH

main69470-58010iGDH322..RHD..(P,Q)..GEN201902-202005

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-26030iGDH321..GEN201902-202310

69486ESTRIKER, SLIDE DOOR OPEN, LH

main69486-26030iGDH322..RHD..P..GEN202107

69486HCOVER, SLIDE DOOR FRONT LOCK STRIKER, RH

main69486-15020iGDH306..LHD..G201902-202505

69486JCOVER, SLIDE DOOR FRONT LOCK STRIKER, LH

main69486-15020iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-26250iGDH320..LHD..SG;GRH300..LHD..(PSOB,SG,SP);GDH320..(GSOB,PSOB,SP)..(AGT,GCC,GEN);GDH300,GRH320..5D..(PSOB,SP)..(GCC,GEN);GDH300,301,322,GRH301,322..LHD..4D..(D,P)..(201902

main69630-26280iGDH306..RHD;GDH303..LHD..H;GDH306..LHD..J;GDH303,GRH303..G,J201907-202506

main69630-26290supersedes 69630-26280iGDH304..GEN;GDH303..RHD..H202208

WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD

main69630-26310supersedes 69630-26340iGDH300..SHP..6FC..GEN;GDH300,GRH300..(HPSOB,SHP)..GCC201902

main69630-26330supersedes 69630-26250iGRH320..GEN202208

main69630-26340supersedes 69630-26310iGDH300..HPSOB;GDH300..SHP..ARL201902

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69630-26300iGDH322,328,GRH301,321,322..LHD..(N,Q)201902

*ECS(*SD) & *POSD

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-26410supersedes 69640-26440iGDH322..(D,P)..(ARL,NZ,TH);GDH301,321,322,GRH301,322..RHD..N;GDH300,301,320,321,GRH300,320,321..(GSOB,PSOB,SG,SP)..(ARL,BZ,NZ)201902

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69640-26420iGDH300..HPSOB;GDH300..SHP..ARL201902

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & SECURITY HORN)

main69640-26440iGDH301..RHD..GSOB..6FC;GRH300..6FC..(GCC,GEN);GDH300..5D..(PSOB,SP)..(GCC,GEN);GRH300..LHD..5D..(PSOB,SG,SP)..6F;GDH320,GRH320..LHD..5D..(AGT,GCC,GEN);GDH320,322,GR201902

main69640-26450iGDH306..RHD;GDH303..LHD..H;GDH306..LHD..J;GDH303,GRH303..G,J201907-202506

main69640-26460supersedes 69640-26480iGDH304..GEN;GDH303..RHD..H202208

WIRELESS DOOR LOCK-WITH&*ECS(*SD) & *POSD

main69640-26470supersedes 69640-26440iGDH322..Q..ARL202310

main69640-26480supersedes 69640-26420iGDH300..SHP..6FC..GEN;GDH300,GRH300..(HPSOB,SHP)..GCC201902

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-26030iGDH306..LHD..G201902-202505

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-26030iGDH322..RHD..P..GEN202006-202106

69730ALINK ASSY, REAR DOOR LOCK CONTROL, RH

main69730-26030iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,GRH300..HPSOB,SHP201902

69740ALINK ASSY, REAR DOOR LOCK CONTROL, LH

main69740-26030iGDH306..RHD;GDH306..LHD..J;GDH303,304,GRH303,304;GDH300,GRH300..HPSOB,SHP201902

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-26020-C0iGDH320..LHD..SG;GDH320..GSOB,PSOB,SP;GDH300,GRH300,320..5D;GDH322..LHD..(D,P)..(GCC,GEN);GDH300,301,328,GRH300,301,320,322..LHD..4D..(D,P)201902

BLACK,TRIM1#

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69762-26020-C0iGDH322..RHD..P..GEN202006-202106

BLACK,TRIM1#

82711BCLAMP, WIRING HARNESS

main82711-52070iGDH322..RHD..(P,Q)..GEN201902-202005

6418958010CLAMP, BACK PANEL SILENCER

main64189-58010

90105T0069

main90105-T0069

9011908D31

main90119-08D31

90119T0602

main90119-T0602

9014860090

main90148-60090

9014880040

main90148-80040

9046710161

main90467-10161

9095901619

main90959-01619

9155180610

main91551-80610

9155180618

main91551-80618

41 parts on this diagram · 1 diagram in section
