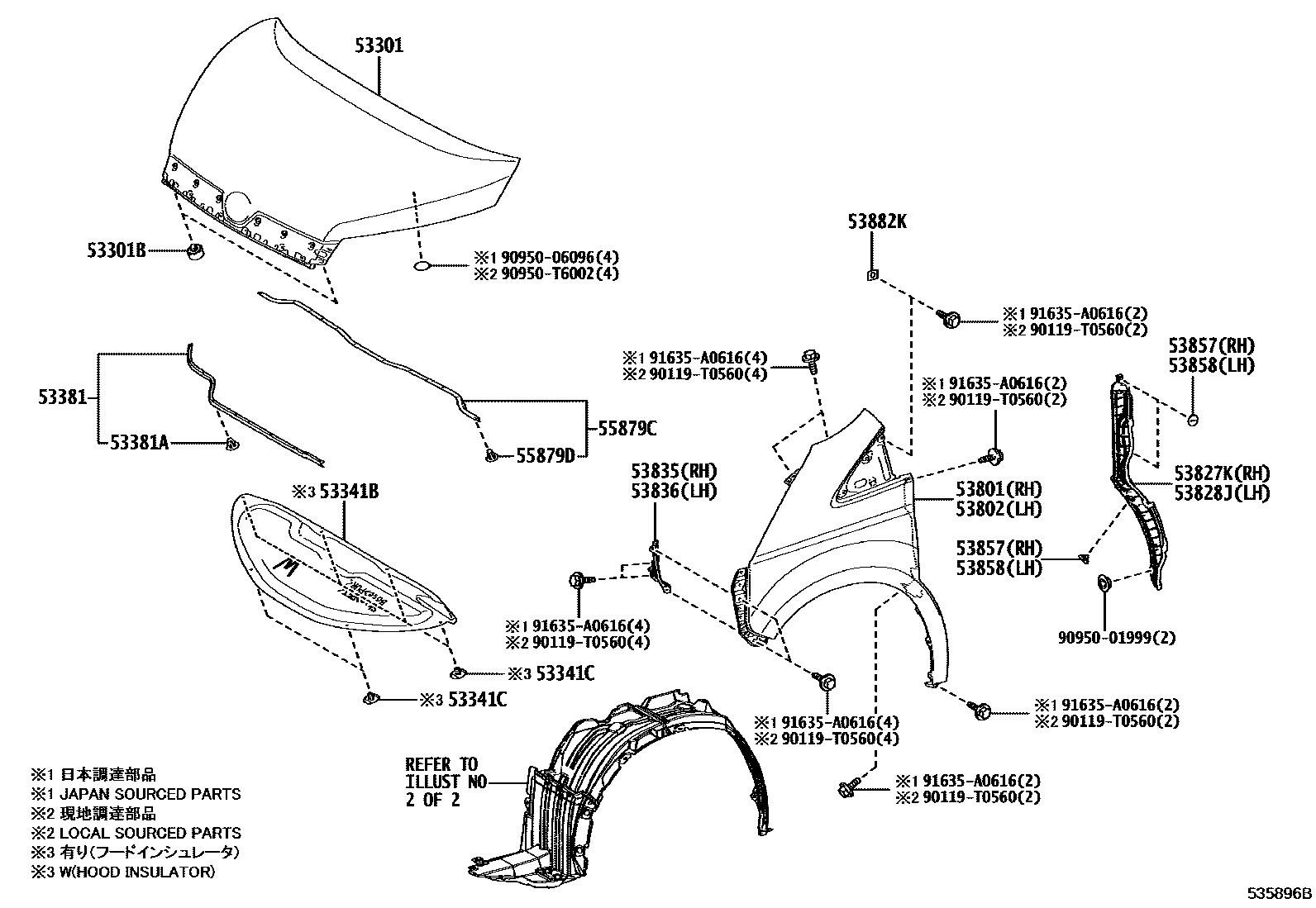

HOOD & FRONT FENDER

0001 1 0002 1 0003 1W(SOUND ABSORPTION) 0004 1

53301HOOD SUB-ASSY

main53301-26100iGDH322,328..TH,VN¥41,200201902-202505

main53301-V3010iGDH322..RHD..P..GEN202005-202505

sub53301-26100¥41,200

53301BCUSHION, HOOD BUMPER

main90541-10044iGDH322..RHD..(P,Q)..GEN¥160201902-202505

53341BINSULATOR, HOOD

main53341-26060iGDH322..6F..Q..GEN¥3,600201902-202505

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iGDH322..6F..Q..GEN¥120201902-202505

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-26130iGDH322..RHD..(P,Q)..GEN¥1,080201902-202505

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iGDH30#,32#,GRH30#,32#¥100201902-202505

53801FENDER SUB-ASSY, FRONT RH

main53801-26030iGDH322..RHD..P..GEN201902-202505

main53801-26040iGDH321..D..GEN¥40,900201902-202505

OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM

main53801-26040iGRH322..N,Q;GDH321..6FC;GDH322..ARL,NZ,TH;GDH321,322..RHD..N;GDH322..LHD..P..GEN;GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH3¥40,900201902-202505

OUTSIDE REAR VIEW MIRROR-*57 & COLORED

main53801-26040iGDH322..Q..GEN¥40,900202006

main53801-26050iGDH306..LHD..G¥40,900201907-202505

53802FENDER SUB-ASSY, FRONT LH

main53802-26060iGDH300..RHD..4D..SP..6FC..GEN201902-202505

main53802-26070iGRH322..N,Q;GDH321..6FC;GDH322..ARL,NZ,TH;GDH321,322..RHD..N;GDH322..LHD..P..GEN;GDH301..GSOB..6FC..N;GDH322..LHD..6FC..(N,Q);GDH322..LHD..SG..6F..(N,Q);GDH301,GRH3¥40,900201902-202505

OUTSIDE REAR VIEW MIRROR-*57 & COLORED & *TM

main53802-26070iGDH301,322..GSOB..6F..N¥40,900201902-202505

OUTSIDE REAR VIEW MIRROR-*57 & COLORED

main53802-26070iGDH322..Q..GEN¥40,900202006

main53802-26080iGDH306..LHD..G¥40,900201907-202505

53827KPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-26020iGDH321..GEN¥2,690201902-202505

53828JPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-26030iGDH322..RHD..P..GEN¥2,690201902-202505

53835BRACE, FRONT FENDER TO EXTENSION, RH

main53835-26020iGDH322..RHD..(P,Q)..GEN¥1,320201902-202505

53836BRACE, FRONT FENDER TO EXTENSION, LH

main53836-26010iGDH322..RHD..(P,Q)..GEN¥1,320201902-202505

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-28030iGDH322..RHD..(P,Q)..GEN¥70201902-202409

main90467-07223iGDH306;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN¥60202409-202505

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-28030iGDH321..GEN¥70201902-202409

main90467-07223iGDH300..5D;GDH321..RHD;GDH301..GSOB..6FC;GDH300..LHD..SP..GEN;GDH322..RHD..GSOB..N;GDH322..LHD..GSOB..6FC;GDH322..GSOB..6F..(D,P);GDH301..LHD..GSOB..6F..D;GDH300..4¥60202409-202505

53882KSEAL, FRONT FENDER

main53882-16030iGDH322..RHD..(P,Q)..GEN¥60201902-202505

55879CSEAL, COWL VENT

main55879-26030iGDH322..RHD..(P,Q)..GEN¥2,300201902-202505

55879DCLIP(FOR COWL VENT SEAL)

main90467-08011iGDH322..RHD..(P,Q)..GEN¥100201902-202505

90119T0560

main90119-T0560

9095001999

main90950-01999¥100

9095006096

main90950-06096¥100

90950T6002

main90950-T6002

91635A0616

main91635-A0616¥60

22 parts on this diagram · 4 diagrams in section
