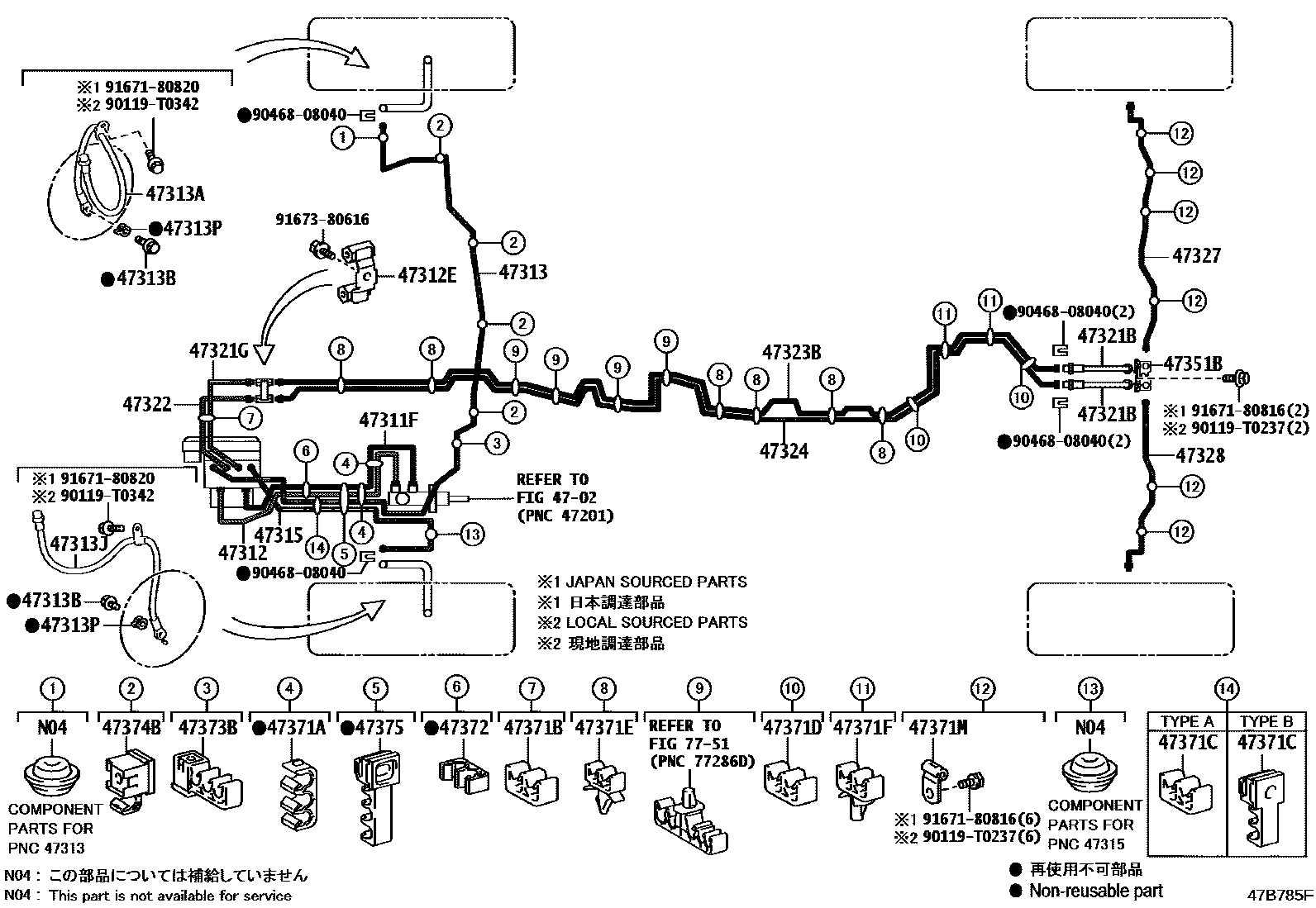

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE(REAR DRUM BRAKE) 0003 1BRAKE TUBE(REAR DISC BRAKE) 0004 1BRAKE TUBE(REAR DRUM BRAKE) 0005 1BRAKE TUBE(REAR DISC BRAKE) 0006 1BRAKE TUBE 0007 1BRAKE TUBE 0008 1BRAKE TUBE(REAR DRUM BRAKE) 0009 1BRAKE TUBE(REAR DISC BRAKE) 0010 1BRAKE TUBE(REAR DRUM BRAKE) 0011 1BRAKE TUBE(REAR DISC BRAKE) 0012 1BRAKE ACTUATOR

4702

47311FTUBE, FRONT BRAKE, FRAME NO.1

main47311-26A90supersedes 47311-26B00iGDH322..RHD..GSOB..N;GDH300,322..RHD..(GSOB,SHP)..6F202405

(J)

main47311-26B10supersedes 47311-26B20iGDH328..PH;GDH301..LHD..SG..6FC..N202310

47312TUBE, FRONT BRAKE, NO.2

main47312-26400supersedes 47312-26410iGDH322..RHD..GSOB..N;GDH300,322..RHD..(GSOB,SHP)..6F202405

(J)

main47312-26420supersedes 47312-26430iGDH322..6FC..P..GEN;GDH322..6FC..(AGT,GCC);GDH306,GRH321..LHD..(J,Q);GDH322..LHD..SG..6F..(P,Q);GDH301,322..LHD..GSOB..(N,P);GDH300,303,304,GRH303..LHD..5D;GDH320,3201902

VEHICLE STABILITY CONTROL-WITH

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10285iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

47313TUBE, FRONT BRAKE, NO.3

main47313-26410iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

(J)

main47313-26420iGDH321..GEN201902-202310

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H88iGDH322..RHD..(P,Q)..GEN201902-202005

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGDH322..RHD..P..GEN202107

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H89iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202404

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iGDH322..RHD..(P,Q)..GEN201902-202005

47315TUBE, FRONT BRAKE, NO.5

main47315-26370iGDH322..RHD..(P,Q)..GEN201902-202005

(J)

47321BHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02H90×2iGDH322..RHD..(P,Q)..GEN201902-202005

47321GTUBE, REAR BRAKE, FRAME NO.1

main47321-26840iGDH322..RHD..(P,Q)..GEN201902-202005

(J)

47322TUBE, REAR BRAKE, NO.2

main47322-26450iGDH322..RHD..(P,Q)..GEN201902-202005

(J)

47323BTUBE, REAR BRAKE, NO.3

main47323-26440iGDH300..5D;GDH306..RHD;GDH300..4D..PSOB;GDH301..GSOB..6FC;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J201902

main47323-26450iGDH322..TH201903-202410

(J)

47324TUBE, REAR BRAKE, NO.4

main47324-26590iGDH300..5D;GDH306..RHD;GDH300..4D..PSOB;GDH301..GSOB..6FC;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH300..RHD..4D..SP..6F..GEN;GDH300,306..LHD..(SG,SP)..(D,J201902

main47324-26600iGDH321..RHD;GDH320,328,GRH32#;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH322..RHD..GSOB..6F;GDH322..LHD..SG..(P,Q)..GEN;GDH322..SG..(D,N)..(AGT,GE201903

(J)

47327TUBE, REAR BRAKE, NO.7

main47327-26410supersedes 47327-26420iGDH322..RHD..P..GEN202107

(J)

main47327-26420iGRH300..SG;GRH301..6F..N;GRH320..RHD..GEN;GDH300..4D..6F..ARL;GRH320..LHD..SP..GEN;GRH300..6F..(ARL,GEN);GDH320,GRH320..6F..ARL;GDH320,GRH301..LHD..(SG,SP)..6FC..GE201902

47328TUBE, REAR BRAKE, NO.8

main47328-26220supersedes 47328-26230iGRH301..RHD..D;GRH301..RHD..6FC..N;GDH300,301..RHD..(GSOB,PSOB,SG,SP)..6FC..GEN201902-202310

(J)

main47328-26230iGRH300..SG;GRH301..6F..N;GRH320..RHD..GEN;GDH300..4D..6F..ARL;GRH320..LHD..SP..GEN;GRH300..6F..(ARL,GEN);GDH320,GRH320..6F..ARL;GDH320,GRH301..LHD..(SG,SP)..6FC..GE201902

main47328-26240iGDH306..LHD..G201907-202505

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-26240iGDH300..5D;GDH306,321..RHD;GDH301..GSOB..6FC;GDH322..LHD..GSOB;GDH322..ARL,GCC,NZ;GDH322..RHD..GSOB..N;GDH301..LHD..GSOB..6F;GDH300..4D..SP..(ARL,TH);GDH322..LHD..S201902

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00914×2supersedes 90464-00857iGDH328..PH;GDH301..LHD..6FC..N201902-202310

VEHICLE STABILITY CONTROL-WITH

main90464-00920supersedes 90464-00903iGDH300..HPSOB;GDH322..ARL,NZ;GDH301,322,GRH322..RHD..6F..N;GDH300,301,320,GRH300,320..ARL,NZ,TH;GDH303,304,306,321,GRH303,304,321..RHD201902

VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL)

47371BCLAMP, BRAKE TUBE, NO.6

main90464-00903supersedes 90464-00903iGDH322..6FC..P..GEN;GDH322..6FC..(AGT,GCC);GDH306,GRH321..LHD..(J,Q);GDH322..LHD..SG..6F..(P,Q);GDH301,322..LHD..GSOB..(N,P);GDH300,303,304,GRH303..LHD..5D;GDH320,3201902

VEHICLE STABILITY CONTROL-WITH

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00903iGDH322..RHD..P..GEN202107-202507

TYPE A:REFER ILLUST.

47371DCLAMP, BRAKE TUBE, NO.8

main90464-00903×4iGDH322..RHD..GSOB..6FC..D201903-202404

47371ECLAMP, BRAKE TUBE, NO.9

main90469-07019×6iGDH322..Q..GEN202006

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E02×3iGDH321..GEN201903-202310

47371MCLAMP, BRAKE TUBE, NO.13

main90461-08639×6iGDH300..RHD..4D..SP..6FC..GEN201902-202505

47372CLAMP, BRAKE TUBE, NO.2

main90464-00920supersedes 90464-00920iGDH328..PH;GDH301..LHD..6FC..N201902-202310

VEHICLE STABILITY CONTROL-WITH

main90949-01D20iGDH322..ARL,NZ;GDH300..RHD..5D;GDH322..RHD..GSOB..N;GDH301..RHD..GSOB..6FC;GDH300..4D..SP..(ARL,TH);GDH300,322..RHD..4D..(GSOB,SP)..6F..GEN;GDH300,322..RHD..4D..(PS201902

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01D08iGDH306,322..LHD..(D,J,N,P,Q)..(AGT,GCC,GEN);GDH300,301,303,304,320,328,GRH300,301,303,32#..LHD201902

main90949-01E47×6supersedes 90949-01E48iGDH300..HPSOB;GDH322..ARL,NZ;GDH301,322,GRH322..RHD..6F..N;GDH300,301,320,GRH300,320..ARL,NZ,TH;GDH303,304,306,321,GRH303,304,321..RHD201902

VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL)

47374BCLAMP, BRAKE TUBE, NO.4

main90464-00903iGDH300..HPSOB;GDH322..ARL,NZ;GDH301,322,GRH322..RHD..6F..N;GDH300,301,320,GRH300,320..ARL,NZ,TH;GDH303,304,306,321,GRH303,304,321..RHD201902

VEHICLE STABILITY CONTROL-WITH(TRAILER SWAY CONTROL)

main90949-01D20×4iGDH306..LHD..G201902-202505

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E47supersedes 90949-01E48iGDH306..LHD..G201902-202505

7751

90119T0237

main90119-T0237

90119T0342

main90119-T0342

9046808040

main90468-08040

9167180816

main91671-80816

9167180820

main91671-80820

9167380616

main91673-80616

36 parts on this diagram · 11 diagrams in section
