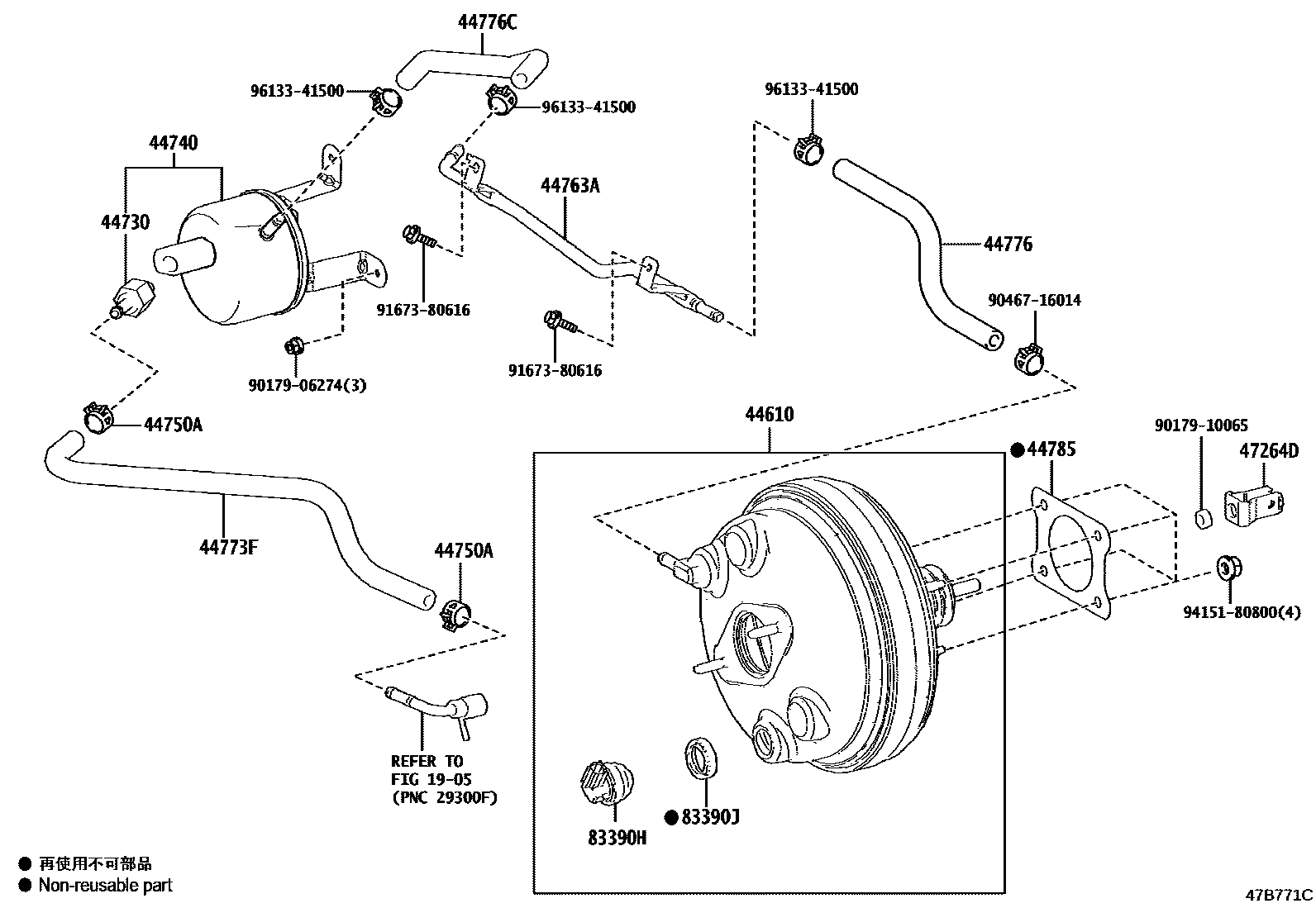

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1905

44610BOOSTER ASSY, BRAKE

main44610-26870iGDH321,322..ARL,NZ201903-202505

main44610-26880iGDH300,301,320..ARL,NZ201902-202505

main44610-26890iGDH322..RHD..P..GEN201903-202505

main44610-26A00iGDH301..RHD..GSOB..6F201902-202505

main44610-26A10iGDH321..GEN201903-202505

main44610-26A20iGDH300,301,303,304,320,GRH300,301,320..LHD..(D,H,N)..(AGT,GCC,GEN)201902-202505

main44610-26A30iGDH303,306,GRH303..LHD..(G,J)201907-202505

main44610-26A40iGDH303..ARL201907-202505

main44610-26A50iGDH306,GRH303..RHD;GDH303..RHD..(G,J)..GEN201907-202505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-60050iGDH322..RHD..P..GEN201902-202505

44740RESERVOIR ASSY, VACUUM

main44740-26180iGDH322..RHD..P..GEN201902-202505

main44740-26190iGDH306..LHD..G;GDH301,322..GSOB..6F..N201902-202505

44750ACLIP(FOR VACUUM HOSE ASSY)

main90466-T0019iGDH300..RHD..4D..SP..6FC..GEN202208-202505

(L)

main96133-41500iGDH306..LHD..G;GDH301,322..GSOB..6F..N201902-202505

(J)

main96133-41500iGDH321..GEN201902-202310

44763ATUBE, HOSE TO HOSE, NO.1

main44763-26020iGDH322..LHD..6FC;GDH301..LHD..GSOB..6FC;GDH301,306..LHD..SG..(D,J,N);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P);GDH300,303,304,320,328,GRH300,3201902-202505

44773FHOSE, UNION TO CHECK VALVE

main44773-26130iGRH30#,32#..RHD201902

main44773-26140iGDH300..RHD..4D..SP..6FC..GEN201902-202505

(J)

main44773-26150iGRH300,301,303,32#..LHD201902

main44773-26160iGDH322..LHD..6FC;GDH301..LHD..GSOB..6FC;GDH300,303,304,320,328..LHD;GDH301,306..LHD..SG..(D,J,N);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P)201902-202505

main44773-VR010iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D202208-202505

(L)

44776HOSE, BRAKE BOOSTER

main44776-26090iGDH322..RHD..P..GEN201902-202505

(J)

main44776-26100iGRH300,301,303,32#..LHD201902

main44776-26110iGDH322..LHD..6FC;GDH301..LHD..GSOB..6FC;GDH300,303,304,320,328..LHD;GDH301,306..LHD..SG..(D,J,N);GDH322..LHD..SG..6F..(GCC,GEN);GDH301,322..LHD..GSOB..6F..(D,P)201902-202505

main44776-VR010iGDH300..RHD..4D..SP..6FC..GEN202208-202505

(L)

44776CHOSE, VACUUM RESERVOIR TO CONNECTOR

main44777-26010iGDH321..GEN201902-202505

44785GASKET, BRAKE BOOSTER

main44785-12040iGDH306..LHD..G;GDH301,322..GSOB..6F..N;GDH300..RHD..4D..SP..6FC..GEN201902-202505

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-30060iGDH306..LHD..G201907-202505

main47264-52020iGDH301..SG;GRH320..LHD..SG;GRH301..RHD..6FC..N;GDH322..GSOB..6F..N;GDH301..LHD..GSOB..6F;GDH320..PSOB..6FC..GEN;GDH300..4D..6F..(GEN,TH);GDH320,GRH301..LHD..6F..D;G201902-202505

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iGDH322..6F..Q..GEN201902-202505

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iGDH322..RHD..P..GEN201902-202505

9017906274

main90179-06274

9017910065

main90179-10065

9046716014

main90467-16014

9167380616

main91673-80616

9415180800

main94151-80800

9613341500

main96133-41500

19 parts on this diagram · 4 diagrams in section
