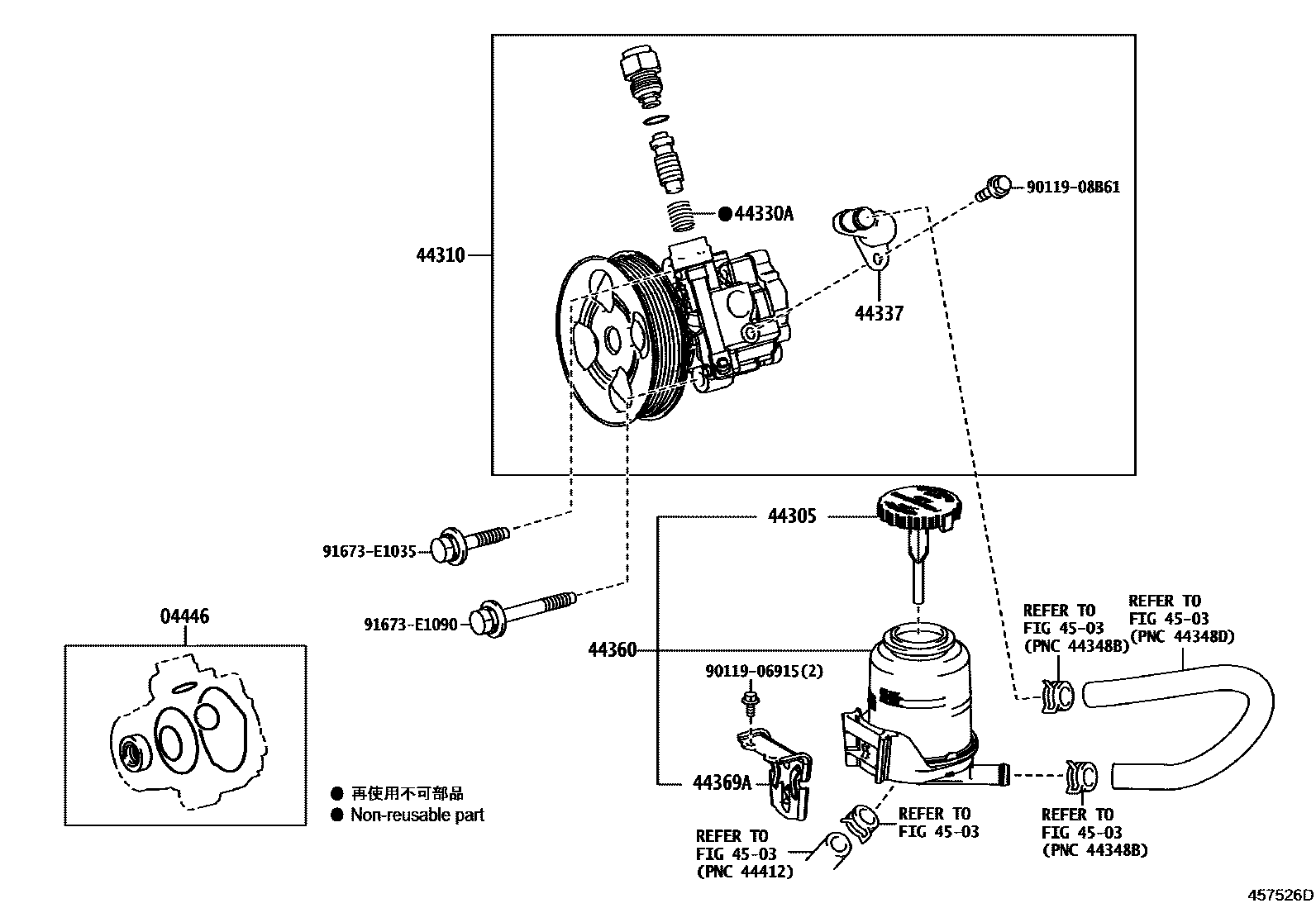

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0003 1 0004 1 0005 1

04446GASKET KIT, POWER STEERING PUMP

main04446-26110iGDH321..GEN201902-202506

main04446-60260iGRH30#,32#201902

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-37031iGDH301..RHD..GSOB..6F;GDH322..RHD..GSOB..6FC..D201902-202506

44310PUMP ASSY, VANE

main44310-26400iGDH322..RHD..P..GEN201902-202505

main44310-26410iGDH300,301,303,320,321,322..ARL,NZ201902-202506

main44310-26420iGRH30#,32#..GCC,GEN201902

main44310-26430iGRH300,303,320,321..ARL201902-202106

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-14173iGDH321..GEN201902-202505

44337UNION, POWER STEERING SUCTION PORT

main44337-26090iGDH322..RHD..P..GEN201902-202506

main44337-26100iGRH30#,32#201902

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-26170iGDH300..5D..ARL;GDH300,322..4D..6FC..ARL;GDH301,303,320,321..6FC..(ARL,NZ)201902-202506

main44360-26180iGRH30#,32#201902

44369ABRACKET, OIL RESERVOIR, NO.1

main44369-26050iGDH322..RHD..(P,Q)..GEN201902-202506

main44369-26060iGRH30#,32#201902

4503

9011906915

main90119-06915

9011908B61

main90119-08B61

91673E1035

main91673-E1035

91673E1090

main91673-E1090

12 parts on this diagram · 4 diagrams in section
