DISC WHEEL & WHEEL CAP

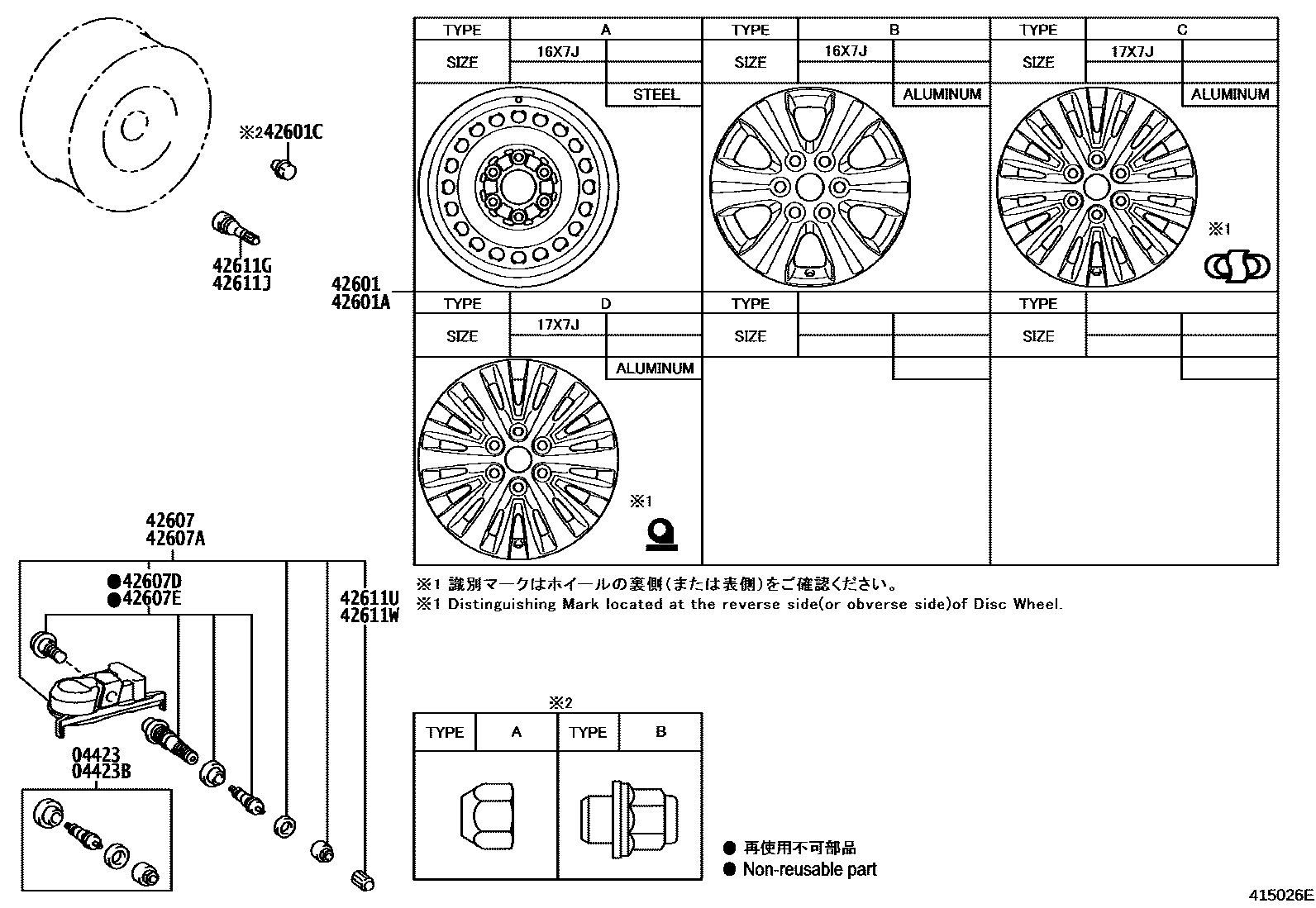

Parts diagram
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
main04423-33060i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main04423-33060i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202107
LEBANON SPEC
main04423-33060i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main04423-33060i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main04423-33060i201902-202405
TAIWAN SPEC
main04423-33060i201902-202505
main04423-33060i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main04423-33060i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main04423-33060i202310
MEXICO SPEC
main04423-33060i202310
TAHITI SPEC
main04423-33060i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
04423BFITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SPARE)
main04423-33060i201902
main04423-33060i202405-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
42601WHEEL, DISC
main42611-0L040i201906-202111
16X7J,#,EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
main42611-0L040i201906-202111
16X7J,#,EUROPE N1,TYPE A:REFER ILLUST.
main42611-0L040i201906
16X7J,#,TYPE A:REFER ILLUST.
main42611-26190i201902-202406
16X7J,#,TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202406
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202406
16X7J,#,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202406
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202406
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201903-202406
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(48S),TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201903-202406
16X7J,#,TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i202208-202406
16X7J,#,EUROPE N1&REAR WHEEL BRAKE-DRUM BRAKE&TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i202208-202406
16X7J,#,EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i202310-202406
16X7J,#,MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S),TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i202405-202406
16X7J,#,SOUTH AFRICA SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i202405-202406
16X7J,#,HONG KONG SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202312
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(45S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201903-202208
16X7J,#,EUROPE N1&REAR WHEEL BRAKE-DRUM BRAKE&TIRE & DISC WHEEL-215/70R16C,7J 108T&FRONT SEAT-BENCH TYPE&REAR SEAT-WITHOUT,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201903-202208
16X7J,#,EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T&FRONT SEAT-BENCH TYPE&REARSEAT-WITHOUT,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26200i201902-202404
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26200i201902-202506
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(45S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26200i202208
16X7J,#,ARMENIA SPEC&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26210i201903
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26220i201907-202006
17X7J,#,ARGENTINA SPEC,TYPE C:REFER ILLUST.
main42611-26220i202208-202505
17X7J,#,ARMENIA SPEC,TYPE C:REFER ILLUST.
main42611-26220i201907
17X7J,#,TYPE C:REFER ILLUST.
main42611-26220i202107-202208
17X7J,#,VIETNAM SPEC,TYPE C:REFER ILLUST.
main42611-26230i201907-202505
17X7J,#,TYPE C:REFER ILLUST.
main42611-26240i202107-202208
17X7J,#,VIETNAM SPEC,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26240i201907
17X7J,#,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26240i201907-202006
17X7J,#,ARGENTINA SPEC,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26240i202208-202505
17X7J,#,ARMENIA SPEC,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26250i201907-202505
17X7J,#,TYPE D:REFER ILLUST.
main42611-V3010i202407
EUROPE N1&REAR WHEEL BRAKE-DRUM BRAKE&TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
main42611-V3010i202401-202505
TYPE A:REFER ILLUST.
main42611-V3010i202407-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
main42611-V3010i202407-202506
SOUTH AFRICA SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
main42611-V3010i202407-202506
REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
main42611-V3010i202407-202506
HONG KONG SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S),TYPE A:REFER ILLUST.
main42611-V3010i202407
TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
main42611-V3010i202407
REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPEA:REFER ILLUST.
main42611-V3010i202407
EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
main42611-V3010i202407
REAR WHEEL BRAKE-16 INCH DISC(48S),TYPE A:REFER ILLUST.
main42611-V3010i202407
TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
main42611-V3010i202407
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S),TYPE A:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
main42611-0L040i201906-202111
16X7J,#,EUROPE N1,TYPE A:REFER ILLUST.
main42611-0L040i201906-202111
16X7J,#,EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
main42611-0L040i201906
16X7J,#,TYPE A:REFER ILLUST.
main42611-26190i201902-202406
16X7J,#,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202406
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202312
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(45S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201902-202406
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26190i201903-202406
16X7J,#,TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
sub42611-V3010
main42611-26200i201902-202404
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26200i202208
16X7J,#,ARMENIA SPEC&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26200i201902-202506
16X7J,#,REAR WHEEL BRAKE-16 INCH DISC(45S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26210i201903
16X7J,#,TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main42611-26220i202107-202208
17X7J,#,VIETNAM SPEC,TYPE C:REFER ILLUST.
main42611-26220i202208-202505
17X7J,#,ARMENIA SPEC,TYPE C:REFER ILLUST.
main42611-26220i201907-202006
17X7J,#,ARGENTINA SPEC,TYPE C:REFER ILLUST.
main42611-26220i201907
17X7J,#,TYPE C:REFER ILLUST.
main42611-26230i201907-202505
17X7J,#,TYPE C:REFER ILLUST.
main42611-26240i202107-202208
17X7J,#,VIETNAM SPEC,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26240i201907
17X7J,#,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26240i201907-202006
17X7J,#,ARGENTINA SPEC,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26240i202208-202505
17X7J,#,ARMENIA SPEC,TYPE D:REFER ILLUST.
sub42611-26220
main42611-26250i201907-202505
17X7J,#,TYPE D:REFER ILLUST.
main42611-V3010i202401-202505
TYPE A:REFER ILLUST.
main42611-V3010i202407
TIRE & DISC WHEEL-215/70R16C,7J 108T,TYPE A:REFER ILLUST.
main42611-V3010i202407
TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE A:REFER ILLUST.
main42611-V3010i202407
REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPEA:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
main90942-01121i201907-202505
TYPE B:REFER ILLUST.
main90942-01121i201902-202404
TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI,TYPE B:REFER ILLUST.
main90942-01123i201902-202505
TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
main42607-26020i202311
main42607-26020i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
main42607-26020i202310
REAR WHEEL BRAKE-16 INCH DISC(48S)
main42607-26020i201902
TAIWAN SPEC
main42607-26020i202310
MEXICO SPEC
main42607-26020i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main42607-26020i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main42607-26020i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main42607-26030i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202107
LEBANON SPEC
main42607-26030i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main42607-26030i201902-202505
main42607-26030i201903
REAR WHEEL BRAKE-16 INCH DISC(48S)
main42607-26030i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i202310
TAHITI SPEC
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
main42607-26020i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main42607-26020i201902
TAIWAN SPEC
main42607-26020i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
main42607-26020i202310
MEXICO SPEC
main42607-26020i202311
main42607-26020i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main42607-26020i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main42607-26030i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main42607-26030i201902-202505
main42607-26030i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i202310
TAHITI SPEC
main42607-26030i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202107
LEBANON SPEC
main42607-26030i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main42607-26030i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
42607DVALVE, TIRE PRESSURE MONITOR
main90942-05044i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202107
LEBANON SPEC
main90942-05044i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05044i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main90942-05044i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05044i201903-202505
main90942-05044i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05044i201902
TAIWAN SPEC
main90942-05044i201903
REAR WHEEL BRAKE-16 INCH DISC(48S)
main90942-05044i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i202310
MEXICO SPEC
main90942-05044i202310
TAHITI SPEC
main90942-05044i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
42607EVALVE, TIRE PRESSURE MONITOR (FOR SPARE)
main90942-05044i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main90942-05044i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05044i201902-202505
main90942-05044i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05044i201902
TAIWAN SPEC
main90942-05044i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i202310
MEXICO SPEC
main90942-05044i202310
TAHITI SPEC
main90942-05044i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
main90942-05044i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202107
LEBANON SPEC
main90942-05044i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05044i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05044i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
42611GVALVE (FOR TUBELESS TIRE)
main90942-05009i201902-202506
REAR WHEEL BRAKE-16 INCH DISC(45S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI
main90942-05009i201902-202505
main90942-05009i201907-202006
ARGENTINA SPEC
main90942-05009i201906-202111
EUROPE N1
main90942-05009i201906-202111
EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T
main90942-05009i201903-202208
EUROPE N1&REAR WHEEL BRAKE-DRUM BRAKE&TIRE & DISC WHEEL-215/70R16C,7J 108T&FRONT SEAT-BENCH TYPE&REAR SEAT-WITHOUT
main90942-05009i201903-202208
EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T&FRONT SEAT-BENCH TYPE&REAR SEAT-WITHOUT
main90942-05009i201902-202310
TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI
main90942-05009i201902-202506
REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05009i201903-202311
REAR WHEEL BRAKE-16 INCH DISC(48S)
main90942-05009i201902-202506
REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI
main90942-05009i202405-202506
SOUTH AFRICA SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05009i202405-202506
HONG KONG SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05009i201903
TIRE & DISC WHEEL-215/70R16C,7J 108T
main90942-05009i202208
EUROPE N1&REAR WHEEL BRAKE-DRUM BRAKE&TIRE & DISC WHEEL-215/70R16C,7J 108T
42611JVALVE (FOR TUBELESS TIRE SPARE)
main90942-05009i201902-202505
main90942-05009i201902-202506
REAR WHEEL BRAKE-16 INCH DISC(48S)&TIRE & DISC WHEEL-235/65R16C,7J 115T ALUMI
main90942-05009i201903
TIRE & DISC WHEEL-215/70R16C,7J 108T
main90942-05009i201907-202006
ARGENTINA SPEC
main90942-05009i201906-202111
EUROPE N1
main90942-05009i201906-202111
EUROPE N1&TIRE & DISC WHEEL-215/70R16C,7J 108T
42611UCAP, TIRE VALVE
main90942-05039i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202107
LEBANON SPEC
main90942-05039i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05039i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main90942-05039i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05039i201903-202505
main90942-05039i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05039i201902
TAIWAN SPEC
main90942-05039i201903
REAR WHEEL BRAKE-16 INCH DISC(48S)
main90942-05039i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i202310
MEXICO SPEC
main90942-05039i202310
TAHITI SPEC
main90942-05039i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
42611WCAP, TIRE VALVE (FOR SPARE)
main90942-05039i201907-202310
NEW ZEALAND SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
TAHITI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
SRI LANKA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
CHILE SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05039i201907-202208
PERU SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
ELSALVADOR SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202208
VIETNAM SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i202006-202208
HONDURUS SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
COSTA RICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202310
PANAMA,HONDURAS,NICARAGUA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTOLOCATION)
main90942-05039i201907-202310
TAIWAN SPEC&TIRE INFLATION PRESSURE WARNING-WITH(315MHZ & AUTO LOCATION)
main90942-05039i201902-202505
main90942-05039i201902-202506
TAIWAN SPEC&REAR WHEEL BRAKE-16 INCH DISC(45S)
main90942-05039i201902
TAIWAN SPEC
main90942-05039i201907-202107
SOUTH AFRICA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907
TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202006
BRUNEI SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i202310
MEXICO SPEC
main90942-05039i202310
TAHITI SPEC
main90942-05039i202310
MEXICO SPEC&REAR WHEEL BRAKE-16 INCH DISC(48S)
main90942-05039i201907-202006
INDONESIA SPEC&TIRE INFLATION PRESSURE WARNING-WITH(433MHZ & AUTO LOCATION)
main90942-05039i201907-202107
LEBANON SPEC

13 parts on this diagram · 3 diagrams in section

DISC WHEEL & WHEEL CAP — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
