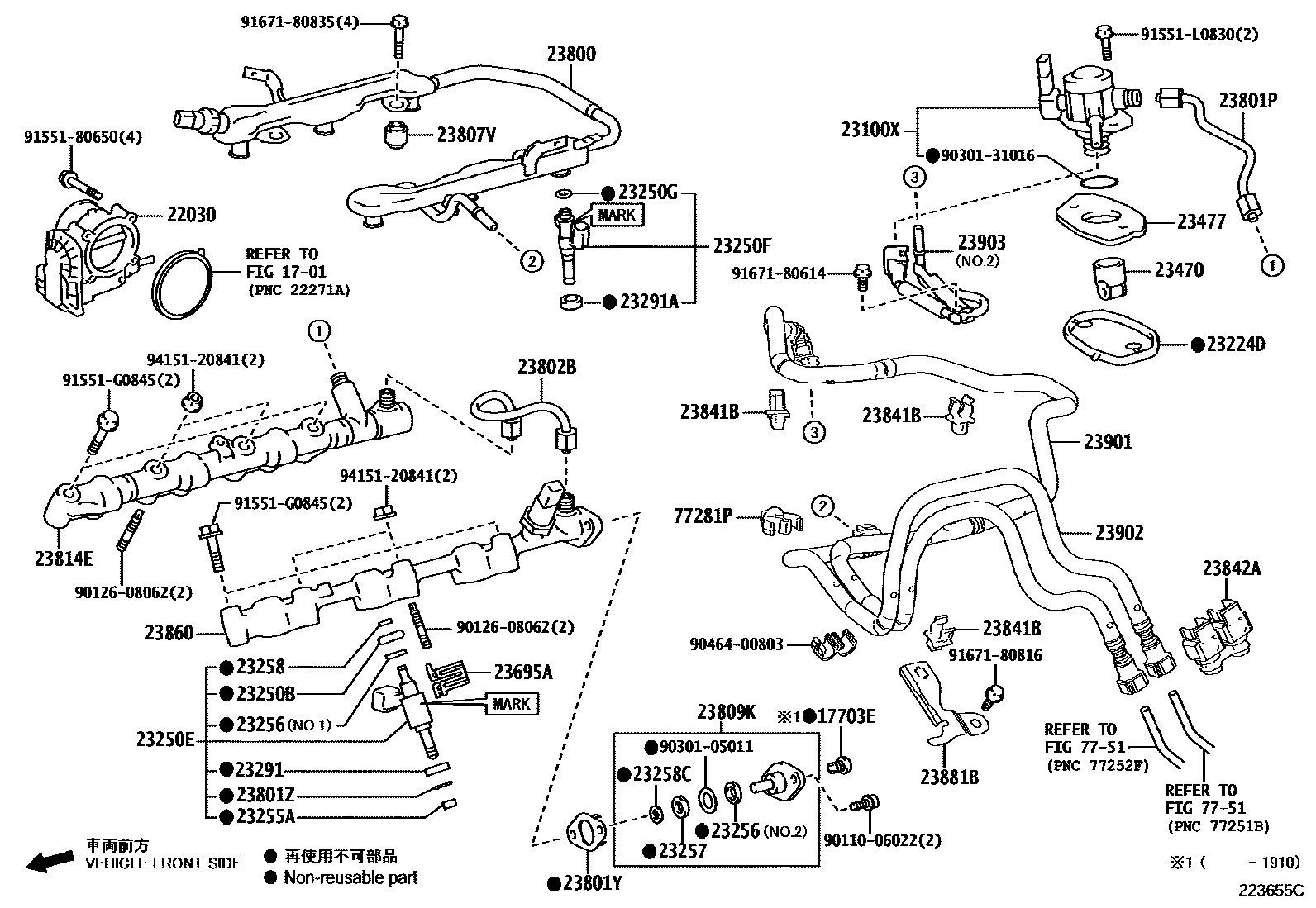

FUEL INJECTION SYSTEM
1701
17703ECAP SUB-ASSY, DUST
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
main22030-31090i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥52,700201902-202207
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
main23101-31090i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥55,100201902-202207
23224DGASKET, FUEL PUMP SPACER
main23224-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥570201902-202111
main23224-31021i7GRFKS..GRH322..N;7GRFKS..GRH300..SG;7GRFKS..GRH301..6F..N;7GRFKS..GRH303,320..RHD;7GRFKS..GRH301..LHD..6FC;7GRFKS..GRH300,320..LHD..SP..GEN¥510202112-202207
23250BRING, O(FOR FUEL INJECTOR)
main90301-05013i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥0201902-202207
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
main23209-31170-06i7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7201902-202207
MARK 6
main23209-31170-07i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207
MARK 7
main23209-31170-08i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207
MARK 8
23250FINJECTOR ASSY, FUEL(FOR PORT)
MARK=23250-31140
main23209-39435i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥12,600202002-202207
MARK=23250-31230
23250GRING, O, NO.2(FOR FUEL INJECTOR)
main90301-07037i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥140201902-202207
(J)
main90301-A0036i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN202002-202207
(L)
23255ASEAL, FUEL INJECTOR
main23255-31030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥340201902-202207
23256RING, FUEL INJECTOR BACK-UP, NO.1
main23256-25010i7GRFKS..GRH303..LHD..J;7GRFKS..GRH301..RHD..6FC..N;7GRFKS..GRH300,301..RHD..D..GEN;7GRFKS..GRH301,320..LHD..SG..6F..D;7GRFKS..GRH304,321,322..(D,H,P,Q)..(GCC,GEN);7¥0201902-202207
NO.1
main23256-31010i7GRFKS..GRH322..N;7GRFKS..GRH300..SG;7GRFKS..GRH301..6F..N;7GRFKS..GRH301..LHD..6FC;7GRFKS..GRH300..4D..6F..GEN;7GRFKS..GRH303,320..RHD..GEN;7GRFKS..GRH320..LHD..SP¥300201902-202207
NO.2
23257RING, FUEL INJECTOR BACK-UP, NO.2
main23257-47010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥160201902-202207
23258RING, FUEL INJECTOR BACK-UP, NO.3
main23258-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥200201902-202207
23258CRING, FUEL INJECTOR BACK-UP, NO.3(FOR FUEL PIPE PLUG)
main23258-31010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥0201902-202207
23291INSULATOR, INJECTOR VIBRATION
main23291-31030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥0201902-202207
23291AINSULATOR, INJECTOR VIBRATION
main23291-28020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥310201902-202207
23470LIFTER ASSY, FUEL PUMP
main23470-25010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥1,480201902-202207
23477GUIDE, FUEL PUMP LIFTER
main23477-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥1,280201902-202207
23695ACLAMP, NOZZLE HOLDER
main23695-31020i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥200201902-202207
23800PIPE ASSY, FUEL DELIVERY W/SENSOR
main23800-31051i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥14,800201902-202207
23801PPIPE SUB-ASSY, FUEL, NO.1
main23801-31210i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥2,750201902-202207
23801YGASKET
main23893-47010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥200201902-202207
23801ZRING, SNAP(FOR FUEL PIPE)
main90520-14004i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥0201902-202207
23802BPIPE SUB-ASSY, FUEL, NO.2
main23802-31160i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥2,390201902-202207
23807VSPACER, NO.1(FOR DELIVERY PIPE)
main90561-08023i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥130201902-202207
23809KPLUG SUB-ASSY, FUEL PIPE
main23809-47010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥1,380201902-202207
23814EPIPE, FUEL DELIVERY, RH
main23807-31110i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥20,700201902-202207
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
main23841-70030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥190201902-202207
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
main23842-38010i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥640201902-202207
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
main23860-31030i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥21,500201902-202207
23881BBRACKET, FUEL HOSE
23901TUBE SUB-ASSY, FUEL
main23901-31430i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207
23902TUBE SUB-ASSY, FUEL
main23902-31170i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN¥5,100201902-202207
23903TUBE SUB-ASSY, FUEL, NO.3
main23901-31380i7GRFKS..GRH300,303,320,321..ARL;7GRFKS..GRH300,303..LHD..5D..(D,G)..GEN201902-202207
77281PCLAMP, FUEL HOSE
7751
9011006022
9012608062
9030105011
9030131016
9046400803
9155180650
91551G0845
91551L0830
9167180614
9167180816
9167180835
9415120841
48 parts on this diagram · 1 diagram in section
