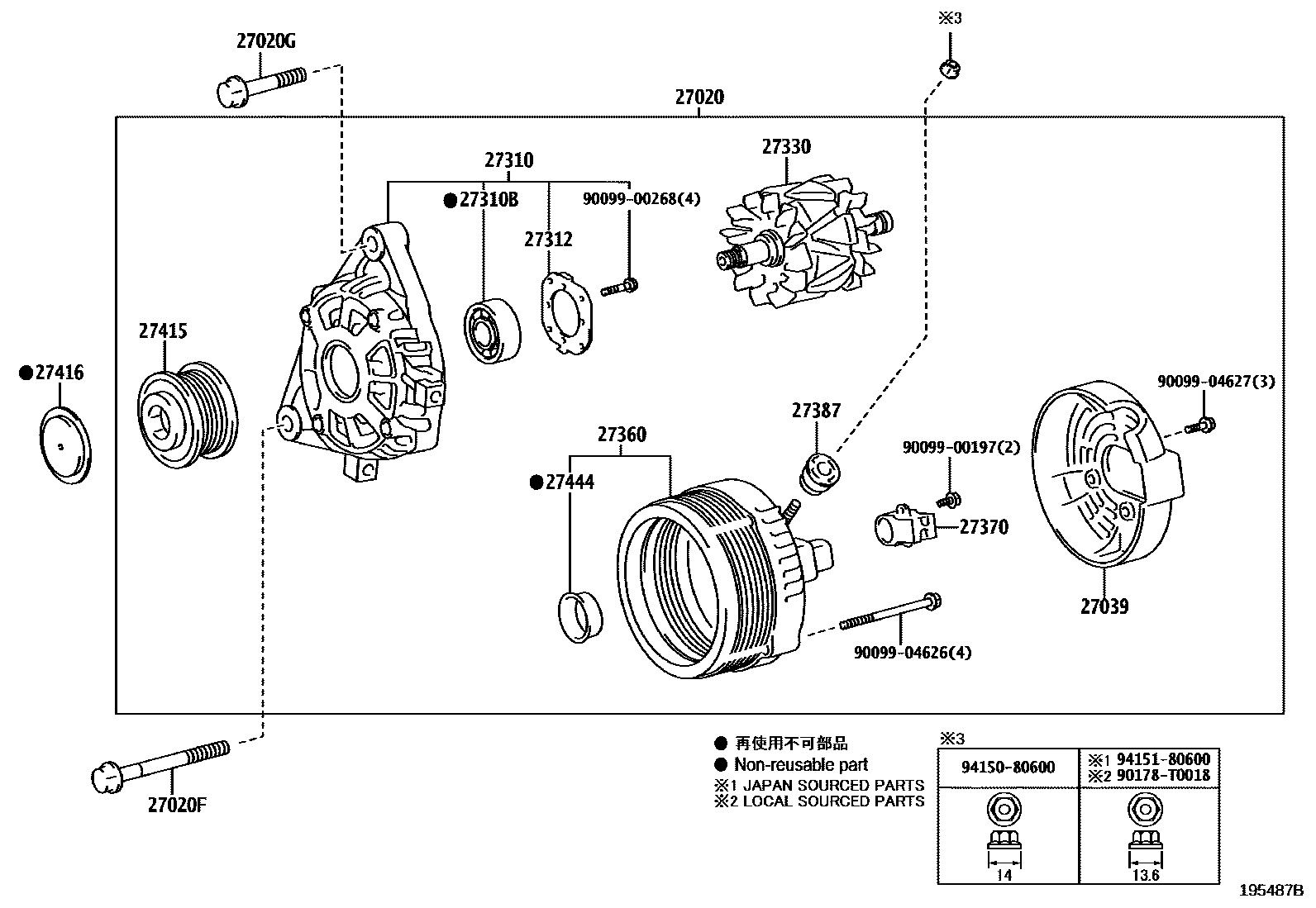

ALTERNATOR

0001 112V 100A,130A 0002 112V 100A,130A

27020ALTERNATOR ASSY

main27060-11180i1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

12V 100A

main27060-11350i1GDFTV..GDH322..NZ;1GDFTV..GDH306..LHD..J;1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH322..LHD..6F..P..GEN201902

12V 130A

main27060-31340i7GRFKS..GRH322..6FC..P;7GRFKS..GRH322..RHD..6FC;7GRFKS..GRH322..6F..(D,P);7GRFKS..GRH300,301,320,321..D,P201902

12V 100A

main27060-31400replaces 27060-31400i7GRFKS..GRH301,303,304,321,322..G,H,J,N,Q201902

12V 130A

27020FBOLT, NO.1(FOR ALTERNATOR)

main90105-T0111i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main91552-81040i7GRFKS..GRH30#,32#201902

main91552-81090i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

(J)

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-T0465i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

main91552-81095i7GRFKS..GRH30#,32#201902

main91672-81045i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

(J)

27039COVER, ALTERNATOR REAR END

main27039-11290i1GDFTV..GDH321..GEN201902-202310

main27039-31580i7GRFKS..GRH30#,32#201902

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11280i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

main27310-30240i1GDFTV..GDH306..LHD..G201902-202505

main27310-31560replaces 27310-31580i7GRFKS..GRH301,303,304,321,322..G,H,J,N,Q201902

main27310-31580i7GRFKS..GRH322..6FC..P;7GRFKS..GRH322..RHD..6FC;7GRFKS..GRH322..6F..(D,P);7GRFKS..GRH300,301,320,321..D,P201902

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

27312PLATE, RETAINER

main27312-72100i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

27330ROTOR ASSY, ALTERNATOR

main27330-37220replaces 27330-47330i1GDFTV..GDH306..LHD..G201902-202505

main27330-47330i1GDFTV..GDH322..GCC;7GRFKS..GRH322..6FC..P;7GRFKS..GRH322..RHD..6FC;7GRFKS..GRH322..6F..(D,P);1GDFTV..GDH301..GSOB..6FC;7GRFKS..GRH300,301,320..D;1GDFTV..GDH322..RH201902

27360COIL ASSY, ALTERNATOR

main27360-11280i1GDFTV..GDH322..GCC;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH300..5D..(GCC,GEN);1GDFTV..GDH301..LHD..GSOB..6F;1GDFTV..GDH322..6FC..(P,Q)..G201902

main27360-11290i1GDFTV..GDH322..NZ;1GDFTV..GDH306..LHD..J;1GDFTV..GDH320..6F..ARL;1GDFTV..GDH300..4D..6F..ARL;1GDFTV..GDH322..LHD..6F..P..GEN201902

main27360-31560replaces 27360-31580i7GRFKS..GRH301,303,304,321,322..G,H,J,N,Q201902

main27360-31580i7GRFKS..GRH322..6FC..P;7GRFKS..GRH322..RHD..6FC;7GRFKS..GRH322..6F..(D,P);7GRFKS..GRH300,301,320,321..D,P201902

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202404

27387INSULATOR, TERMINAL

main27387-20130i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

main27387-31580i7GRFKS..GRH30#,32#201902

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-30010i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202404

27416CAP, ALTERNATOR PULLEY

main27416-0L050i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

main27416-30020i1GDFTV..GDH322..RHD..P..GEN202006-202106

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

90178T0018

main90178-T0018

9415080600

main94150-80600

9415180600

main94151-80600

21 parts on this diagram · 2 diagrams in section
