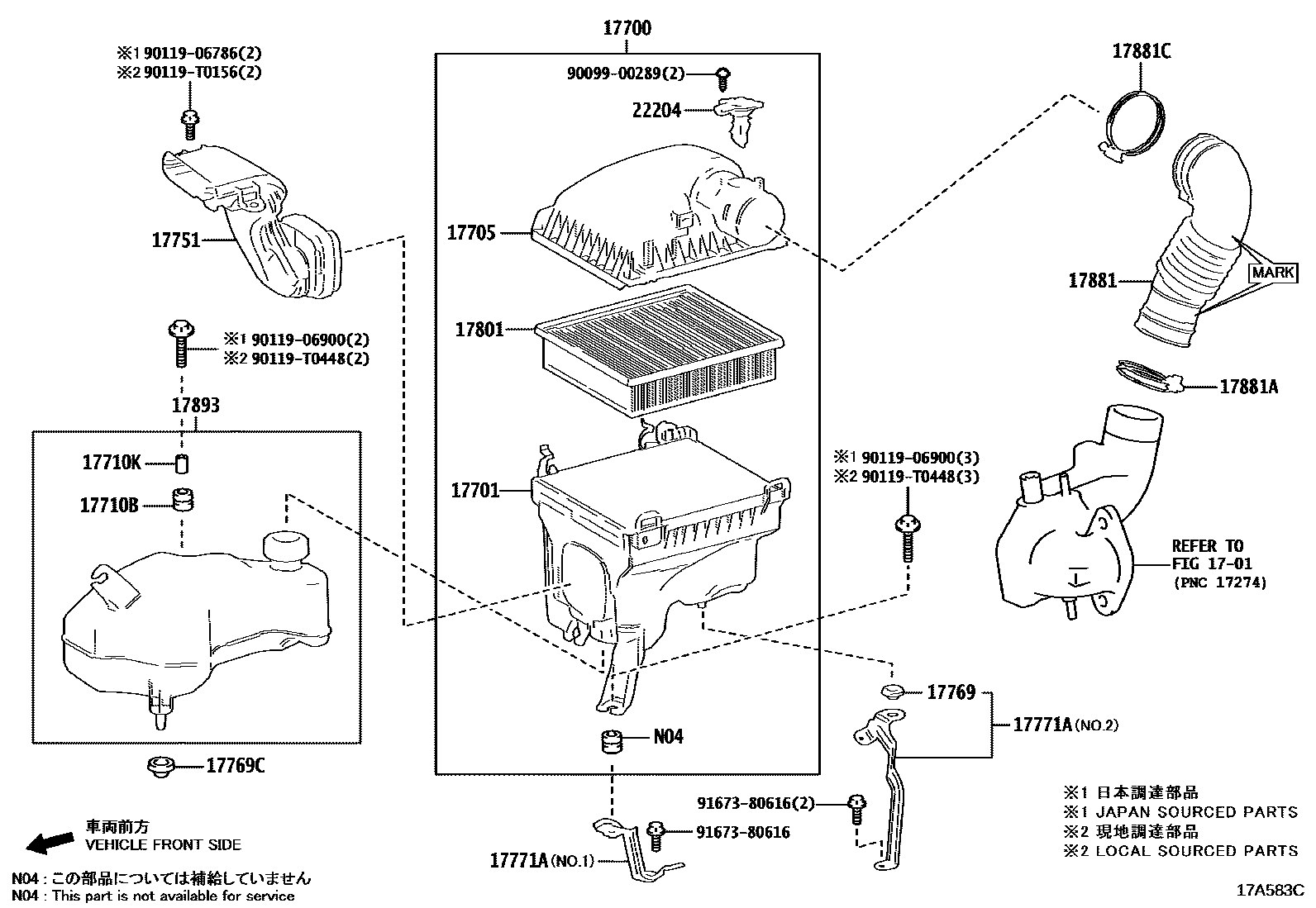

AIR CLEANER

0001 1 0002 1W(INTERCOOLER (AIR COOLED TYP0003 1W(INTERCOOLER (WATER COOLED T0006 1 0007 1

1701

17700CLEANER ASSY, AIR

main17700-11A10i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

main17700-31B80i7GRFKS..GRH30#,32#201902

17701CASE SUB-ASSY, AIR CLEANER

main17701-31790i1GDFTV..GDH321..GEN201902-202310

17705CAP SUB-ASSY, AIR CLEANER

main17705-11640i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

main17705-31530i7GRFKS..GRH30#,32#201902

17710BGROMMET

main90480-11016×2i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

17710KCOLLAR(FOR AIR CLEANER)

main90387-09064×2i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

17751INLET, AIR CLEANER, NO.1

main17751-11160i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

main17751-31440i7GRFKS..GRH30#,32#201902

17769SUPPORT, AIR CLEANER

main17769-31030i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

17769CSUPPORT, AIR CLEANER, NO.1

main17769-31030i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

17771ABRACKET, AIR CLEANER

main17771-31040i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

NO.1

main17772-31010i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D201902-202404

NO.2

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31160i1GDFTV..GDH321..GEN201902-202310

17881HOSE, AIR CLEANER, NO.1

main17881-11610supersedes 17881-11650i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

MARK 17881-11610

main17881-11650supersedes 17881-11610i1GDFTV..GDH301..RHD..GSOB..6F;1GDFTV..GDH322..RHD..GSOB..6FC..D202310-202404

MARK 17881-11650

main17881-31480i7GRFKS..GRH30#,32#201902

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

17893RESONATOR, INTAKE AIR

main17893-11080i1GDFTV..GDH322..RHD..(P,Q)..GEN201902-202005

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-30030i1GDFTV..GDH322..RHD..(P,Q)..GEN202006

main22204-75040i7GRFKS..GRH30#,32#201902

9009900289

main90099-00289

9011906786

main90119-06786

9011906900

main90119-06900

90119T0156

main90119-T0156

90119T0448

main90119-T0448

9167380616

main91673-80616

22 parts on this diagram · 5 diagrams in section
