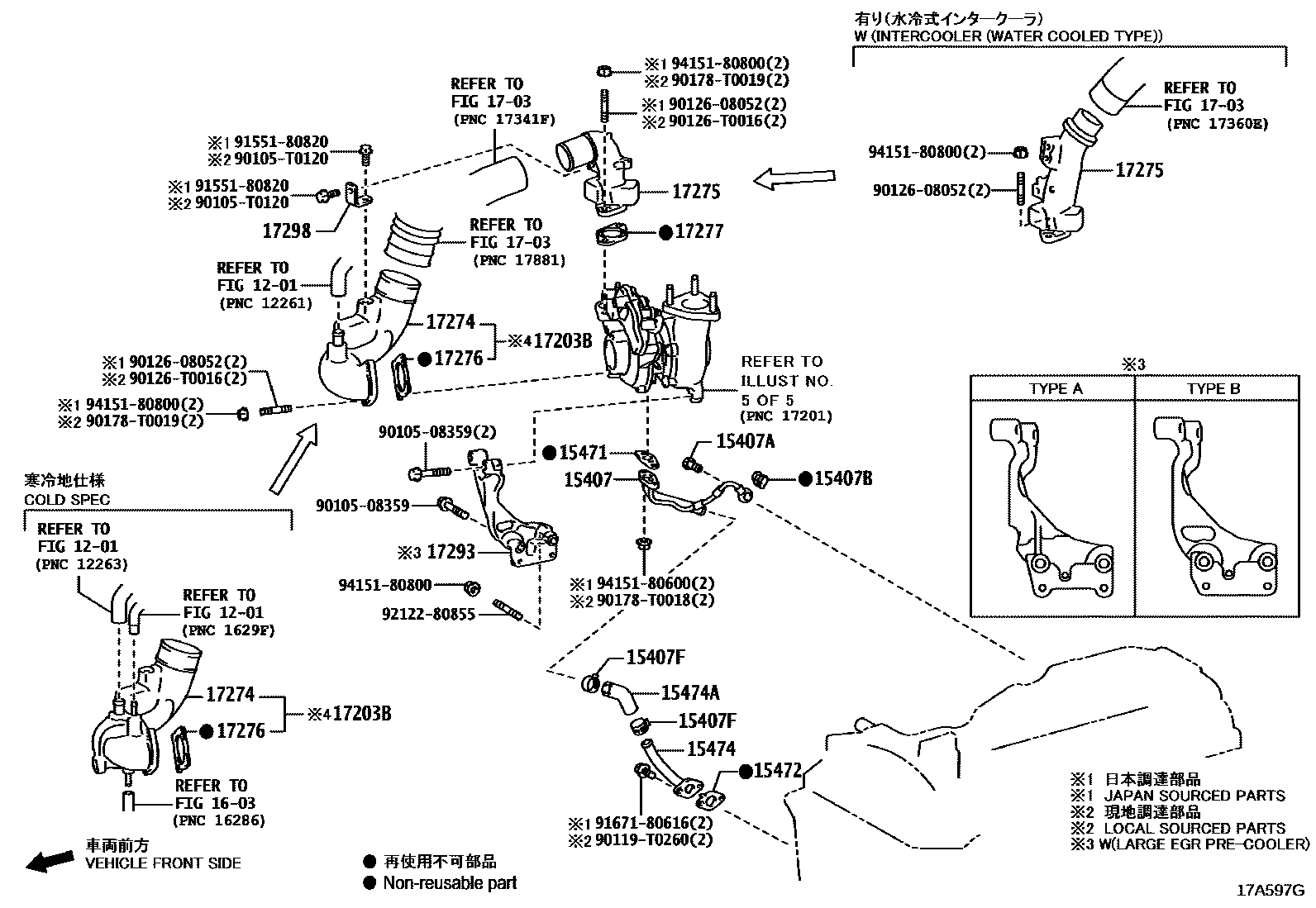

MANIFOLD
15407PIPE SUB-ASSY, TURBO OIL INLET
15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)
(J)
(L)
main96341-11200i1GDFTV..GDH301..SG;1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..P..(ARL,GCC);1GDFTV..GDH322..LHD..GSOB..6FC;1GDFTV..GD202006-202505
(J)
15407BGASKET(FOR TURBO OIL INLET PIPE)
(L)
(J)
15407FCLAMP OR CLIP, OIL HOSE
15471GASKET, TURBO OIL INLET
(L)
main15471-11020i1GDFTV..GDH301..SG;1GDFTV..GDH321..RHD;1GDFTV..GDH301..GSOB..6FC;1GDFTV..GDH322..ARL,GCC,NZ;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH322..SG..(D,N)..GEN;1GDFTV..GDH3201902-202505
(J)
15472GASKET, TURBO OIL OUTLET, NO.1
(L)
(J)
15474PIPE, TURBO OIL OUTLET
15474AHOSE, TURBO OIL OUTLET
(L)
(J)
1703
17203BELBOW SUB-ASSY, COMPRESSOR INLET
MADE IN THAILAND
MADE IN JAPAN
ECUADOR SPEC,MADE IN JAPAN
COSTA RICA SPEC,MADE IN JAPAN
PERU SPEC,MADE IN JAPAN
COLD SPEC
17274ELBOW, COMPRESSOR INLET
(L)
(J)
17275ELBOW, COMPRESSOR OUTLET
17276GASKET, COMPRESSOR INLET
(L)
(L)
ECUADOR SPEC,(J)
(J)
COSTA RICA SPEC,(J)
PERU SPEC,(J)
NEPAL SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),(J)
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
(J)
17277GASKET, COMPRESSOR OUTLET
(L)
main17277-11030i1GDFTV..GDH320..6F;1GDFTV..GDH322..GCC,NZ;1GDFTV..GDH300..PSOB,SP;1GDFTV..GDH300..SHP..6FC;1GDFTV..GDH322..RHD..GSOB..N;1GDFTV..GDH320..SG..6FC..GEN;1GDFTV..GDH322.201902-202505
(J)
17293STAY, TURBOCHARGER
(L),TYPE A:REF ILL.
THA SOURCED PARTS
ARG SOURCED PARTS
(J),TYPE A:REF ILL.
17298STAY, COMPRESSOR ELBOW
(L)
(J)
9010508359
main90105-08359
90105T0120
main90105-T0120
90119T0260
main90119-T0260
9012608052
main90126-08052
90126T0016
main90126-T0016
90178T0018
main90178-T0018
90178T0019
main90178-T0019
9155180820
main91551-80820
9167180616
main91671-80616
9212280855
main92122-80855
9415180600
main94151-80600
9415180800
main94151-80800
28 parts on this diagram · 11 diagrams in section
