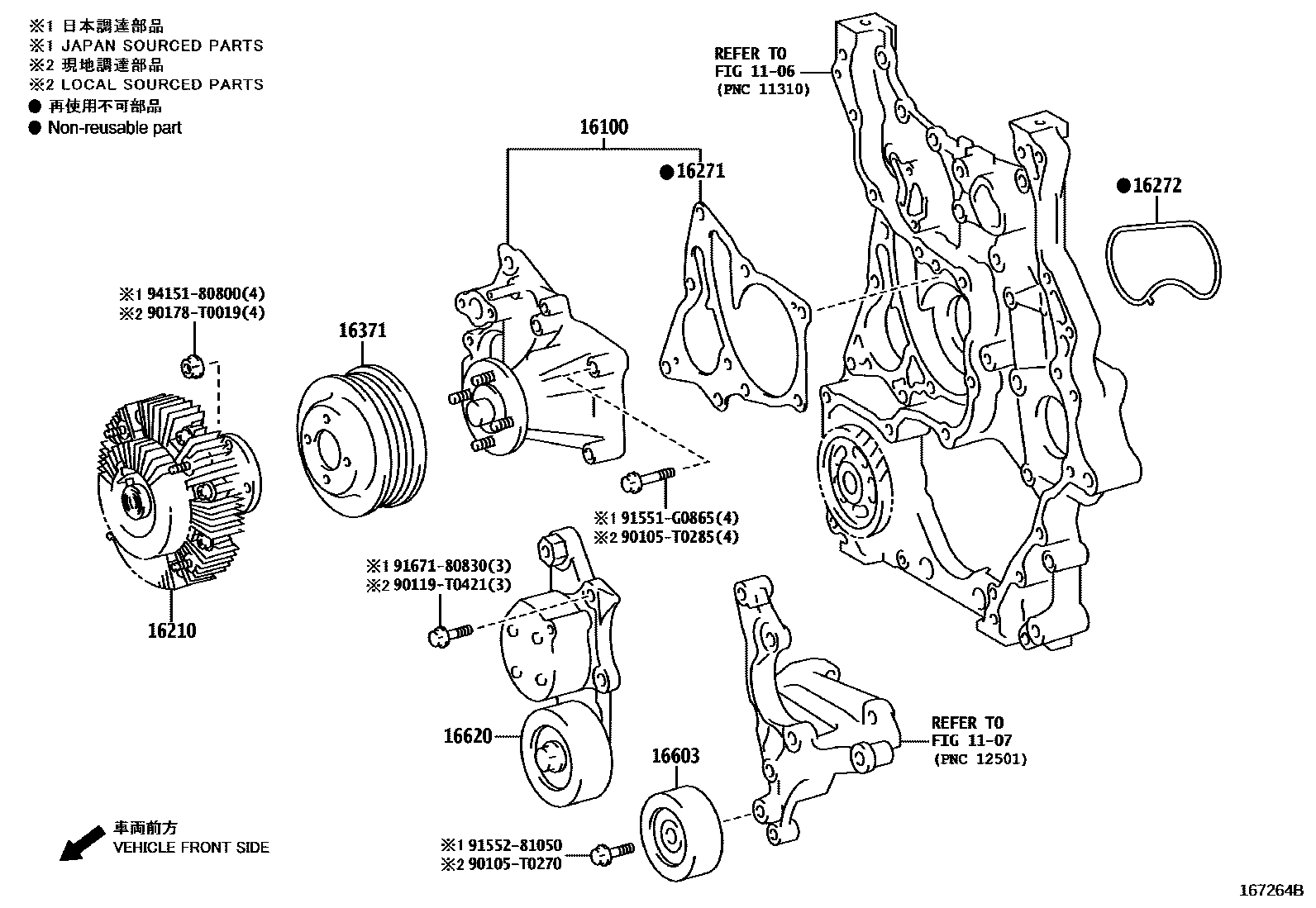

WATER PUMP
1106
1107
16210COUPLING ASSY, FLUID
main16210-0E010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC201902-202505
COSTA RICA SPEC
MOROCCO SPEC
SOUTH AFRICA SPEC
CHILE SPEC
FIJI SPEC
BHUTAN SPEC
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
PERU SPEC
PAKISTAN SPEC
SRI LANKA SPEC
main16210-0E020i1GDFTV..GDH322..AGT;1GDFTV..GDH300,301,320..AGT,TH;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH304,306,321..RHD..(GEN,IDN,TH);1GDFTV..GDH300,303,328..(HPSOB,SG201902-202107
ARGENTINA SPEC
main16210-0E020i1GDFTV..GDH322..AGT;1GDFTV..GDH300,301,320..AGT,TH;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH304,306,321..RHD..(GEN,IDN,TH);1GDFTV..GDH300,303,328..(HPSOB,SG201902
TAIWAN SPEC
main16210-0E020i1GDFTV..GDH322..AGT;1GDFTV..GDH300,301,320..AGT,TH;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH304,306,321..RHD..(GEN,IDN,TH);1GDFTV..GDH300,303,328..(HPSOB,SG201902
PHILIPPINES SPEC
main16210-0E020i1GDFTV..GDH322..AGT;1GDFTV..GDH300,301,320..AGT,TH;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH304,306,321..RHD..(GEN,IDN,TH);1GDFTV..GDH300,303,328..(HPSOB,SG201902
BANGLADESH SPEC
GREEN
EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700
EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)
GHANA SPEC
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699
CAMBODIA SPEC
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700
BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700
BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700
NEPAL SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS)
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS)
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699
16271GASKET, WATER PUMP
(L)
(J)
16272GASKET, WATER PUMP, NO.2
(L)
(J)
16371PULLEY, FAN
16603PULLEY SUB-ASSY, IDLER, NO.1
(L)
BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,(J)
(J)
ARGENTINA SPEC,(J)
COSTA RICA SPEC,(J)
MOROCCO SPEC,(J)
SOUTH AFRICA SPEC,(J)
CHILE SPEC,(J)
FIJI SPEC,(J)
PERU SPEC,(J)
PAKISTAN SPEC,(J)
SRI LANKA SPEC,(J)
main16603-31040i1GDFTV..GDH306;1GDFTV..GDH300,301..TH;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,303,304,32201902
TAIWAN SPEC,(J)
main16603-31040i1GDFTV..GDH306;1GDFTV..GDH300,301..TH;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,303,304,32201902
PHILIPPINES SPEC,(J)
main16603-31040i1GDFTV..GDH306;1GDFTV..GDH300,301..TH;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,303,304,32201902
BANGLADESH SPEC,(J)
EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
GHANA SPEC,(J)
BHUTAN SPEC,(J)
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
CAMBODIA SPEC,(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
NEPAL SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
main16603-31040i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
16620TENSIONER ASSY, V-RIBBED BELT
(L)
MOROCCO SPEC,(J)
SOUTH AFRICA SPEC,(J)
(J)
ARGENTINA SPEC,(J)
COSTA RICA SPEC,(J)
CHILE SPEC,(J)
FIJI SPEC,(J)
PERU SPEC,(J)
PAKISTAN SPEC,(J)
SRI LANKA SPEC,(J)
main16620-11010i1GDFTV..GDH306;1GDFTV..GDH300,301..TH;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,303,304,32201902
TAIWAN SPEC,(J)
main16620-11010i1GDFTV..GDH306;1GDFTV..GDH300,301..TH;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,303,304,32201902
PHILIPPINES SPEC,(J)
main16620-11010i1GDFTV..GDH306;1GDFTV..GDH300,301..TH;1GDFTV..GDH321..RHD..(GEN,IDN);1GDFTV..GDH322..LHD..(P,Q)..GEN;1GDFTV..GDH301,322..LHD..GSOB..6FC..N;1GDFTV..GDH300,303,304,32201902
BANGLADESH SPEC,(J)
EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
GHANA SPEC,(J)
BHUTAN SPEC,(J)
EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
CAMBODIA SPEC,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
SOUTH AFRICA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
BANGLADESH SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO1/2 *700,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
NEPAL SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 3,WITHOUT(ON BOARD DIAGNOSIS),(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO3/4 *700,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
SRI LANKA SPEC&EXHAUST EMISSION CONTROL-LARGE,EURO 4,WITHOUT(ON BOARD DIAGNOSIS),(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
FIJI SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
BHUTAN SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO6 *699,*681,(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL EURO5 WITH(ON BOARD DIAGNOSIS),(J)
main16620-11010i1GDFTV..GDH320..PSOB..GCC;1GDFTV..GDH301..RHD..6F..N;1GDFTV..GDH300..PSOB..6F..GCC202405
PAPUA NEW GUINEA SPEC&EXHAUST EMISSION CONTROL-DIESEL LARGE EURO5 *699,(J)
(J)
90105T0270
main90105-T0270
90105T0285
main90105-T0285
90119T0421
main90119-T0421
90178T0019
main90178-T0019
91551G0865
main91551-G0865
9155281050
main91552-81050
9167180830
main91671-80830
9415180800
main94151-80800
17 parts on this diagram · 2 diagrams in section
