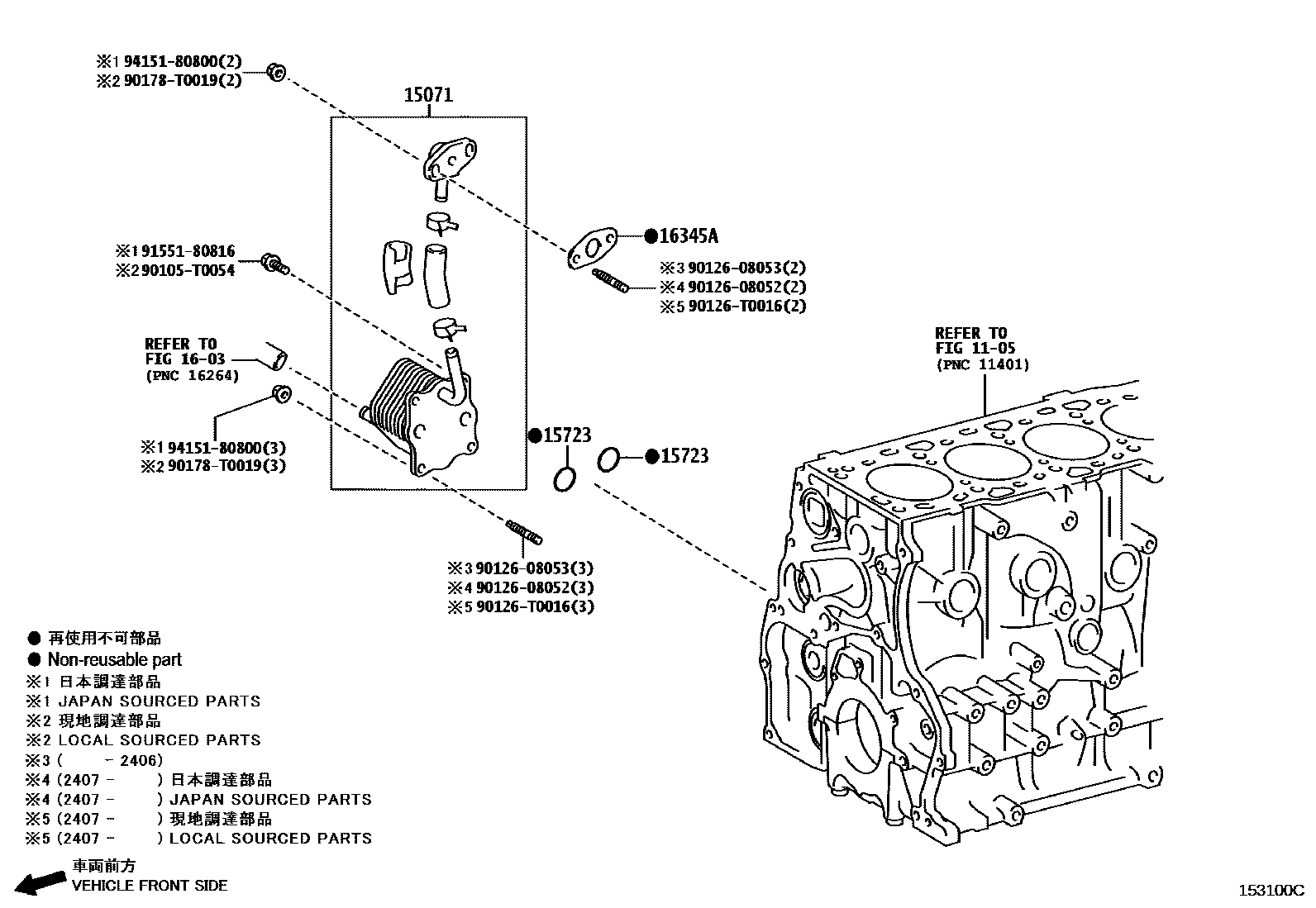

ENGINE OIL COOLER

0001 1 0002 1

1105

15071COOLER SET, ENGINE OIL

main15071-08010i1GDFTV..GDH306;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN202209-202505

(J)

main15071-08010i1GDFTV..GDH320,322,328..AGT,BZ202401

main15071-08010i1GDFTV..GDH322..TH202210

(L)

main15071-0E010i1GDFTV..GDH322,328..TH,VN201906-202209

(L)

sub15071-08010

main15071-11010i1GDFTV..GDH322..RHD..P..GEN201902-202209

(J)

sub15071-08010

15723RING, O

main90301-22007i1GDFTV..GDH322,328..TH,VN201902-202505

(J)

main90301-T0010i1GDFTV..GDH320,322,328..AGT,BZ202401

main90301-T0010i1GDFTV..GDH322..TH;1GDFTV..GDH328..VN201906

(L)

1603

16345AGASKET, WATER OUTLET PIPE

main16345-0E010i1GDFTV..GDH328..D;1GDFTV..GDH320,322..AGT,BZ,TH201906

(L)

main16345-11010i1GDFTV..GDH306..LHD..G;1GDFTV..GDH301,322..GSOB..6F..N;1GDFTV..GDH300..RHD..4D..SP..6FC..GEN201902-202505

(J)

90105T0054

main90105-T0054

9012608052

main90126-08052

9012608053

main90126-08053

90126T0016

main90126-T0016

90178T0019

main90178-T0019

9155180816

main91551-80816

9415180800

main94151-80800

12 parts on this diagram · 2 diagrams in section
