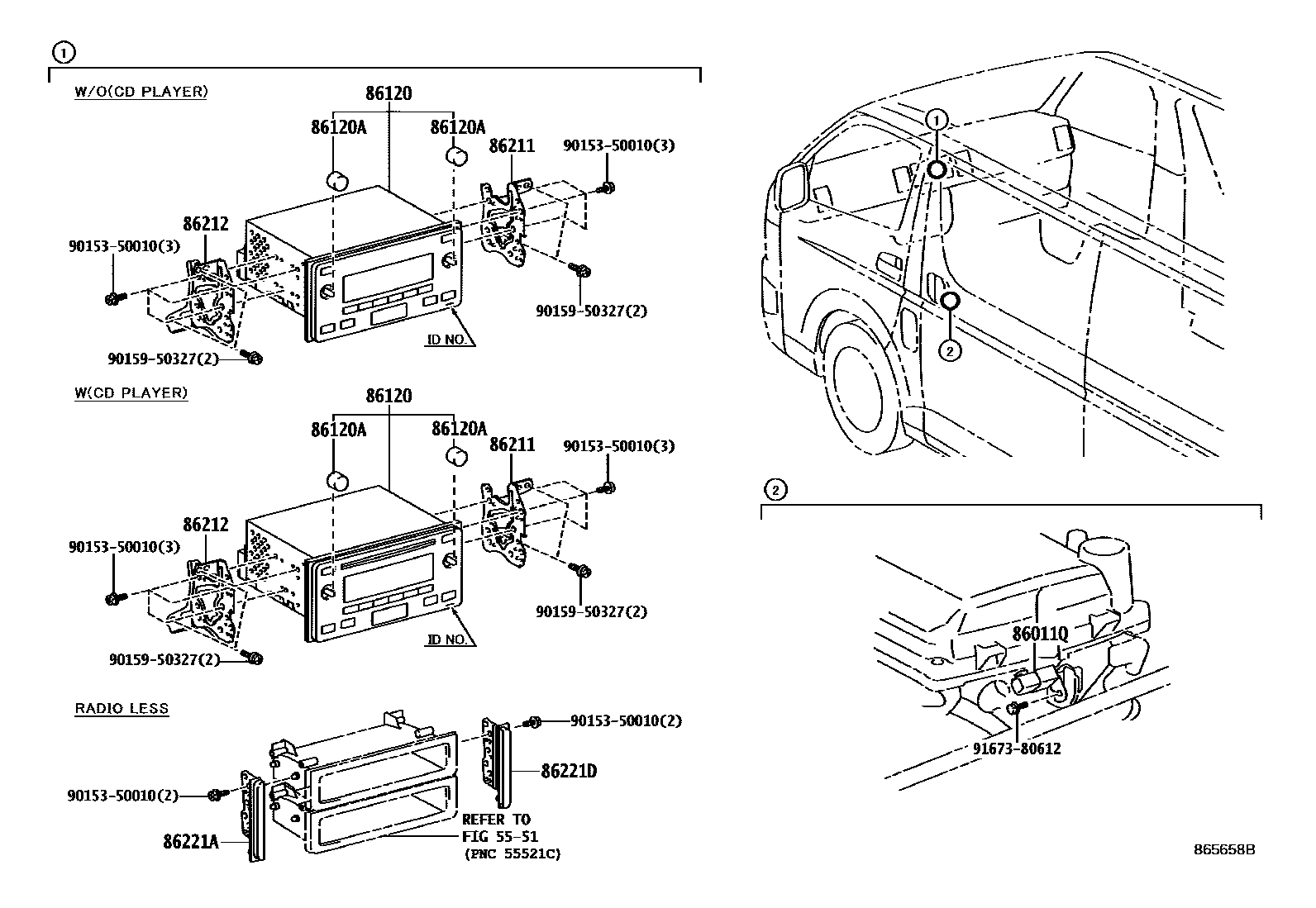

RADIO RECEIVER & AMPLIFIER & CONDENSER

5551

86011QCONDENSER, RADIO SETTING

main90980-04154iTRH20#,213,22#201312-201408

sub90980-04208

main90980-04177iTRH20#,213,22#201501-201806

main90980-04205iTRH221..GCC;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH223..STD..(ARL,SA,TH);TRH213,223..LHD..STD..GEN;TRH201,213..02S,03S,05S,06S,11S;TRH203,221..(02S,06S,15S)..(ARL,G201807-202507

main90980-04208iTRH20#,213,22#201409-201501

86120RECEIVER ASSY, RADIO

main86120-26240iKDH213..GEN201506-201510

FUJITSU TEN,ID100316

sub86120-26241

main86120-26241iKDH222,TRH223..16S..GL..GEN201511-201709

FUJITSU TEN,ID100649,AUDIO (OVERSEAS MARKET)-CD & AM/FM & USB 6SPEAKER

sub86120-26242

main86120-26241iKDH223..STD..GEN;KDH202,212,222,LH202,212,222,TRH203,213,223..(13S,15S,16S)..STD..GEN201511-201709

FUJITSU TEN,ID100649

sub86120-26242

main86120-26241iKDH213..5F201511-201709

FUJITSU TEN,ID100649,AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

sub86120-26242

main86120-26241iKDH213..5F201511-201709

FUJITSU TEN,ID100649,AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

sub86120-26242

main86120-26242iKDH223,TRH213..LHD..STD..GEN;KDH202,212,222,LH202,212,222,TRH203,223..(13S,15S,16S)..STD..GEN201710-201902

FUJITSU TEN,ID100649,AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

sub86120-26243

main86120-26242iKDH223,TRH213..LHD..STD..GEN;KDH202,212,222,LH202,212,222,TRH203,223..(13S,15S,16S)..STD..GEN201710-201902

FUJITSU TEN,ID100649,AUDIO (OVERSEAS MARKET)-CD & AM/FM & USB 6SPEAKER

sub86120-26243

main86120-26242iKDH222,TRH223..16S..GL..GEN201710-201902

FUJITSU TEN,ID100649

sub86120-26243

main86120-26242iKDH222,TRH223..16S..GL..GEN201710-201902

FUJITSU TEN,ID100649,AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

sub86120-26243

main86120-26243iKDH213..5F201903-201906

DENSO TEN,ID=100649

sub86120-26244

main86120-26260iTRH213,223..(10S,13S)..GEN201312-201510

FUJITSU TEN,ID100317

sub86120-26261

main86120-26261iTRH213,223..(10S,13S)..GEN201511-201902

FUJITSU TEN,ID100651

86120AKNOB, RADIO RECEIVER SWITCH

main90010-23044iKDH222,TRH223..GL..SA201312-201511

AUDIO (OVERSEAS MARKET)-CD & AM/FM & USB 6SPEAKER

main90010-23044iTRH201..06S..GCC;TRH201,221..SP..(03S,06S);KDH201..SP..(02S,06S)..GEN;KDH200,202,212,220,223,LH20#,212,TRH200,203,213..STD..(GCC,GEN,SA)201312-201511

AUDIO(FOR OVERSEAS MARKET)-AM/FM & USB 2SPEAKER

main90010-23044iTRH201..06S..GCC;TRH201,221..SP..(03S,06S);KDH201..SP..(02S,06S)..GEN;KDH200,202,212,220,223,LH20#,212,TRH200,203,213..STD..(GCC,GEN,SA)201312-201511

AUDIO(FOR OVERSEAS MARKET)-AM/FM & CD & USB & RDS 4SPEAKER

main90010-23044iTRH201..06S..GCC;TRH201,221..SP..(03S,06S);KDH201..SP..(02S,06S)..GEN;KDH200,202,212,220,223,LH20#,212,TRH200,203,213..STD..(GCC,GEN,SA)201312-201511

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB & RDS 6SPEAKER

main90010-23044iTRH201..06S..GCC;TRH201,221..SP..(03S,06S);KDH201..SP..(02S,06S)..GEN;KDH200,202,212,220,223,LH20#,212,TRH200,203,213..STD..(GCC,GEN,SA)201312-201511

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 2SPEAKER

main90010-23044iTRH201..06S..GCC;TRH201,221..SP..(03S,06S);KDH201..SP..(02S,06S)..GEN;KDH200,202,212,220,223,LH20#,212,TRH200,203,213..STD..(GCC,GEN,SA)201312-201511

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 4SPEAKER

main90010-23044iTRH201..06S..GCC;TRH201,221..SP..(03S,06S);KDH201..SP..(02S,06S)..GEN;KDH200,202,212,220,223,LH20#,212,TRH200,203,213..STD..(GCC,GEN,SA)201312-201511

AUDIO (OVERSEAS MARKET)-AM/FM & CD & USB 6SPEAKER

main90010-23051iTRH223..4FC..GEN;KDH213,TRH213..5F..GL..GEN201511-201906

86211BRACKET, RADIO, NO.1

main86211-26101iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

86212BRACKET, RADIO, NO.2

main86212-26091iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

86221APANEL, RADIO RECEIVER

main86221-52050iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

main86221-52050iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 6SPEAKER

main86221-52050iKDH213..TH201312-201906

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

86221DPANEL, RADIO RECEIVER

main86221-52060iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

main86221-52060iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 6SPEAKER

main86221-52060iKDH213..TH201312-201906

AUDIO(FOR OVERSEAS MARKET)-AUDIO LESS 4SPEAKER

9015350010

main90153-50010

9015950327

main90159-50327

9167380612

main91673-80612

11 parts on this diagram · 1 diagram in section
