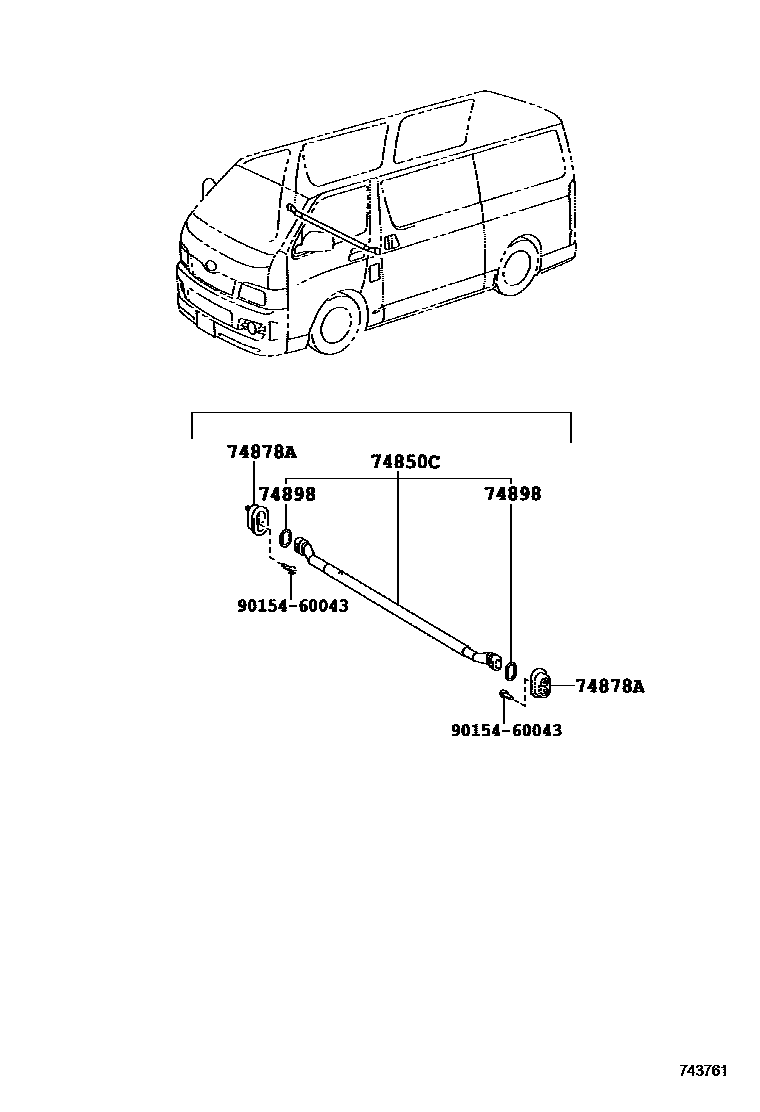

SEPARATOR & SEPARATOR CURTAIN
74850CBAR ASSY, SEPARATOR
LT.GRAY,TRIM1#
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),LT.GRAY,TRIM1#
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,LT.GRAY,TRIM1#
74878ABRACKET, SEPARATOR BAR, LOWER
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,RH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#,RH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#,RH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED),DK.GRAY,TRIM1#,LH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF),DK.GRAY,TRIM1#,LH
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER,DK.GRAY,TRIM1#,LH
74898PAD, SEPARATOR BAR
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED)
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)
ROOM SEPARATOR-WITH(PIPE TYPE:FIXED, FOR HIGH ROOF)&AIR CONDITIONER-DUAL AIR CONDITIONER
9015460043
4 parts on this diagram · 2 diagrams in section
