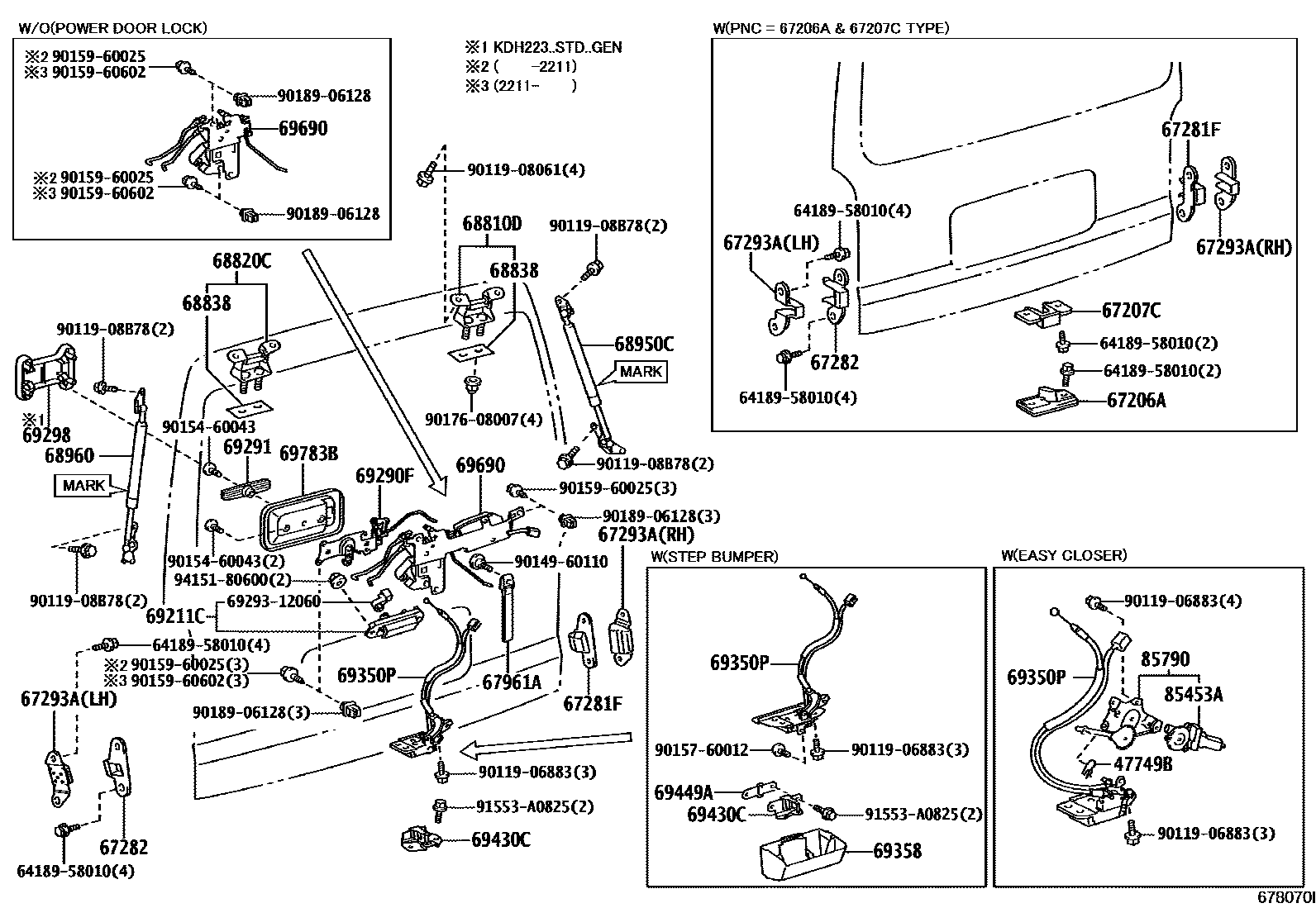

BACK DOOR LOCK & HINGE
47749BCLIP, PIN HOLD
67206ABRACKET SUB-ASSY, BACK DOOR STOPPER
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67207CSTOPPER SUB-ASSY, BACK DOOR
main67207-95J01iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..GEN;TRH213..STD..GEN201312-201901
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67281FSTOPPER, BACK DOOR, LOWER
main69403-26060supersedes 67281-28010iLH222..RHD;KDH200..LHD..5D;KDH212..13S..STD;KDH222,TRH203..GEN;KDH202,220,LH212,TRH201..(03S,12S,15S,16S)..(GCC,GEN)201312
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
67282STOPPER, BACK DOOR, NO.1
NEW ZEALAND SPEC
67293ACUSHION, BACK DOOR STOPPER
RH
LH
RH
main69402-26010supersedes 67294-28010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..GEN;TRH213..STD..GEN201312-201901
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION,LH
67961ASTRAP, BACK DOOR PULL
main67961-26050-B1iKDH201..SG;KDH201..ARL;KDH223..5F..ARL;TRH201..RHD..(ARL,GEN);GDH201,223,KDH221,TRH200,22#..RHD..(02S,03S,14S)..(ARL,GEN)201312-202410
DK.GRAY,TRIM1#
DK.GRAY,TRIM1#
68810DHINGE ASSY, BACK DOOR, RH
main68810-26011iKDH222,TRH223..5F..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)201911-202208
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
T=1.1
68950CSTAY ASSY, BACK DOOR, RH
main68950-26036iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,12S,14S,16S)..(GCC,GEN,TH)201312-201701
MARK = C
main68950-26037iLH222..RHD;TRH223..TH;TRH221..GCC;TRH223..GL..GCC;KDH223..4FC..TH;KDH223..GEN,KEN,VN;TRH223..LHD..STD..GEN;GDH223,KDH220,222..GEN201702
MARK = C
MARK = W
CAUCASUS(4 COUNTRIES) SPEC,MARK = W
main68950-26066iTRH221..SG;KDH222,TRH223..ARL,SA;KDH220,221,223,TRH221..RHD..(ARL,GEN,SA)201312-201612
BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = H
BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = H
MARK = J
main68950-26198iKDH200,201,TRH201..LHD..5D;GDH201,KDH202,203..03S,06S,12S,15S;KDH201,TRH203..4D..5F..(GEN,MA,TH)201702
MARK = J
MARK = Z
MARK = Z
LABEL = N
MARK = P
MARK = P
LABEL = T
main68950-26206iTRH203..LHD..GEN;KDH201,203..LHD..(03S,12S);KDH200,202,LH20#,TRH201..(03S,12S,15S)..GEN201312-201701
COLD AREA SPEC,MARK = Y
COLD AREA SPEC,MARK = Y
COLD AREA SPEC&BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = I
COLD AREA SPEC&BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = I
COLD AREA SPEC,LABEL = T
68960STAY ASSY, BACK DOOR, LH
main68960-26036iTRH221..LHD..SP;KDH220,222,223,LH222,TRH223..(03S,12S,14S,16S)..(GCC,GEN,TH)201312-201701
MARK = C
MARK = C
MARK = W
CAUCASUS(4 COUNTRIES) SPEC,MARK = W
main68960-26066iTRH221..SG;KDH222,TRH223..ARL,SA;KDH220,221,223,TRH221..RHD..(ARL,GEN,SA)201312-201612
BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = H
MARK = H
main68960-26197iTRH201..LHD;KDH201,TRH203..(02S,03S,15S)..(GCC,GEN,TH);KDH200,202,203,LH20#,TRH200..SRF..(5F,6FC)..(GCC,GEN,MA,TH)201312-201701
MARK = J
MARK = J
MARK = Z
MARK = Z
LABEL = N
MARK = P
MARK = P
LABEL = T
main68960-26206iTRH203..LHD..GEN;KDH201,203..LHD..(03S,12S);KDH200,202,LH20#,TRH201..(03S,12S,15S)..GEN201312-201701
COLD AREA SPEC,MARK = Y
COLD AREA SPEC,MARK = Y
COLD AREA SPEC&BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = I
COLD AREA SPEC&BACK DOOR DUMPER & STOPPER-MIDDLE OPENING DAMPER,MARK = I
COLD AREA SPEC,LABEL = T
69211CHANDLE, BACK DOOR OUTSIDE
69290FHANDLE ASSY, BACK DOOR INSIDE
DK.GRAY,TRIM1#
VIETNAM SPEC&REAR SEAT-WITHOUT,DK.GRAY,TRIM1#
69291HANDLE ASSY, BACK DOOR INSIDE
DK.GRAY,TRIM1#
REAR SEAT-WITHOUT,BLACK,TRIM1#
69298COVER, BACK DOOR INSIDE HANDLE
PERU SPEC&REAR SEAT-FOR 13 PERSONS(BACK-ROW:SPACE UP SEAT)
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-26121iTRH221;KDH220,221..SP;TRH201..06S..GCC;KDH20#,212,222,223,LH20#,212,222,TRH201,203,213,223..02S,03S,10S,12S,13S,14S,15S,16S201312-201412
main69350-26122iTRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH201..06S..GCC;KDH201..4D..5F..GEN;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..5F..GL..(GCC,RUS);KDH201,TRH223201501
69358PROTECTOR, BACK DOOR LOCK
69430CSTRIKER ASSY, BACK DOOR LOCK
69449ASHIM, BACK DOOR LOCK STRIKER
T=2.0
T=1.0
T=0.5
T=2.9
T=1.6
69690CONTROL ASSY, BACK DOOR REMOTE
main69690-26180supersedes 69690-26160iKDH201..LHD;TRH201..03S;KDH201..MA,TH;KDH200..LHD..5D;TRH201..06S..GCC201312
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH&REAR SEAT-FOR 12 PERSONS(BACK-ROW:SPACE UP SEAT)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&HEADLAMP-LED
69783BBEZEL, BACK DOOR INSIDE HANDLE
DK.GRAY,TRIM1#
REAR SEAT-WITHOUT,BLACK,TRIM1#
85453AMOTOR, DOOR CONTROL
85790MOTOR ASSY, BACK DOOR CLOSER
6418958010CLAMP, BACK PANEL SILENCER
main64189-58010
6929312060HANDLE, BACK DOOR
main69293-12060
9011906883
main90119-06883
9011908061
main90119-08061
9011908B78
main90119-08B78
9014960110
main90149-60110
9015460043
main90154-60043
9015760012
main90157-60012
9015960025
main90159-60025
9015960602
main90159-60602
9017608007
main90176-08007
9018906128
main90189-06128
91553A0825
main91553-A0825
9415180600
main94151-80600
38 parts on this diagram · 1 diagram in section
