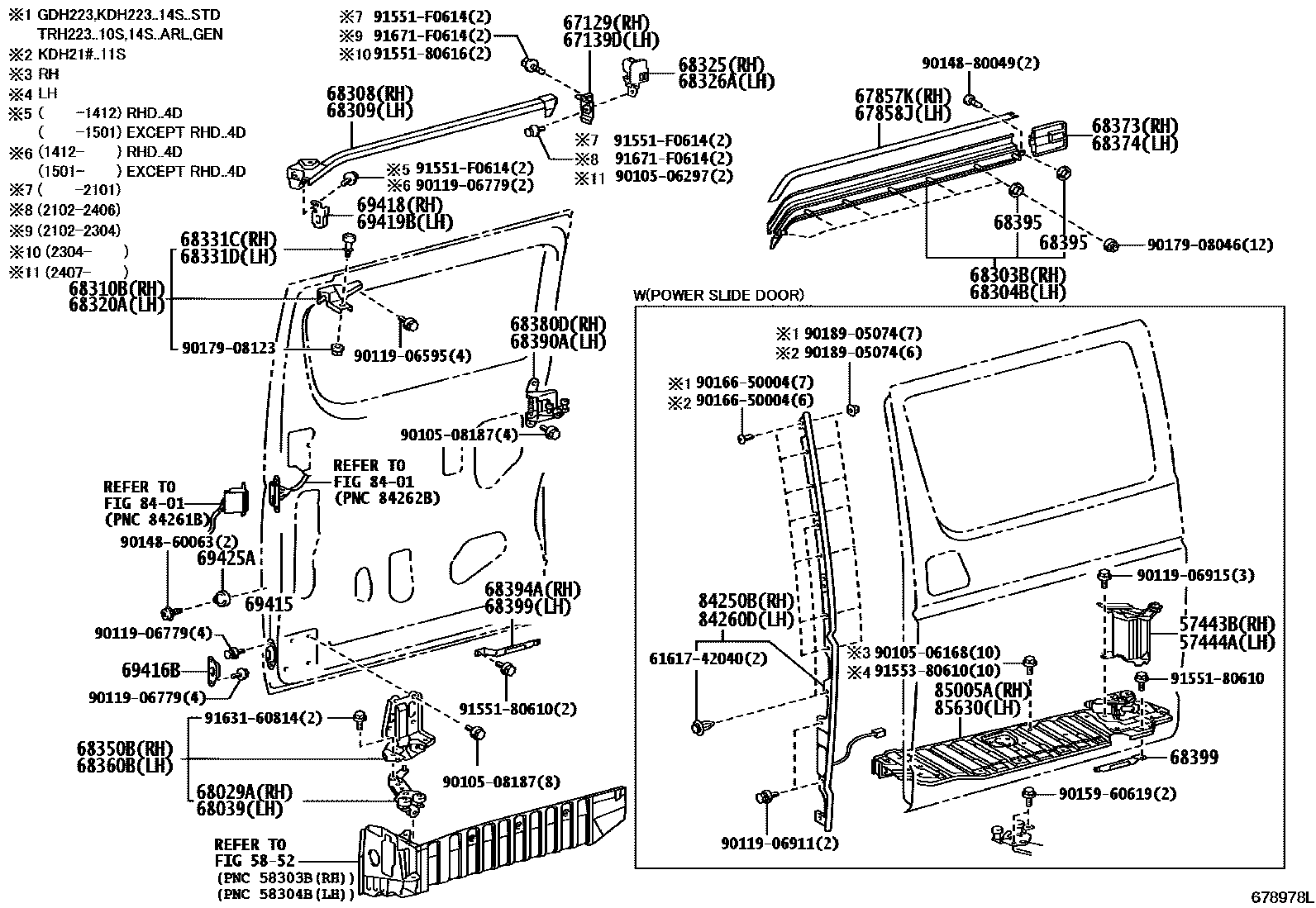

SLIDE ROLLER & RAIL

57443BSUPPORT, SIDE STEP, REAR RH

main57443-26010iKDH213201501-202004

HEADLAMP-LED

main57443-26010iTRH223..10S201312-201612

main57443-26010iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

57444ASUPPORT, SIDE STEP, REAR LH

main57444-26020iTRH223..4FC..ARL201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main57444-26020iKDH21#..11S201312-201902

*POSD(LH) & *ECS(LH)

main57444-26020iKDH212..11S201501-202004

HEADLAMP-LED

main57444-26020iKDH223..ARL201902-201909

WITHOUT(EASY CLOSER)

main57444-26020iKDH223..ARL201312-202301

5852

67129RETAINER, SLIDE DOOR OPEN STOP, RH

main67129-26062iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202507

67139DRETAINER, SLIDE DOOR OPEN STOP, LH

main67139-26012iKDH222..KEN201312-202507

67857KPROTECTOR, SLIDE DOOR PANEL

main67857-26051iTRH213..GCC,TH;KDH213,221,TRH221;KDH200,201,LH200,TRH201..5D;KDH200,LH200,TRH213..LHD..4D..GEN;GDH201,KDH203,220,223,TRH200..(03S,06S,12S,14S,15S)..(GEN,RUS,SA);KDH201312-201711

sub67857-26052

main67857-26052iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201712-202507

67858JPROTECTOR, SLIDE DOOR RAIL, LH

main67858-26011iTRH221..SP;KDH200..LHD..5D;KDH201..02S..ARL;KDH213,220,TRH201..02S,03S,05S,06S,11S;KDH201,212..(03S,05S,06S,10S,11S,16S)..(ARL,GEN,SA,TH);GDH201,KDH200,202,203,221,201312-201711

sub67858-26012

main67858-26012iLH200..5D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201712-202507

68029ABASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, RH

main68029-26070iKDH220201312-202507

main68029-26090iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main68029-26090iKDH213201501-202004

HEADLAMP-LED

main68029-26090iTRH223..10S201312-201612

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68039-26050iKDH223..5F..TH201312-202507

main68039-26050iKDH223..ARL201904-202005

WITHOUT(EASY CLOSER)

main68039-26060iKDH223,TRH223..ARL201312-201902

*POSD(LH) & *ECS(LH)

main68039-26060iKDH213..11S..GEN201501-202004

HEADLAMP-LED

main68039-26060iGDH223201902-202301

main68039-26060iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26080iKDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH223..5F..GL..GEN;TRH221..03S..(GEN,SA)201312-202507

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26110iLH200..5D201312-202507

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26031iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202507

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26031iLH200..5D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

68310BROLLER ASSY, SLIDE DOOR, UPPER RH

main68310-26051iKDH213..TH201312-202507

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-26031iTRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA201312-202507

68325CUSHION, SLIDE DOOR UPPER RAIL, RH

main68325-26012iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202507

main68325-26032iKDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH223..5F..GL..GEN;TRH221..03S..(GEN,SA)201312-202506

68326ACUSHION, SLIDE DOOR UPPER RAIL, LH

main68326-26012iKDH213201312-202507

main68326-26032iTRH221..GCC;KDH223..4FC..TH;GDH223,KDH221,LH222..RHD;TRH223..STD..(ARL,SA,TH);KDH220,222,TRH221..RHD..(02S,06S,16S);KDH220,223..(03S,14S,16S)..5F..(ARL,GEN,KEN)201312-202312

68331CROLLER, SLIDE DOOR, RH

main68331-26071iKDH220201312-202507

68331DROLLER, SLIDE DOOR, LH

main68331-26071iLH200..RHD..4D;LH202,TRH200..RHD..5F201312-202507

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-26080iKDH213..TH201312-202110

sub68350-26081

main68350-26081iKDH201..5F202111-202507

main68350-26110iKDH213201501-202004

HEADLAMP-LED

sub68350-26111

main68350-26110iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

sub68350-26111

main68350-26110iTRH223..10S201312-201612

sub68350-26111

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-26130iLH200,TRH221..5D..GEN;KDH200,223,TRH213,223..RHD..(GEN,TH)201312-202110

sub68360-26131

main68360-26130iKDH223..ARL201904-202005

WITHOUT(EASY CLOSER)

sub68360-26131

main68360-26131iTRH200..03S..6FC202111-202507

main68360-26140iKDH213..11S..GEN201501-202004

HEADLAMP-LED

sub68360-26141

main68360-26140iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

sub68360-26141

main68360-26140iKDH223,TRH223..ARL201312-201902

*POSD(LH) & *ECS(LH)

sub68360-26141

main68360-26140iKDH223..ARL201902-202110

sub68360-26141

main68360-26141iKDH223..ARL202111-202301

68373MOULDING, SLIDE RAIL END, RH

main68073-26010-A1iKDH220201312-202507

WHITE,058

main68073-26010-A2iKDH222,TRH223..LHD..16S..GL201312-202004

WHITE PEARL CS.,070

main68073-26010-A2iKDH212..11S201312-201511

WHITE PEARL CS.,070 ,2JZ

main68073-26010-A2iKDH212,TRH213..4D..GL..GEN201312-201512

WHITE PEARL CS.,2JZ

main68073-26010-A2iKDH213..11S..GEN201512-201612

HEADLAMP-LED,WHITE PEARL CS.,070 ,2JZ

main68073-26010-A2iKDH213..4D201506-201809

WHITE PEARL CS.,2JZ ,2QD

main68073-26010-A2iKDH213..11S..GEN201512-201906

WHITE PEARL CS.,070 ,2JZ ,2QD

main68073-26010-B1iTRH221..SA201312-202507

SILVER M.M.,1E7

main68073-26010-C1iKDH213..TH201312-202107

BLACK MC.,209

main68073-26010-C2iKDH222,223,TRH223..LHD..GL201312-201712

NOBLE PEARL TONING2,2JZ

main68073-26010-C5iKDH222,223,TRH223..LHD..GL201712-202005

LUXURY PEARL TONING,2QD

main68073-26010-D0iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202108

BORDEAUX M.M,3R9

main68073-26010-E0iTRH223..GL..GEN201712-201809

BEIGE ME.,4R4

main68073-26010-F0iTRH221..SG;KDH222,TRH223..5F..STD..GCC201312-202507

LT.YELLOW,599

main68073-26010-F1iKDH222,223,TRH223..LHD..GL201312-201712

GOLD ME.,593

main68073-26010-J0iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-202204

DK.BLUE M.M.,8P4

68374MOULDING, SLIDE RAIL END, LH

main68074-26010-A1iTRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA201312-202507

WHITE,058

main68074-26010-A2iKDH213..11S..GEN201512-201612

HEADLAMP-LED,WHITE PEARL CS.,070 ,2JZ

main68074-26010-A2iKDH212..11S201312-201511

WHITE PEARL CS.,070 ,2JZ

main68074-26010-A2iKDH212,TRH213..SA201312-202107

WHITE PEARL CS.,2JZ ,2QD

main68074-26010-A2iKDH213..TH201312-202004

WHITE PEARL CS.,070

main68074-26010-A2iKDH213..11S..GEN201512-201906

WHITE PEARL CS.,070 ,2JZ ,2QD

main68074-26010-B1iLH200..RHD..4D;LH202,TRH200..RHD..5F201312-202507

SILVER M.M.,1E7

main68074-26010-C1iKDH222,TRH223..RHD..GL201312-201712

NOBLE PEARL TONING2,2JZ

main68074-26010-C2iKDH213..11S..GEN;KDH201..SP..(05S,06S);GDH201,KDH212,TRH200,213..5D201312-202107

BLACK MC.,209

main68074-26010-C5iKDH222..RHD..GL..GEN201712-202507

LUXURY PEARL TONING,2QD

main68074-26010-D0iTRH200..6FC201312-202108

BORDEAUX M.M,3R9

main68074-26010-E0iTRH223..GL..SA201712-202107

BEIGE ME.,4R4

main68074-26010-F0iKDH220..03S..SA;TRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA)201312-202507

LT.YELLOW,599

main68074-26010-F1iKDH222,TRH223..RHD..GL201312-201712

GOLD ME.,593

main68074-26010-J0iTRH221..SA201312-202204

DK.BLUE M.M.,8P4

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26030iLH200..5D201312-202507

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26040iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN201312-202507

68394APLATE, SLIDE DOOR LOWER RAIL, RH

main68394-26010iKDH213,TRH221..SG;KDH222,TRH223..5F..STD..GCC201312-202507

main68394-26030iTRH223..10S201312-201612

main68394-26030iKDH213..11S..GEN201501-202004

HEADLAMP-LED

main68394-26030iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-26030iLH200..5D201312-202507

T=1.5

main68395-26040iTRH213..RHD..GEN201312-202507

T=1.0

main68395-28070iKDH200,212,220,TRH213,223..(03S,10S,14S)..SA201312-202507

T=0.5

68399PLATE, SLIDE DOOR LOWER RAIL, LH

main68399-26010iLH200..RHD..4D;LH202,TRH200..RHD..5F201312-202507

main68399-26010iKDH223..ARL201904-202005

WITHOUT(EASY CLOSER)

main68399-26020iKDH213..11S..GEN201501-202004

HEADLAMP-LED

main68399-26020iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main68399-26020iKDH223..ARL201902-202301

main68399-26020iKDH223,TRH223..ARL201312-201902

*POSD(LH) & *ECS(LH)

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-26020iTRH203..4FC;TRH213..RHD..5F;KDH200,212..4D..(03S,10S)..(GEN,SA)201312-202507

69416BSTOPPER, SLIDE DOOR DOWN MALE

main69416-26020iTRH203..4FC;TRH213..RHD..5F;KDH200,212..4D..(03S,10S)..(GEN,SA)201312-202507

69418STOP, SLIDE DOOR OPEN

main69418-26010iTRH213..GCC,TH;KDH213,221,TRH221;KDH200,201,LH200,TRH201..5D;KDH200,LH200,TRH213..LHD..4D..GEN;GDH201,KDH203,220,223,TRH200..(03S,06S,12S,14S,15S,16S)..(GEN,RUS,SA,201312-201808

sub69418-26011

main69418-26011iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201809-202507

69419BSTOP, SLIDE DOOR OPEN, LH

main69419-26010iTRH201..4D..(5F,6FC);KDH20#,212,LH20#,212,TRH203,213..RHD..(SMRF,SRF)..4D201312-201808

sub69419-26011

main69419-26011iKDH213..TH201806-202507

69425ACUSHION, SLIDE DOOR STOP

main69425-26011iKDH201..RHD..03S..5F..GEN201312-202507

main69425-26011iKDH223..ARL201904-202005

WITHOUT(EASY CLOSER)

8401

84250BSENSOR ASSY, POWER SLIDE DOOR, RH

main84250-26030iKDH212..11S201501-202004

HEADLAMP-LED

main84250-26030iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main84250-26040iTRH223..10S201312-201612

84260DSENSOR ASSY, POWER SLIDE DOOR

main84260-26030iKDH212..11S201501-202004

HEADLAMP-LED

main84260-26030iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main84260-26040iGDH223201312-202301

main84260-26040iKDH223..ARL;TRH223..6FC201312-201902

*POSD(LH) & *ECS(LH)

main84260-26040iKDH223..ARL201902-201909

WITHOUT(EASY CLOSER)

85005AMOTOR UNIT, SLIDE DOOR, RH

main85005-26010iKDH213..11S..GEN201501-202004

HEADLAMP-LED

main85005-26010iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main85005-26010iTRH223..10S201312-201612

85630MOTOR ASSY, SLIDE DOOR

main85006-26031iTRH223..10S201312-202301

main85006-26031iKDH223..ARL;TRH223..6FC201312-201902

*POSD(LH) & *ECS(LH)

main85006-26031iTRH223..4FC..ARL201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)

main85006-26031iKDH213201501-202004

HEADLAMP-LED

main85006-26031iKDH223..ARL201902-201909

WITHOUT(EASY CLOSER)

6161742040REINFORCEMENT, BACK FRAME UPPER CORNER, RH

main61617-42040

9010506168

main90105-06168

9010506297

main90105-06297

9010508187

main90105-08187

9011906595

main90119-06595

9011906779

main90119-06779

9011906911

main90119-06911

9011906915

main90119-06915

9014860063

main90148-60063

9014880049

main90148-80049

9015960619

main90159-60619

9016650004

main90166-50004

9017908046

main90179-08046

9017908123

main90179-08123

9018905074

main90189-05074

9155180610

main91551-80610

9155180616

main91551-80616

91551F0614

main91551-F0614

9155380610

main91553-80610

9163160814

main91631-60814

91671F0614

main91671-F0614

59 parts on this diagram · 1 diagram in section
