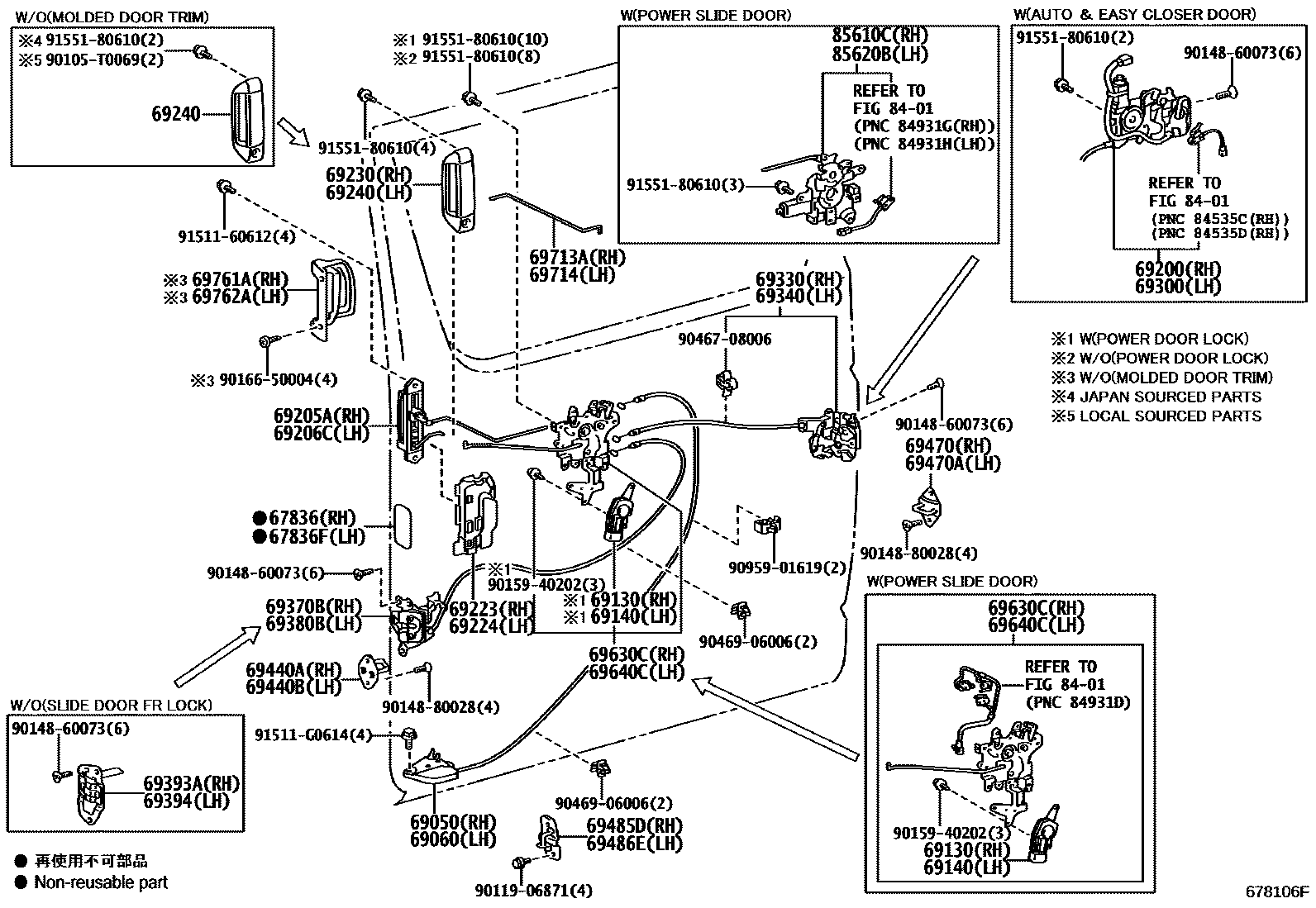

REAR DOOR LOCK & HANDLE
67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836FCOVER, REAR DOOR LOCK CHILD PROTECTION, LH
main67857-26060iTRH223..RHD..GEN;TRH221..SP..03S..(GEN,SA);KDH220,222,TRH223..(03S,14S)..SA201312-201902
69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH
69060LOCK ASSY, SLIDE DOOR FULL OPEN STOP, LH
main69060-26011iTRH221..GCC;KDH223..4FC..TH;KDH201..4D..03S..5F;KDH200,201,213,220..LHD..5D;KDH223..RHD..5F..(ARL,GEN,KEN);KDH212,221,TRH201,213..02S,03S,05S,06S,11S;TRH22#..(02S,0201312
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-26010iKDH200..LHD..4D;KDH200,LH200..5D;KDH220,TRH221..03S,06S;KDH201,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..STD201312-201409
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-26010iKDH212..10S,11S;KDH222..RHD..GL..GEN;KDH201..RHD..(ARL,GEN);KDH222,TRH213,223..ARL,SA,TH;KDH203,213,221,223,TRH200,201,221..RHD..(ARL,GEN,TH)201312-201409
POWER DOOR LOCK-WITH
POWER DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
DK.GRAY,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
DK.GRAY,TRIM1#
69223CASE, REAR DOOR OUTSIDE HANDLE, RH
main69241-26030iKDH222..GCC;KDH220..03S..SA;TRH223..STD..GCC;TRH223..5F..GL..GEN;TRH221..03S..(GEN,SA)201312-201902
69224CASE, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
PLATED
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
PLATED
69330LOCK ASSY, REAR DOOR, RH
main69330-26050iTRH221;TRH223..LHD..(12S,13S,16S);KDH200,201,221,LH200,TRH201..5D;KDH200,201,202,212,222,LH20#,212,222,TRH203,213..LHD..4D;GDH201,KDH203,213,220,223,TRH200..(03S,06201312-201705
69340LOCK ASSY, REAR DOOR, LH
main69340-26050iTRH221..SP;KDH220,TRH201;KDH200..LHD..5D;KDH201..02S..ARL;KDH201..03S,05S,06S;GDH201,KDH200,202,203,212,221,222,223,LH20#,212,222,TRH200,203,213,223..RHD..(02S,03S,201312-201705
69370BLOCK ASSY, SLIDE DOOR, FRONT RH
69380BLOCK ASSY, SLIDE DOOR, FRONT LH
69393ACOVER, REAR DOOR LOCK, OUTER RH
69394COVER, REAR DOOR LOCK, OUTER LH
69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
EGYPT SPEC&POWER DOOR LOCK-WITH
69440BPLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69470PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470APLATE ASSY, SLIDE DOOR LOCK STRIKER, LH
69485DSTRIKER, SLIDE DOOR OPEN, RH
69486ESTRIKER, SLIDE DOOR OPEN, LH
69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH
main69630-26221supersedes 69630-26211iKDH200..LHD..4D;KDH200,LH200..5D;KDH220,TRH221..03S,06S;KDH201,202,203,212,222,223,LH20#,212,222,TRH201,203,213,223..LHD..STD201312-201408
POWER DOOR LOCK-WITH
main69630-26222supersedes 69630-26212iKDH223..RUS,VN;TRH213..GL..(GEN,TH);TRH223..5F..GL..(GCC,RUS);TRH223..(13S,16S)..4FC..GL;KDH212,222,223..LHD..GL..GEN;GDH201,KDH213,221,TRH200..ARL,GEN;KDH201,TRH20201409-202005
POWER DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
sub69630-26263
69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
main69640-26342iTRH201..03S;KDH200,TRH221..GCC,MA;KDH200,201,220..LHD..5D..GEN;KDH220,TRH201,221..06S..(GCC,SA);KDH201,202,212,222,LH20#,212,222,TRH203..RHD..4D..5F..(GEN,MA,TH)201409-202001
main69640-26351supersedes 69640-26341iKDH212..10S,11S;KDH222..RHD..GL..GEN;KDH201..RHD..(ARL,GEN);KDH222,TRH213,223..ARL,SA,TH;KDH203,213,221,223,TRH200,201,221..RHD..(ARL,GEN,TH)201312-201408
POWER DOOR LOCK-WITH
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)&*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR)
sub69640-26363
69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH
69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
DK.GRAY,TRIM1#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
DK.GRAY,TRIM1#
8401
85610CMOTOR ASSY, SLIDE DOOR LOCK RELEASE, RH
85620BMOTOR ASSY, SLIDE DOOR LOCK RELEASE
90105T0069
main90105-T0069
9011906871
main90119-06871
9014860073
main90148-60073
9014880028
main90148-80028
9015940202
main90159-40202
9016650004
main90166-50004
9046708006
main90467-08006
9046906006
main90469-06006
9095901619
main90959-01619
9151160612
main91511-60612
91511G0614
main91511-G0614
9155180610
main91551-80610
47 parts on this diagram · 1 diagram in section
