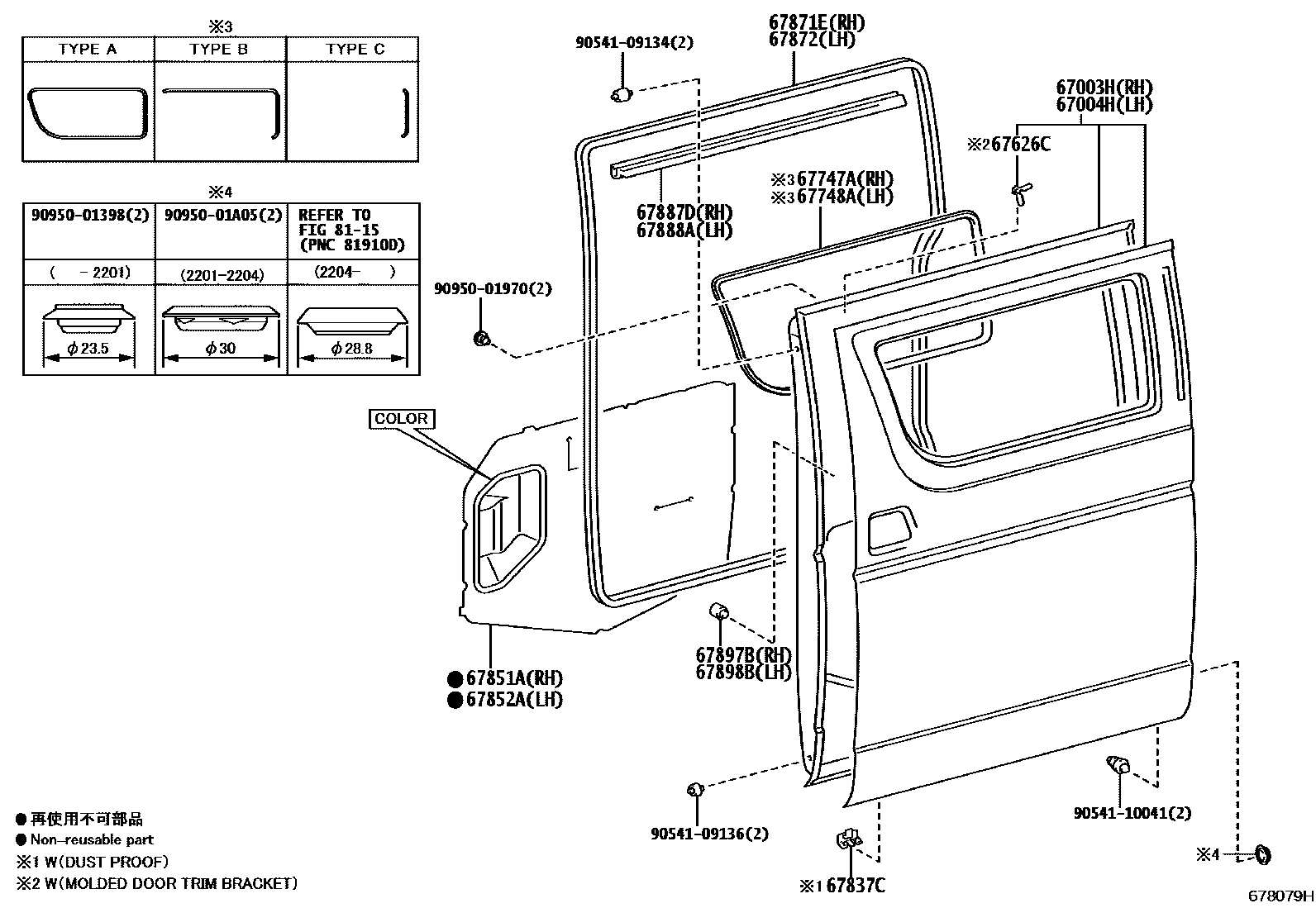

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM(MOLDED DOOR TRIM) 0005 1DOOR TRIM(BOARD)

67003HDOOR SUB-ASSY, SLIDE, RH

main67003-26280supersedes 67003-26270iKDH221,223..(03S,16S)..(GEN,VN)201312-201904

sub90950-01A05

main67003-26290supersedes 67003-26440iKDH222..LHD..GL..GEN;KDH223,TRH223..LHD..(12S,13S,14S)..GL201312-202201

sub90950-01A05

main67003-26320supersedes 67003-26310iKDH220..GEN201312-202201

POWER DOOR LOCK-WITH

sub90950-01A05

main67003-26340supersedes 67003-26330iKDH201,TRH201..SG..GEN201312-202004

sub90950-01A05

main67003-26350iKDH201..SP..(05S,06S);GDH201,KDH213,TRH200..GEN;KDH212,TRH213..GL..(GEN,TH)201312-202107

sub67003-V3030

sub90950-01A05

main67003-26370supersedes 67003-26360iKDH201..RHD..03S..5F..GEN201312-202201

POWER DOOR LOCK-WITH

sub90950-01A05

main67003-26480iTRH223..10S201312-201612

sub67003-V3240

sub90950-01A05

main67003-V3050supersedes 67003-V3040iKDH200..LHD..4D;KDH200,TRH201..5D..GEN202201

POWER DOOR LOCK-WITH

main67003-V3130iKDH222..GL..GCC202201

main67003-V3150supersedes 67003-V3140iTRH221..SA202201-202312

main67003-26390supersedes 67003-26380iTRH203..LHD..GEN201712-202201

LEBANON SPEC&POWER DOOR LOCK-WITH

sub90950-01A05

main67003-26410supersedes 67003-26360iKDH200,TRH201..03S..GCC201312-201701

SAUDI ARABIA SPEC&POWER DOOR LOCK-WITH

sub90950-01A05

main67003-26430supersedes 67003-26310iKDH222,TRH223..STD..GCC201312-201701

SAUDI ARABIA SPEC&POWER DOOR LOCK-WITH

sub90950-01A05

main67003-26460supersedes 67003-26450iTRH221..GCC201701-202201

POWER DOOR LOCK-WITH

sub90950-01A05

main67003-26470supersedes 67003-26350iKDH213..TH201501-201906

HEADLAMP-LED

sub67003-V3100

sub90950-01A05

main67003-V3020supersedes 67003-V3060iTRH201..03S..GCC202201-202507

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)&POWER DOOR LOCK-WITH

main67003-V3070supersedes 67003-V3080iTRH201..03S..GCC202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)&POWER DOOR LOCK-WITH

main67003-V3090supersedes 67003-V3080iTRH201..03S..GCC202201

LEBANON SPEC&POWER DOOR LOCK-WITH

main67003-V3120supersedes 67003-V3110iKDH222,TRH223..LHD..GEN202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)&POWER DOOR LOCK-WITH

main67003-V3170supersedes 67003-V3180iTRH221..GCC202201

REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)&POWER DOOR LOCK-WITH

main67003-V3190supersedes 67003-V3180iTRH221..GCC202201

POWER DOOR LOCK-WITH

67004HDOOR SUB-ASSY, SLIDE, LH

main67004-26600supersedes 67004-V3090iKDH223..4FC..TH;KDH221,222..RHD..SG..STD;TRH223..STD..(ARL,SA,TH);KDH220,223,LH222,TRH221..RHD..(06S,14S,16S)..5F..(ARL,GEN,SA)201312-202201

REFER TO PNC 67852A

sub90950-01A05

main67004-26620iKDH222,TRH223..GL..SA201312-201902

REFER TO PNC 67852A

sub90950-01A05

main67004-26630iKDH220..03S..SA;TRH221..SP..03S..(GEN,SA)201312-201902

REFER TO PNC 67852A

sub67004-V3110

sub90950-01A05

main67004-26640supersedes 67004-26670iTRH213..RHD..GEN201908-202201

REFER TO PNC 67852A

sub90950-01A05

main67004-26660iKDH21#,TRH213..GL201911-202107

REFER TO PNC 67852A

sub67004-V3030

sub90950-01A05

main67004-26670iKDH201..03S;LH200..RHD..4D;KDH200..LHD..5D..GEN;KDH200,201..4D..(ARL,MA);TRH201..SP..(ARL,GEN,SA)201312-202201

REFER TO PNC 67852A

sub90950-01A05

main67004-V3010supersedes 67004-V3050iKDH203,212..RHD..GEN202201-202301

REFER TO PNC 67852A

main67004-V3040supersedes 67004-V3060iTRH201..03S..GCC202201-202507

REFER TO PNC 67852A

main67004-V3080supersedes 67004-V3110iKDH223..KEN,TH;KDH222,TRH223..RHD..16S202201

REFER TO PNC 67852A

main67004-V3090iGDH223202201

REFER TO PNC 67852A

main67004-V3100iKDH223..GEN;KDH222..GL..SA202201

REFER TO PNC 67852A

main67004-26650supersedes 67004-26660iKDH21#..11S201312-201501

*POSD(RH & LH)&*ECS(RH & LH & BACK DOOR),REFER TO PNC 67852A

sub67004-V3020

sub90950-01A05

67626CBRACKET, REAR DOOR TRIM, NO.2

main67626-26010×2iKDH21#,TRH213..4D..GL..GEN201312-202107

67747AMOULDING, REAR DOOR TRIM, NO.2 RH

main67745-26010iKDH220,TRH221..06S;KDH201,203,221,TRH201,221..SG..(03S,06S,12S)..STD;KDH202,212,222,LH202,212,222,TRH203,213,223..LHD..STD201312-201406

TYPE A:REFER ILLUST.

main67745-26011iTRH221..SG;KDH222,TRH223..5F..STD..GCC201911

TYPE A:REFER ILLUST.

main67745-26020iKDH213201911-202107

TYPE B:REFER ILLUST.

main67745-26030iTRH223..GL..GEN201908

TYPE C:REFER ILLUST.

67748AMOULDING, REAR DOOR TRIM, NO.2 LH

main67745-26030iKDH222,TRH223..GL..SA201312-201902

TYPE C:REFER ILLUST.

main67746-0L010iKDH223,TRH223..TH201401-201904

TYPE A:REFER ILLUST.

main67746-26010iTRH201..06S;KDH212,220,222,LH212,222,TRH213,22#..RHD..(06S,14S,16S)..STD..(ARL,GEN,SA);KDH201,202,203,221,223,LH202,TRH203..RHD..SG..(02S,03S,06S,10S,12S,14S,15S)201312-201406

TYPE A:REFER ILLUST.

main67746-26011iKDH200..RHD..GEN201908

TYPE A:REFER ILLUST.

main67746-26020iKDH212,TRH213..SA201312-201901

TYPE B:REFER ILLUST.

67837CSEAL, REAR DOOR DUST PROOF

main67837-26030×4iKDH220..03S..SA;TRH221..SP..03S..(GEN,SA)201312-201902

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1

main67851-26030iKDH201..SG;TRH221..GCC;KDH200..LHD..5D;KDH221,TRH201..5D;KDH220,TRH221..02S,06S;KDH222,TRH203,223..LHD..STD..GEN;GDH201,KDH203,220..(03S,12S,15S)..GEN;KDH201,202,21201312

main67851-26040iKDH213201911

67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2

main67851-26030supersedes 67851-26030iLH200..5D;KDH200,TRH213..RHD..STD..(GEN,SA)201312-201901

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION,COLOR:YELLOW

main67852-26010supersedes 67852-26010iTRH200..6FC201312-202107

DUST PROTECTION DEVICE-WITH SPECIAL PROTECTION

67871EWEATHERSTRIP, SLIDE DOOR, NO.1 RH

main67871-0L020iKDH223..VN201801-201904

main67871-26010iTRH203..4FC;KDH200..LHD..4D;KDH200,LH200..RHD..5D201312-201901

main67871-26030iKDH220201911-202107

67872WEATHERSTRIP, REAR DOOR, LH

main67872-0L010iKDH223,TRH223..TH201401-201904

main67872-26020iKDH200,212,TRH213..SA201911-202107

main67872-26030iTRH221..GCC;TRH223..STD..(ARL,SA);GDH223,KDH221,LH222..RHD;KDH220,222,TRH221..RHD..(02S,06S,16S);KDH220,223..(03S,14S,16S)..5F..(ARL,GEN,KEN)201312

67887DWEATHERSTRIP, SLIDE DOOR, NO.2 RH

main67887-26020iTRH200..03S..6FC201312-202507

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-0L010iKDH223,TRH223..TH201401-201904

main67888-26020iKDH213..TH201312-201906

67897BCUSHION, REAR DOOR, RH

main90541-09128iLH200..5D201908-202506

67898BCUSHION, REAR DOOR, LH

main90541-09128iLH200..5D;KDH200,TRH213..RHD..STD..(GEN,SA)201312-201901

8115

9054109134

main90541-09134

9054109136

main90541-09136

9054110041

main90541-10041

9095001398

main90950-01398

9095001970

main90950-01970

9095001A05

main90950-01A05

21 parts on this diagram · 3 diagrams in section
