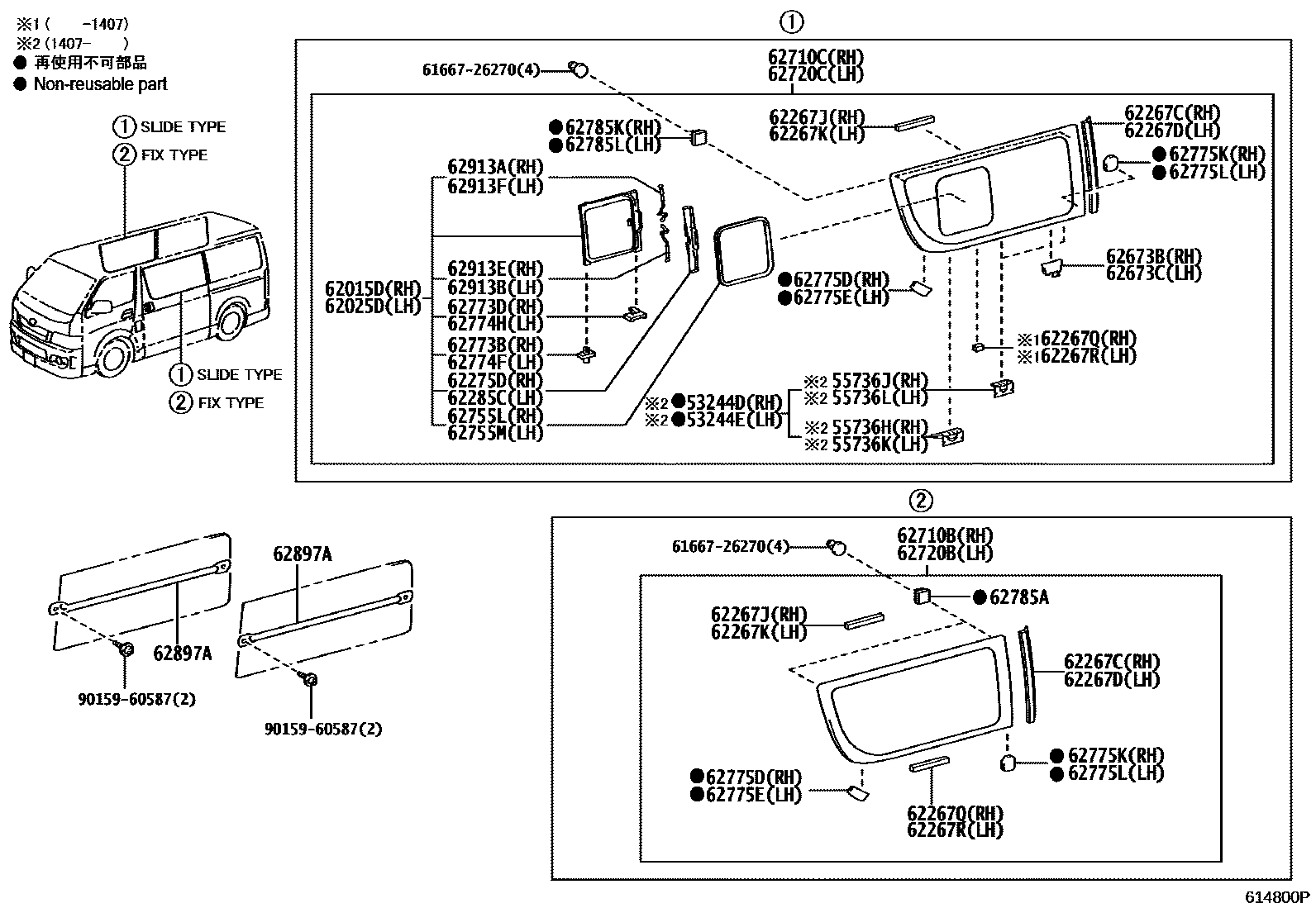

SIDE WINDOW
53244DPLATE, FRONT SIDE WINDOW SEAL SET, RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
53244EPLATE, FRONT SIDE WINDOW SEAL SET, LH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
EGYPT SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
EGYPT SPEC&AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
NIGERIA SPEC&AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
NIGERIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
55736HPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.1 RH
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
55736JPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.2 RH
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
55736KPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.1 LH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
EGYPT SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
EGYPT SPEC&AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
NIGERIA SPEC&AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
NIGERIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
55736LPLATE, FRONT SIDE WINDOW WATER GUIDE, NO.2 LH
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
EGYPT SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
EGYPT SPEC&AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
NIGERIA SPEC&AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
NIGERIA SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62015DFRAME SUB-ASSY, FRONT SIDE WINDOW, RH
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
main62015-26030iKDH222..GL;TRH213..RHD..5F;KDH212..13S..STD;TRH213..LHD..STD;KDH222..STD..(GCC,GEN);TRH223..(12S,16S)..(GCC,GEN,RUS,TH);KDH203,221,TRH201,223..SG..(02S,03S,05S,06S,201312-201601
3ROOM REFRIGERATOR VAN
main62015-26030iKDH222..GL;TRH213..RHD..5F;KDH212..13S..STD;TRH213..LHD..STD;KDH222..STD..(GCC,GEN);TRH223..(12S,16S)..(GCC,GEN,RUS,TH);KDH203,221,TRH201,223..SG..(02S,03S,05S,06S,201312-201601
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62015-26032
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
sub62015-26032
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62015-26032
main62015-26032iTRH203..5F;LH222,TRH213,223..LHD..STD..GEN;KDH203,212,222..(02S,15S,16S)..GEN;KDH201,202,LH202,TRH200..06S,12S,15S201801-201903
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
main62015-26032iKDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201801-201903
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62015-26032iTRH203..5F;LH222,TRH213,223..LHD..STD..GEN;KDH203,212,222..(02S,15S,16S)..GEN;KDH201,202,LH202,TRH200..06S,12S,15S201801-201903
PERU SPEC&REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62015-26032iTRH203..5F;LH222,TRH213,223..LHD..STD..GEN;KDH203,212,222..(02S,15S,16S)..GEN;KDH201,202,LH202,TRH200..06S,12S,15S201801-201903
FIJI SPEC&CBU PACKAGE
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
main62015-26033iKDH222,TRH203..GEN;TRH213,223..LHD..STD..GEN;KDH201,202,203,223..SG..(03S,06S,12S,15S)201904
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62015-26060iTRH213..SA;KDH212,222..10S,11S,14S;TRH223..5F..GL..(GEN,SA);KDH212,TRH223..LHD..STD..GEN;KDH202,203,213,222,223,LH202,212,222,TRH203,213,221..LHD..SG..(03S,11S,12S,201312-201601
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62015-26061
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62015-26062
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62015-26062
62025DFRAME SUB-ASSY, FRONT SIDE WINDOW, LH
main62025-26030iKDH222..GL;TRH213..RHD..5F;KDH212..13S..STD;TRH213..LHD..STD;TRH223..16S..(GCC,GEN,TH);KDH222,223..16S..STD..(GCC,GEN,TH);KDH203,221,TRH201,223..SG..(02S,03S,05S,06201312-201601
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
PERU SPEC&REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62025-26032
sub62025-26032
CAUCASUS(4 COUNTRIES) SPEC
EGYPT SPEC
NIGERIA SPEC
AMBURANCE BASE
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
EGYPT SPEC&AMBURANCE BASE
NIGERIA SPEC&AMBURANCE BASE
main62025-26032iTRH203..5F;KDH203..RHD;KDH203,212,222..(15S,16S)..GEN;LH222,TRH213,223..LHD..STD..GEN;KDH201,202,LH202,TRH200..06S,12S,15S201801-201903
PERU SPEC&SEATLESS PACKAGE&REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62025-26033iKDH222,TRH203..GEN;TRH213,223..LHD..STD..GEN;KDH201,202,203,223..SG..(03S,06S,12S,15S,16S)..(GCC,GEN,KEN)201904
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62025-26061
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62025-26061
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
sub62025-26062
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62025-26062
PHILIPPINE SPEC
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
62267CDAM, FRONT SIDE WINDOW ADHESIVE, NO.1 RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
3ROOM REFRIGERATOR VAN
62267DDAM, FRONT SIDE WINDOW ADHESIVE, NO.1 LH
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
62267JDAM, FRONT SIDE WINDOW ADHESIVE, NO.2 RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
3ROOM REFRIGERATOR VAN
62267KDAM, FRONT SIDE WINDOW ADHESIVE, NO.2 LH
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
62267QDAM, FRONT SIDE WINDOW ADHESIVE, NO.3 RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
3ROOM REFRIGERATOR VAN
62267RDAM, FRONT SIDE WINDOW ADHESIVE, NO.3 LH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
main62267-26040iKDH222..GL;TRH223..GL..SA;TRH213..LHD..STD;TRH223..16S..(GCC,GEN,TH);KDH221,222..STD..(GCC,GEN);TRH201,213..RHD..SG..(GEN,SA);KDH201,202,203,212,220,223,LH202,212,2201312-202507
62275DCOVER, FRONT SIDE WINDOW, RH
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
3ROOM REFRIGERATOR VAN
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62285CCOVER, FRONT SIDE WINDOW, LH
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62673BCOVER, FRONT SIDE WINDOW RAIL, RH
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
3ROOM REFRIGERATOR VAN
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62673CCOVER, FRONT SIDE WINDOW RAIL, LH
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62710BWINDOW ASSY, SIDE, FRONT RH
*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
sub62071-26032
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
*UVCT,T=3.1,GREEN,REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
sub68103-26011
*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
sub68103-26011
main68103-26011iTRH221..GCC;KDH200..LHD..5D;TRH223..LHD..STD..GEN;KDH222,TRH203..LHD..GEN;KDH202,203,TRH201,213..LHD..(03S,12S,15S,16S)201904
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
main68103-26020iTRH223..13S;TRH223..LHD..STD..GEN;KDH202,203,21#,222,223,LH202,212,222,TRH203,213..LHD..(10S,12S,13S,15S,16S)..GEN201312-201903
*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
sub68103-26021
main68103-26020iTRH223..13S;TRH223..LHD..STD..GEN;KDH202,203,21#,222,223,LH202,212,222,TRH203,213..LHD..(10S,12S,13S,15S,16S)..GEN201312-201903
*TEM,T=3.1,DARK GRAY
sub68103-26021
62710CGLASS SUB-ASSY, SIDE FRONT WINDOW, RH
main62710-26500iKDH222,TRH223..RHD..GL;KDH222,TRH223..RHD..STD..GEN;KDH202,203,212,LH202,212,222,TRH203,213..RHD..5F201312-201406
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
main62710-26501iKDH222,TRH223..RHD..GL;KDH222,TRH223..RHD..STD..GEN;KDH202,203,212,LH202,212,222,TRH203,213..RHD..5F201407-201601
CBU PACKAGE
sub62710-26503
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
sub62710-26503
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
sub62710-26521
sub62710-26522
sub62710-26523
main62750-26300iKDH221..GEN;KDH212..LHD..STD;KDH201,203,220,223,TRH200,201,221..(06S,12S)..(GEN,RUS,SA);KDH202,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)201312-201406
3ROOM REFRIGERATOR VAN
main62750-26300iKDH221..GEN;KDH212..LHD..STD;KDH201,203,220,223,TRH200,201,221..(06S,12S)..(GEN,RUS,SA);KDH202,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)201312-201406
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62750-26301iKDH221..GEN;KDH212..LHD..STD;KDH202,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S);KDH201,203,220,223,TRH200,201,221..(05S,06S,12S,15S)..(ARL,GEN,RUS,SA)201407-201601
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62750-26302
main62750-26302iKDH221..GEN;TRH203..LHD..5F;KDH222..LHD..GEN;TRH223..LHD..STD..GEN;KDH202,212,LH202,212,222,TRH213..LHD;GDH201,KDH201,203,220,223,TRH200,201,22#..(05S,06S,12S,15S).201602-201903
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62750-26303
sub62750-26303
PERU SPEC&REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62750-26304
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62750-26310iKDH212..13S..STD;KDH213,TRH213..TH;KDH202,203,212,222,LH202,212,222,TRH203,213,22#..LHD..SG..(03S,11S,12S,15S,16S)..GEN201312-201406
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62750-26311
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62750-26312
main62750-26312iKDH213..11S..GEN;TRH223..LHD..STD..GEN;KDH202,203,212,222,223,LH202,212,222,TRH203,213..LHD..GEN201602-201903
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62750-26313
main62750-26313iTRH223..LHD..STD..GEN;KDH202,203,213,222,223,LH202,222,TRH203,213..LHD..(11S,12S,14S,15S,16S)..GEN201904-201906
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62750-26314
62720BWINDOW ASSY, SIDE, FRONT LH
*TEM,T=3.1,GREEN,REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
sub62072-26021
*TEM,T=3.1,DARK GARY,REAR SIDE GLASS(RH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62072-26031
*TEM,T=3.1,DARK GARY,REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
sub62072-26031
*TEM,T=3.1,DARK GARY,REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
sub62072-26031
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
PHILIPPINE SPEC&REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
*TEM,T=3.1,GREEN
main68104-26011iKDH201..SG;TRH201..RHD;LH200..RHD..4D;KDH201..RHD..(02S,03S)..(ARL,GEN);KDH202,203,212,221,222,LH202,212,222,TRH203,221..RHD..(02S,15S,16S)..(ARL,GEN)201312-201903
*UVCT,T=3.1,GREEN,REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
sub68104-26012
main68104-26011iKDH201..SG;TRH201..RHD;LH200..RHD..4D;KDH201..RHD..(02S,03S)..(ARL,GEN);KDH202,203,212,221,222,LH202,212,222,TRH203,221..RHD..(02S,15S,16S)..(ARL,GEN)201312-201903
*UVCT,T=3.1,GREEN
sub68104-26012
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
*TEM,T=3.1,DARK GRAY,REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
sub68104-26022
62720CGLASS SUB-ASSY, SIDE FRONT WINDOW, LH
main62720-26230iKDH212..LHD..STD;KDH202,203,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)..(GCC,GEN)201312-201406
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62720-26231
main62720-26231iKDH212..LHD..STD;KDH202,203,222,LH202,212,222,TRH203,213,223..LHD..(12S,15S,16S)..(GCC,GEN)201407-201601
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62720-26232
sub62720-26233
PERU SPEC&SEATLESS PACKAGE&REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62720-26234
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62720-26241
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62720-26242
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
sub62720-26242
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62720-26243
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62720-26243
PHILIPPINE SPEC
sub62720-26243
PHILIPPINE SPEC
sub62720-26244
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
sub62720-26244
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
main62760-26691iKDH222..RHD..GL;KDH222,TRH223..RHD..STD..GEN;KDH203,221,TRH223..RHD..(02S,03S,12S,14S)..(GEN,SA,TH);KDH201,202,212,220,LH202,212,222,TRH20#,213,221..RHD..(05S,06S,1201407-201601
CBU PACKAGE
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62760-26693
sub62760-26693
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)&WITHOUT(EASY CLOSER)
sub62760-26694
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62760-26694
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62760-26711
sub62760-26712
sub62760-26713
62755LRUN, FRONT SIDE WINDOW, RH
main62755-26030iKDH221..GEN;KDH201,TRH201..06S..GEN;KDH202,203,212,220,222,223,LH202,212,222,TRH200,203,213,22#..(02S,06S,10S,12S,13S,14S,15S,16S)..(GCC,GEN,RUS,SA)201312-201401
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62755-26031
main62755-26030iKDH221..GEN;KDH201,TRH201..06S..GEN;KDH202,203,212,220,222,223,LH202,212,222,TRH200,203,213,22#..(02S,06S,10S,12S,13S,14S,15S,16S)..(GCC,GEN,RUS,SA)201312-201401
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62755-26031
main62755-26030iKDH221..GEN;KDH201,TRH201..06S..GEN;KDH202,203,212,220,222,223,LH202,212,222,TRH200,203,213,22#..(02S,06S,10S,12S,13S,14S,15S,16S)..(GCC,GEN,RUS,SA)201312-201401
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
sub62755-26031
sub62755-26031
main62755-26031iKDH222..GL;KDH222..STD..(GCC,GEN);TRH223..(12S,13S,16S)..(GCC,GEN,RUS,TH);KDH203,221,TRH201,223..SG..(02S,03S,05S,06S,12S,14S,15S)..(GEN,SA,TH);KDH201,202,21#,220,2201402-201601
3ROOM REFRIGERATOR VAN
sub62755-26032
main62755-26031iKDH222..GL;KDH222..STD..(GCC,GEN);TRH223..(12S,13S,16S)..(GCC,GEN,RUS,TH);KDH203,221,TRH201,223..SG..(02S,03S,05S,06S,12S,14S,15S)..(GEN,SA,TH);KDH201,202,21#,220,2201402-201601
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
sub62755-26032
main62755-26031iKDH222..GL;KDH222..STD..(GCC,GEN);TRH223..(12S,13S,16S)..(GCC,GEN,RUS,TH);KDH203,221,TRH201,223..SG..(02S,03S,05S,06S,12S,14S,15S)..(GEN,SA,TH);KDH201,202,21#,220,2201402-201601
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
sub62755-26032
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
3ROOM REFRIGERATOR VAN
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62755MRUN, FRONT SIDE WINDOW, LH
main62755-26030iTRH213..LHD..STD;TRH223..(14S,16S)..(GCC,GEN,SA);KDH221,TRH201,213..RHD..SG..(GEN,SA);KDH201,202,203,212,220,222,LH202,212,222,TRH200,203,221..(02S,06S,10S,12S,13S,201312-201401
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62755-26031
main62755-26030iTRH213..LHD..STD;TRH223..(14S,16S)..(GCC,GEN,SA);KDH221,TRH201,213..RHD..SG..(GEN,SA);KDH201,202,203,212,220,222,LH202,212,222,TRH200,203,221..(02S,06S,10S,12S,13S,201312-201401
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62755-26031
main62755-26030iTRH213..LHD..STD;TRH223..(14S,16S)..(GCC,GEN,SA);KDH221,TRH201,213..RHD..SG..(GEN,SA);KDH201,202,203,212,220,222,LH202,212,222,TRH200,203,221..(02S,06S,10S,12S,13S,201312-201401
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
sub62755-26031
sub62755-26031
main62755-26031iKDH222..GL;TRH223..GL..SA;TRH213..RHD..5F;TRH213..LHD..STD;TRH223..16S..(GCC,GEN,TH);KDH222,223..16S..STD..(GCC,GEN,TH);KDH203,213,221,TRH201..SG..(02S,03S,05S,06S,201402-201601
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
sub62755-26032
main62755-26031iKDH222..GL;TRH223..GL..SA;TRH213..RHD..5F;TRH213..LHD..STD;TRH223..16S..(GCC,GEN,TH);KDH222,223..16S..STD..(GCC,GEN,TH);KDH203,213,221,TRH201..SG..(02S,03S,05S,06S,201402-201601
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
sub62755-26032
main62755-26031iKDH222..GL;TRH223..GL..SA;TRH213..RHD..5F;TRH213..LHD..STD;TRH223..16S..(GCC,GEN,TH);KDH222,223..16S..STD..(GCC,GEN,TH);KDH203,213,221,TRH201..SG..(02S,03S,05S,06S,201402-201601
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
sub62755-26032
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62773BSLIDER, FRONT SIDE WINDOW, RH
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
3ROOM REFRIGERATOR VAN
main62773-26020iTRH223..12S,13S;KDH223..KEN,RUS,VN;TRH223..LHD..STD..GEN;KDH221,222,TRH201,203..SG..(GEN,MA);LH222,TRH200..RHD..(06S,16S)..(4FC,5F);KDH212,223,TRH213..LHD..(10S,12S201312-201902
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
62773DSLIDER, FRONT SIDE WINDOW, RH
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
3ROOM REFRIGERATOR VAN
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62774FSLIDER, FRONT SIDE WINDOW, LH
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62774HSLIDER, FRONT SIDE WINDOW, LH
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62775DCLIP, FRONT SIDE WINDOW, RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
3ROOM REFRIGERATOR VAN
62775ECLIP, FRONT SIDE WINDOW, LH
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
62775KCLIP, FRONT SIDE WINDOW, RH
3ROOM REFRIGERATOR VAN
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
62775LCLIP, FRONT SIDE WINDOW, LH
main62775-26020iKDH21#..LHD;TRH213..GCC,TH;TRH223..4FC..GL;TRH213..LHD..GEN;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;KDH221,LH222..RHD..GEN;TRH223..STD..(ARL,SA,TH);TRH223..5F..201312-202506
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
62785ASPACER, QUARTER WINDOW GLASS
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
INDONESIA SPEC
INDONESIA SPEC&REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
INDONESIA SPEC&REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
INDONESIA SPEC&REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
62785KSPACER, FRONT SIDE WINDOW GLASS, RH
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
3ROOM REFRIGERATOR VAN
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62785LSPACER, FRONT SIDE WINDOW GLASS, LH
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
62897ABAR, SIDE WINDOW GUARD
62913ALINK, FRONT SIDE WINDOW LOCK, RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
main62910-26060iKDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62910-26060iKDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62913BLINK, FRONT SIDE WINDOW LOCK, LH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
EGYPT SPEC
NIGERIA SPEC
AMBURANCE BASE
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
CAUCASUS(4 COUNTRIES) SPEC
EGYPT SPEC&AMBURANCE BASE
NIGERIA SPEC&AMBURANCE BASE
EGYPT SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
CAUCASUS(4 COUNTRIES) SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
62913ELINK, FRONT SIDE WINDOW LOCK, RH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
main62920-26010iKDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902
REAR SIDE GLASS(RH)-SLIDE(UV CUT GREEN)
main62920-26010iKDH222..5F..GL;TRH223..RHD..GEN;KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-201902
REAR SIDE GLASS(RH)-SLIDE(TINTED GREY)
REAR QUARTER GLASS(RH)-SLIDE(UV CUT GREEN)
62913FLINK, FRONT SIDE WINDOW LOCK, LH
REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(UV CUT GREEN)
REAR SIDE GLASS(LH)-FIXED(TINTED GREY)
EGYPT SPEC
NIGERIA SPEC
AMBURANCE BASE
REAR SIDE GLASS(RH)-FIXED(TINTED GREY)&BACK GLASS-TINTED GRAY
REAR SIDE GLASS(LH)-SLIDE(UV CUT GREEN)
REAR SIDE GLASS(LH)-SLIDE(TINTED GREY)
CAUCASUS(4 COUNTRIES) SPEC
EGYPT SPEC&AMBURANCE BASE
NIGERIA SPEC&AMBURANCE BASE
EGYPT SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
CAUCASUS(4 COUNTRIES) SPEC&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
AMBURANCE BASE&REAR SIDE GLASS(RH)-FIXED(UV CUT GREEN)
6166726270REINFORCEMENT, SEAT BELT ANCHORAGE, LOWER RH
main61667-26270
9015960587
main90159-60587
42 parts on this diagram · 6 diagrams in section
