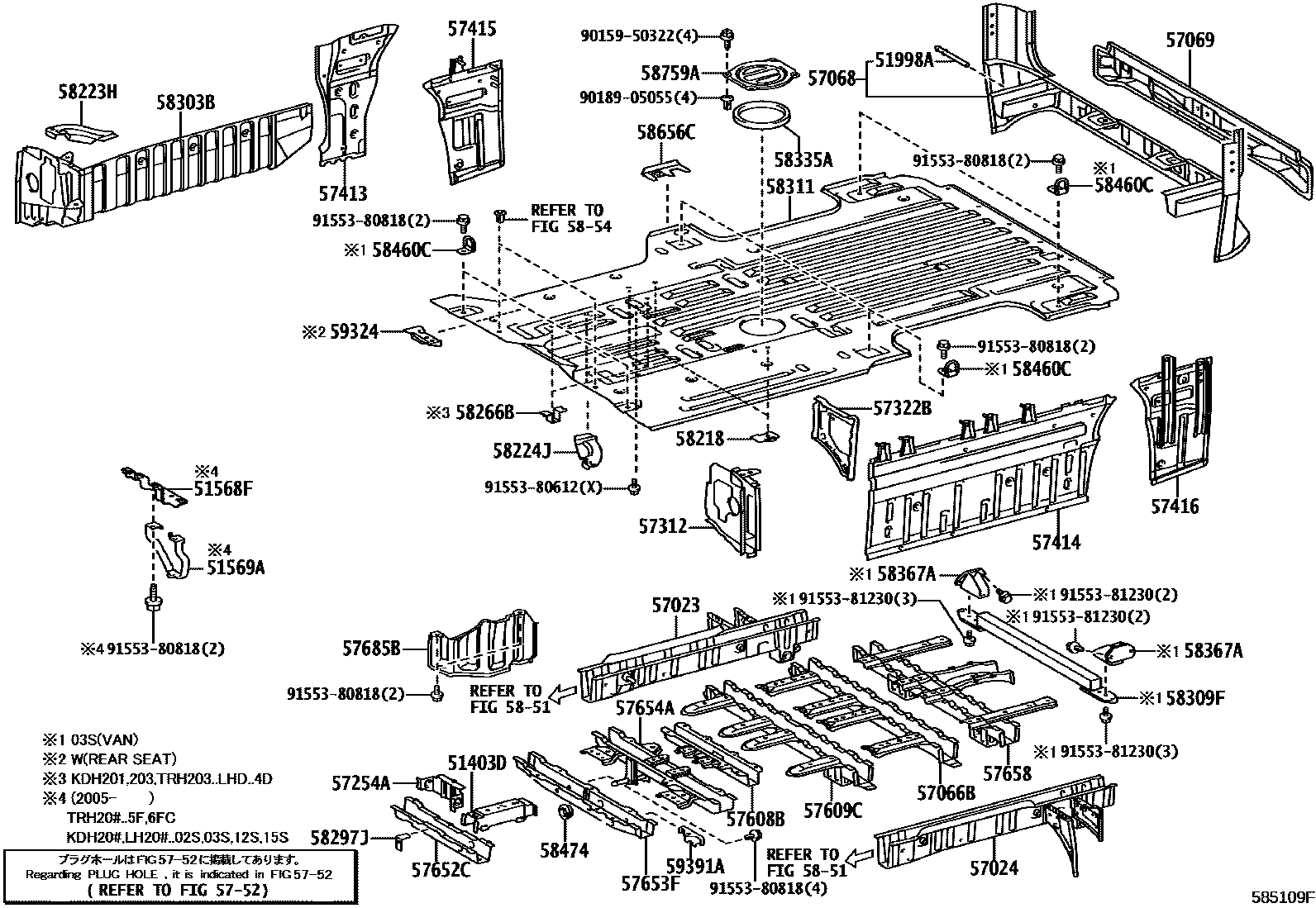

REAR FLOOR PANEL & REAR FLOOR MEMBER
51403DBRACKET SUB-ASSY, ENGINE REAR MOUNTING
51568FBRACKET, PROPELLER SHAFT GUARD
51569AGUARD, PROPELLER SHAFT
VENEZUERA SPEC,FRONT
FRONT
COLD AREA SPEC,FRONT
REAR
SINGAPORE SPEC,REAR
SINGAPORE SPEC
SINGAPORE SPEC
51998AHANGER, EXHAUST PIPE SUPPORT, NO.6
57023MEMBER SUB-ASSY, REAR SIDE, RH
AMBURANCE BASE
EGYPT SPEC&AMBURANCE BASE
NIGERIA SPEC&AMBURANCE BASE
AMBURANCE BASE&REAR SEAT-WITHOUT
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
57024MEMBER SUB-ASSY, REAR SIDE, LH
AMBURANCE BASE&REAR SEAT-WITHOUT
AMBURANCE BASE
EGYPT SPEC&AMBURANCE BASE
NIGERIA SPEC&AMBURANCE BASE
main57024-26670iTRH223..10S,12S,13S;KDH202,223,TRH203..MA,RUS,VN;KDH203,TRH213..(10S,15S)..GEN¥24,800201312-201902
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
main57024-26670iTRH223..10S,12S,13S;KDH202,223,TRH203..MA,RUS,VN;KDH203,TRH213..(10S,15S)..GEN¥24,800201312-201901
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
57066BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.6
AMBURANCE BASE
main57066-26121iGDH201,TRH201;KDH200,201..LHD..5D;KDH201..4D..03S..5F;KDH201,TRH200..(02S,05S,06S)..(4FC,5F)¥6,600201312
TUNISIA SPEC&AMBURANCE BASE
AMBURANCE BASE
REAR SEAT-WITHOUT
AMBURANCE BASE&REAR HEADREST-WITHOUT
NEW ZEALAND SPEC
57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
AMBURANCE BASE
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
NIGERIA SPEC&AMBURANCE BASE
AMBURANCE BASE
EGYPT SPEC&AMBURANCE BASE
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR SEAT-WITHOUT
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE&REAR SEAT-WITHOUT
57069MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, OUTER
main57069-26120iKDH201,203..TH;TRH201..06S..GCC;KDH200,201..LHD..5D;KDH201,TRH203..(02S,05S,15S)..(ARL,GEN);GDH201,KDH202,TRH201..(02S,03S,12S,15S)..(ARL,GCC,GEN)¥9,900201312-202507
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
SINGAPORE SPEC
main57069-26210iKDH212,223,TRH213..LHD..GL;TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);KDH223..(03S,14S,16S)..5F..(ARL,GEN,KEN,VN);KDH213,220,221,TRH221..(02S,06S,11S,13S)..(ARL,GEN,S¥13,100201312-201902
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
57254AREINFORCEMENT, ENGINE REAR MOUNTING MEMBER
57312OUTRIGGER, NO.1 LH
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
CENTRAL AMERICA(4COUNTRY) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
57322BOUTRIGGER, NO.5, LH
57413RAIL, FLOOR SIDE, CENTER RH
AMBURANCE BASE
AMBURANCE BASE
57414RAIL, FLOOR SIDE, CENTER LH
AMBURANCE BASE
main57406-26580iTRH203..LHD..GEN;KDH202,203,212,LH212,TRH213..LHD..(13S,15S,16S)..STD¥12,900201312-202506
AMBURANCE BASE
AMBURANCE BASE&REAR SEAT-WITHOUT&REAR SEAT BELT-WITHOUT
57415RAIL, FLOOR SIDE, REAR RH
main57047-26230iLH222..RHD;KDH223..KEN,VN;KDH223..4FC..TH;TRH223..STD..(SA,TH);KDH222..STD..(GEN,SA);TRH223..LHD..STD..GEN¥5,300201312-202506
REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)
main57415-26210iTRH221..GCC;KDH221,TRH201;TRH221..02S,06S;KDH200,201..LHD..5D;KDH201..4D..03S..5F;KDH212,TRH213..LHD..STD;GDH201,KDH202,203,220,LH212..(03S,06S,15S,16S)..(GCC,GEN);¥3,900201312
TUNISIA SPEC
main57415-26210iTRH221..GCC;KDH221,TRH201;TRH221..02S,06S;KDH200,201..LHD..5D;KDH201..4D..03S..5F;KDH212,TRH213..LHD..STD;GDH201,KDH202,203,220,LH212..(03S,06S,15S,16S)..(GCC,GEN);¥3,900201312
TUNISIA SPEC&AMBURANCE BASE
main57415-26210iTRH221..GCC;KDH221,TRH201;TRH221..02S,06S;KDH200,201..LHD..5D;KDH201..4D..03S..5F;KDH212,TRH213..LHD..STD;GDH201,KDH202,203,220,LH212..(03S,06S,15S,16S)..(GCC,GEN);¥3,900201312-202506
AMBURANCE BASE
AMBURANCE BASE&REAR SEAT-WITHOUT&REAR SEAT BELT-WITHOUT
AMBURANCE BASE&REAR SEAT BELT-WITHOUT
57416RAIL, FLOOR SIDE, REAR LH
main57048-26210iLH222..RHD;KDH223..KEN,VN;KDH223..4FC..TH;TRH223..STD..(SA,TH);KDH222..STD..(GEN,SA);TRH223..LHD..STD..GEN¥5,300201312-202506
REAR SEAT BELT-3 POINT TYPE(FOR 13 PERSONS)
AMBURANCE BASE
main57416-26160iTRH221..GCC;KDH221,TRH201;TRH221..02S,06S;KDH200,201..LHD..5D;KDH201..4D..03S..5F;KDH212,TRH213..LHD..STD;GDH201,KDH202,203,220,LH212..(03S,06S,15S,16S)..(GCC,GEN);¥3,900201312
TUNISIA SPEC&AMBURANCE BASE
AMBURANCE BASE&REAR SEAT-WITHOUT&REAR SEAT BELT-WITHOUT
AMBURANCE BASE&REAR SEAT BELT-WITHOUT
5752
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
AMBURANCE BASE
AMBURANCE BASE
AMBURANCE BASE&REAR SEAT-WITHOUT
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
AMBURANCE BASE
TUNISIA SPEC&AMBURANCE BASE
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
TUNISIA SPEC&AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE
REAR SEAT-FOR 12 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR HEADREST-FIXED:12
INDONESIA SPEC&INDONESIA STD PACKAGE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&EXHAUST EMISSION CONTROL-DIESEL EURO2
REAR HEADREST-FIXED:13
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
AMBURANCE BASE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&REAR HEADREST-WITHOUT
57652CMEMBER, REAR FLOOR CROSS, NO.1
main57652-26130iTRH223..GL..GCC;TRH213..LHD..GEN;TRH213,221..GCC,TH;TRH223..LHD..STD..GEN;KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH220,LH222,TRH221..RHD..(02S,06S,16S);GDH223,KDH213,220¥6,600201312-202506
57653FMEMBER, REAR FLOOR CROSS, NO.2
57654AMEMBER, REAR FLOOR CROSS, NO.3
REAR SEAT-WITHOUT
SAUDI ARABIA SPEC&AMBURANCE BASE
3ROOM REFRIGERATOR VAN
AMBURANCE BASE
sub57607-26A40
main57607-26A20iTRH201..SP;KDH201..4D..5F;KDH201..02S..4FC;KDH200,201..LHD..5D;GDH201,KDH202,203,TRH203..03S,10S,12S¥4,750201606-202506
AMBURANCE BASE
main57607-26B60iTRH223..4FC..GL;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;TRH22#..(02S,03S,14S)..(ARL,GCC);KDH220,222,223,LH222..(03S,12S,16S)..(GEN,RUS)¥6,400201901-202005
sub57607-26C60
sub57607-26C70
57658MEMBER, REAR FLOOR CROSS, NO.7
AMBURANCE BASE
TUNISIA SPEC&AMBURANCE BASE
sub57067-26301
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
57685BGUARD, FUEL TANK
main57685-26020iTRH221..GCC;TRH223..GL..GCC;TRH223..LHD..STD..GEN;TRH223..(12S,16S)..(RUS,SA,TH);KDH223,TRH221..(02S,06S,12S)..(ARL,RUS,SA)¥3,770201312-202005
COLD AREA SPEC,REAR
main57685-26020iTRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥3,770201312-202005
REAR
main57685-26020iTRH223..RHD..GEN;TRH223..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)¥3,770201312-201902
CHINA(PRC) SPEC&COLD AREA SPEC,REAR
FRONT
main57685-26040iTRH201;TRH203..5F;TRH221..GCC;TRH223..GL..GCC;TRH213,223..LHD..STD..GEN;TRH223..(12S,16S)..(RUS,SA,TH);TRH213,221..(02S,06S,11S,16S)..(ARL,GCC,SA,TH)¥2,980201312-202005
COLD AREA SPEC,FRONT
COLD AREA SPEC,FRONT
FRONT
58218PLATE, SEAT FLOOR PANEL
58223HREINFORCEMENT, FLOOR PANEL SIDE, RH
main58223-26071iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)¥1,960201312-202507
58224JREINFORCEMENT, FLOOR PANEL SIDE, LH
58266BBRACKET, FUEL TUBE CLAMP
SINGAPORE SPEC&*POSD(LH) & *ECS(LH)
SINGAPORE SPEC
58297JRETAINER, FLOOR CLAMP
main58297-26020iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥100201312-202507
58303BSTEP SUB-ASSY, REAR FLOOR, RH
sub58303-V3010
sub58303-V3030
sub58303-V3090
sub58303-V3140
sub58303-V3150
ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION
58309FBALANCER SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
AMBURANCE BASE
sub58311-26B51
sub58311-26C81
sub58311-26E81
sub58311-26F01
sub58311-26F31
sub58311-26F41
sub58311-26F61
sub58311-26F81
58335ASEAL, REAR FLOOR SIDE SERVICE HOLE COVER
58367ABRACKET, REAR FLOOR BALANCER
58460CSTRIKER ASSY, LUGGAGE HOLD BELT
58474COVER, INSPECTION HOLE
5851
5854
58656CPLATE, REAR FLOOR, CENTER LOWER NO.2 RH
58759ACOVER, FUEL TANK INSPECTION HOLE
59324BASE, SUB FLOOR LEG, NO.2
LH
RH
RH
LH
59391ARETAINER, REAR FLOOR, NO.1
RH
LH
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5,CENTER
CENTER
REAR HEADREST-FIXED:13,CENTER & RH
RH
CENTER & RH
CENTER & LH
LH
INDONESIA SPEC&INDONESIA STD PACKAGE&EXHAUST EMISSION CONTROL-DIESEL EURO2,RH & LH
REAR HEADREST-FIXED:13,CENTER & LH
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5,LH
9015950322
9018905055
9155380612
9155380818
9155381230
47 parts on this diagram · 9 diagrams in section
