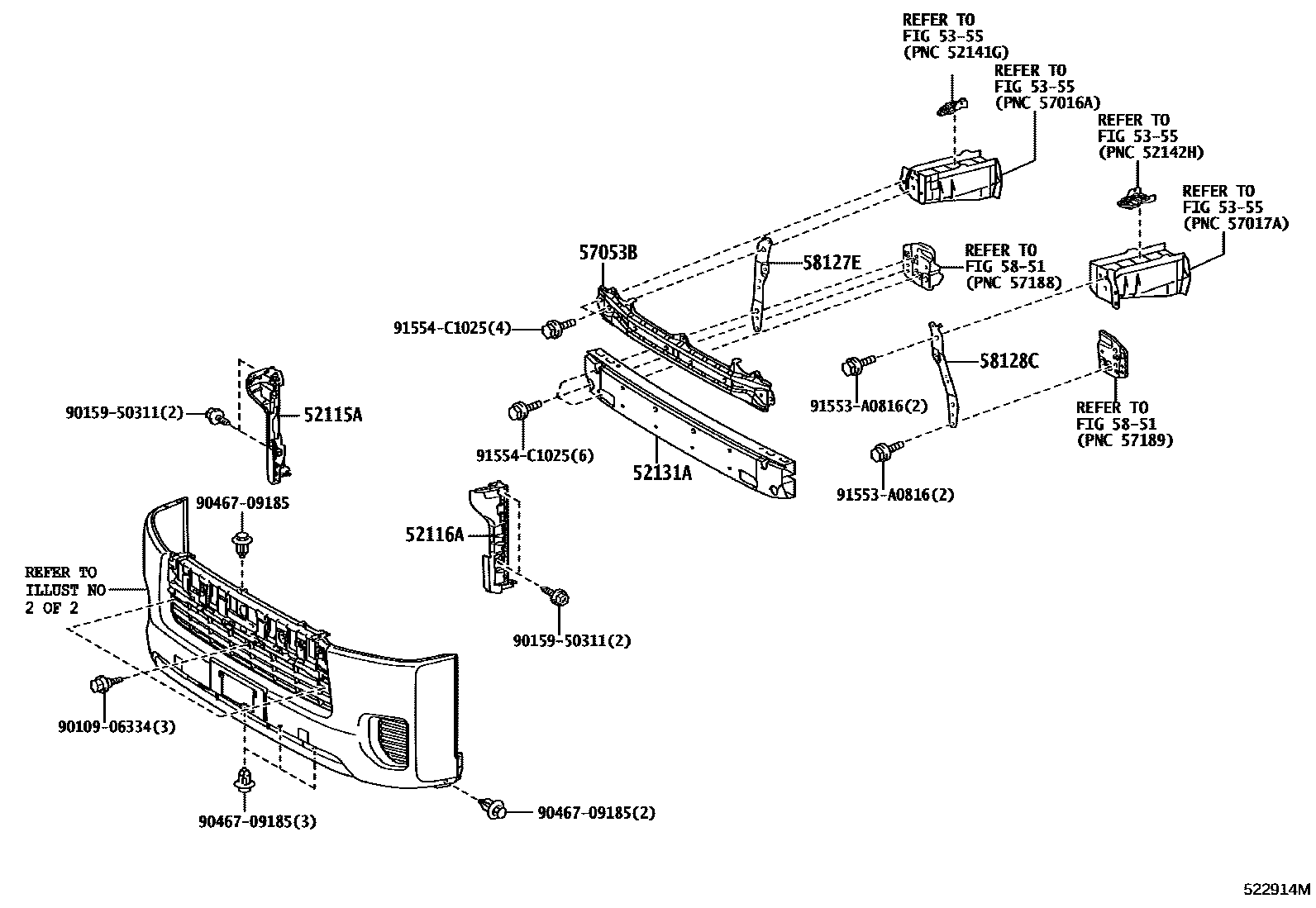

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-26150iTRH201,22#..RHD..4FC;KDH213,TRH200..(4FC,5F)..GEN¥5,100201312-201507

sub52115-26170¥4,200

main52115-26160iKDH223,TRH213,223..LHD..(10S,12S,13S)..GL¥5,100201312-201506

COLD AREA SPEC

sub52115-26180¥4,200

main52115-26170iKDH223..5F..TH¥4,200201507-202001

sub52115-26210¥3,180

main52115-26180iTRH221..SP..GEN;TRH223..5F..GEN¥4,200201507-201902

COLD AREA SPEC

sub52115-26220¥3,180

main52115-26210iTRH200..03S..6FC¥3,180202001-202507

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-26150iTRH213..RHD;TRH213..LHD..STD;TRH223..4FC..GCC;TRH200,201,22#..(5F,6FC)..(ARL,GCC,GEN,SA,TH);KDH20#,21#,22#,LH20#,212,222,TRH203..ARL,GCC,GEN,MA,SA,TH¥5,100201312-201507

sub52116-26170¥4,200

main52116-26160iTRH221..SP..GEN;KDH201,TRH203..LHD..(03S,15S)..GEN;KDH200,202,203,222,LH20#,TRH201,213,223..(03S,12S,15S,16S)..5F..GEN¥5,100201312-201506

COLD AREA SPEC

sub52116-26180¥4,200

main52116-26170iKDH223..5F..TH¥4,200201507-202001

sub52116-26210¥3,180

main52116-26180iTRH221..SP..GEN;TRH223..5F..GEN¥4,200201507-201902

COLD AREA SPEC

sub52116-26220¥3,180

main52116-26210iKDH223..ARL;KDH201,203,212..02S,03S,16S¥3,180202001-202507

52131AREINFORCEMENT, FRONT BUMPER

main52131-0L010iKDH223,TRH223..TH,VN201401-201904

main52131-26020iKDH20#,LH20#,TRH20#¥20,200201312-201610

main52131-26021iKDH200..MA¥12,500201610-202507

main52131-26060iKDH223,TRH223..ARL,GCC,GEN,RUS,SA;KDH21#,220,221,222,LH212,222,TRH213,221¥22,600201312-201610

main52131-26061iKDH223..TH;TRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥14,000201610-202506

5355

57053BREINFORCE SUB-ASSY, FRONT FLOOR CROSSMEMBER

main57053-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..(GEN,SA)¥3,430201312-202507

main57053-26040iKDH223..TH;TRH221..SP..GEN;TRH223..GL..GEN;TRH223..RHD..GEN¥3,940201312-202506

58127EREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, RH

main58127-26050iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)¥1,240201312-202507

58128CREINFORCE, FRONT CROSS TO FRONT PANEL MEMBER, LH

main53036-26010iKDH222..GL;TRH213..RHD;TRH223..6FC;KDH201,213..SG;TRH223..GL..SA;TRH213..LHD..STD..GEN;TRH223..(13S,16S)..(GCC,GEN);KDH201,222..(02S,03S,05S,16S)..STD..(ARL,GCC,GEN¥1,110201312-201703

sub53036-26020¥840

main53036-26020iKDH200..LHD..5D;TRH223..4FC..GL;TRH223..5F..GL..GCC;TRH223..LHD..STD..GEN;KDH221,222,TRH203..ARL,GEN;TRH22#..(03S,14S)..(ARL,GCC);KDH201,LH222..RHD..4D..(03S,16S)..¥840201701-202507

5851

9010906334

main90109-06334¥60

9015950311

main90159-50311¥70

9046709185

main90467-09185¥80

91553A0816

main91553-A0816¥80

91554C1025

main91554-C1025¥100

13 parts on this diagram · 4 diagrams in section
