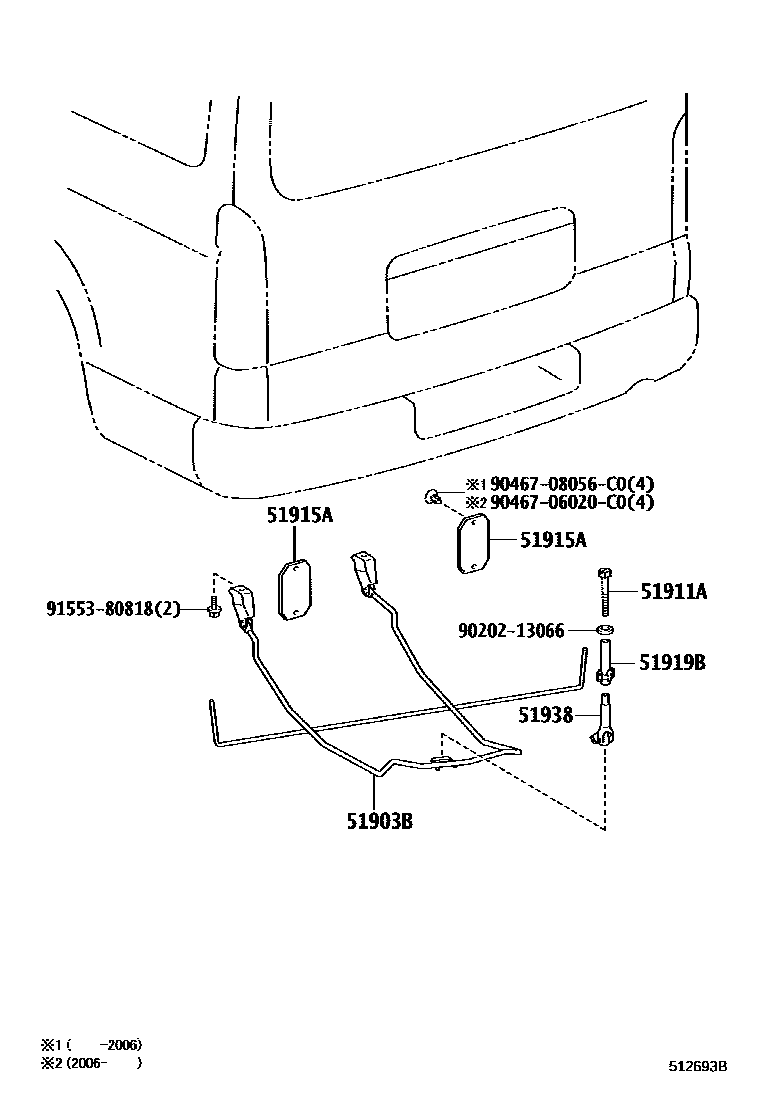

SPARE WHEEL CARRIER

51903BCARRIER SUB-ASSY, SPARE WHEEL

main51903-26661iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥5,900201312-202107

sub51903-V3010¥5,300

main51903-V3010iKDH222..KEN¥5,300202108-202507

51911ABOLT, SPARE WHEEL

main51911-28070iGDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#¥630201312-201712

main90119-12261iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥430201712-202507

51915ABASE, SPARE WHEEL CARRIER

main51915-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥580201312-202507

51919BSPACER, SPARE WHEEL CARRIER

main51907-26020iGDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#¥970201312-201712

main51907-26030iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥730201712-202507

51938LOCK, SPARE WHEEL CARRIER

main51938-44010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥570201312-202507

9020213066

main90202-13066¥140

9046706020C0

main90467-06020C0

9046708056C0

main90467-08056C0

9155380818

main91553-80818¥80

9 parts on this diagram · 1 diagram in section
