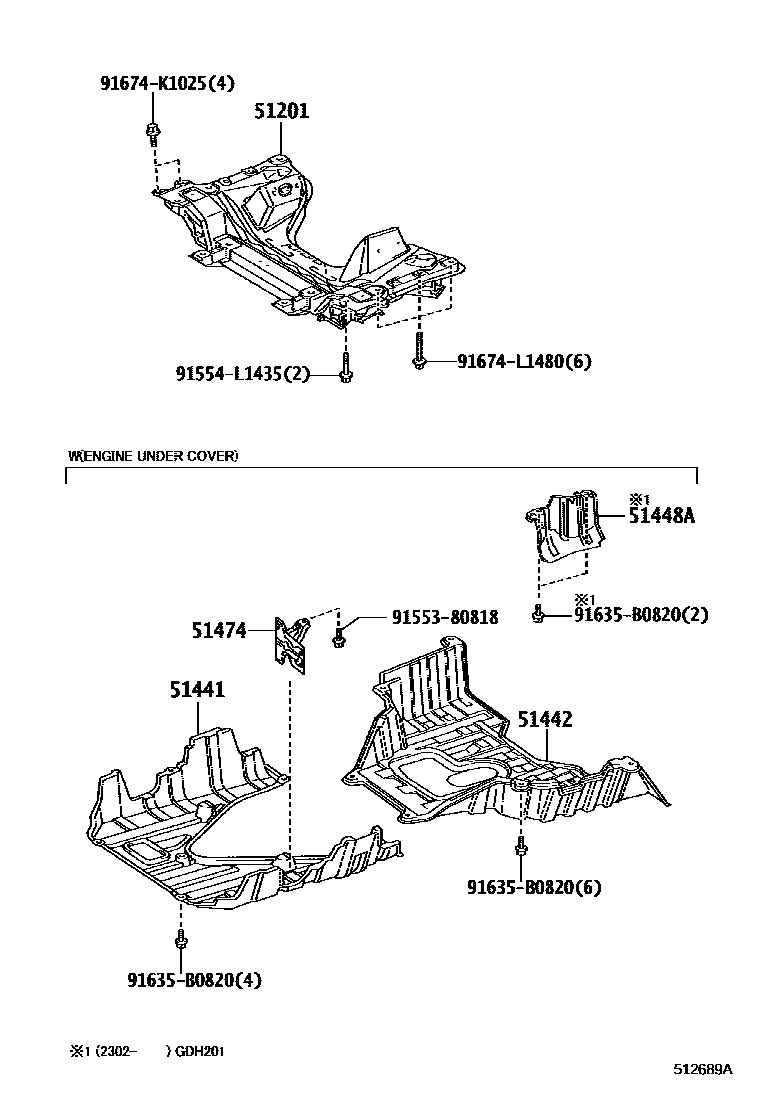

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-26210iKDH20#,TRH20#..RHD201312-201607

sub51201-26320

sub32907-26052

main51201-26220iKDH20#,TRH201,203..LHD201312-201607

sub51201-26330

sub32907-26052

main51201-26230iLH20#..RHD201312-201607

sub51201-26340

sub32907-26052

main51201-26240iLH20#..LHD201312-201607

sub51201-26350

sub32907-26052

main51201-26250iKDH21#,22#,TRH213,22#..RHD201312-201607

sub51201-26360

sub32907-26052

main51201-26260iKDH21#,220,222,223,TRH213,22#..LHD201312-201607

sub51201-26370

sub32907-26052

main51201-26270iLH212,222..RHD201312-201607

sub51201-26380

sub32907-26052

main51201-26280iLH212,222..LHD201312-201607

sub51201-26390

sub32907-26052

main51201-26320iKDH201,203..RHD..(02S,03S)..GEN201607-202507

main51201-26330iTRH203..4FC;KDH200..LHD..4D201607-202506

main51201-26340iLH20#..RHD..4D201607-202506

main51201-26350iLH20#..LHD201607-202506

main51201-26360iKDH212,220,TRH213,223..03S,10S,14S201607-202312

main51201-26370iTRH221..SP..GEN;TRH223..GL..GEN201607-201902

main51201-26380iLH212,222..RHD201607-201902

main51201-26390iLH212,222..LHD201607-202506

51441COVER, ENGINE UNDER, NO.1

main51441-26230iKDH202..15S..GEN;TRH203..LHD..GEN;KDH200,201,TRH201..LHD..5D..GEN201312-201901

COLD AREA SPEC

main51441-26230iKDH201..02S..GEN201606-201901

AZERBAIJAN SPEC

main51441-26230iTRH200..5F202302-202507

main51441-26240iTRH223..GEN201312-202312

COLD AREA SPEC

main51441-26240iTRH213..GL..GEN201312-201512

MEXICO SPEC

main51441-26240iTRH223..13S201312-201902

VENEZUERA SPEC

main51441-26240iKDH220..GEN;KDH222..GL..GCC201606-201902

CAUCASUS(4 COUNTRIES) SPEC

51442COVER, ENGINE UNDER, NO.2

main51406-26200iTRH201,203..LHD..GEN201312-201406

COLD AREA SPEC

sub51406-26220

main51406-26210iKDH201..LHD;KDH200,202,203..(03S,12S,15S)..GEN201312-201406

COLD AREA SPEC

sub51406-26230

main51406-26220iTRH201,203..LHD..GEN201407

COLD AREA SPEC

main51406-26230iKDH201..02S..GEN201606-201701

AZERBAIJAN SPEC

sub51406-26250

main51406-26230iKDH200,202..GEN;KDH201,203..LHD..(03S,12S)201407-201701

COLD AREA SPEC

sub51406-26250

main51406-26250iGDH201201701-201901

AZERBAIJAN SPEC

main51406-26250iKDH202..15S..GEN;KDH200..LHD..5D..GEN201701-201901

COLD AREA SPEC

main51442-26150iKDH223..RUS201312-201407

COLD AREA SPEC

main51442-26180iTRH213,223..LHD..(10S,12S,13S)201312-201407

MEXICO SPEC

main51442-26180iTRH221..SP..GEN;TRH213,223..16S..GEN201312-201407

VENEZUERA SPEC

main51442-26180iTRH221..SP..GEN;TRH213,223..16S..GEN201312-201407

COLD AREA SPEC

main51442-26210iKDH213..5F201407-201906

COLD AREA SPEC

main51442-26210iKDH220..GEN;KDH222..GL..GCC201606-201902

CAUCASUS(4 COUNTRIES) SPEC

main51442-26210iKDH223..RUS201407-201902

main51442-26220iTRH221..SP..GEN;TRH223..5F..GEN201407-201902

VENEZUERA SPEC

main51442-26220iTRH213..GL..GEN201407-201512

MEXICO SPEC

main51442-26220iTRH223..10S,12S201407-201612

main51442-26220iTRH213..STD..GEN201407-202312

COLD AREA SPEC

51448ACOVER, ENGINE SIDE UNDER, RH

main51448-26030iTRH223..13S201312-201407

COLD AREA SPEC

sub51408-26070

main51448-26030iTRH213..GL..GEN201312-201407

MEXICO SPEC

sub51408-26070

main51448-26030iTRH213..GL..GEN201312-201407

VENEZUERA SPEC

sub51408-26070

main51448-26080iTRH213..GL..GEN201407-201512

MEXICO SPEC

sub51448-26200

main51448-26080iTRH223..10S,12S201407-201612

sub51448-26200

main51448-26080iKDH223..STD..GEN201407-201711

COLD AREA SPEC

sub51448-26200

main51448-26080iKDH223..RUS;TRH223..13S201407-201711

VENEZUERA SPEC

sub51448-26200

main51448-26080iKDH220..GEN;KDH222..GL..GCC201606-201711

CAUCASUS(4 COUNTRIES) SPEC

sub51448-26200

main51448-26140iGDH201,223202302

main51448-26200iKDH223,TRH223..(12S,13S)..GL201712-201902

VENEZUERA SPEC

main51448-26200iTRH213..GEN201712-202312

COLD AREA SPEC

main51448-26200iKDH223,TRH223..(12S,13S)..GL201712-201902

CAUCASUS(4 COUNTRIES) SPEC

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51074-26010iKDH223..STD..GEN201312-201906

COLD AREA SPEC

main51074-26010iKDH201..02S..GEN201606-201901

AZERBAIJAN SPEC

main51074-26010iKDH223..RUS201312-201902

main51074-26010iKDH220..GEN;KDH222..GL..GCC201606-201902

CAUCASUS(4 COUNTRIES) SPEC

9155380818

main91553-80818

91554L1435

main91554-L1435

91635B0820

main91635-B0820

91674K1025

main91674-K1025

91674L1480

main91674-L1480

10 parts on this diagram · 2 diagrams in section
