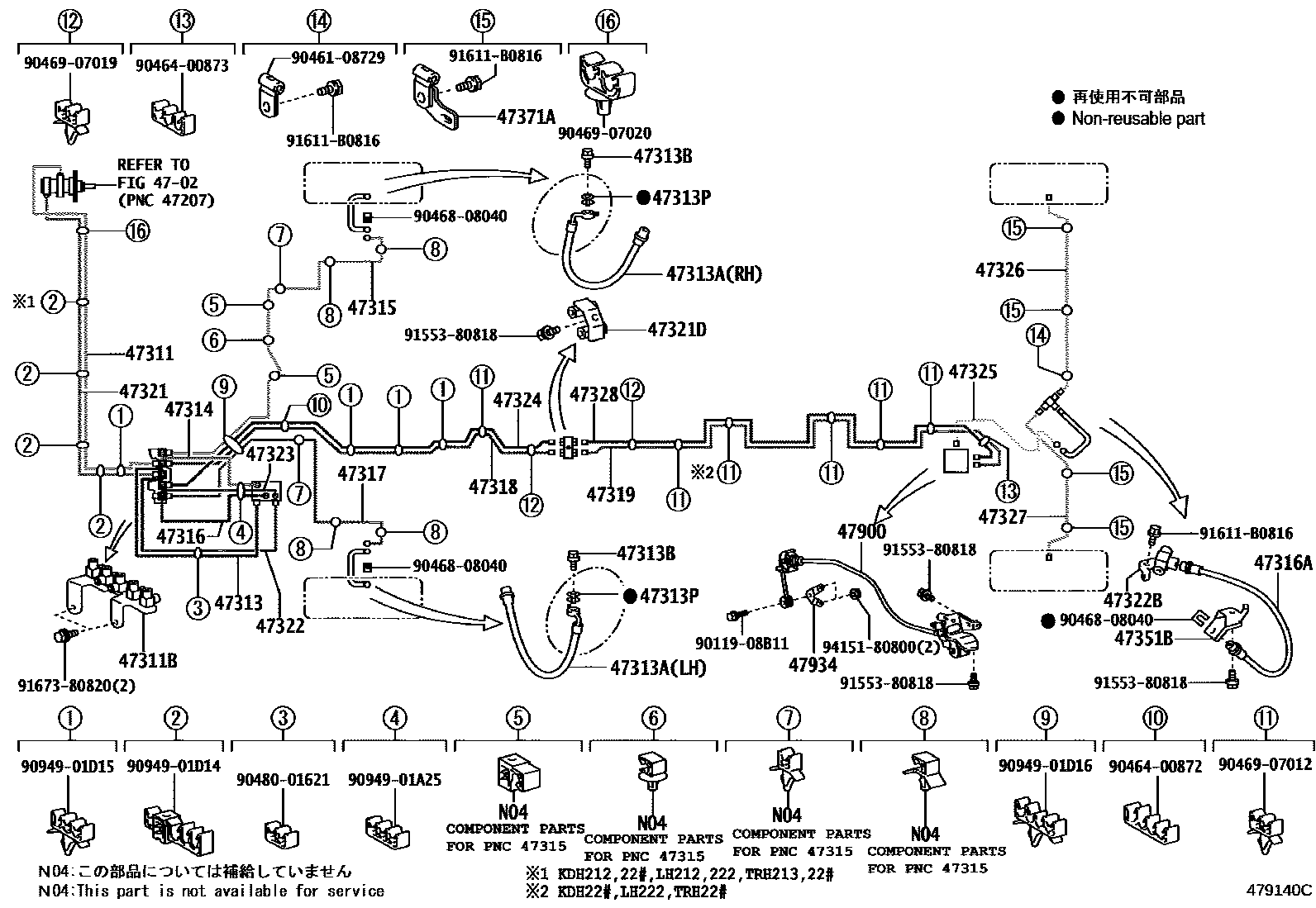

BRAKE TUBE & CLAMP

0001 1RHD WITH ABS 0003 1RHD WITHOUT ABS 0005 1LHD WITH ABS 0007 1LHD WITHOUT ABS 0009 1 0010 1 0011 1 0012 1 0015 1 0016 1 0017 1 0018 1 0019 1W(VSC) 0022 1W(VSC) 0023 1 0024 1 0026 1 0028 1W(VSC) 0030 1W(ABS) 0032 1

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-0L010iKDH222,TRH223..STD..SA201503-201712

main47311-0L020iKDH200,203..MA,TH201502-201701

main47311-0L030iKDH201..MA;KDH203..TH201701

main47311-0L040iKDH222,TRH223..STD..SA201712-202110

main47311-26A00iTRH201..SA;TRH200,201..4FC;KDH200,202,203,TRH203..MA,TH201312-201502

main47311-26A10iTRH221..RHD..5F;KDH222,TRH223..RHD..GL;TRH223..RHD..5F..(ARL,GEN);KDH222,223..RHD..STD..(ARL,GEN);KDH21#,220,221,LH212,222,TRH213..RHD201312-201501

main47311-26A20iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD201312-201501

main47311-26A30iKDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)201501-201701

main47311-26A40iKDH221..ARL;KDH223..4FC..ARL201501-201712

SINGAPORE SPEC

main47311-26A50iTRH203..LHD..5F;KDH222..LHD..GEN;TRH223..4FC..GEN;TRH223..LHD..STD..GEN;KDH200,TRH201..LHD..5D..GEN;KDH201,202,203,21#,220,223,LH20#,212,222,TRH213..LHD..(GCC,GEN,V201501-202312

main47311-26A60iKDH201..SG;KDH201..ARL;TRH201..RHD..(ARL,GEN)201501-201612

main47311-26A70iKDH221,223,TRH22#..RHD..(02S,03S,14S)..(ARL,GEN)201501-201712

main47311-26A80iTRH223..RUS201501-201712

main47311-26B30iTRH200201701-202107

main47311-26B40iKDH201,TRH201..RHD..(02S,05S,06S)201701-201712

main47311-26B50supersedes 47311-26B70iKDH212..SA;TRH213..RHD..5F201712-201901

main47311-26B60iKDH201,TRH201..RHD..(02S,05S,06S)201712-202004

main47311-26B70iKDH222,TRH223..STD..SA202110-202210

main47311-26B80iKDH222..GCC;TRH223..STD..GCC201712-201902

main47311-V3010iGDH201202302

main47311-V3020iGDH223202204

main47311-V3030iLH20#..RHD202401-202506

main47311-V3040iKDH222..RHD..GEN;KDH223,TRH223..RHD..(GEN,KEN,TH)202401

main47311-V3050iTRH203..GCC;LH20#,222..LHD202401-202506

main47311-VR010iKDH222,TRH223..STD..SA202210

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-12067iKDH200,222,TRH201,22#..GCC201701-201712

main90412-12068iKDH222..GL..SA202204-202206

main90412-12070iKDH213..TH201809-201906

main90413-10305supersedes 90413-10306iTRH223..4FC..GEN;TRH201,221..RHD..5F;TRH223..(12S,14S)..5F;KDH221,223..ARL,GEN,RUS;KDH201,203,212,TRH213..02S,06S,10S,11S;KDH200,213,220,222..(03S,06S,11S,14S)..(SA201312-201501

EGYPT SPEC

main90413-10306iTRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)201312-201501

main90413-10338supersedes 90413-10338iKDH213,TRH213..TH201501-201809

main90413-10339iLH222..RHD;KDH222..GL..GEN;KDH212..LHD..5F;TRH213..LHD..STD;TRH223..LHD..STD..GEN;KDH200,201..LHD..5D..GEN;TRH201,203..(03S,15S)..GEN;KDH202,203,220,LH212..(03S,12S201501-202507

47313TUBE, FRONT BRAKE, NO.3

main47313-0L010iKDH222,TRH223..STD..SA201503-202110

main47313-0L020iKDH200..MA201502-202312

main47313-26320iKDH202,223,TRH203..MA,TH201312-201502

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47313-26390supersedes 47313-26400iKDH202,222,LH20#,212,222,TRH203..RHD..4D..GEN201501-202312

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

main47313-26400iKDH222..GCC;TRH223..STD..GCC201701-201902

main47313-V3010iKDH222..GL..SA202204-202206

main47313-V3020iKDH200..GCC;TRH223..RHD..GEN;KDH223,TRH221..GEN,KEN,TH;KDH201,222..4D..5F..(GCC,GEN)202401

main47313-VR010iKDH222,TRH223..STD..SA202210-202507

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02F53iKDH200,202,223,TRH203,223..MA,TH201312-201502

RH

main90947-02F54iKDH200,202,223,TRH203,223..MA,TH201312-201502

LH

main90947-02G74iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC201501-202506

RH

main90947-02H54iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN201501-202301

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC201312-202506

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iGDH201,KDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#201312-201711

main47389-50021×2iKDH212,220,TRH213,223..03S,10S,14S201911-202107

47314TUBE, FRONT BRAKE, NO.4

main47314-0L010iKDH222,TRH223..STD..SA201503-202110

main47314-0L020iKDH200..MA201502-202312

main47314-0L030iKDH202,TRH203..MA201502-201611

main47314-26370supersedes 47314-26380iKDH202,223,TRH203..MA,TH201312-201502

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47314-26380iTRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)201312-201501

main47314-26390supersedes 47314-26410iKDH202..LHD;KDH200,222..LHD..GEN202108-202312

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

main47314-26400supersedes 47314-26410iKDH200,222,TRH201,22#..GCC201501-201701

main47314-26410iKDH222,TRH223..STD..SA202110-202210

main47314-V3010iGDH201,223,TRH200..(03S,14S)..6FC202204-202507

main47314-V3020iLH20#..LHD202401-202506

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47314-V3030iLH20#;TRH203..GCC202401-202506

main47314-V3040iTRH200..5F202401-202506

main47314-VR010iKDH222,TRH223..STD..SA202210-202507

47315TUBE, FRONT BRAKE, NO.5

main47315-0L010iKDH222,TRH223..STD..SA201503

main47315-0L020iKDH200..MA201502-202312

main47315-26290iTRH200,201..4FC;KDH200,202,203,TRH203..MA,TH201312-201502

main47315-26301iKDH223,TRH223..TH201312-201502

main47315-26330iKDH200..SA201908-202107

main47315-26340iKDH223..TH;TRH221..SP..GEN;TRH223..GL..GEN;TRH213,223..RHD..GEN201908-202312

main47315-V3020iGDH223202204-202312

main47315-V3021iGDH223202401

main47315-V3030iGDH201,TRH200..03S..6FC202302-202312

main47315-V3031iTRH200..03S..6FC202401-202507

main47315-V3050iKDH201,TRH203..4D..5F..GEN;KDH200,202,203,TRH201..(03S,06S,12S,15S)..(GCC,GEN)202401

main47315-V3060iKDH222..GL;TRH213..LHD;KDH222..STD..(GCC,GEN);KDH223,TRH22#..GCC,GEN,KEN,TH202401

47316TUBE, FRONT BRAKE, NO.6

main47316-0L010iKDH222,TRH223..STD..SA201503-202110

main47316-0L020iKDH201..MA;KDH203..TH201502

main47316-0L030iKDH202,TRH203..MA201502-201611

main47316-26470supersedes 47316-26480iKDH202,223,TRH203..MA,TH201312-201502

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47316-26480iTRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)201312-201501

main47316-26490supersedes 47316-26510iKDH202,222,LH20#,212,222,TRH203..RHD..4D..GEN201501-202312

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

main47316-26500supersedes 47316-26510iLH222..RHD;KDH212..LHD..5F;TRH213..LHD..STD;KDH222,LH200..4D..GEN;TRH223..LHD..STD..GEN;KDH200,201,TRH201..LHD..5D..GEN;KDH202,203,220,LH202,212,TRH203..(03S,12S,15201501-202312

main47316-26510iKDH201..SG;KDH221,TRH200..4FC,5F;KDH201,TRH22#..ARL,RUS;KDH223,TRH201..RHD..(02S,05S,06S,14S)..(5F,6FC)201501-202312

main47316-V3010iGDH201,223,TRH200..(03S,14S)..6FC202204-202507

main47316-V3020iLH20#..LHD202401-202506

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47316-V3030iKDH202;TRH213,223..LHD..GEN;KDH200,203,TRH201,203..(03S,15S)..GEN202401-202507

SRS AIR BAG-WITHOUT

main47316-V3040iTRH200..5F202401-202506

main47316-VR010iKDH222,TRH223..STD..SA202210-202507

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02F56iKDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#201312-201501

main90947-02H57supersedes 90947-02H58iTRH221..SG201911

main90947-02H58×2iKDH213,TRH223..GCC,TH201911

47317TUBE, FRONT BRAKE, NO.7

main47317-0L010iKDH222,TRH223..STD..SA201503

main47317-0L020iKDH203..TH;KDH201,202,TRH203..MA201502

main47317-26340iKDH222..GL;TRH201,221..5F;TRH223..GL..SA;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);KDH203,223..ARL,GEN,RUS;TRH223..5F..(ARL,GCC,GEN,RUS);KDH200,201,202,21#,220,221,LH201312-201501

main47317-26360iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201501-201901

main47317-V3020iKDH222..GL..SA202204-202206

main47317-V3021iGDH201,223202401

main47317-V3030iTRH203..GCC;LH20#,222,TRH200..5F202401-202506

47318TUBE, FRONT BRAKE, NO.8

main47318-26280iKDH222..GL;TRH223..GL..SA;KDH222..STD..(GCC,GEN);KDH203,223,TRH223..ARL,GCC,GEN,RUS;KDH200,201,202,21#,220,221,LH20#,212,222,TRH20#,213,221..ARL,GCC,GEN,SA,TH201312-201501

47319TUBE, FRONT BRAKE, NO.9

main47319-26350iKDH203..GEN;KDH200,201,202,21#,LH20#,212,TRH20#,213..ARL,GCC,GEN,SA,TH201312-201501

main47319-26360iKDH222,TRH223..STD..SA201312-201503

47321TUBE, REAR BRAKE, NO.1

main47321-0L010iKDH222,TRH223..STD..SA201503-201712

main47321-0L020iKDH200,203..MA,TH201502-201701

main47321-0L030iKDH201..MA;KDH203..TH201701

main47321-0L040iKDH222,TRH223..STD..SA201712-202110

main47321-26750iTRH201..RHD..5F..(ARL,GEN);KDH20#,LH20#,TRH203..RHD..(02S,03S,06S,15S)..(ARL,GEN,SA,TH)201312-201501

main47321-26760iKDH223,TRH223..TH201312-201502

main47321-26770iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD201312-201501

main47321-26780iKDH201..RHD..SP..(GEN,TH);KDH200,202,203,LH20#,TRH200,203..RHD..(GEN,SA)201501-201701

main47321-26790iKDH223,TRH223..TH201502-201712

main47321-26800iKDH200,222,TRH201,22#..GCC201501-201701

main47321-26810iKDH202,TRH203..MA201502-201612

main47321-26820iKDH221,223,TRH22#..RHD..(02S,03S,14S)..(ARL,GEN)201501-201712

main47321-26830iKDH223..RUS201501-201701

main47321-26850iKDH201,203..RHD..(02S,03S)..GEN201701-202301

main47321-26860iKDH201,TRH201..RHD..(02S,05S,06S)201701-201712

main47321-26870supersedes 47321-26890iKDH222..GL..SA201911-202110

main47321-26880iTRH200..5F202302-202506

main47321-26890iTRH213,223..TH;KDH223..4FC..TH201809

main47321-26A00iKDH200..GCC201712-202401

main47321-V3010iTRH200..03S..6FC202302-202507

main47321-V3020iGDH223202204

main47321-V3030iLH20#..RHD202401-202506

main47321-V3040iKDH222..RHD..GEN;KDH223,TRH223..RHD..(GEN,KEN,TH)202401

main47321-V3050iTRH203..GCC;LH20#,222..LHD202401-202506

main47321-VR010iKDH222,TRH223..STD..SA202210

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166iKDH222,TRH223..STD..SA;TRH200,201,22#..RHD..4FC201312-201503

main90412-10285iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC201501-202506

47322TUBE, REAR BRAKE, NO.2

main47322-0L010iKDH222,TRH223..STD..SA201503-202110

main47322-0L020iKDH201..MA;KDH203..TH201502

main47322-26420iKDH202,223,TRH203..MA,TH201312-201502

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47322-26430supersedes 47322-26460iKDH213,TRH213..TH201501-201809

main47322-26440iKDH223..RUS201501-201701

main47322-26460iTRH213,223..TH;KDH223..4FC..TH201809-202507

main47322-V3010iKDH222..GL..SA202204-202206

main47322-V3020iKDH200..GCC;TRH223..RHD..GEN;KDH223,TRH221..GEN,KEN,TH;KDH201,222..4D..5F..(GCC,GEN)202401

main47322-VR010iKDH222,TRH223..STD..SA202210-202507

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10307iKDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#201312-201501

main90413-10337iTRH213..RHD..GEN201908-202312

47323TUBE, REAR BRAKE, NO.3

main47323-0L010iKDH222,TRH223..STD..SA201503-202110

main47323-0L020iKDH201..MA;KDH203..TH201502

main47323-0L030iKDH202,TRH203..MA201502-201611

main47323-26410iKDH202,223,TRH203..MA,TH201312-201502

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47323-26420supersedes 47323-26430iKDH213,TRH213..TH201501-201809

main47323-26430iKDH201..SG;KDH221,TRH200..4FC,5F;KDH201,TRH22#..ARL,RUS;KDH223,TRH201..RHD..(02S,05S,06S,14S)..(5F,6FC)201501-202312

main47323-V3010iKDH222..GL..SA202204-202206

main47323-V3020iKDH200..GCC;TRH223..RHD..GEN;KDH223,TRH221..GEN,KEN,TH;KDH201,222..4D..5F..(GCC,GEN)202401

main47323-V3030iTRH200..5F202401-202506

main47323-VR010iKDH222,TRH223..STD..SA202210-202507

47324TUBE, REAR BRAKE, NO.4

main47324-0L010iKDH222,TRH223..STD..SA201503-201701

main47324-0L011iKDH222,TRH223..STD..SA201701

main47324-0L020iKDH200,202,203,TRH203..MA,TH201502-201701

main47324-0L021iKDH200..MA201701-202312

main47324-26550supersedes 47324-26560iKDH202,223,TRH203..MA,TH201312-201502

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47324-26560iTRH201..LHD;TRH223..16S..(GCC,GEN);KDH212,222..4D..(GCC,GEN);KDH20#,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC,GEN,TH)201312-201501

main47324-26570iKDH212..13S..4FC;KDH201,TRH201..RHD;KDH223,TRH223..10S,12S,13S,14S;KDH201,212..(02S,10S,11S)..(GEN,SA);KDH200,220,222,TRH221..(02S,03S,06S,14S)..(ARL,SA);KDH203,213201501-201601

EGYPT SPEC

main47324-26571supersedes 47324-26581iTRH203..4FC;KDH200..LHD..4D201601-201901

SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)

main47324-26580iKDH212..5F..(GCC,GEN);KDH201,TRH201..LHD..5D;KDH200,202,203,220,222,LH20#,212,222,TRH203,213,22#..(03S,12S,15S,16S)..(GCC,GEN)201501-201601

main47324-26581supersedes 47324-26571iKDH200,222,TRH201,22#..GCC201601-201701

main47324-V3010iGDH201,223,TRH200..(03S,14S)..6FC202204-202312

main47324-V3011iTRH200..03S..6FC202401-202507

main47324-V3020iLH20#..LHD202401-202506

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

main47324-V3030iKDH202;TRH213,223..LHD..GEN;KDH200,203,TRH201,203..(03S,15S)..GEN202401-202507

SRS AIR BAG-WITHOUT

47325TUBE, REAR BRAKE, NO.5

main47325-0L010iKDH222,TRH223..STD..SA201503-202110

main47325-0L020iKDH201..MA;KDH203..TH201502

main47325-26400iTRH200,201..4FC;KDH200,202,203,TRH203..MA,TH201312-201502

main47325-26410iTRH221..5F;KDH222..GL;TRH223..GL..SA;KDH223..12S,14S;TRH223..LHD..4FC;KDH222..STD..(GCC,GEN);TRH223..5F..(ARL,GCC,GEN,RUS);KDH21#,220,221,LH212,222,TRH213201312-201501

main47325-26420iTRH200201501-202107

main47325-26430iKDH222,TRH22#..GCC201501-201701

main47325-V3010iTRH201,203..GEN;KDH201..4D..5F..GEN;KDH200,202,203..(03S,12S,15S)..(GCC,GEN)202401

main47325-V3020iLH222202401-202506

47326TUBE, REAR BRAKE, NO.6

main47326-0L010iKDH222,TRH223..STD..SA201503-202110

main47326-0L020iKDH200..MA201502-202312

main47326-0L030iKDH202,TRH203..MA201502-201611

main47326-26470iKDH203,TRH201..5F..STD;KDH200,201,202,LH20#,TRH203..ARL,GCC,GEN,SA,TH201312-201501

main47326-26480iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221201312-201501

main47326-26490iKDH222,TRH223..STD..SA201312-201503

main47326-26500iLH200..5D;TRH203..4FC;KDH200..LHD..4D;KDH200..RHD..GEN201908-202312

main47326-26510supersedes 47326-26540iKDH212,220,TRH213..SA201911-202107

main47326-26520supersedes 47326-26550iTRH223..RHD..GEN;KDH222,TRH223..5F..GL..(GEN,SA)201501-201902

main47326-26530iKDH200,TRH201..GCC201701-202312

main47326-26540iTRH223..ARL,RUS;KDH223..5F..ARL;GDH223,KDH221,TRH221..RHD..(ARL,GEN)201501-202312

main47326-26550iKDH222..GL..SA202110-202312

main47326-V3010iTRH201,203..GEN;KDH201..4D..5F..GEN;KDH200,202,203..(03S,12S,15S)..(GCC,GEN)202401

main47326-V3020iKDH222..GCC;TRH213,221..LHD..GEN202401

main47326-V3030iLH222202401-202506

main47326-V3040iTRH200..03S..6FC202401-202507

main47326-V3050iGDH223;TRH22#..GCC202401

main47326-V3060iKDH222..GL..SA202401

main47326-VR010iKDH222,TRH223..STD..SA202210

47327TUBE, REAR BRAKE, NO.7

main47327-0L010iKDH222,TRH223..STD..SA201503-202110

main47327-0L020iKDH201..MA;KDH203..TH201502

main47327-0L030iKDH202,TRH203..MA201502-201611

main47327-26320iTRH200,201..4FC;KDH200,202,203,TRH203..MA,TH201312-201502

main47327-26330iTRH223..4FC..GEN;KDH222,223,TRH223..ARL,GCC,RUS;KDH21#,220,221,LH212,TRH213,221201312-201501

main47327-26340iKDH223,TRH223..TH201312-201502

main47327-26350iKDH200..SA201908-202107

main47327-26360supersedes 47327-26390iKDH222,TRH22#..GCC201501-201701

main47327-26370supersedes 47327-26400iKDH222,LH222..GEN;KDH223..GEN,KEN,VN;TRH223..LHD..STD..GEN201501-202312

main47327-26380iKDH200,TRH201..GCC201701-202312

main47327-26390iKDH213..TH201809-201906

main47327-26400iTRH223..TH;KDH223..4FC..TH201809-202312

main47327-V3010iTRH201,203..GEN;KDH201..4D..5F..GEN;KDH200,202,203..(03S,12S,15S)..(GCC,GEN)202401

main47327-V3020iKDH222..GCC;TRH213,221..LHD..GEN202401

main47327-V3030iLH222202401-202506

main47327-V3040iGDH201;TRH201..GCC202401

main47327-V3050iGDH223;TRH22#..GCC202401

main47327-V3060iKDH222..GL..SA202401

main47327-VR010iKDH222,TRH223..STD..SA202210

47328TUBE, REAR BRAKE, NO.8

main47328-0L010iKDH222,TRH223..STD..SA201503-202110

main47328-0L020iKDH201..MA;KDH203..TH201502

main47328-0L030iKDH202,TRH203..MA201502-201611

main47328-26150iKDH203,TRH201..5F..STD;KDH200,201,202,21#,LH20#,212,TRH203,213..ARL,GCC,GEN,SA,TH201312-201501

main47328-26160iTRH22#..4FC..ARL;KDH222,TRH223..STD..SA201312-201503

main47328-26170iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201501-201901

main47328-26180supersedes 47328-26210iTRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH220,222..(03S,14S)..SA201501-201902

main47328-26190iKDH200,TRH201..GCC201701-202306

main47328-26200iKDH213201911-202004

sub47328-V3040

main47328-26210iKDH223..4FC..ARL201501-201903

main47328-V3010supersedes 47328-V3030iTRH213..LHD;KDH201,202..4D..5F..(GCC,GEN);KDH200,203,TRH201,203..(03S,15S)..GEN202307

main47328-V3020supersedes 47328-V3050iLH222202307-202506

main47328-V3030iGDH201;TRH201..GCC202307

main47328-V3050iTRH22#..GCC;GDH223,KDH222..14S202307

main47328-VR010iKDH222,TRH223..STD..SA202210

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-26210supersedes 47351-26220iKDH222,TRH223..STD..SA201312-202110

main47351-26220iKDH223..RUS201501-201701

47371ACLAMP, BRAKE TUBE, NO.1

main47371-26200×4iTRH203..4FC;KDH200..LHD..4D201312-201901

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)

47900VALVE ASSY, LOAD SENSING W/SPRING

main47900-26510iKDH201..ARL;TRH201..RHD..5F..(ARL,GEN);KDH201,202,TRH203..SG..(06S,10S)201312-201501

main47900-26550iKDH21#,220,TRH213..LHD;TRH22#..4FC..(ARL,GEN);KDH220,LH212,TRH221..06S,16S201312

main47900-26570iLH222..RHD;KDH222..GEN;TRH223..LHD..STD..GEN;KDH223..(03S,14S,16S)..(GEN,KEN,VN)201312

47934BRACKET, LOAD SENSING

main47934-26110iKDH202,TRH203..MA201312-201501

9011908B11

main90119-08B11

9046108729

main90461-08729

9046400872

main90464-00872

9046400873

main90464-00873

9046808040

main90468-08040

9046907012

main90469-07012

9046907019

main90469-07019

9046907020

main90469-07020

9048001621

main90480-01621

9094901A25

main90949-01A25

9094901D14

main90949-01D14

9094901D15

main90949-01D15

9094901D16

main90949-01D16

9155380818

main91553-80818

91611B0816

main91611-B0816

9167380820

main91673-80820

9415180800

main94151-80800

45 parts on this diagram · 20 diagrams in section
