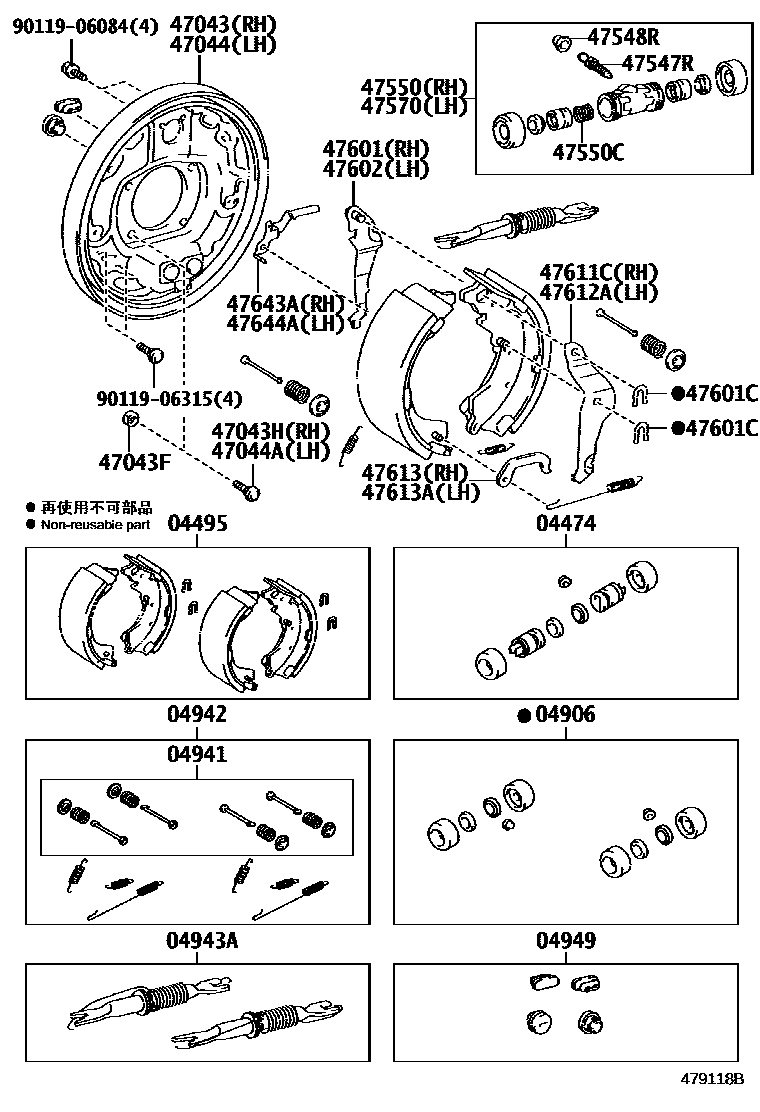

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

04474CYLINDER KIT, REAR WHEEL

main04474-26070iTRH223..GCC;KDH213,TRH221..SG201312-202507

main04474-35100iKDH223..5F..TH201312-202506

04495SHOE KIT, REAR BRAKE

main04495-26240iTRH223..GCC;KDH213,TRH221..SG201312-202507

MARK NBK D9033

main04495-35230iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

MARK NBK LN508

main04495-35250iKDH223..5F..TH201501-202506

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-26080iTRH221..SA201312-202507

main04906-35130iTRH223..GL..SA201312-202506

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-25040iKDH222..KEN201312-202506

main04941-26010iTRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200..RHD..GEN201312-202507

04942SPRING KIT, REAR BRAKE

main04942-25070iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

main04942-26010iKDH221,TRH201;KDH200..LHD..5D;TRH223..GL..GCC;TRH213..LHD..GEN;KDH201..4D..03S..5F;KDH201,21#..LHD..(03S,10S,11S,13S,16S);TRH223..(10S,12S,13S,14S)..(ARL,GEN,RUS);T201312-202507

main04942-26030iLH222..RHD;KDH223..4FC..TH;KDH223..GEN,KEN,VN;TRH223..STD..(SA,TH);KDH222..16S..(GEN,SA);TRH223..LHD..STD..GEN201501-202506

04943ASTRUT KIT, REAR BRAKE

main04943-08030iTRH213..RHD..GEN201312-202507

main04943-25020iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

main04943-26020iLH222..LHD201501-202506

04949PLUG KIT, REAR BRAKE

main04949-13010iKDH223..4FC..ARL;KDH201,203,212..RHD..(02S,03S,16S)..GEN201312-202507

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26150iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

main47043-26530iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

main47043-26560iKDH223..5F..TH201501-202506

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10088iTRH201;TRH221..GCC;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(201312-202507

47043HBOLT, NO.1(FOR REAR BRAKE BACKING PLATE RH)

main90114-10002iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-202507

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26150iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

main47044-26530iKDH213..TH201312-202507

main47044-26560iKDH223..5F..TH201501-202506

47044ABOLT, NO.1(FOR REAR BRAKE BACKING PLATE LH)

main90114-10002iKDH223..5F..TH201312-202507

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iTRH200..03S..6FC201312-202507

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iKDH223..5F..TH201312-202507

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26140iKDH200,212,220,TRH213..SA201312-202507

main47550-26150iTRH223..RHD..GEN;KDH222,TRH223..5F..GL..(GEN,SA)201312-202506

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60009iLH222..RHD;KDH223..4FC..TH;KDH223..GEN,KEN,VN;TRH223..STD..(SA,TH);KDH222..16S..(GEN,SA);TRH223..LHD..STD..GEN201312-202506

main90029-60011iKDH200,212,220,TRH213..SA201312-202507

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26140iTRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200..RHD..GEN201312-202507

main47550-26150iKDH223..5F..TH201312-202506

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-26530iTRH223..GCC;KDH213,TRH221..SG201312-202507

main47612-35040iKDH223..5F..TH201312-202506

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iTRH203..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200..RHD..GEN201312-202507

T=1.2

main90213-07010iKDH223..5F..TH201312-202506

T=1.6

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-26530iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

main47611-35040iLH222..LHD201312-202506

47611CLEVER, PARKING BRAKE SHOE, RH

main47681-26530iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

47612ALEVER, PARKING BRAKE SHOE, LH

main47682-26530iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

47613STRUT, PARKING BRAKE SHOE (FOR REAR BRAKE)

main47683-26530iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

47613ASTRUT, PARKING BRAKE SHOE, NO.2(FOR REAR BRAKE)

main47684-26530iKDH200,212,220,TRH213..SA201312-202507

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-35040iTRH223..GL..SA201501-202506

main47643-45010iKDH200..MA201312-202507

sub47643-0K110

main47644-60010iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-60010iKDH222,223,LH222,TRH223..(12S,14S,16S)..(GEN,SA,TH)201312-201501

main47644-35040iTRH223..GL..SA201501-202506

main47644-45010iKDH200..MA201312-202507

sub47644-0K110

9011906084

main90119-06084

9011906315

main90119-06315
